1 / 6Optical Filters

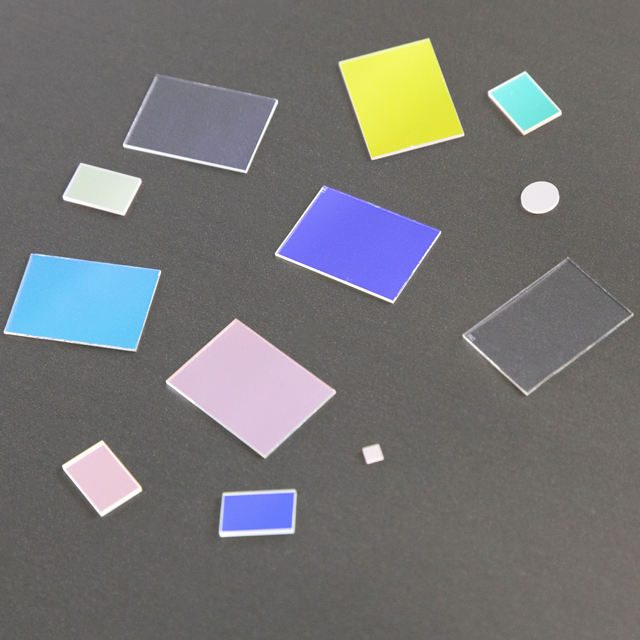

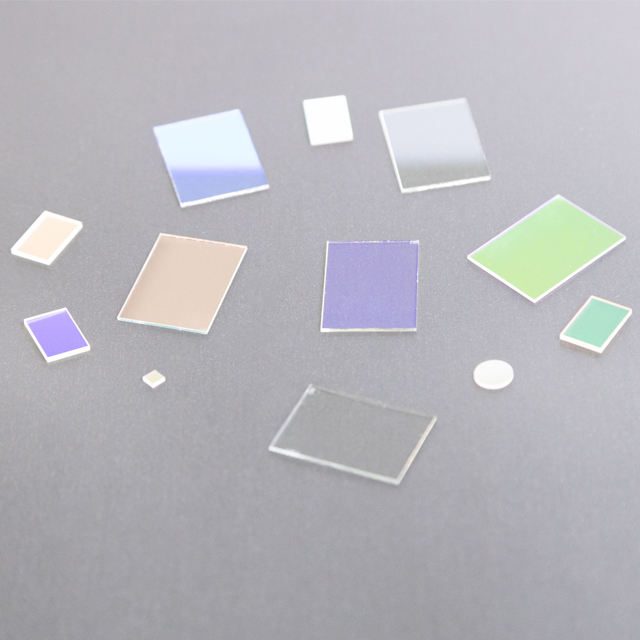

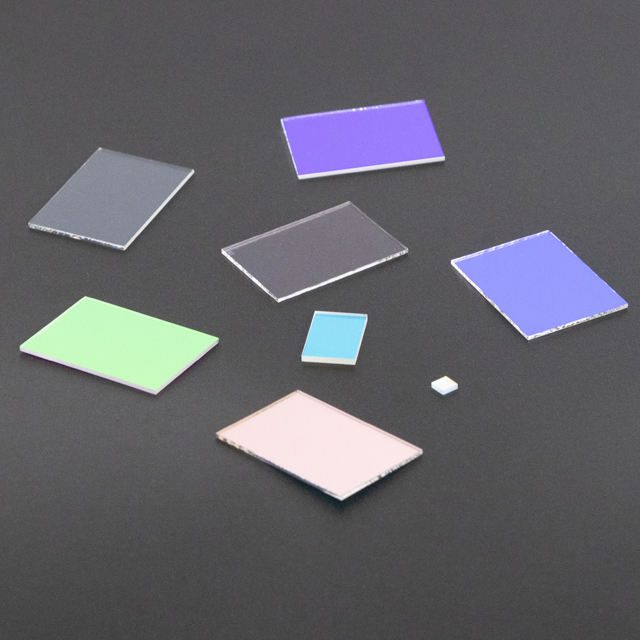

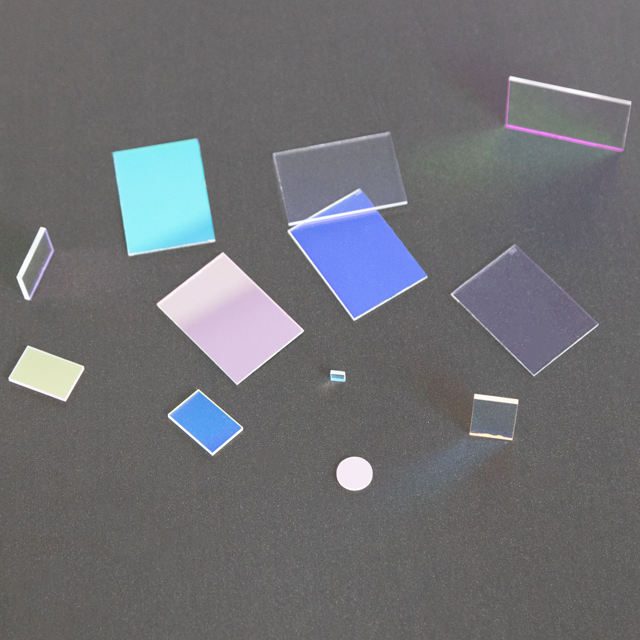

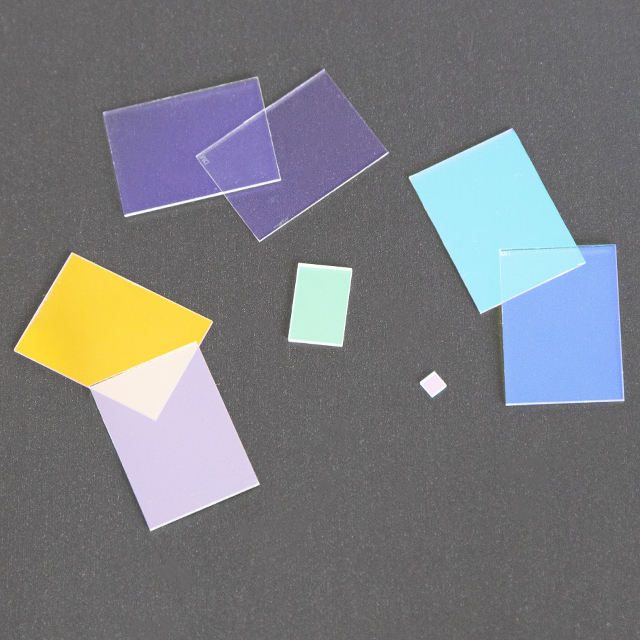

Custom Size Fused Silica Optical Filter
Explore our 670nm dichroic filter with 85% transmittance, ideal for fluorescence microscopy and customizable for various applications.
Core attributes
- Material
- Fused Silica
- Size
- Custom
- Thickness
- 0.3 mm
- Surface Quality
- 40/20
- Transmittance
- 85%
- Filter Type
- dichroic
- Cwl
- 670nm
- Coating
- iad-pvd
- Transmission bands
- VIS (400-700 nm)
Product facts
Key attributes
- Material
- Fused Silica
- Size
- Custom
- Thickness
- 0.3 mm
- Surface Quality
- 40/20
- Transmittance
- 85%
- Filter Type
- dichroic
- Cwl
- 670nm
- Coating
- iad-pvd
- Transmission bands
- VIS (400-700 nm)
Product description
The 670nm dichroic filter is designed for applications requiring high transmittance in the 400-700 nm range. With a transmittance of 85%, this filter effectively separates wavelengths, making it ideal for fluorescence microscopy and other optical applications. Its robust fused silica material ensures durability, while the iad-pvd coating enhances performance. Available in thicknesses from 0.3mm to 5.0mm, this filter meets diverse project requirements.
Key Features
- Transmittance of 85% ensures effective wavelength separation for optimal performance.
- Dichroic filter type is ideal for fluorescence and optical applications.
- Available thicknesses from 0.3mm to 5.0mm accommodate various design needs.
- Manufactured with double-sided polishing for superior surface quality (40/20).
- Customizable options available for OEM, ODM, and OBM projects.
Specification Summary
| Item | Value |
|---|---|
| Material | Fused Silica |
| Size | Custom |
| Thickness | 0.3 mm |
| Surface Quality | 40/20 |
| Transmittance | 85% |
| Filter Type | dichroic |
| Cwl | 670nm |
| Coating | iad-pvd |
| Transmission bands | VIS (400-700 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Transmittance | 85%; >85% |
| Customized Support | OEM, ODM, OBM |
| Warranty | 3 Years |
| Coating Region | Single-sided or double-sided |
| Manufacture | Double sided polishing |
| Substrate | B270,JGS1,Quartz Glass,Absorptive Glass |
| Tolerance | ± 0.10mm |
| Certification | ISO9001,RoHs,EPR |
| Shipment | Express delivery,Air,Sea |
FAQ
What are the available thicknesses for this filter?
The filter is available in thicknesses ranging from 0.3mm to 5.0mm.
What is the surface quality of the filter?
The filter has a surface quality of 40/20.
