1 / 6Optical Filters

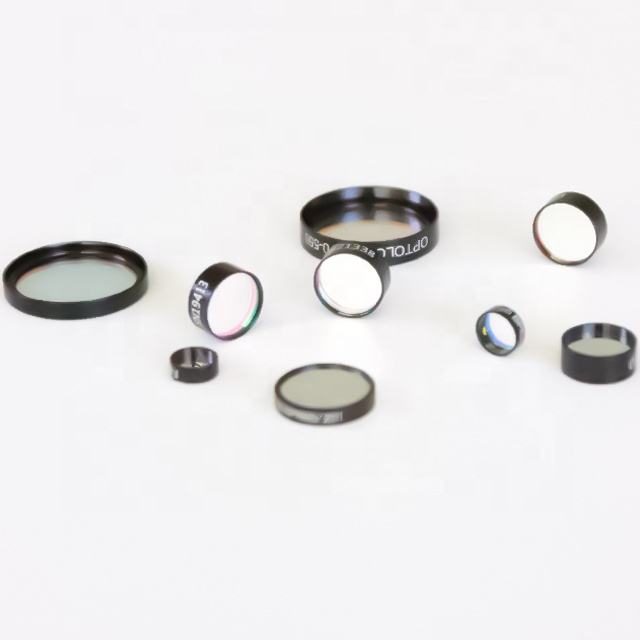

Custom Size Fused Silica Optical Filter
Discover the 405nm longpass filter with 85% transmittance, ideal for fluorescence microscopy and optical sensing applications.
Core attributes
- Material
- Fused Silica
- Size
- Custom
- Thickness
- 0.3 mm
- Surface Quality
- 40/20
- Transmittance
- 85%
- Filter Type
- longpass
- Cwl
- 405nm
- Coating
- iad-pvd
- Transmission bands
- VIS (400-700 nm)
Product facts
Key attributes
- Material
- Fused Silica
- Size
- Custom
- Thickness
- 0.3 mm
- Surface Quality
- 40/20
- Transmittance
- 85%
- Filter Type
- longpass
- Cwl
- 405nm
- Coating
- iad-pvd
- Transmission bands
- VIS (400-700 nm)
Product description
The 405nm longpass filter is designed to effectively transmit wavelengths above 405nm while blocking shorter wavelengths, making it ideal for applications in fluorescence microscopy and optical sensing. With a high transmittance of 85%, this filter ensures minimal loss of signal while maintaining excellent spectral performance. Its fused silica construction and iad-pvd coating provide durability against environmental factors, ensuring reliability in various applications.
Key Features
- Transmittance of 85% ensures high signal retention for optimal performance.
- Longpass filter type effectively blocks wavelengths below 405nm, enhancing application specificity.
- Available thickness options from 0.3mm to 5.0mm for versatile integration.
- Manufactured with double-sided polishing for superior surface quality (40/20).
- Customizable options available, including OEM and ODM support.
Specification Summary
| Item | Value |
|---|---|
| Material | Fused Silica |
| Size | Custom |
| Thickness | 0.3 mm |
| Surface Quality | 40/20 |
| Transmittance | 85% |
| Filter Type | longpass |
| Cwl | 405nm |
| Coating | iad-pvd |
| Transmission bands | VIS (400-700 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Transmittance | 85%; >85% |
| Customized Support | OEM, ODM, OBM |
| Warranty | 3 Years |
| Coating Region | Single-sided or double-sided |
| Tolerance | ± 0.10mm |
| Manufacture | Double sided polishing |
| Certification | ISO9001,RoHs,EPR |
| Shipment | Express delivery,Air,Sea |
FAQ
Can I get custom sizes?
Yes, customizable options are available, including OEM and ODM support.
What is the tolerance for this filter?
The tolerance for this filter is ± 0.10mm.
