1 / 6Optical Filters

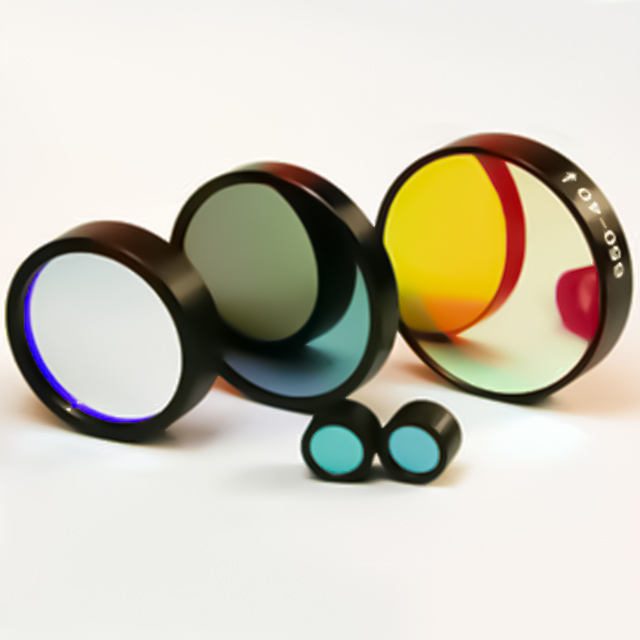

Custom Size Fused Silica Optical Filter
Longpass filter with 85% transmittance at 470 nm, ideal for fluorescence microscopy and optical applications.
Core attributes
- Material
- Fused Silica
- Size
- Custom
- Thickness
- 0.3 mm
- Surface Quality
- 40/20
- Transmittance
- 85%
- Filter Type
- longpass
- Cwl
- 470nm
- Coating
- iad-pvd
- Transmission bands
- VIS (400-700 nm)
Product facts
Key attributes
- Material
- Fused Silica
- Size
- Custom
- Thickness
- 0.3 mm
- Surface Quality
- 40/20
- Transmittance
- 85%
- Filter Type
- longpass
- Cwl
- 470nm
- Coating
- iad-pvd
- Transmission bands
- VIS (400-700 nm)
Product description
The longpass filter with a center wavelength of 470 nm is designed to efficiently transmit wavelengths above 470 nm while blocking shorter wavelengths. Ideal for applications in fluorescence microscopy and other optical systems, this filter ensures high transmittance of 85%, providing reliable performance in demanding environments. Its fused silica substrate offers durability, and the IAD-PVD coating enhances its optical properties, making it suitable for various scientific applications.
Key Features
- Transmittance of 85% ensures high light throughput for optimal imaging.
- Longpass filter type effectively blocks unwanted shorter wavelengths.
- Durable fused silica substrate withstands environmental challenges.
- Customizable options available for OEM, ODM, and OBM projects.
- Thickness range of 0.3 mm to 5.0 mm accommodates diverse applications.
Specification Summary
| Item | Value |
|---|---|
| Material | Fused Silica |
| Size | Custom |
| Thickness | 0.3 mm |
| Surface Quality | 40/20 |
| Transmittance | 85% |
| Filter Type | longpass |
| Cwl | 470nm |
| Coating | iad-pvd |
| Transmission bands | VIS (400-700 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Transmittance | 85%; >85% |
| Customized Support | OEM, ODM, OBM |
| Warranty | 3 Years |
| Coating Region | Single-sided or double-sided |
| Blocking Density | OD2-OD6 |
| Substrate | Fused Silica |
| Tolerance | ± 0.10mm |
| Certification | ISO9001,RoHs,EPR |
| Shipment | Express delivery,Air,Sea |
FAQ
What are the available thickness options?
The filter thickness ranges from 0.3 mm to 5.0 mm.
Can I get a custom size for this filter?
Yes, customizable options are available for OEM and ODM projects.
