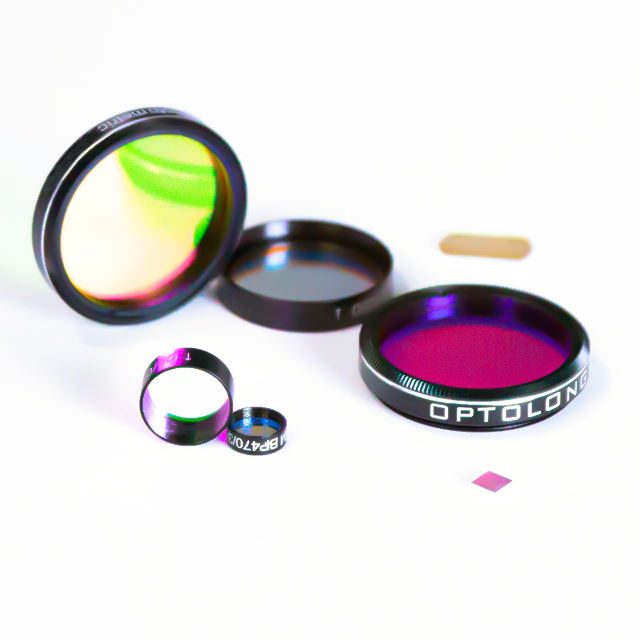

Custom Size Fused Silica Optical Filter

Product description

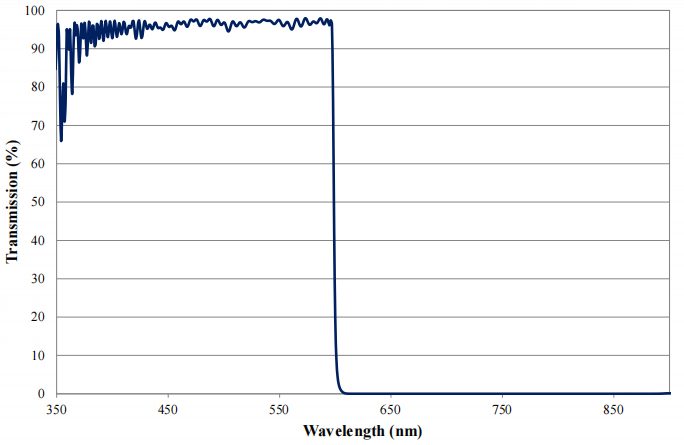

This shortpass filter is designed for applications requiring effective blocking of wavelengths above 600 nm while allowing transmission of light below this threshold. With a center wavelength of 600 nm and a transmittance of 85%, it is ideal for fluorescence microscopy and other optical applications where precise wavelength control is crucial. The filter is made from durable fused silica and features a hard coating for enhanced environmental durability.

Key Features

Transmittance of 85% ensures high light throughput for optimal performance.
Shortpass filter type effectively blocks unwanted longer wavelengths, enhancing signal quality.
Available thickness options from 0.3 mm to 5.0 mm for versatile application needs.
Manufactured with double-sided polishing for superior surface quality (40/20).
Custom OEM, ODM, and OBM support available to meet specific project requirements.

Specification Summary

Item	Value
Material	Fused Silica
Size	Custom
Thickness	0.3 mm
Surface Quality	40/20
Transmittance	85%
Filter Type	shortpass
Cwl	600nm
Coating	iad-pvd, hard-coat
Transmission bands	VIS (400-700 nm)

Full Specifications

Parameter	Value
Transmittance	85%; >85%
Customized Support	OEM, ODM, OBM
Warranty	3 Years
Coating Region	Single-sided or double-sided
Manufacture	Double sided polishing
Substrate	B270,JGS1,Quartz Glass,Absorptive Glass
Certification	ISO9001,RoHs,EPR
Shipment	Express delivery,Air,Sea

FAQ

Can custom sizes be ordered?

Yes, custom sizes and thicknesses are available to fit specific application needs.

What is the minimum order quantity (MOQ)?

Minimum order quantity details are not specified; please inquire for specific requirements.
