1 / 6Optical Filters

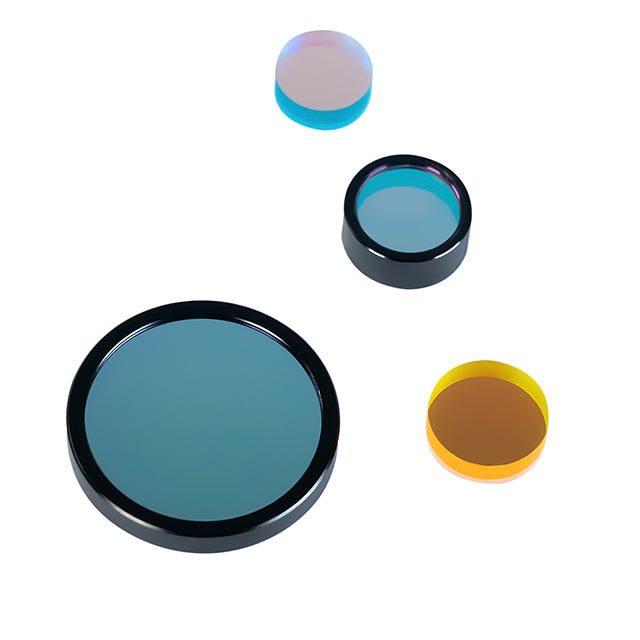

Custom Size Fused Silica Optical Filter
Explore our 600 nm shortpass filter with 85% transmittance, ideal for fluorescence microscopy and customizable options.
Core attributes
- Material
- Fused Silica
- Size
- Custom
- Thickness
- 0.3 mm
- Surface Quality
- 40/20
- Transmittance
- 85%
- Filter Type
- shortpass
- Cwl
- 600nm
- Coating
- iad-pvd
- Transmission bands
- VIS (400-700 nm)
Product facts
Key attributes
- Material
- Fused Silica
- Size
- Custom
- Thickness
- 0.3 mm
- Surface Quality
- 40/20
- Transmittance
- 85%
- Filter Type
- shortpass
- Cwl
- 600nm
- Coating
- iad-pvd
- Transmission bands
- VIS (400-700 nm)
Product description

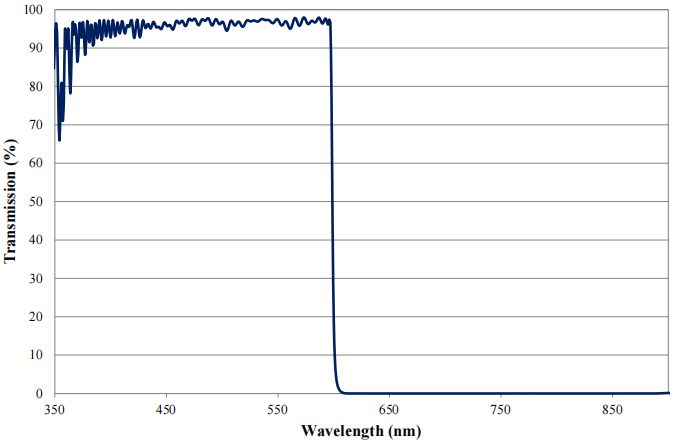

The shortpass filter with a center wavelength of 600 nm is designed to effectively block wavelengths above 600 nm while allowing transmission of shorter wavelengths. With a transmittance of 85%, this filter is ideal for applications in fluorescence microscopy and other optical setups where precise wavelength control is essential. The filter is made from fused silica, ensuring durability and reliability in various environments.
Key Features
- Transmittance of 85% ensures effective light management for optimal performance.
- Shortpass design allows for selective wavelength filtering, enhancing application specificity.
- Available thicknesses from 0.3 mm to 5.0 mm cater to diverse application needs.
- Manufactured with double-sided polishing for superior surface quality (40/20).
- Customizable options available, including OEM and ODM services.
Specification Summary
| Item | Value |
|---|---|
| Material | Fused Silica |
| Size | Custom |
| Thickness | 0.3 mm |
| Surface Quality | 40/20 |
| Transmittance | 85% |
| Filter Type | shortpass |
| Cwl | 600nm |
| Coating | iad-pvd |
| Transmission bands | VIS (400-700 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Transmittance | 85%; >85% |
| Customized Support | OEM, ODM, OBM |
| Warranty | 3 Years |
| Coating Region | Single-sided or double-sided |
| Manufacture | Double sided polishing |
| Substrate | B270,JGS1,Quartz Glass,Absorptive Glass |
| Certification | ISO9001,RoHs,EPR |
| Shipment | Express delivery,Air,Sea |
FAQ
What custom sizes are available?
Custom sizes can be accommodated based on specific application requirements.
What is the minimum order quantity (MOQ)?
Minimum order quantity details are not specified; please inquire for specific needs.
