Custom Size Fused Silica Optical Filter

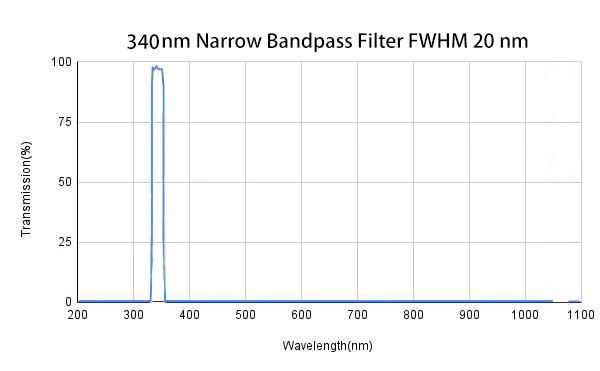

High-performance bandpass filter at 340 nm with 90% transmittance, ideal for UV applications.
Core attributes
- Material
- Fused Silica
- Size
- Custom
- Thickness
- 2 mm
- Surface Quality
- 40/20
- Transmittance
- 90%
- Filter Type
- bandpass
- Cwl
- 340nm
- Coating
- iad-pvd
- Transmission bands
- UV (<400 nm)
Product facts
Key attributes
- Material
- Fused Silica
- Size
- Custom
- Thickness
- 2 mm
- Surface Quality
- 40/20
- Transmittance
- 90%
- Filter Type
- bandpass
- Cwl
- 340nm
- Coating
- iad-pvd
- Transmission bands
- UV (<400 nm)
Product description
This bandpass filter is designed for applications requiring high transmittance in the UV spectrum, specifically at a center wavelength of 340 nm. With a transmittance of 90%, it effectively allows desired wavelengths through while blocking unwanted light. Ideal for fluorescence microscopy and other UV applications, this filter provides reliable performance with a surface quality of 40/20, ensuring minimal distortion. Its durable fused silica construction and iad-pvd coating enhance environmental stability, making it suitable for various laboratory settings.
Key Features
- High transmittance of 90% ensures effective wavelength selection.
- Customized thickness options of 2.0 mm and 5.0 mm for specific applications.
- Surface quality of 40/20 minimizes optical distortion.
- Steeper slope for enhanced blocking of unwanted wavelengths.
- Available with customizable angle of incidence to fit specific setups.
Specification Summary
| Item | Value |
|---|---|
| Material | Fused Silica |
| Size | Custom |
| Thickness | 2 mm |
| Surface Quality | 40/20 |
| Transmittance | 90% |
| Filter Type | bandpass |
| Cwl | 340nm |
| Coating | iad-pvd |
| Transmission bands | UV (<400 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Customized Support | OEM, ODM, OBM |
| Warranty | 3 Years |
| Transmittance | 90%; >80-95% |
| Slope | Steeper |
| Tolerance | ±0.2 mm |
| Aoi | Can be customized |
| Substrate | Quartz Glass |
| Certification | ISO9001,RoHs,EPR |
| Shipment | Express delivery,Air,Sea |
FAQ
What are the available thickness options?
Thickness options are available at 2.0 mm and 5.0 mm.
Can I get a custom size for this filter?
Custom sizes can be supported through OEM, ODM, or OBM services.
