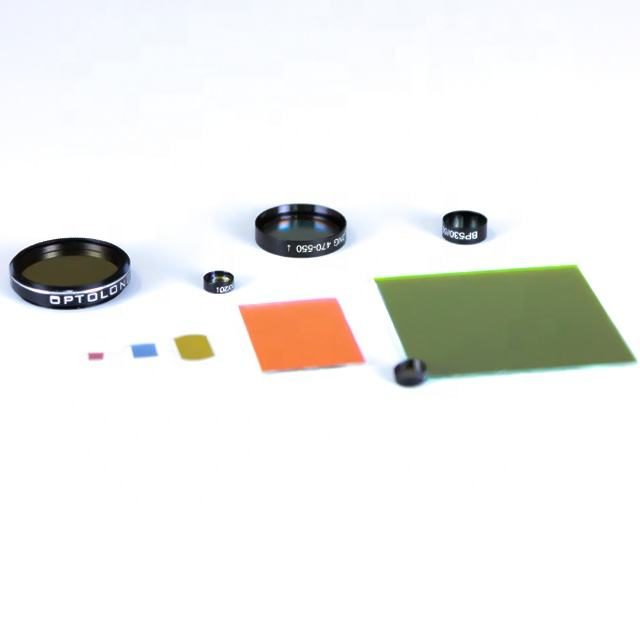

Custom Size Fused Silica Optical Filter
530nm Bandpass Filter with 85% transmittance, ideal for fluorescence microscopy and optical applications.
Core attributes
- Material
- Fused Silica
- Size
- Custom
- Thickness
- 2 mm
- Surface Quality
- 40/20
- Transmittance
- 85%
- Filter Type
- bandpass
- Cwl
- 530nm
- Fwhm
- 20nm
- Coating
- iad-pvd
- Transmission bands
- VIS (400-700 nm)
Product facts
Key attributes
- Material
- Fused Silica
- Size
- Custom
- Thickness
- 2 mm
- Surface Quality
- 40/20
- Transmittance
- 85%
- Filter Type
- bandpass
- Cwl
- 530nm
- Fwhm
- 20nm
- Coating
- iad-pvd
- Transmission bands
- VIS (400-700 nm)
Product description

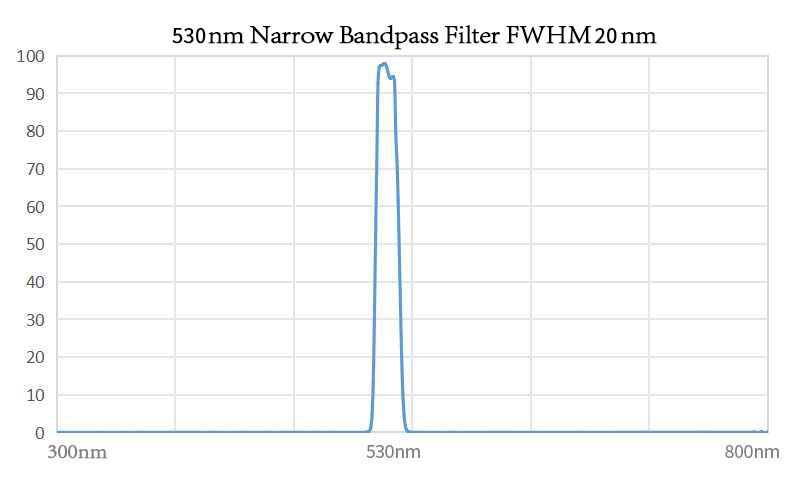

The 530nm Bandpass Filter is designed for applications requiring precise wavelength selection in the 400-700 nm range. With a center wavelength of 530nm and a full width at half maximum (FWHM) of 20nm, this filter effectively transmits light while blocking unwanted wavelengths. Ideal for fluorescence microscopy and other optical applications, it ensures high transmittance of 85%, making it suitable for various light sources and detectors.
Key Features
- Center wavelength at 530nm for optimal spectral fit.
- FWHM of 20nm ensures effective wavelength selection.
- 85% transmittance for enhanced light throughput.
- Available thicknesses of 2.0mm and 5.0mm for application flexibility.
- Custom support for OEM, ODM, and OBM projects.
Specification Summary
| Item | Value |
|---|---|
| Material | Fused Silica |
| Size | Custom |
| Thickness | 2 mm |
| Surface Quality | 40/20 |
| Transmittance | 85% |
| Filter Type | bandpass |
| Cwl | 530nm |
| Fwhm | 20nm |
| Coating | iad-pvd |
| Transmission bands | VIS (400-700 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Transmittance | 85%; >85% |
| Customized Support | OEM, ODM, OBM |
| Warranty | 3 Years |
| Slope | Steeper |
| Tolerance | ±0.2 mm |
| Aoi | Can be customized |
| Substrate | Quartz Glass |
| Certification | ISO9001,RoHs,EPR |
| Shipment | Express delivery,Air,Sea |
FAQ
What are the available thickness options?
The filter is available in thicknesses of 2.0mm and 5.0mm.
Can I get a custom size?
Yes, customization options are available for various sizes.
