1 / 6Optical Filters

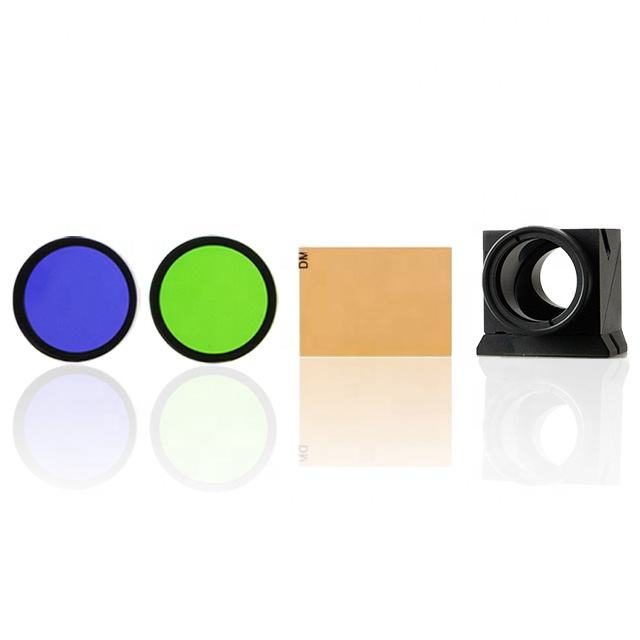

Custom Size Fused Silica Optical Filter
High-performance bandpass filter at 502.5nm, ideal for fluorescence microscopy with 85% transmittance and OD>5 blocking.
Core attributes
- Material
- Fused Silica
- Size
- Custom
- Thickness
- Custom
- Transmittance
- 85%
- Filter Type
- bandpass
- Cwl
- 502.5nm
- Coating
- iad-pvd
Product facts
Key attributes
- Material
- Fused Silica
- Size
- Custom
- Thickness
- Custom
- Transmittance
- 85%
- Filter Type
- bandpass
- Cwl
- 502.5nm
- Coating
- iad-pvd
Product description
This bandpass filter is designed for applications in fluorescence microscopy and medical imaging, effectively transmitting light centered at 502.5 nm. With a high transmittance of 85% and excellent blocking (OD>5), it ensures optimal performance in demanding environments. The filter is constructed from durable fused silica, making it suitable for various research and industrial applications.
Key Features
- Transmittance of 85% ensures high light efficiency for fluorescence applications.
- Blocking depth of OD>5 provides superior light isolation, enhancing image clarity.
- Customizable with OEM, ODM, and OBM options to meet specific project requirements.
- Constructed from fused silica for durability and stability in various conditions.
- Thickness tolerance of ± 0.10mm ensures precise fit for integration into optical systems.
Applications
Fluorescence, Microscopy, Medical
Specification Summary
| Item | Value |
|---|---|
| Material | Fused Silica |
| Size | Custom |
| Thickness | Custom |
| Transmittance | 85% |
| Filter Type | bandpass |
| Cwl | 502.5nm |
| Coating | iad-pvd |
Full Specifications
| Parameter | Value |
|---|---|
| Transmittance | 85% |
| Customized Support | OEM, ODM, OBM |
| Warranty | 3 Years |
| Cwl | 475-530nm |
| Transmission | >85% |
| Blocking | OD>5 |
| Scratch-Dig | 60-40 |
| Substrate | Fused Silica |
| Angle Of Incidence | 45° |
| Certification | ISO9001,RoHs,EPR |
| Thickness Tolerance | ± 0.10mm |
FAQ
Can I get custom sizes?
Customization options are available, including OEM, ODM, and OBM support.
What is the minimum order quantity (MOQ)?
The minimum order quantity is not specified; please inquire for details.
