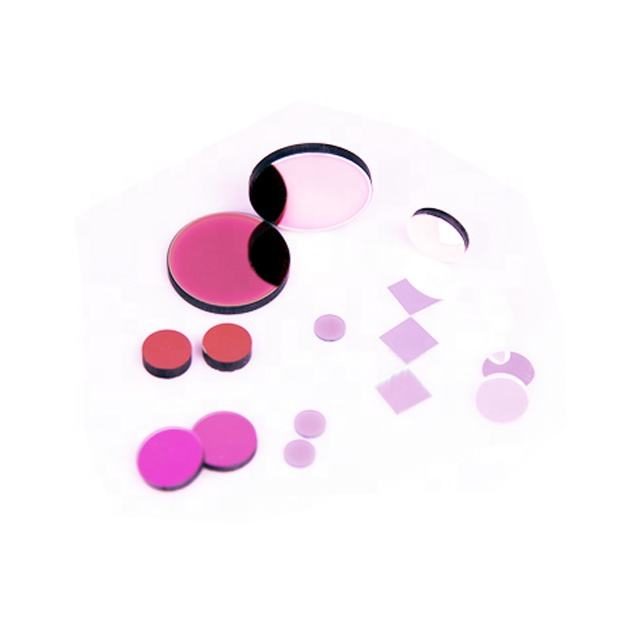

Custom Size Fused Silica Optical Filter
IR-pass filter with 85% transmittance, 950 nm center wavelength, ideal for laser applications.
Core attributes
- Material
- Fused Silica
- Size
- Custom
- Thickness
- Custom
- Surface Quality
- 40/20
- Transmittance
- 85%
- Filter Type
- ir-pass
- Cwl
- 950nm
- Coating
- iad-pvd
- Transmission bands
- NIR (0.7-1.7 μm)
Product facts
Key attributes
- Material
- Fused Silica
- Size
- Custom
- Thickness
- Custom
- Surface Quality
- 40/20
- Transmittance
- 85%
- Filter Type
- ir-pass
- Cwl
- 950nm
- Coating
- iad-pvd
- Transmission bands
- NIR (0.7-1.7 μm)
Product description

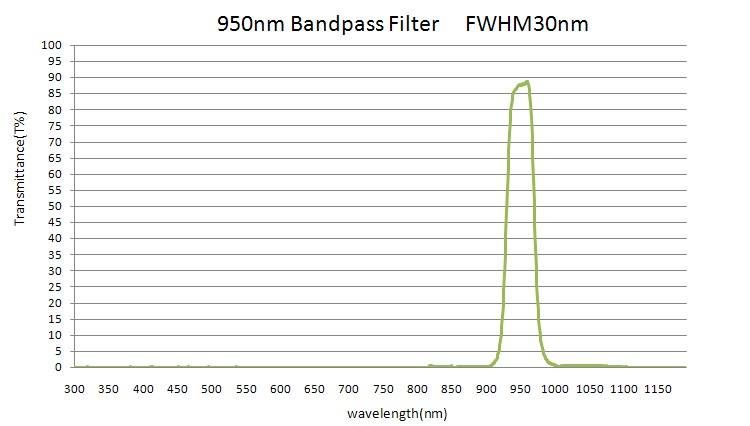

This IR-pass filter is designed for applications in laser technology, effectively transmitting wavelengths from 0.7 to 1.7 μm while blocking unwanted light. With a center wavelength of 950 nm and a transmittance of 85%, it ensures optimal performance in various laser systems. The filter is made from high-quality fused silica, featuring a durable iad-pvd coating for enhanced environmental resistance. Ideal for R&D and procurement engineers seeking reliable optical components.
Key Features
- Transmittance of 85% ensures efficient light transmission for laser applications.
- Center wavelength of 950 nm optimized for specific laser wavelengths.
- Manufactured from fused silica for superior durability and performance.
- Parallelism of 5 Arc Seconds to 1 Arc Minute for precise alignment.
- OEM, ODM, and OBM support available for tailored solutions.
Applications
Laser
Specification Summary
| Item | Value |
|---|---|
| Material | Fused Silica |
| Size | Custom |
| Thickness | Custom |
| Surface Quality | 40/20 |
| Transmittance | 85% |
| Filter Type | ir-pass |
| Cwl | 950nm |
| Coating | iad-pvd |
| Transmission bands | NIR (0.7-1.7 μm) |
Full Specifications
| Parameter | Value |
|---|---|
| Transmittance | 85% |
| Customized Support | OEM, ODM, OBM |
| Warranty | 3 Years |
| Type | ir band pass filter |
| Substrate | B270,D263T,Quartz Glass,Float glass |
| Parallelism | 5Arc Second ~ 1Arc Minute |
| Oem/Odm | Welcomed |
| Tolerance | +/-0.10mm |
| Certification | ISO9001,RoHs,EPR |
| Shipment | Express delivery,Air,Sea |
FAQ
Are custom sizes available?
This filter is not customizable in size.
What is the tolerance for this filter?
The tolerance is +/-0.10 mm.
