1 / 6Optical Filters

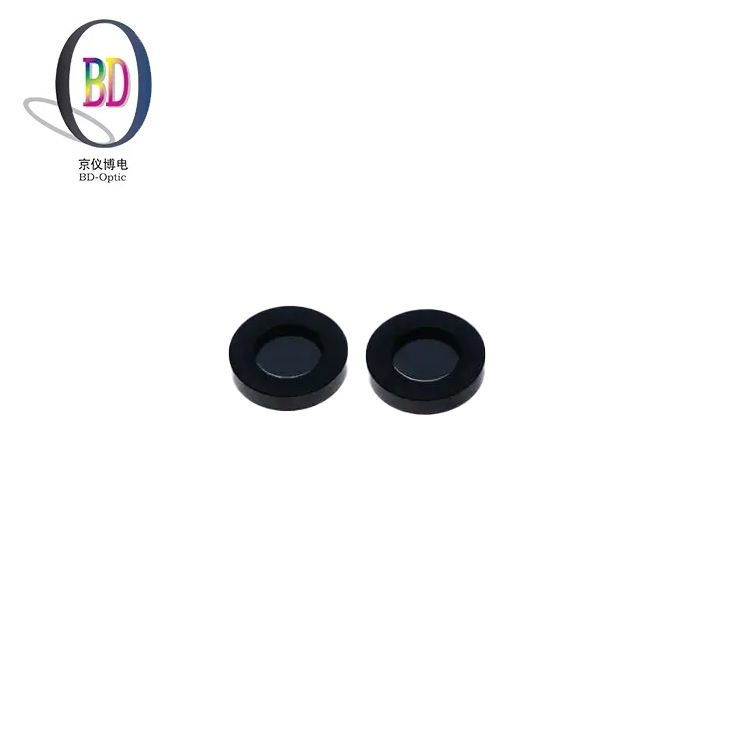

Custom Size Fused Silica Optical Filter
High-performance bandpass filter with >20% transmittance at 254 nm, ideal for fluorescence and gas sensing applications.
Core attributes
- Material
- Fused Silica
- Size
- Custom
- Thickness
- Custom
- Transmittance
- 20%
- Filter Type
- bandpass
- Transmission bands
- UV (<400 nm)
- MOQ
- 1 Piece
Product facts
Key attributes
- Material
- Fused Silica
- Size
- Custom
- Thickness
- Custom
- Transmittance
- 20%
- Filter Type
- bandpass
- Transmission bands
- UV (<400 nm)
- MOQ
- 1 Piece
Product description

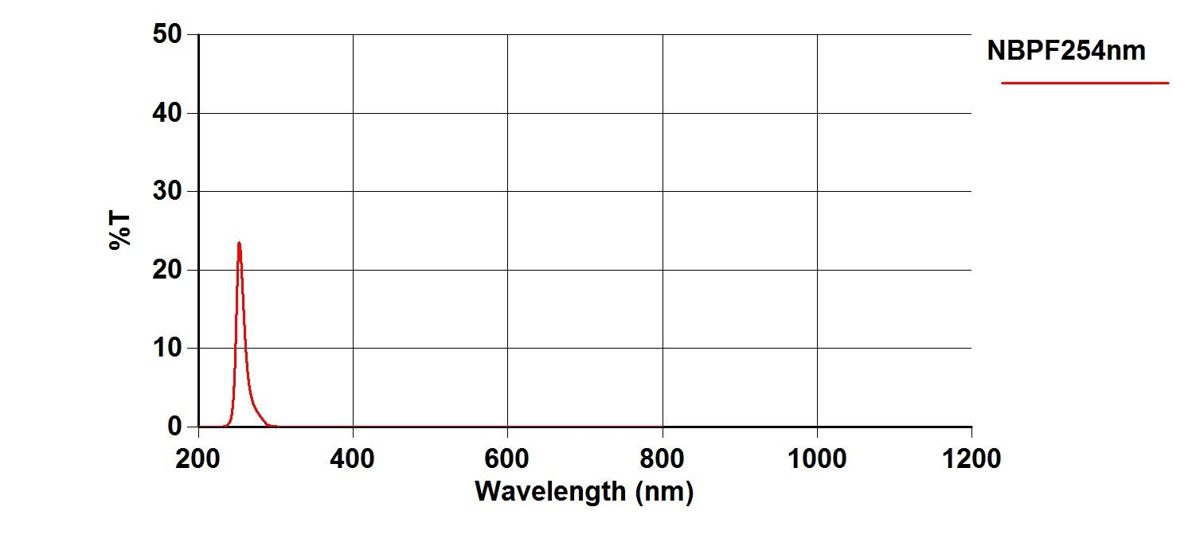

This bandpass filter is designed for applications requiring high transmittance in the UV range, specifically around 254 nm. With a transmittance of over 20% and a blocking depth of OD>4 from 200 to 1200 nm, it effectively isolates the desired wavelength while minimizing interference from unwanted light. Ideal for fluorescence microscopy and gas sensing applications, this filter ensures optimal performance in demanding environments.
Key Features
- Transmittance >20% for effective light transmission.
- Customized support available for OEM, ODM, and OBM projects.
- Blocking depth of OD>4 from 200 to 1200 nm for superior light isolation.
- Wavelength specificity at 254 +/- 3 nm for precise application fit.
- Compact size of 8*6.5 mm or effective diameter of 5 mm for versatile integration.
Specification Summary
| Item | Value |
|---|---|
| Material | Fused Silica |
| Size | Custom |
| Thickness | Custom |
| Transmittance | 20% |
| Filter Type | bandpass |
| Transmission bands | UV (<400 nm) |
| MOQ | 1 Piece |
Full Specifications
| Parameter | Value |
|---|---|
| Transmittance | >20%; T>20% |
| Customized Support | OEM, ODM, OBM |
| Warranty | 1years |
| Process | Soft Coating |
| Substrate | Fused Silica |
| Wavelength | 254+/-3nm |
| Fwhm | 13+/-3nm |
| Blocking | OD>4@200-1200 |
| Size(Mm) | 8*6.5mm/ Effective Diameter5mm |
| Moq | 1 Piece |
FAQ
Can I get custom sizes?
Custom sizes are supported through OEM, ODM, and OBM options.
What is the minimum order quantity?
The minimum order quantity is 1 piece.
