1 / 6Optical Mirrors

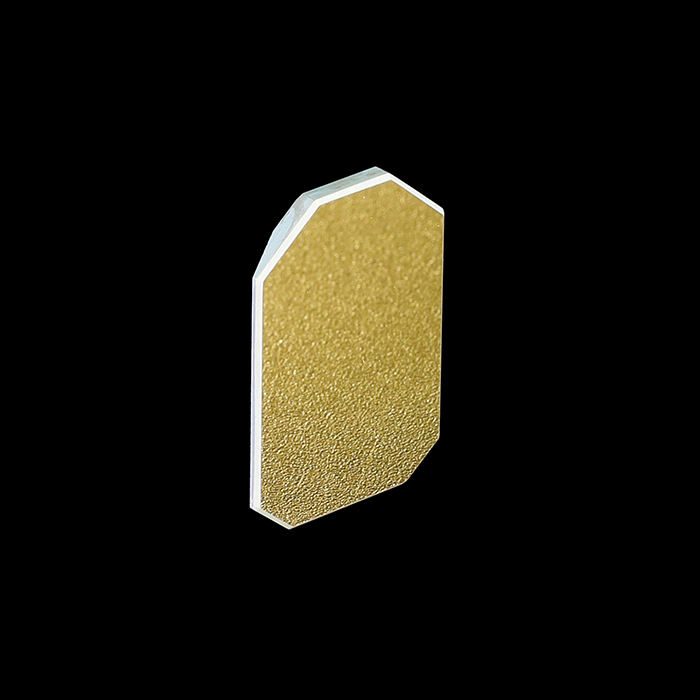

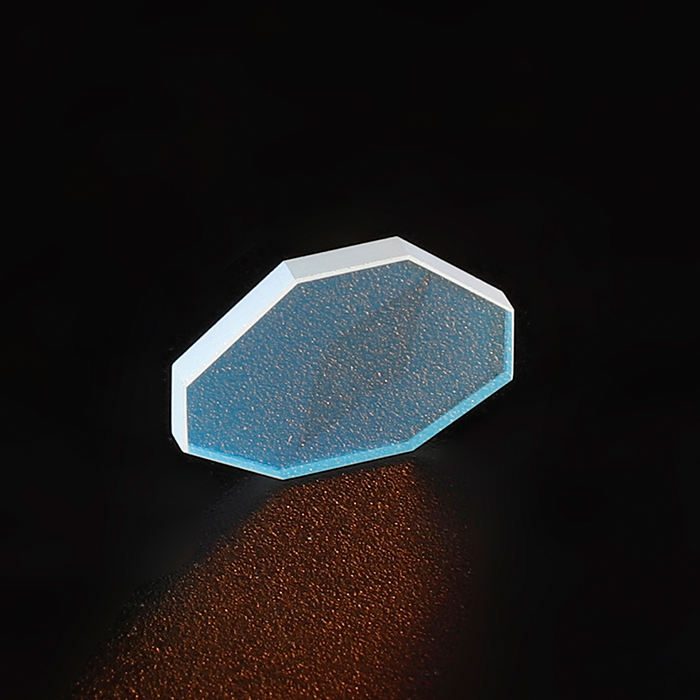

Custom Size Fused Silica Optical Mirror
High-performance scanning mirror with 99.8% reflectance, ideal for laser applications in the 0.7-1.7 μm range.
Core attributes
- Material
- Fused Silica
- Size
- Custom
- Thickness
- Custom
- Surface Quality
- 1/4
- Reflectance
- 99.8%
- Coating
- dielectric HR, gold

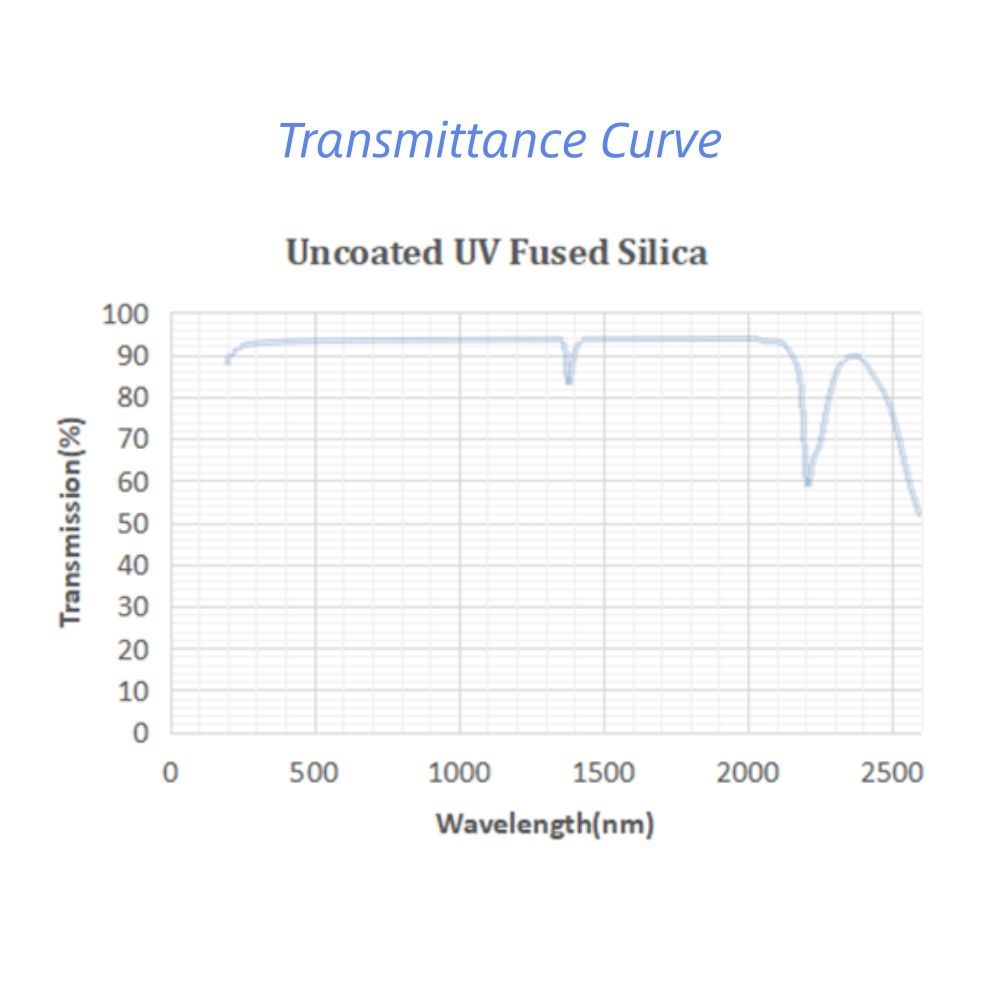

- Transmission bands
- NIR (0.7-1.7 μm)
Product facts
Key attributes
- Material
- Fused Silica
- Size
- Custom
- Thickness
- Custom
- Surface Quality
- 1/4
- Reflectance
- 99.8%
- Coating
- dielectric HR, gold
- Transmission bands
- NIR (0.7-1.7 μm)
Product description
This high-performance scanning mirror is designed for laser applications, particularly effective in the 0.7-1.7 μm wavelength range. With a reflectance of 99.8%, it ensures minimal loss of light, making it ideal for precision optical systems. The dielectric HR and gold coatings provide durability and excellent performance in demanding environments. Its surface quality of 1/4 contributes to superior wavefront quality, making it suitable for high-resolution imaging and laser systems.
Key Features
- Reflectance of 99.8% for optimal light transmission.
- Dielectric HR and gold coatings for enhanced durability.
- Surface quality of 1/4 for superior wavefront performance.
- Customizable options available for OEM, ODM, and OBM.
- Designed for effective use in the 0.7-1.7 μm wavelength range.
Applications
Laser
Specification Summary
| Item | Value |
|---|---|
| Material | Fused Silica |
| Size | Custom |
| Thickness | Custom |
| Surface Quality | 1/4 |
| Reflectance | 99.8% |
| Coating | dielectric HR, gold |
| Transmission bands | NIR (0.7-1.7 μm) |
Full Specifications
| Parameter | Value |
|---|---|
| Type | scanning mirror |
| Customized Support | OEM, ODM, OBM |
| Warranty | 1 years |
| Weight | custom |
| Wavelength | 1064nm |
FAQ
Can I get custom sizes?
Yes, customizable options are available for OEM, ODM, and OBM.
What is the surface quality specification?
The surface quality is specified as 1/4.
