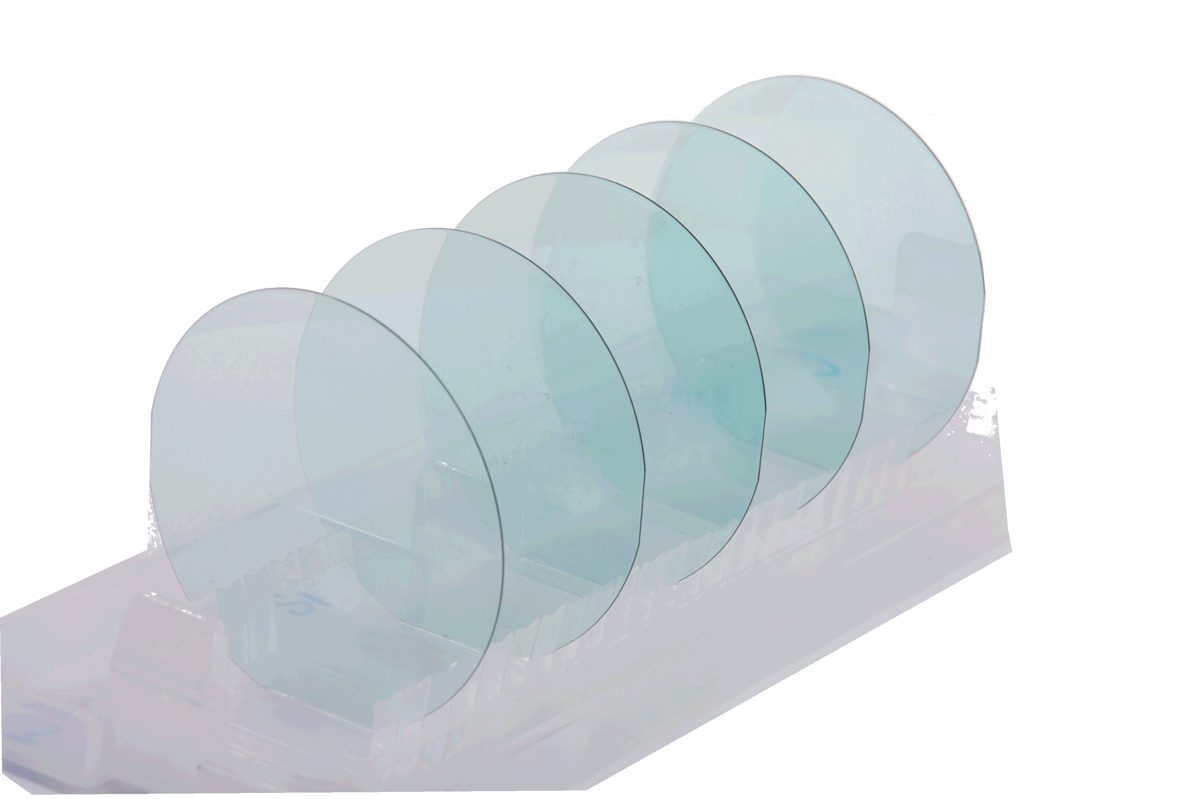

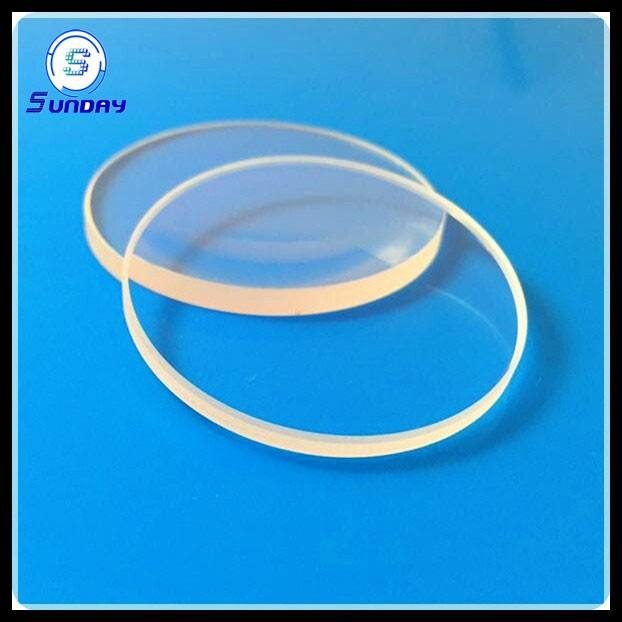

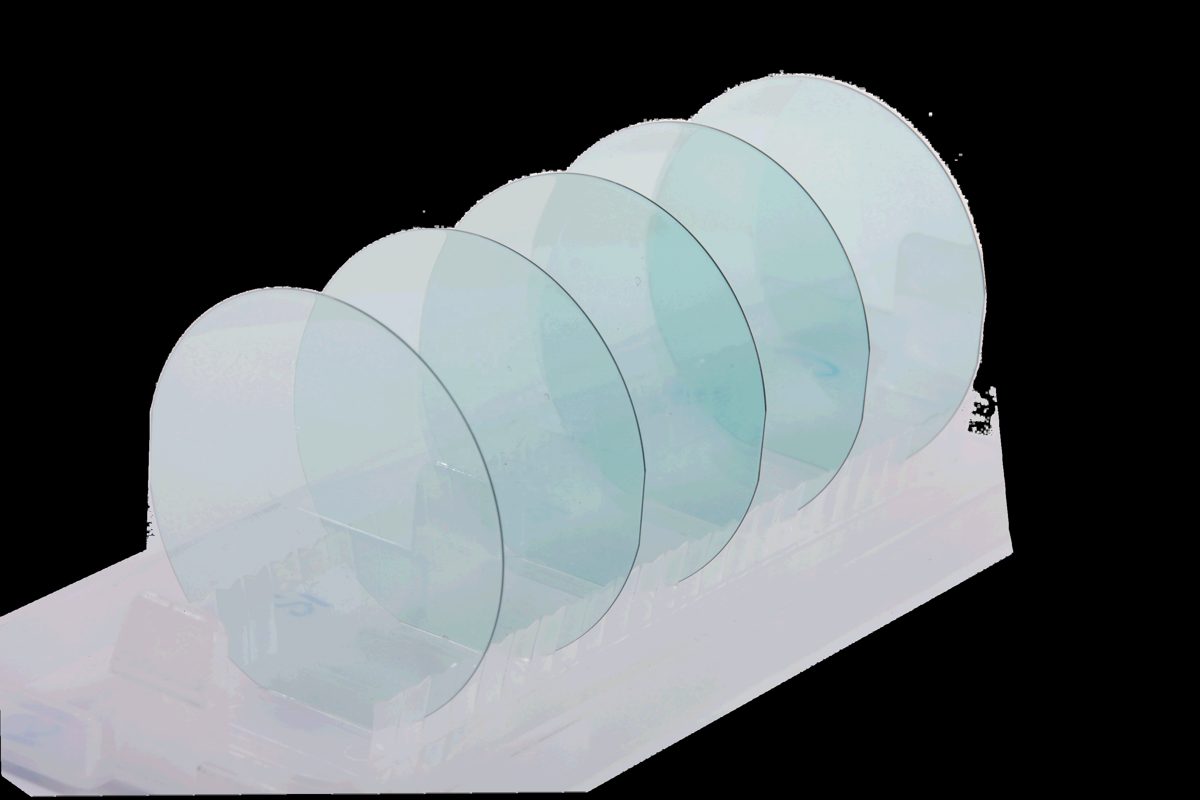

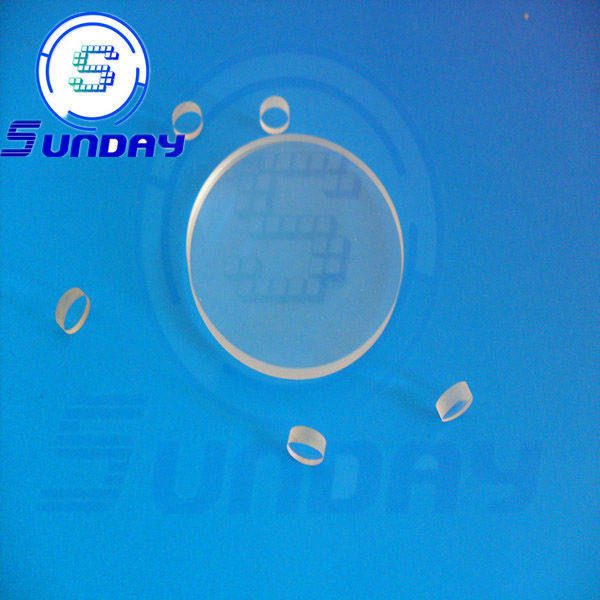

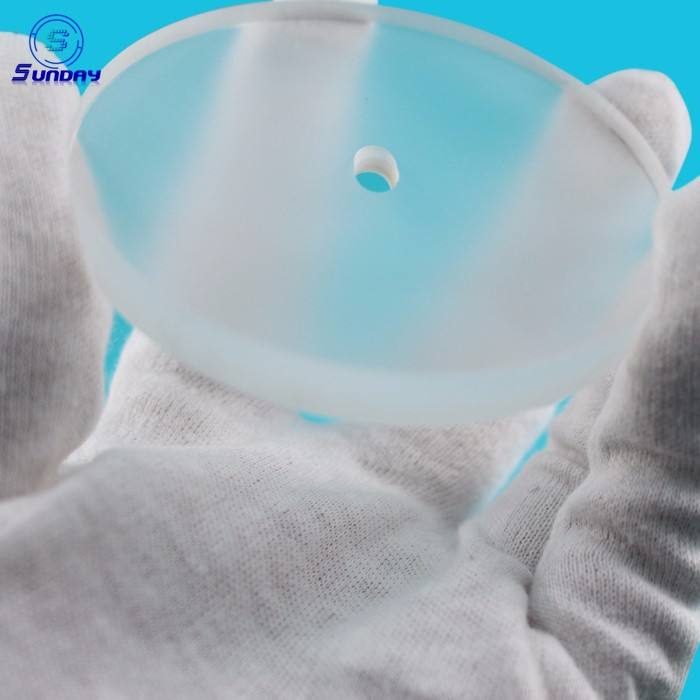

0.1 mm Fused Silica Optical Window, AR Coated

This fused silica optical window is designed for a wide range of applications, particularly in the infrared spectrum, covering wavelengths from 1.7 to 14 μm. Its high transmittance and flatness make it ideal for LIDAR, IR imaging, and medical devices. The window’s durability and precision ensure reliable performance in demanding environments, making it a suitable choice for R&D and procurement engineers seeking consistent quality.

Key Features

• Diameter: 0.1 mm with a tolerance of ±0.02 mm for precise fitting.
• Flatness of 1/10 lambda ensures minimal distortion in optical applications.
• AR coating effective across a broad range of wavelengths (2-14 μm) enhances transmittance.
• Custom sizes and shapes available to meet specific application requirements.
• Chamfered edges (0.25 mm x 45 degrees) facilitate easy integration into systems.

Specification Summary

Full Specifications

FAQ

Is custom sizing available?

Yes, custom sizes and shapes can be provided to fit specific application needs.

What is the diameter tolerance?

The diameter tolerance for this optical window is ±0.02 mm.
