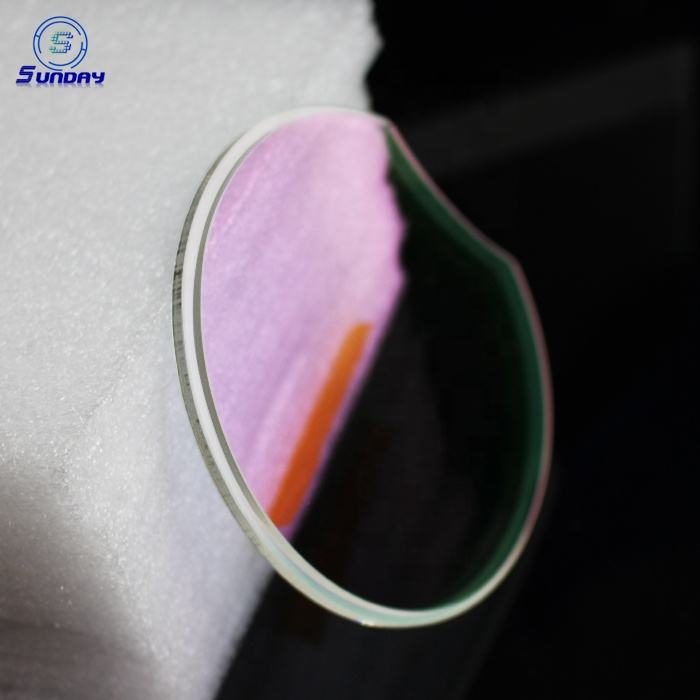

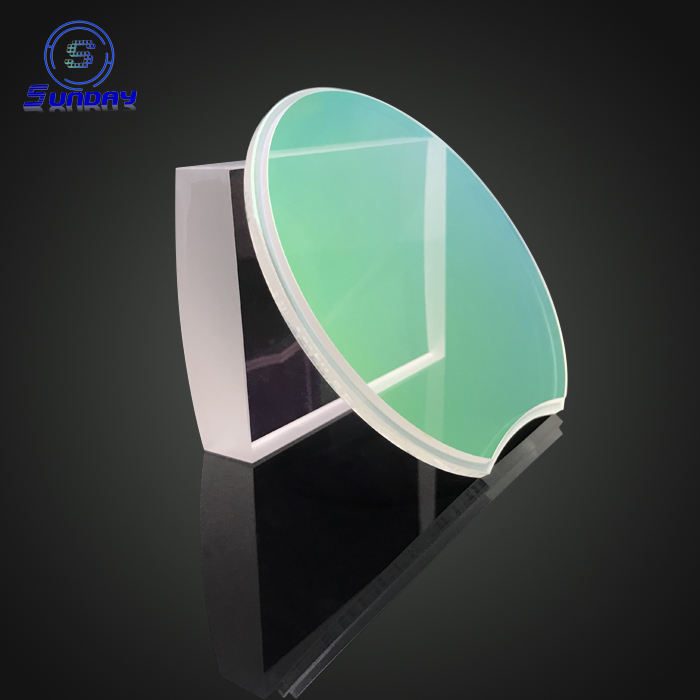

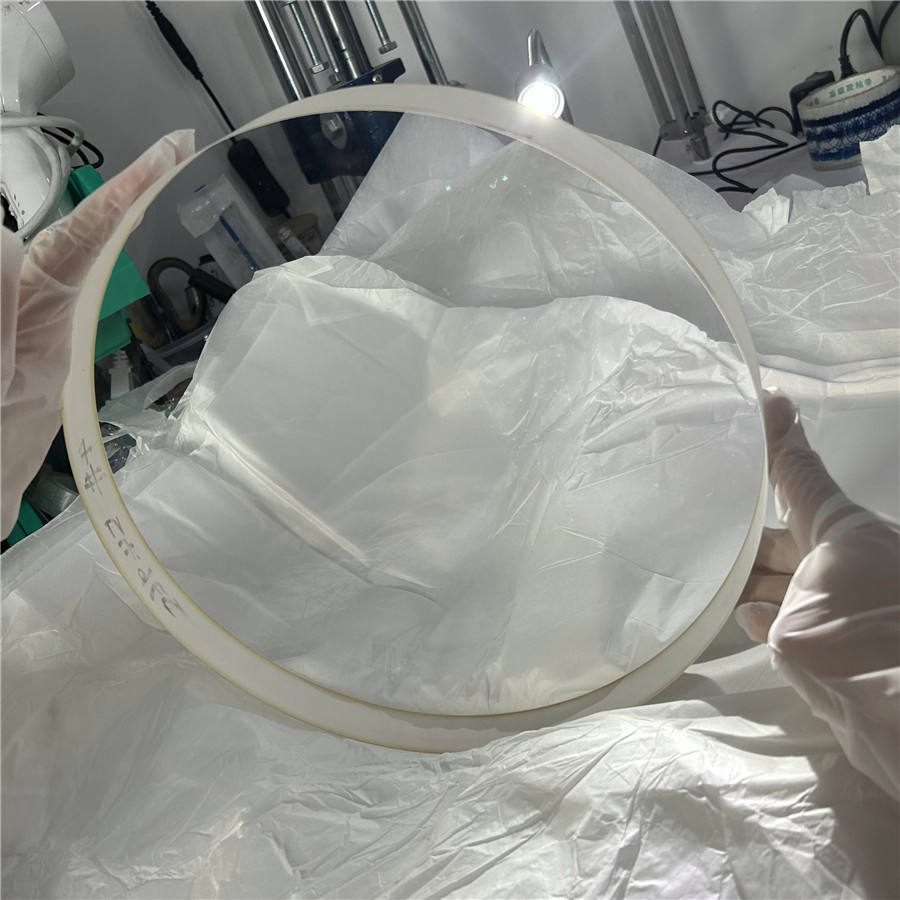

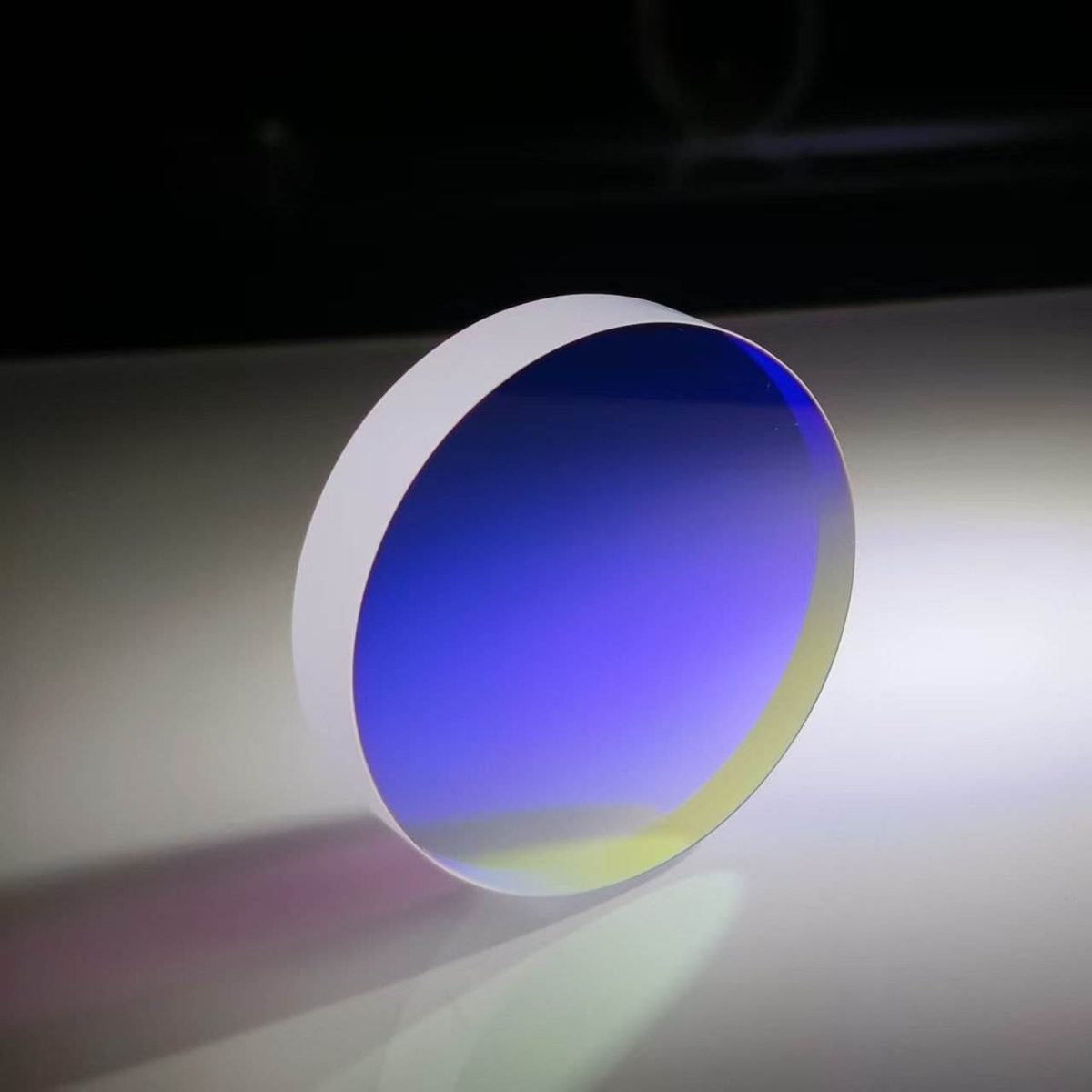

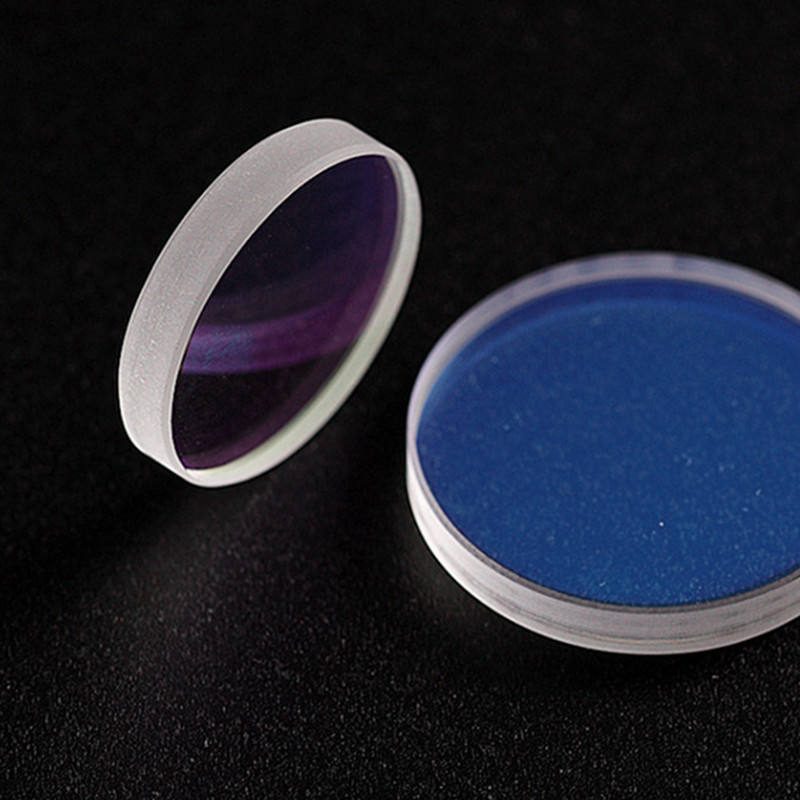

0.1 mm Fused Silica Optical Window, AR Coated
Fused Silica optical components with customizable sizes and coatings, ideal for precision applications.
Core attributes
- Material
- Fused Silica
- Diameter range
- 0.1 mm
- Coating
- ar, hr
Product facts
Key attributes
- Material
- Fused Silica
- Diameter range
- 0.1 mm
- Coating
- ar, hr
Product description
This Fused Silica optical component is designed for precise applications requiring high-quality optical performance. With a diameter range from 0.1 mm to 600 mm and customizable coatings, it is suitable for various optical uses, including imaging and laser systems. Its flatness of 1/10 lambda ensures minimal distortion, making it ideal for demanding optical applications.
Key Features
- Diameter range: 0.1 mm to 600 mm, accommodating diverse application needs.
- Flatness of 1/10 lambda, ensuring high precision and minimal optical distortion.
- Diameter tolerance of 0.02 mm, providing reliable batch consistency.
- Custom coatings available (AR, HR), tailored to specific application requirements.
- OEM and ODM support for customized designs and prototypes.
Specification Summary
| Item | Value |
|---|---|
| Material | Fused Silica |
| Diameter | 0.1 mm |
| Thickness | Custom |
| Coating | anti-reflective (AR), high-reflective (HR) |
| MOQ | — |
Full Specifications
| Parameter | Value |
|---|---|
| Warranty | Other |
| Customized Support | OEM, ODM |
| Power | None |
| Voltage | None |
| Diameter Tolerance | 0.02mm |
| Flatness | 1/10 lambda |
| Chamfer | 0.25mmx45degree |
| Use | Optical |
FAQ
What is the minimum order quantity (MOQ)?
The MOQ is not specified, allowing for flexibility in ordering.
Can I get custom sizes?
Yes, the diameter can be customized from 0.1 mm to 600 mm.
