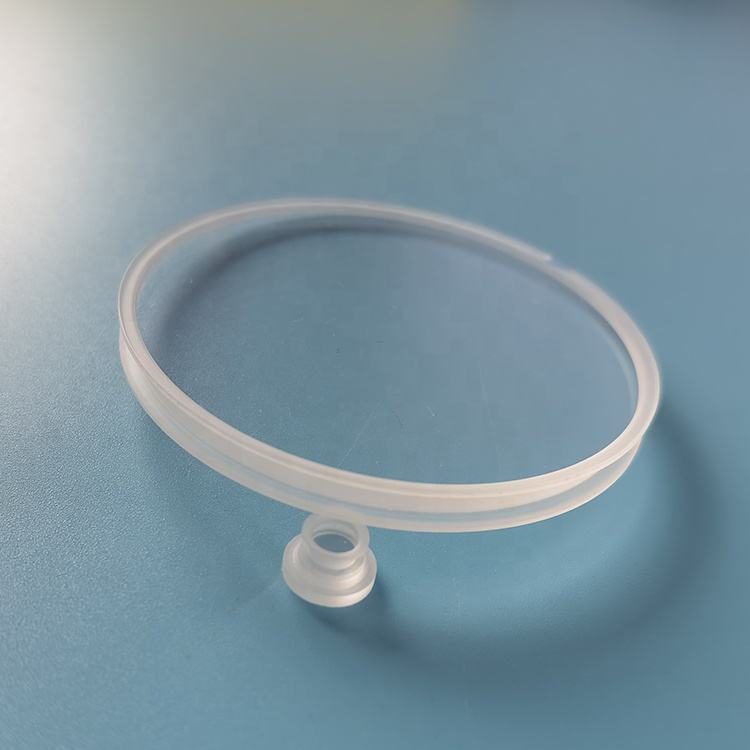

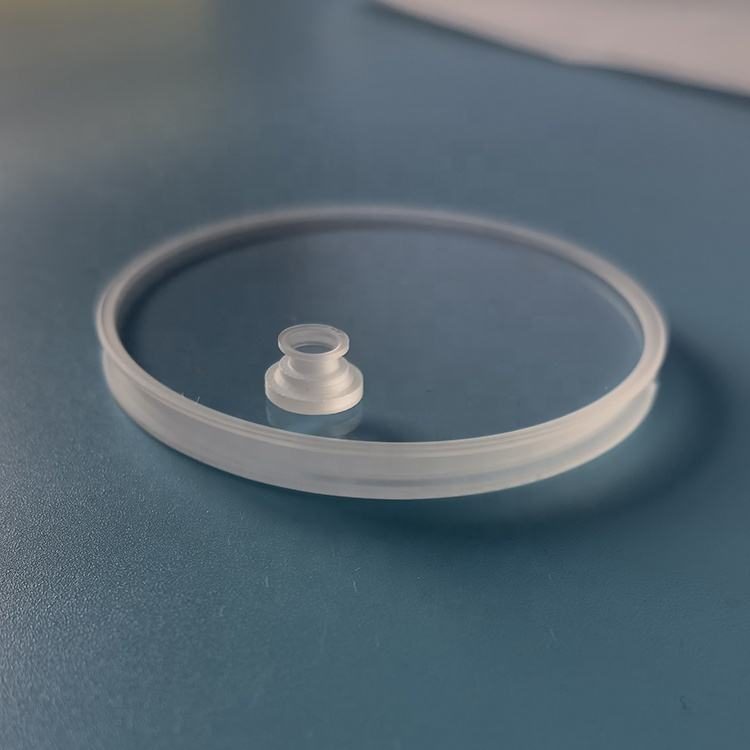

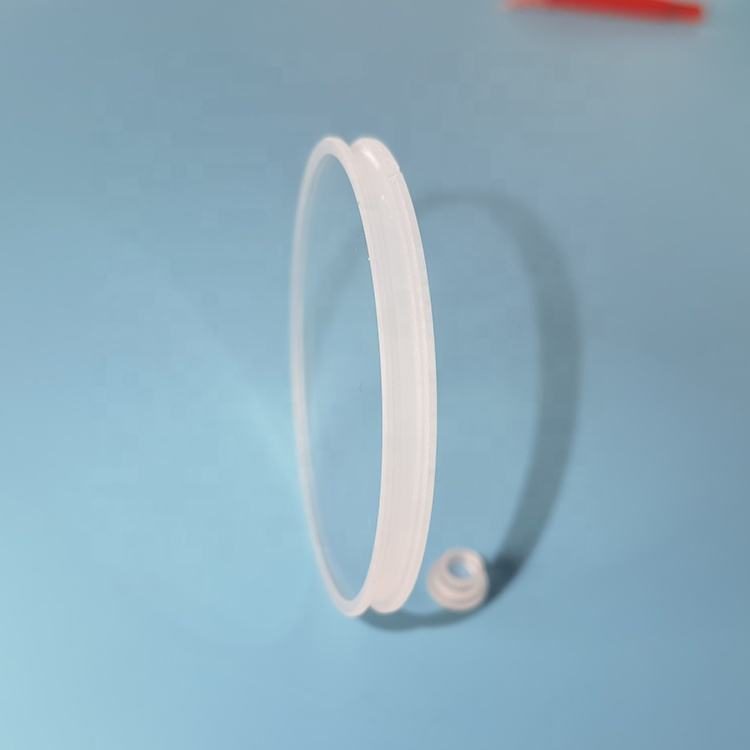

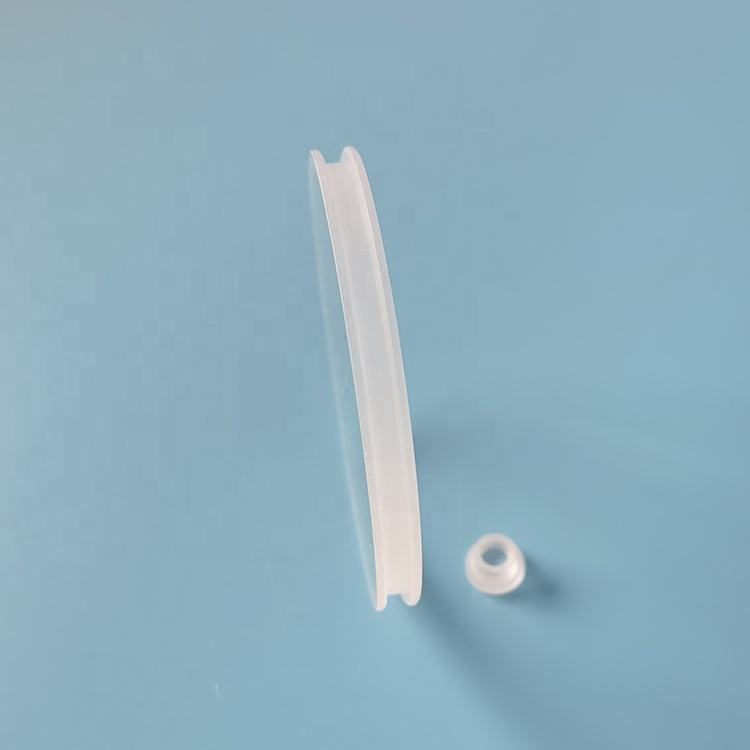

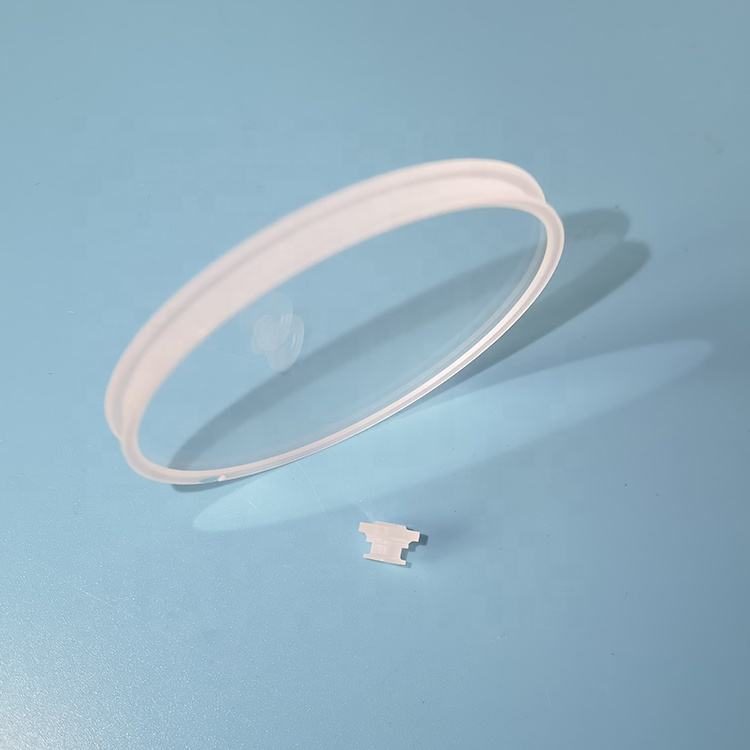

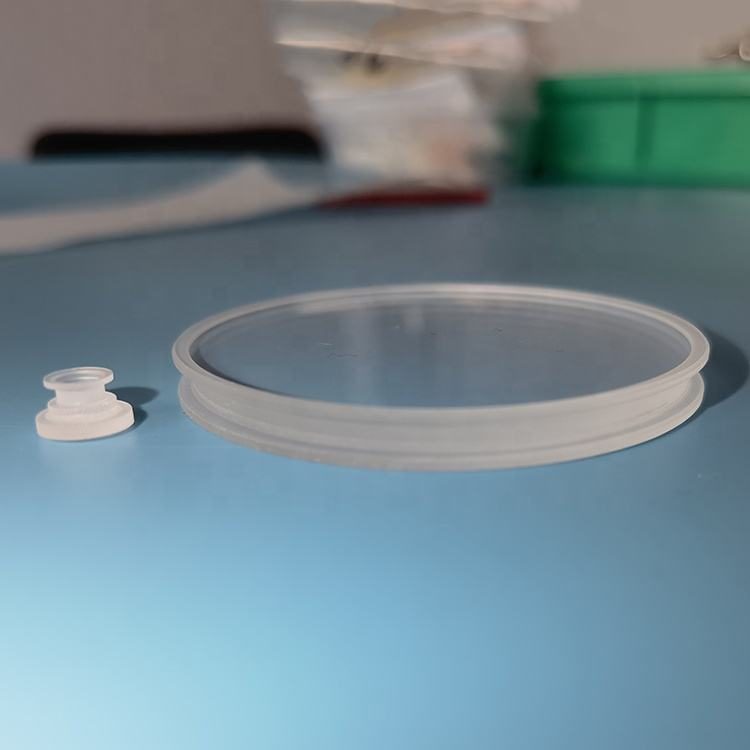

1.5x1 mm Fused Silica Optical Window

Product description

The Fused Silica Window Lens addresses the need for precision optical components in medical applications. With a broad diameter range from 1.5 mm to 250 mm and thickness options from 1 mm to 50 mm, this lens is designed for optimal performance in various optical systems. Its high surface quality of 60/40 and a clear aperture exceeding 95% ensure minimal distortion and maximum light transmission, making it suitable for demanding environments.

Key Features

Diameter range from 1.5 mm to 250 mm for versatile applications.
Thickness options from 1 mm to 50 mm to meet specific design requirements.
Surface quality of 60/40 ensures reliable optical performance.
Clear aperture greater than 95% for enhanced light transmission.
Customizable support available for OEM projects.

Available Sizes

Diameter x Thickness (mm)
125.8 x 25.5

Applications

Medical

Specification Summary

Item	Value
Material	Fused Silica
Diameter	1.5 mm
Thickness	1 mm
Surface Quality	60/40
MOQ	—

Full Specifications

Parameter	Value
Customized Support	OEM
Warranty	3 months
Diameter Tolerance	±0.1mm
Thickness Tolerance	±0.1mm
Parallelism	<10 arc min
Clear Aperture	>95%

FAQ

What are the tolerances for diameter and thickness?

Diameter tolerance is ±0.1 mm and thickness tolerance is also ±0.1 mm.

Is custom sizing available?

Yes, custom sizes can be provided, including variant sizes like 125.8 mm by 25.5 mm.
