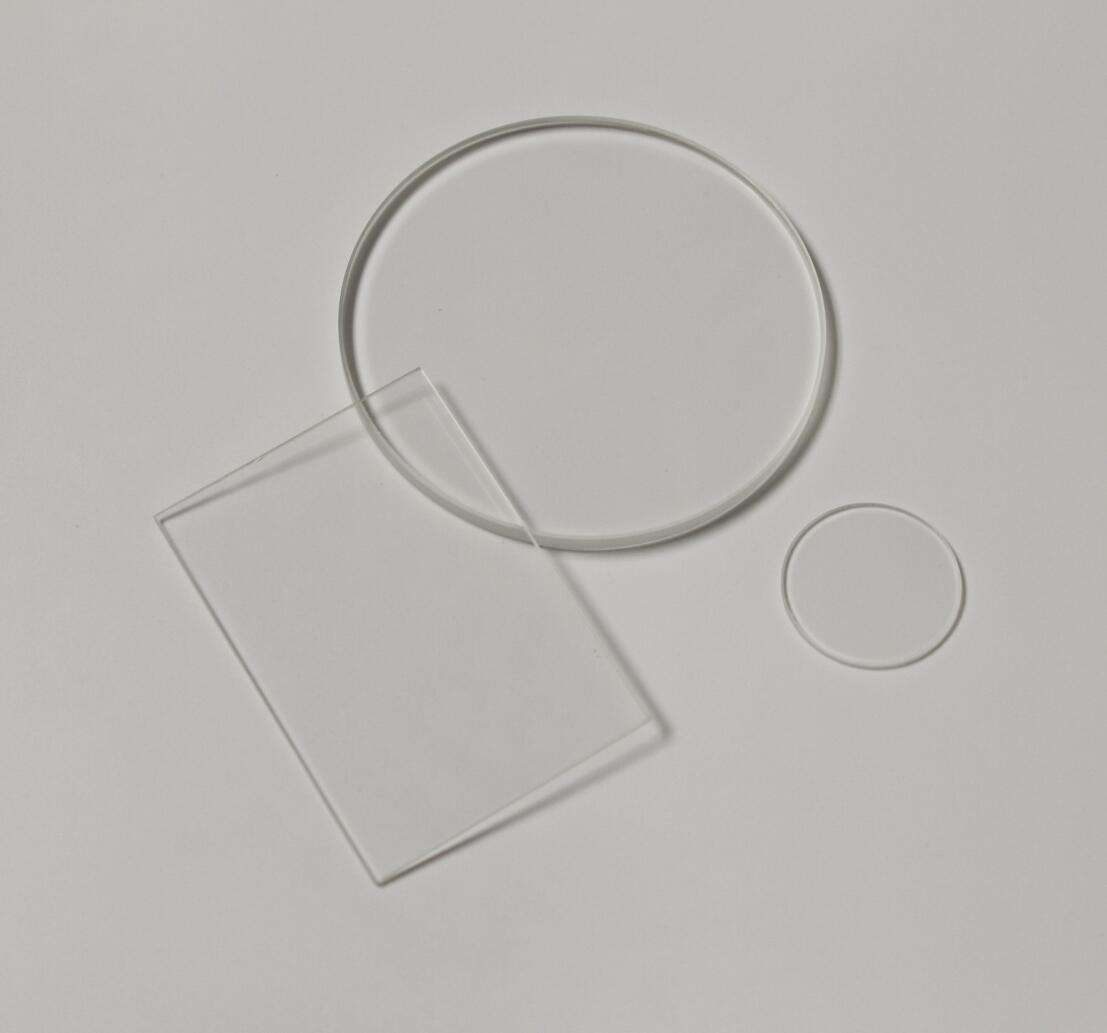

100x5 mm Fused Silica Optical Window, AR Coated

Product description

This Fused Silica lens, available in diameters of 100mm and 200mm with a thickness of 5mm, is ideal for applications requiring high clarity and durability. The anti-reflective coating enhances light transmission, making it suitable for optical systems in IR imaging, LIDAR, and medical devices. With a surface quality rating of 1/2, it ensures minimal distortion and high performance in demanding environments.

Key Features

Diameter options of 100mm and 200mm provide versatility for various applications.
Thickness of 5mm ensures robust performance and durability.
Surface quality of 1/2 minimizes optical distortion for superior clarity.
Custom sizes available, including a variant size of 150mm, to meet specific project needs.
OEM and ODM support for tailored solutions and reliable supply.

Available Sizes

Diameter x Thickness (mm)
150 x 5

Specification Summary

Item	Value
Material	Fused Silica
Diameter	100 mm
Thickness	5 mm
Surface Quality	1/2
Coating	anti-reflective (AR)
MOQ	—

Full Specifications

Parameter	Value
Type	Concave Lens, Convex Lens
Customized Support	OEM, ODM
Warranty	3 Years
Weight	0.05
Diameter Tolerance	+/-0.1mm
Thickness Tolerance	±0.2~0.1mm

FAQ

What are the available custom sizes?

Custom sizes include a variant size of 150mm in diameter with a thickness of 5mm.

What are the tolerances for diameter and thickness?

Diameter tolerance is ±0.1mm, and thickness tolerance ranges from ±0.2mm to ±0.1mm.
