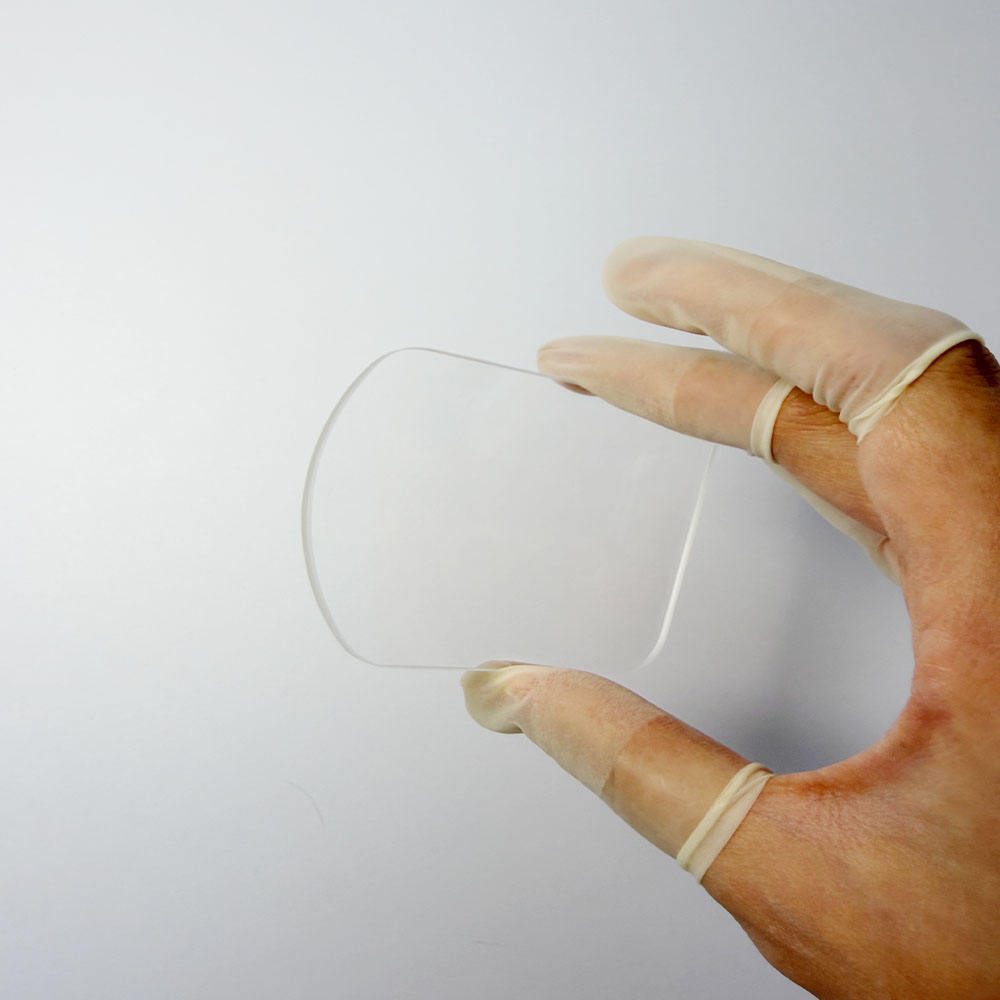

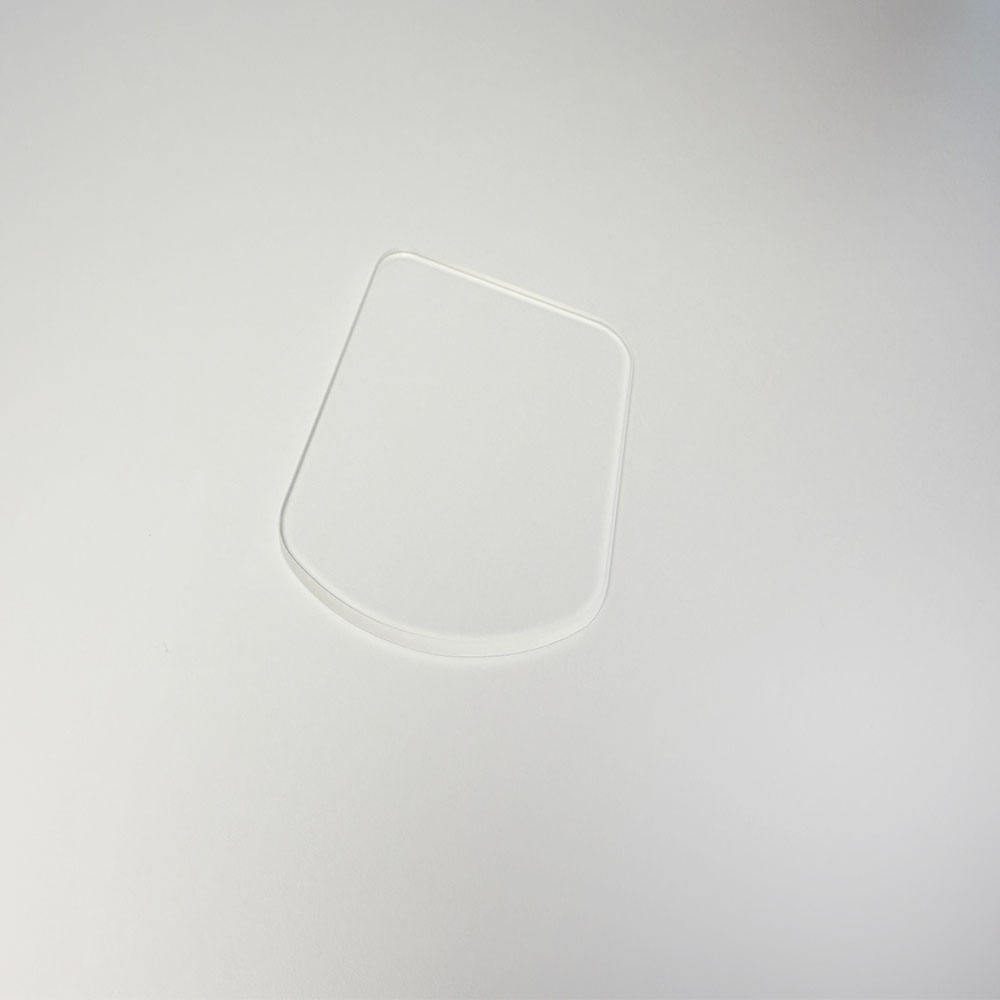

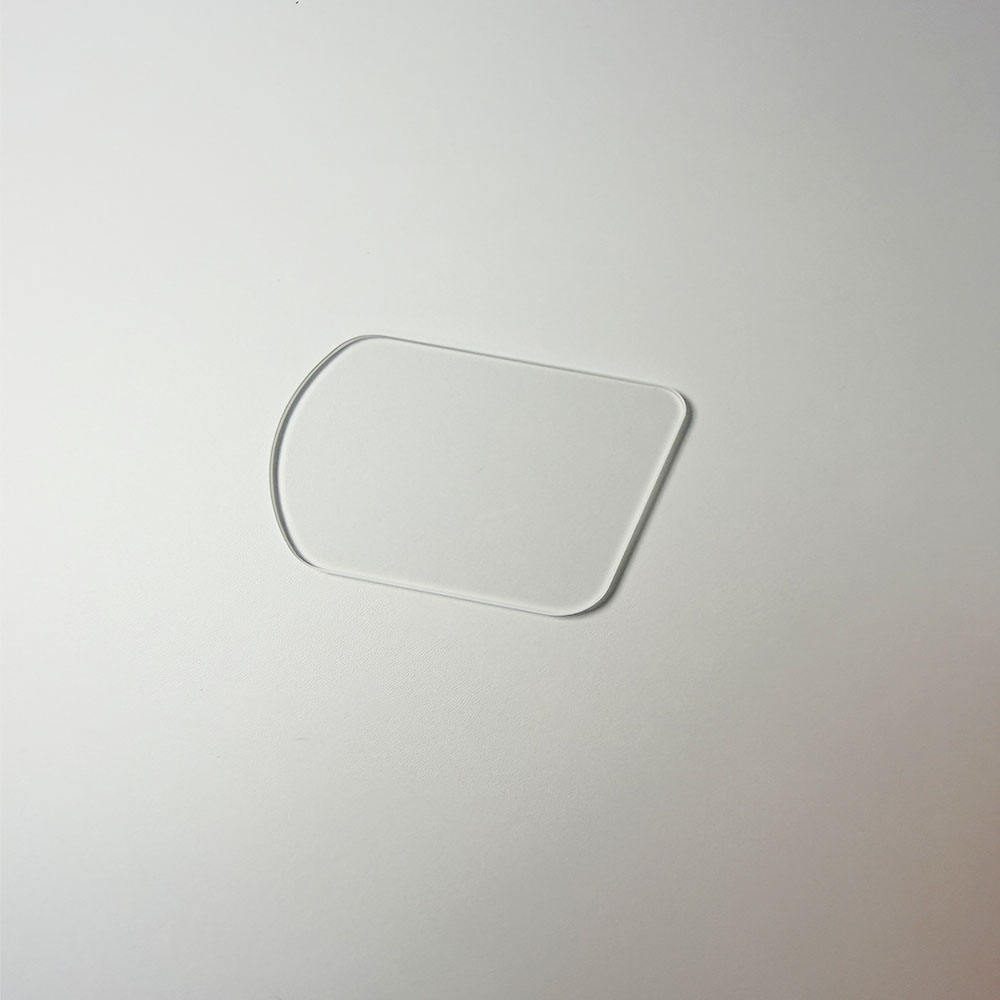

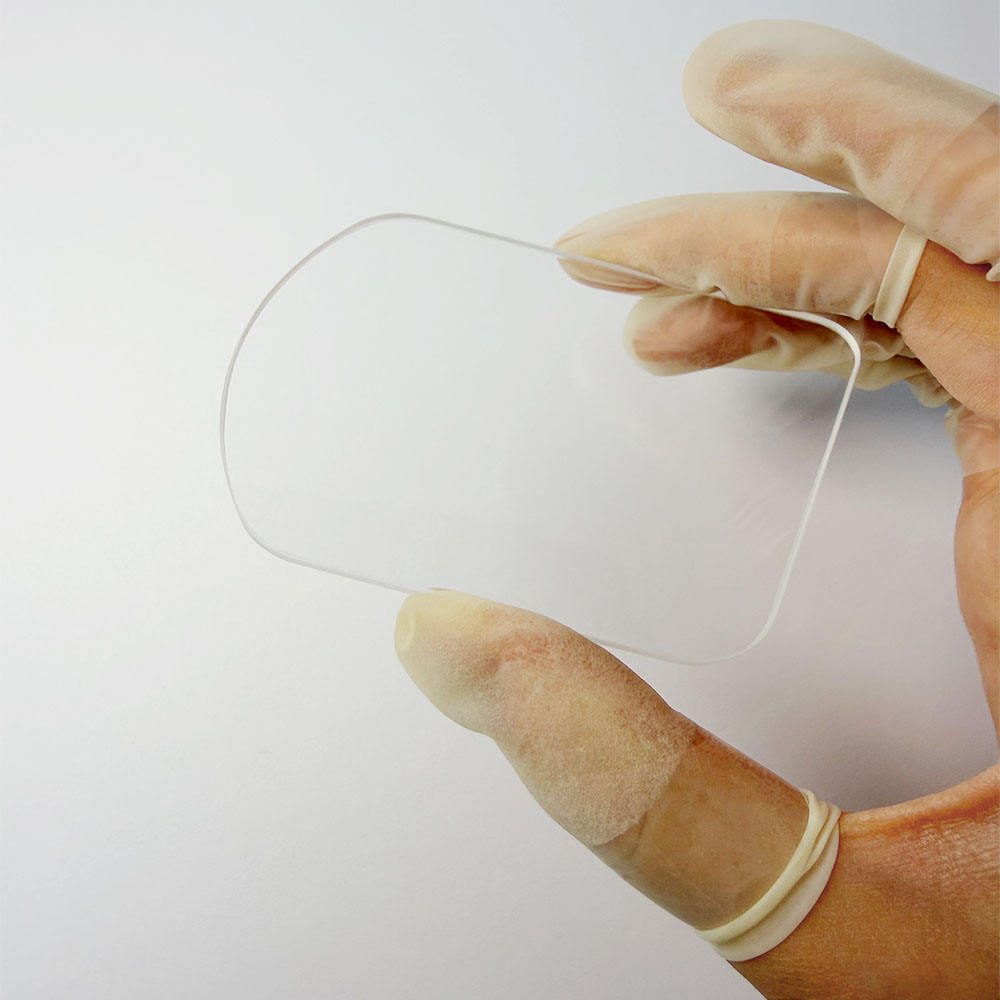

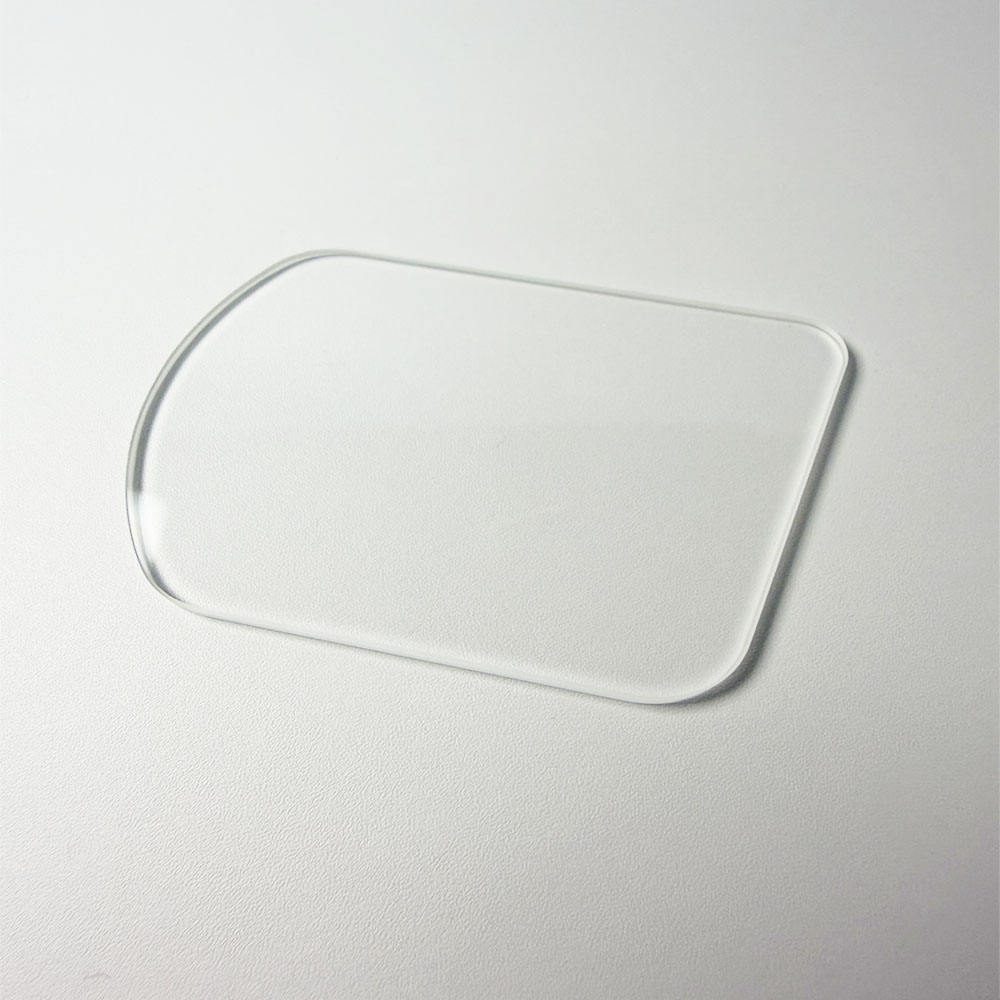

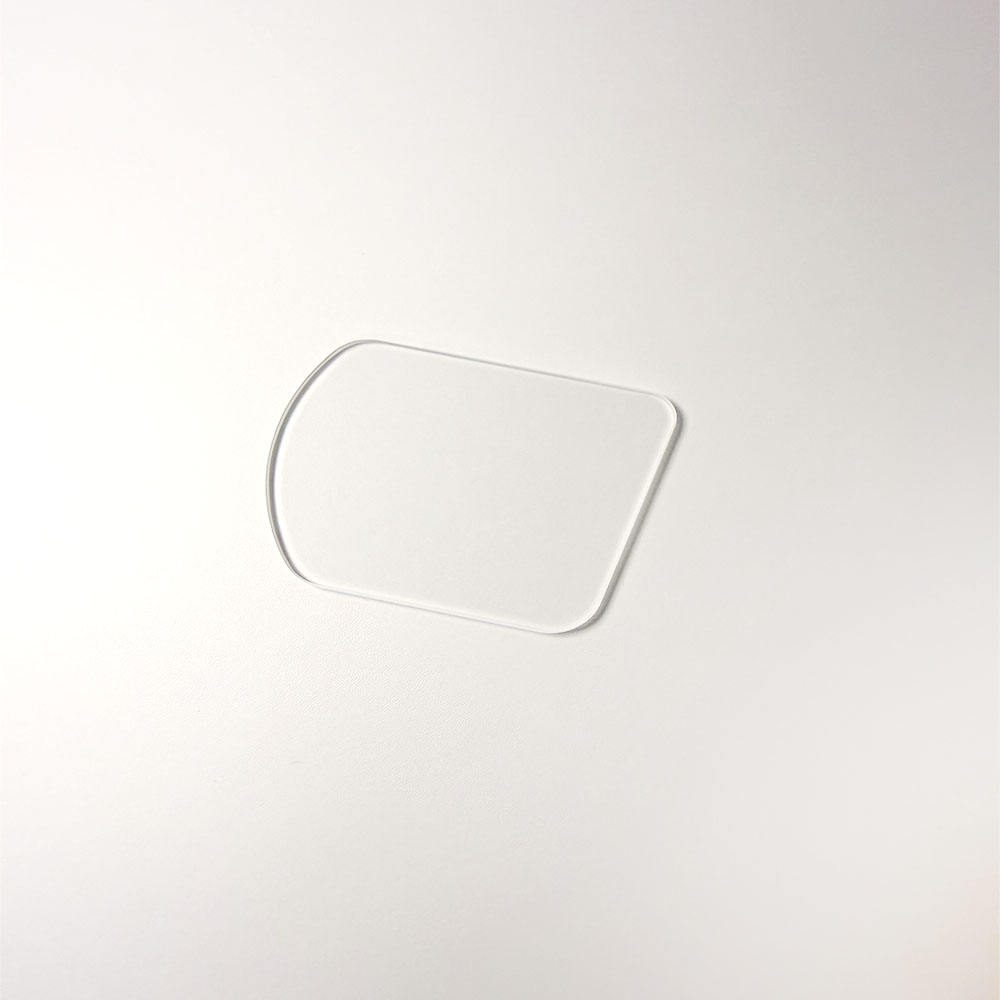

100 mm Fused Silica Optical Window, AR Coated

Product description

This Fused Silica Shaped Window is designed for applications in the 0.7-1.7 μm and 400-700 nm wavelength ranges, making it ideal for IR imaging, LIDAR, and laser applications. With a surface quality of 60/40 and a clear aperture of at least 90%, it ensures high transmission efficiency and minimal distortion. The window is available in a standard diameter of 100 mm, with options for custom sizes and coatings, enhancing flexibility for specific project needs.

Key Features

Surface quality of 60/40 for optimal clarity and performance.
Clear aperture ≥90% ensures minimal loss of light.
Dimension tolerance of ±0.2 mm for precise fitting.
Parallelsim <3 arcmin for accurate optical alignment.
Custom support available for OEM, ODM, and OBM projects.

Specification Summary

Item	Value
Material	Fused Silica
Diameter	100 mm
Thickness	Custom
Surface Quality	60/40
Coating	anti-reflective (AR), uncoated
Transmission bands	NIR (0.7-1.7 μm), VIS (400-700 nm)
MOQ	—

Full Specifications

Parameter	Value
Type	Shaped Window
Customized Support	OEM, ODM, OBM
Weight	0.003
Dimension Tolerance	±0.2mm
Parallelsim	<3 arcmin
Clear Aperture	≥90%
Focal Length Tolerance	±2%

FAQ

Can I get custom sizes?

Yes, the Fused Silica Shaped Window can be customized in sizes ranging from 5 to 200 mm.

What is the dimension tolerance?

The dimension tolerance for this window is ±0.2 mm.
