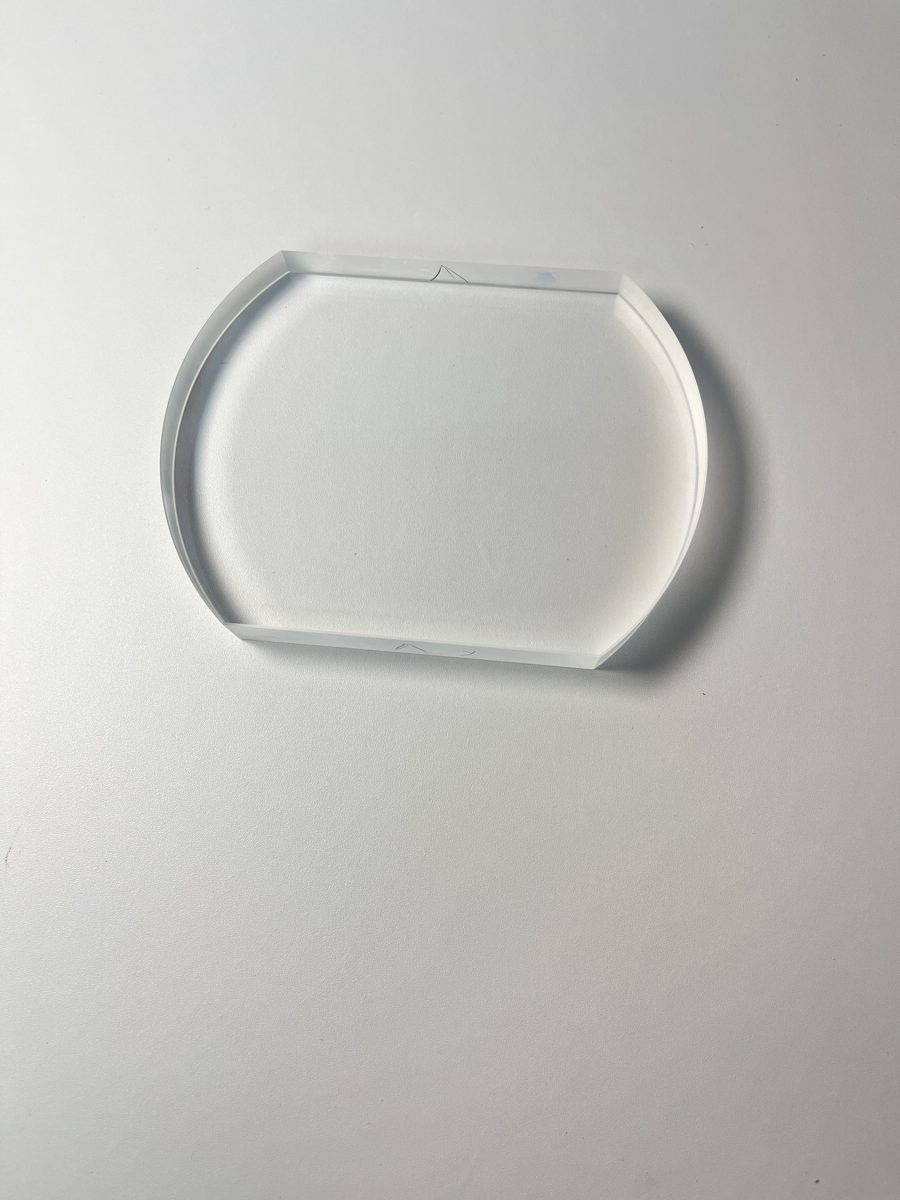

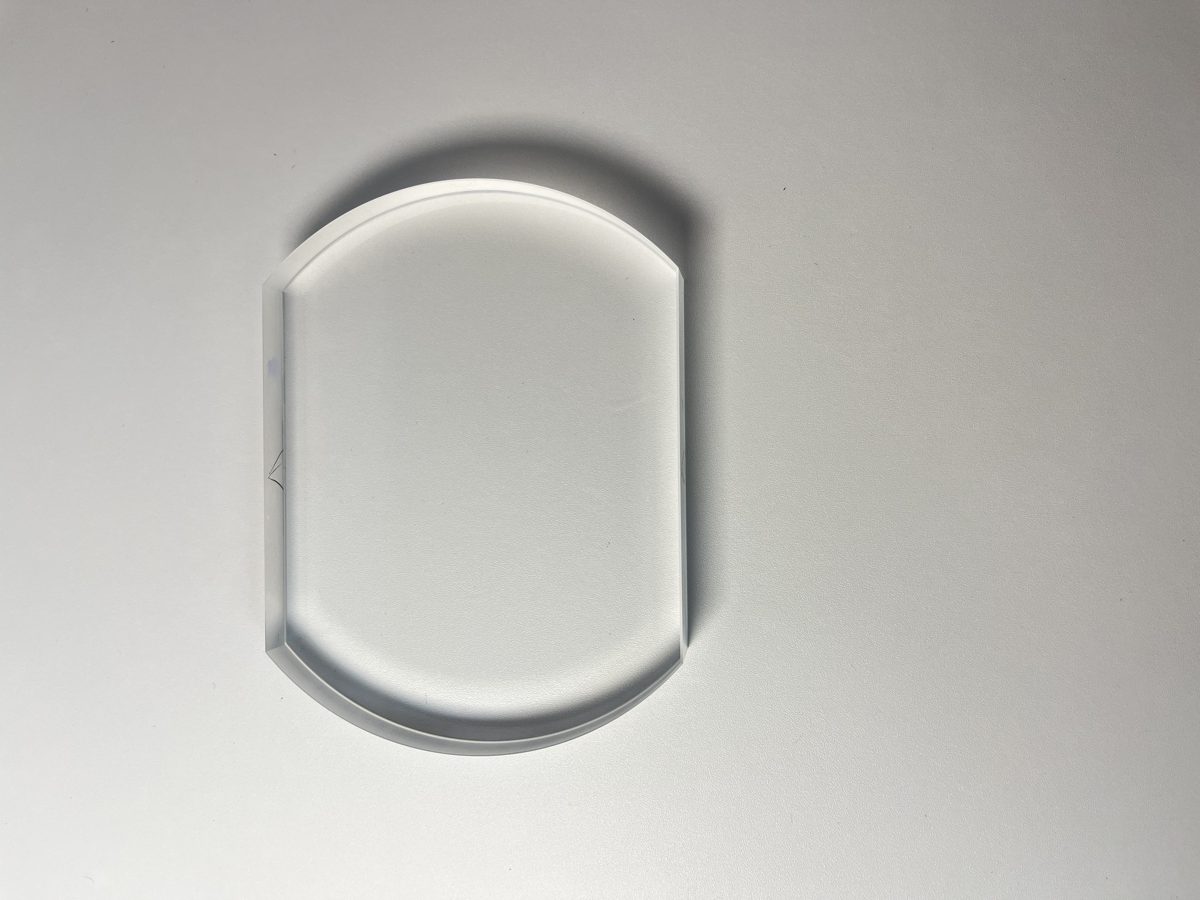

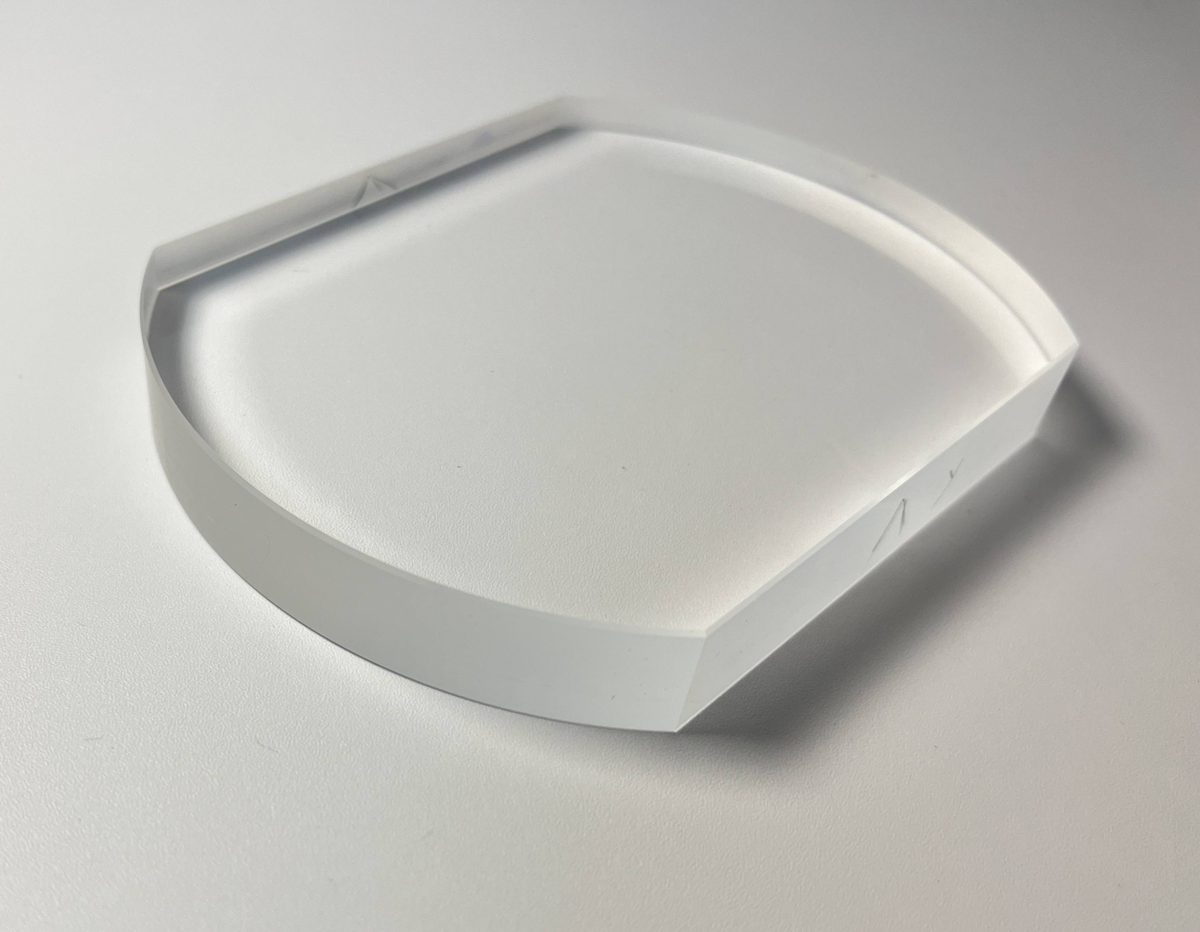

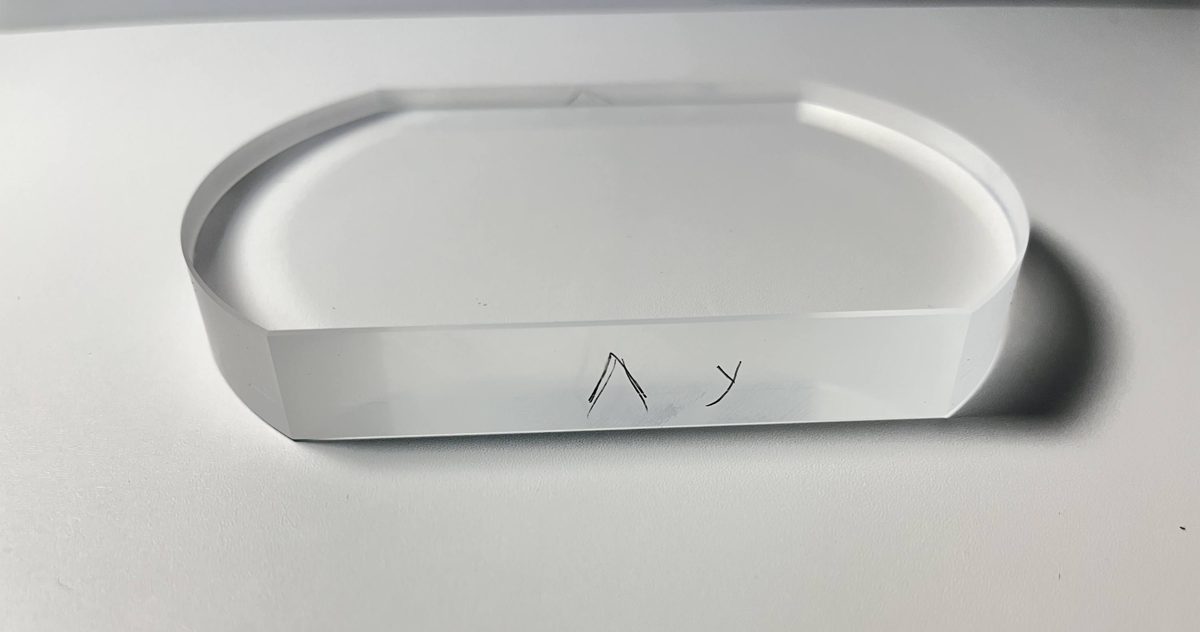

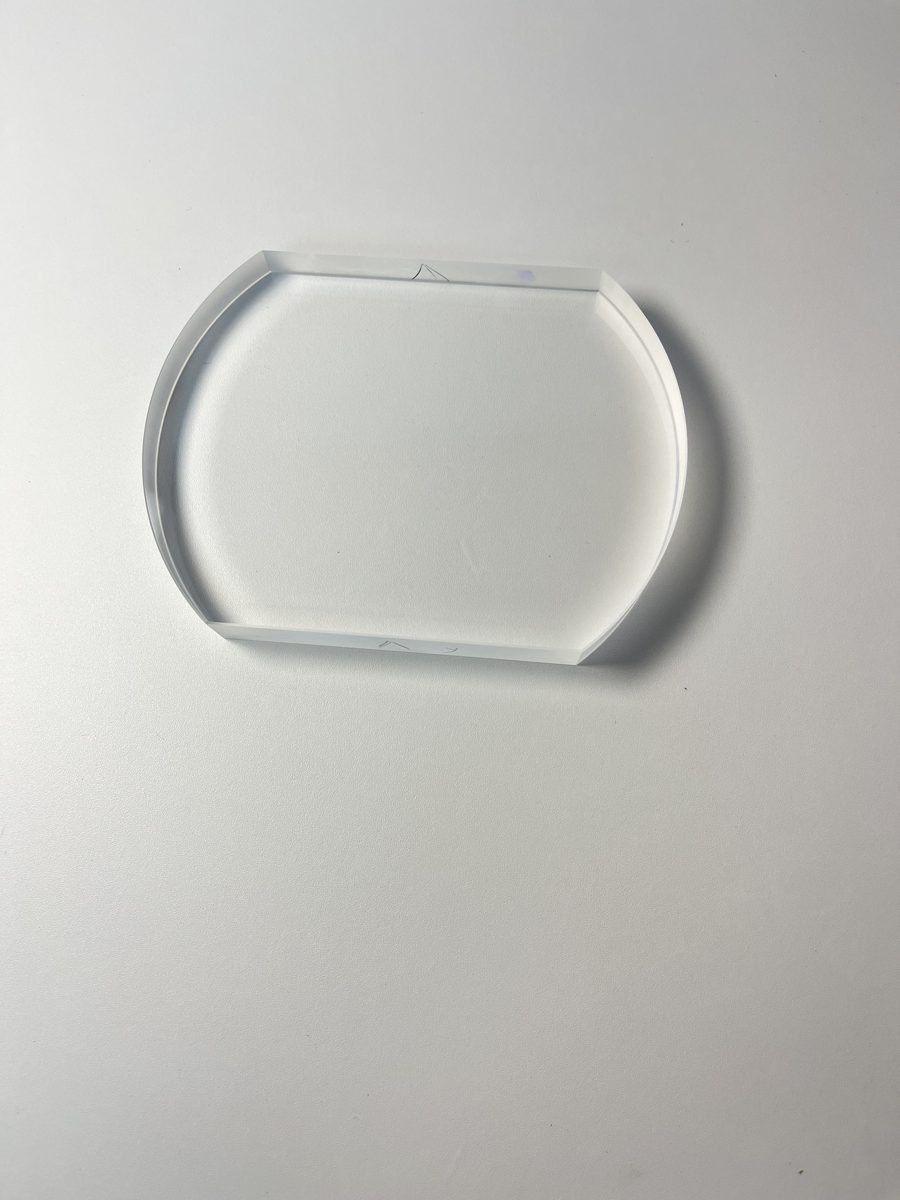

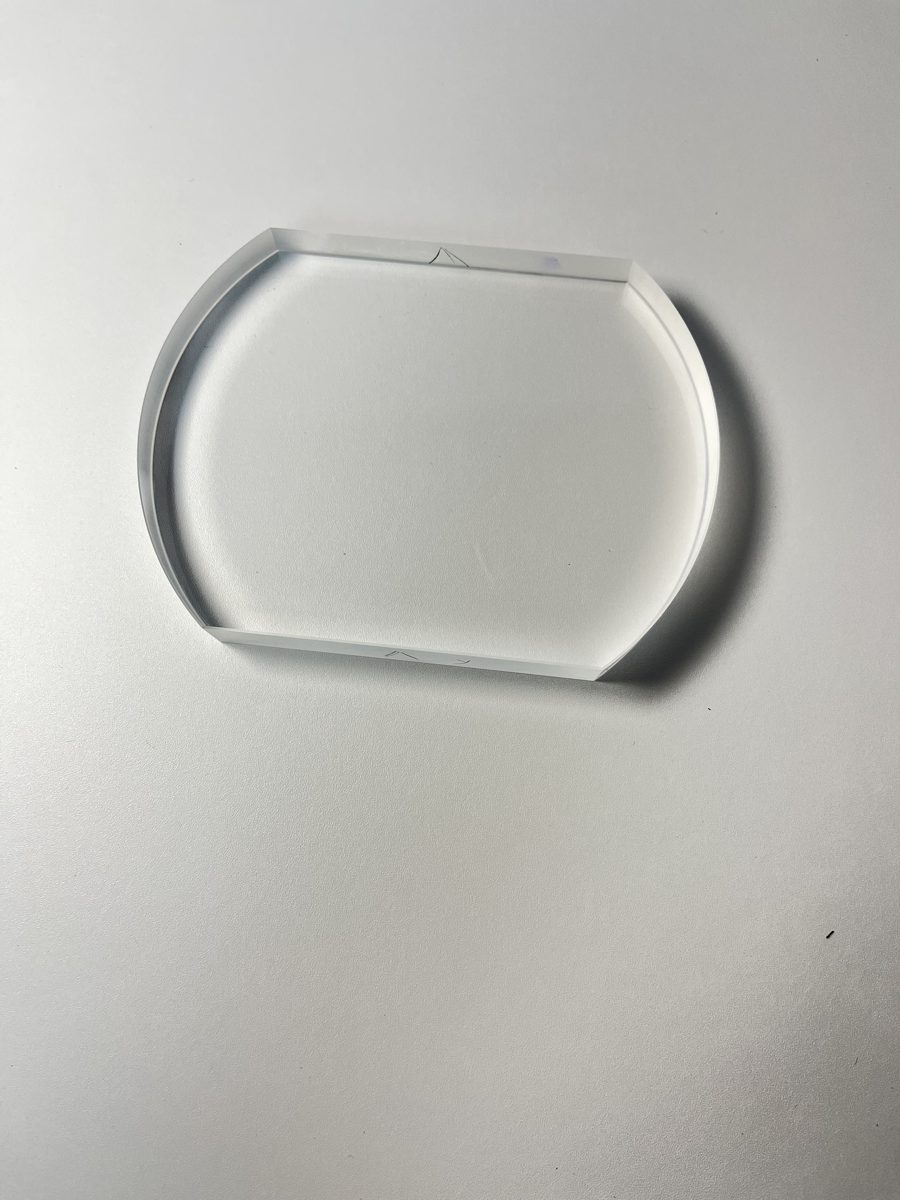

100 mm Fused Silica Optical Window, AR Coated
Explore our Fused Silica Shaped Window, ideal for IR imaging and laser applications, with customizable options and high precision.
Core attributes
- Material
- Fused Silica
- Diameter range
- 100 mm
- Coating
- ar, uncoated
Product facts
Key attributes
- Material
- Fused Silica
- Diameter range
- 100 mm
- Coating
- ar, uncoated
Product description
The Fused Silica Shaped Window addresses the need for high-performance optical components in various applications, including IR imaging and laser systems. With a diameter of 100 mm and a surface quality of 60/40, this window ensures optimal light transmission and minimal distortion. It is available with multiple coating options, including AR, making it versatile for different operational environments. The product’s reliable manufacturing process ensures batch consistency, while customization options cater to specific project requirements.
Key Features
- Diameter of 100 mm for compatibility with standard optical setups.
- Surface quality of 60/40 ensures effective light transmission.
- Dimension tolerance of ±0.2 mm allows for precise integration into systems.
- Clear aperture of ≥90% maximizes usable light for enhanced performance.
- Customizable through OEM, ODM, and OBM support for tailored solutions.
Specification Summary
| Item | Value |
|---|---|
| Material | Fused Silica |
| Diameter | 100 mm |
| Thickness | Custom |
| Surface Quality | 60/40 |
| Coating | anti-reflective (AR), uncoated |
| MOQ | — |
Full Specifications
| Parameter | Value |
|---|---|
| Type | Shaped Window |
| Customized Support | OEM, ODM, OBM |
| Weight | 0.003 |
| Dimension Tolerance | ±0.2mm |
| Parallelsim | <3 arcmin |
| Clear Aperture | ≥90% |
| Focal Length Tolerance | ±2% |
FAQ
What are the available custom sizes?
Custom sizes range from 5 mm to 200 mm in diameter.
What is the minimum order quantity (MOQ)?
The MOQ is not specified, allowing for flexible ordering.
