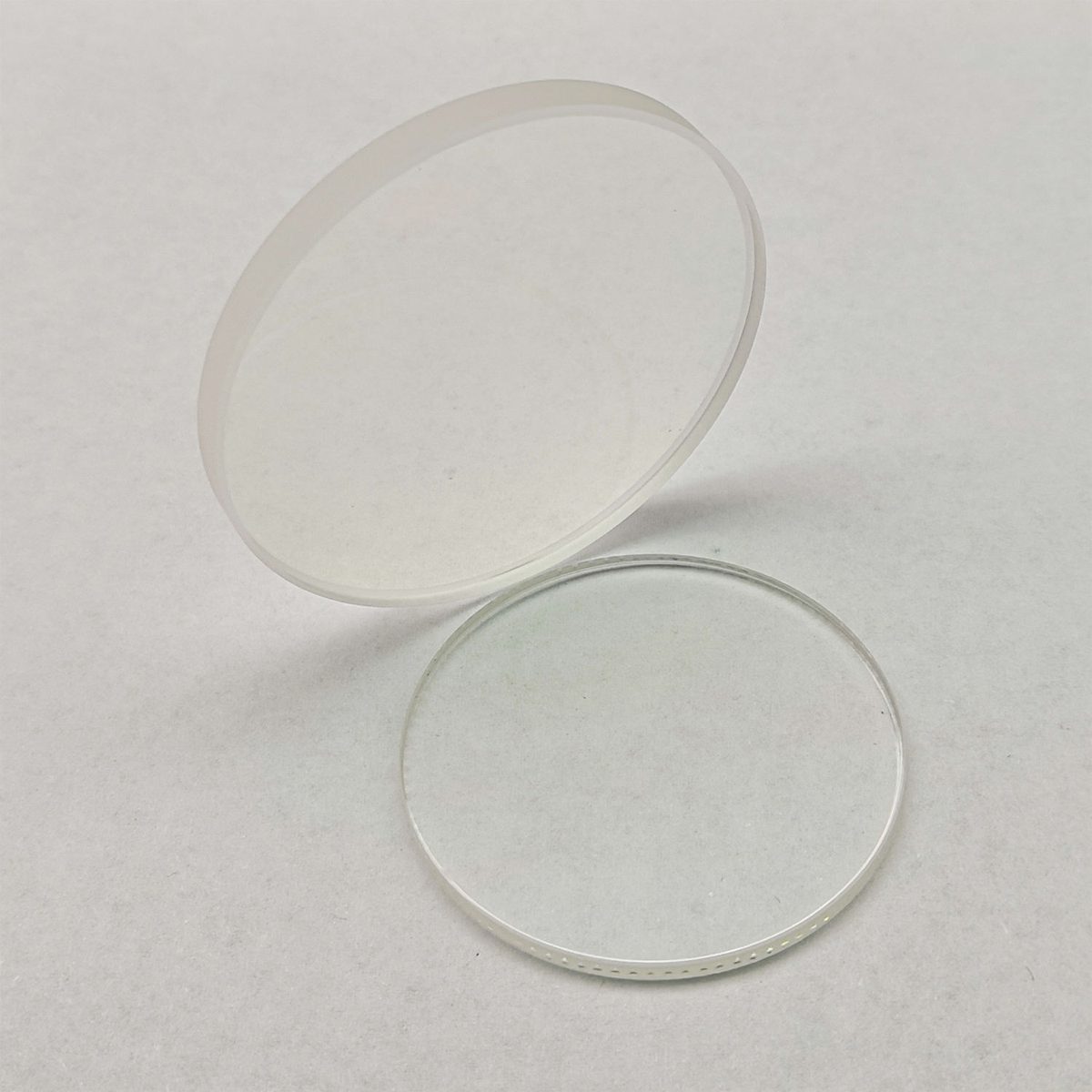

10x0.5 mm Fused Silica Optical Window, AR Coated

Product description

Fused Silica windows provide exceptional optical clarity and durability for applications in IR imaging, LIDAR, and laser systems. With a wavelength range from 180 to 2200 nm, these windows are ideal for both ultraviolet and infrared applications. The high purity of SiO2 (>99.99%) ensures minimal impurities, while the ability to withstand temperatures up to 1250°C makes them suitable for demanding environments. Custom sizes and coatings, including anti-reflective (AR) options, enhance their versatility for various applications.

Key Features

Wavelength range: 180-2200 nm for broad application compatibility.
High transmission: 85%-90% in the UV spectrum for optimal performance.
Operating temperature: up to 1250°C for high-stability applications.
Custom sizes available: diameters from 10 mm to 300 mm and thicknesses from 0.5 mm to 20 mm.
Surface flatness options: λ/4 @633 nm for precise optical performance.

Available Sizes

Diameter x Thickness (mm)
155 x 10.2

Specification Summary

Item	Value
Material	Fused Silica
Diameter	10 mm
Thickness	0.5 mm
Coating	anti-reflective (AR), uncoated, high-reflective (HR)
Transmission bands	VIS (400-700 nm), UV (<400 nm)
MOQ	—

Full Specifications

Parameter	Value
Customized Support	OEM, ODM, OBM
Warranty	1 month
Color	Transparent Clear
Keywords	fused quartz wafer, JGS1 window
Work Temperature	1100 Degrees Celsius
Flatness	L/2, L/4, L/8 @633nm
Bevel	Protective Bevel

FAQ

What are the available custom sizes?

Custom sizes range from 10 mm to 300 mm in diameter and 0.5 mm to 20 mm in thickness.

What is the minimum order quantity (MOQ)?

The minimum order quantity is not specified; please inquire for details.
