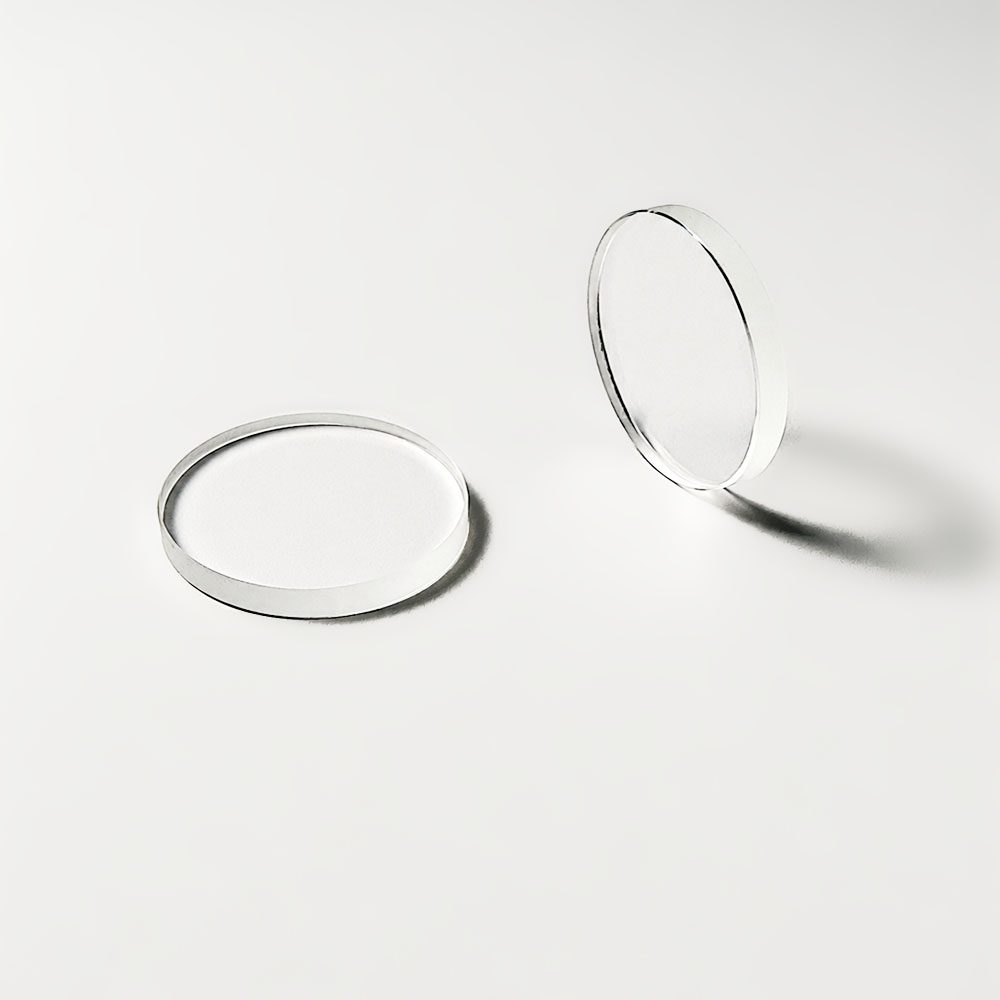

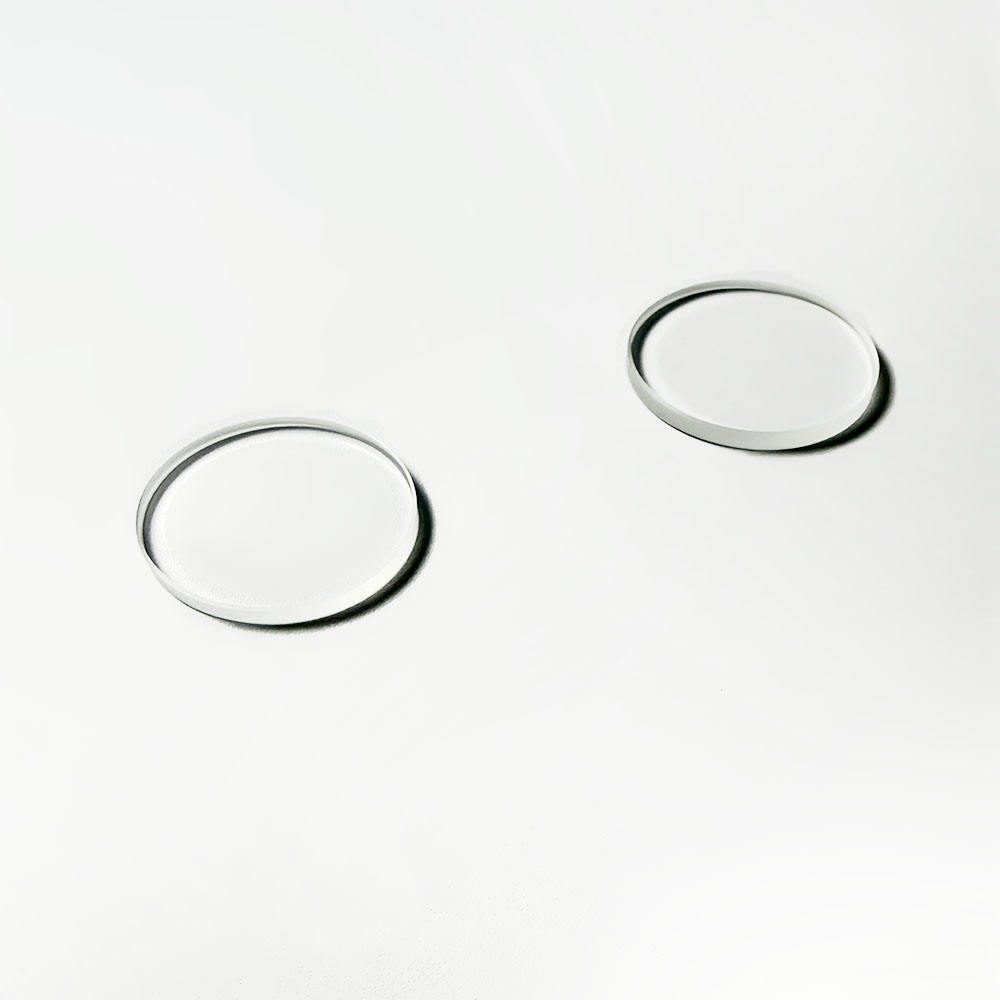

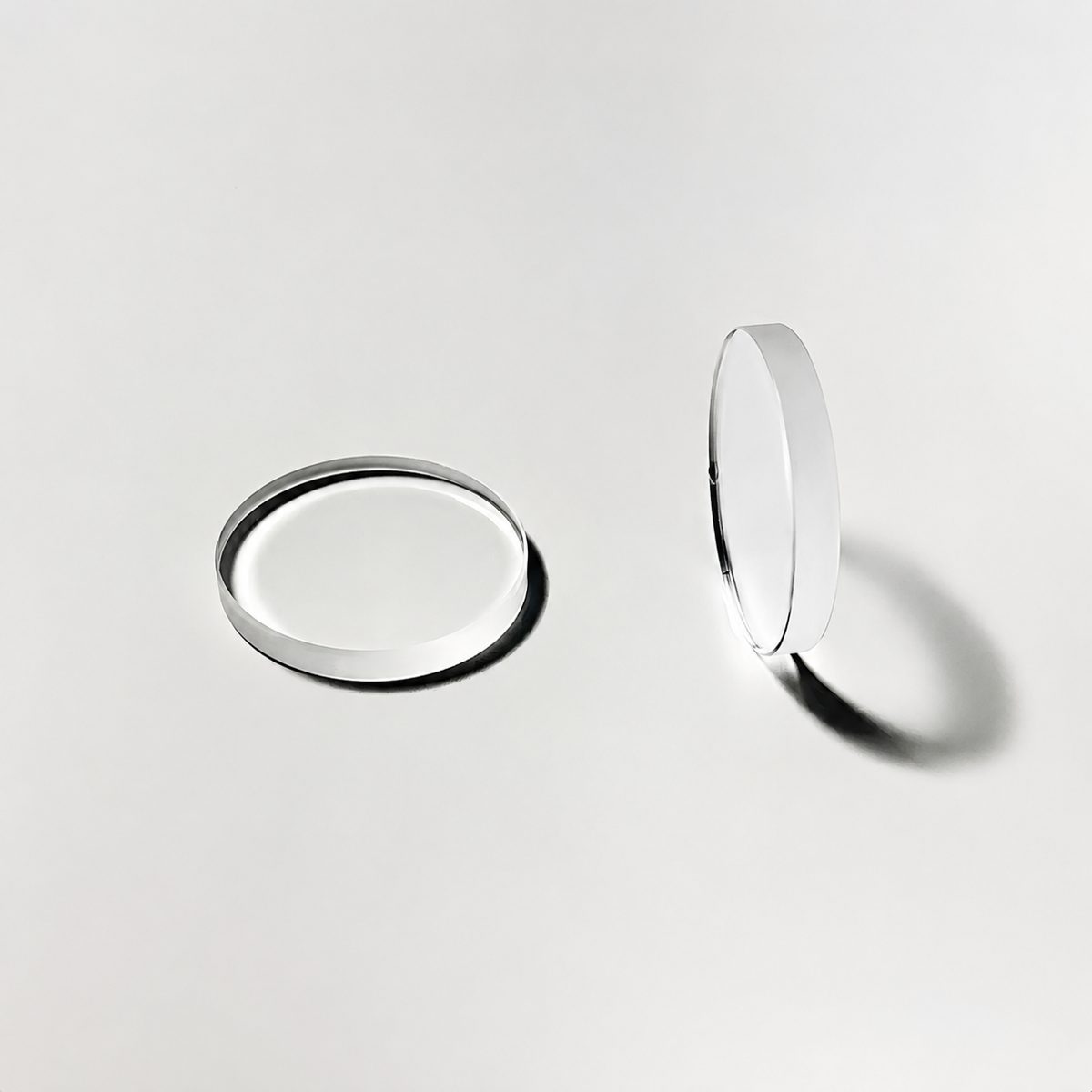

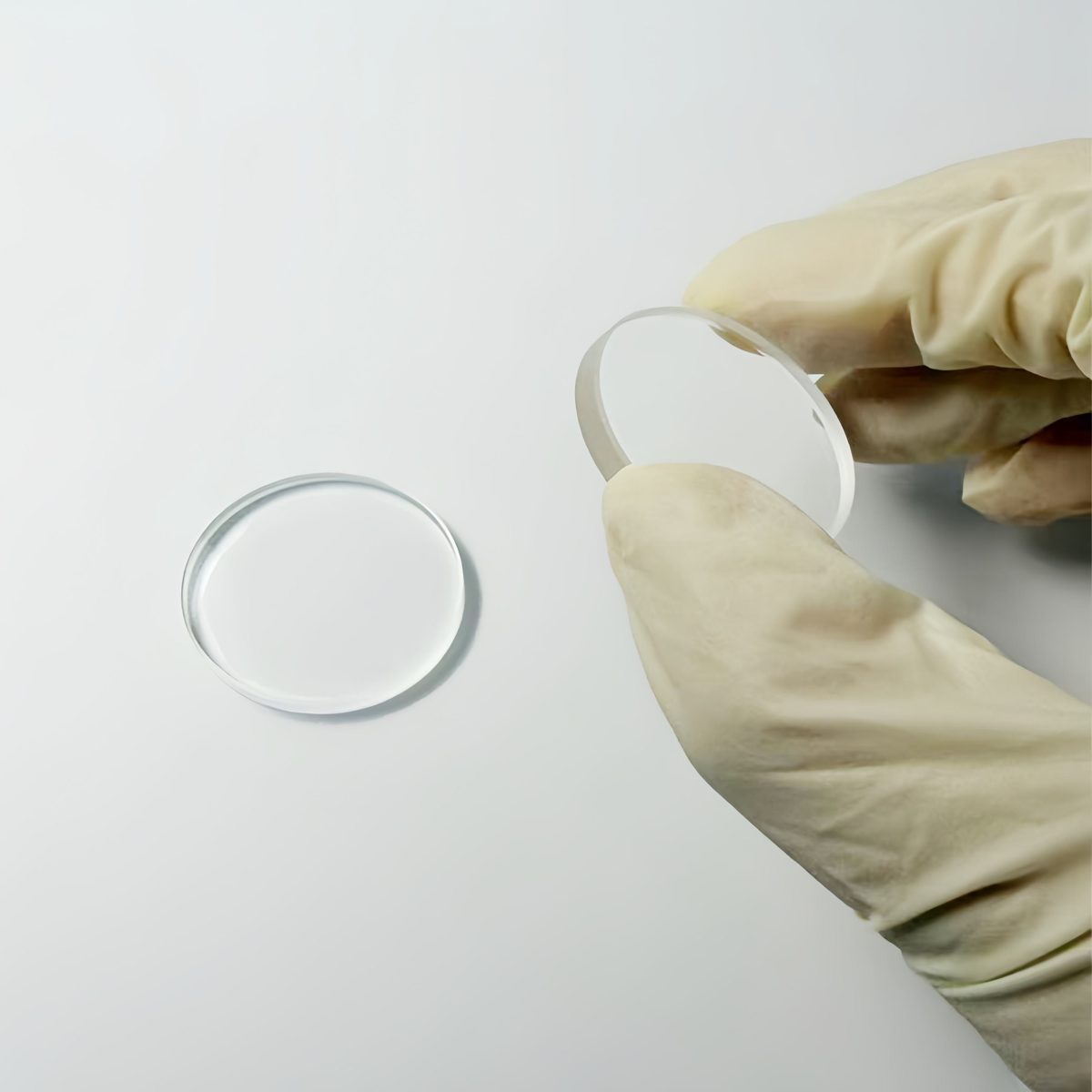

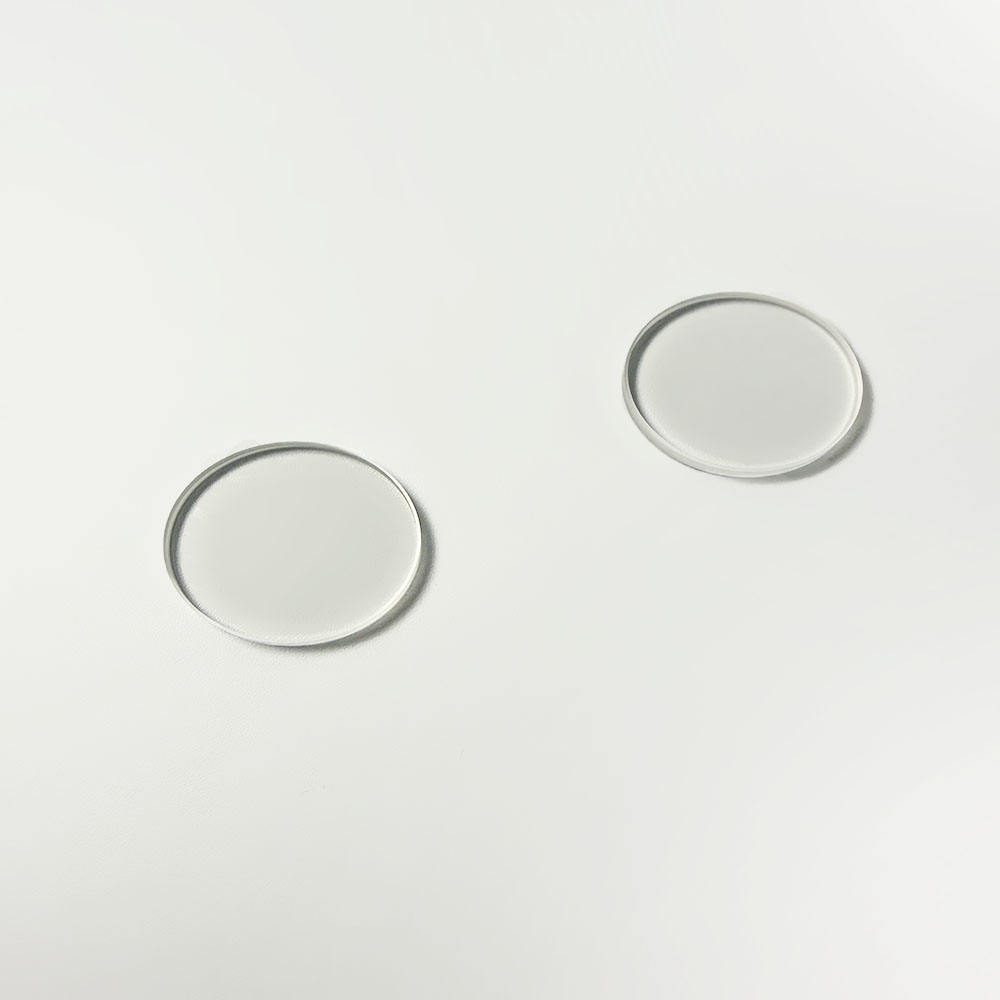

150x1 mm Fused Silica Optical Window, AR Coated

Product description

This optical window, crafted from Fused Silica, is designed for applications across a wide wavelength range of 0.4 to 1.7 μm. With its customizable thickness from 1.0 to 50.0 mm and diameters ranging from 150.0 to 700.0 mm, it meets the diverse needs of R&D and procurement engineers in IR imaging, LIDAR, and medical-device sectors. The window features a surface quality of 60/40 and options for anti-reflective or uncoated surfaces, ensuring optimal performance for various optical applications.

Key Features

Diameter options from 150.0 mm to 700.0 mm for versatile application fit.
Thickness range of 1.0 mm to 50.0 mm allows for customization to specific needs.
Surface quality of 60/40 ensures reliable performance in demanding environments.
Flatness options of L/2 to L/10 provide precision for high-quality optical setups.
Custom support available for OEM and ODM projects to meet unique specifications.

Available Sizes

Diameter x Thickness (mm)
425 x 25.5

Specification Summary

Item	Value
Material	Fused Silica
Diameter	150 mm
Thickness	1 mm
Surface Quality	60/40
Coating	anti-reflective (AR), uncoated
Transmission bands	NIR (0.7-1.7 μm), VIS (400-700 nm)
MOQ	—

Full Specifications

Parameter	Value
Type	optical window
Customized Support	OEM, ODM
Warranty	6 months
Weight	2kg(4.41lb)
Flatness	L/2, L/4, L/8, L/10
Parallelism	< 3 arcmin
Bevel	0.1-0.5mm*45°
Dimension Tolerance	±0.1mm

FAQ

What are the available custom sizes?

The optical window is available in diameters from 150.0 mm to 700.0 mm and thicknesses from 1.0 mm to 50.0 mm.

What is the minimum order quantity?

The minimum order quantity is not specified, allowing for flexibility in procurement.
