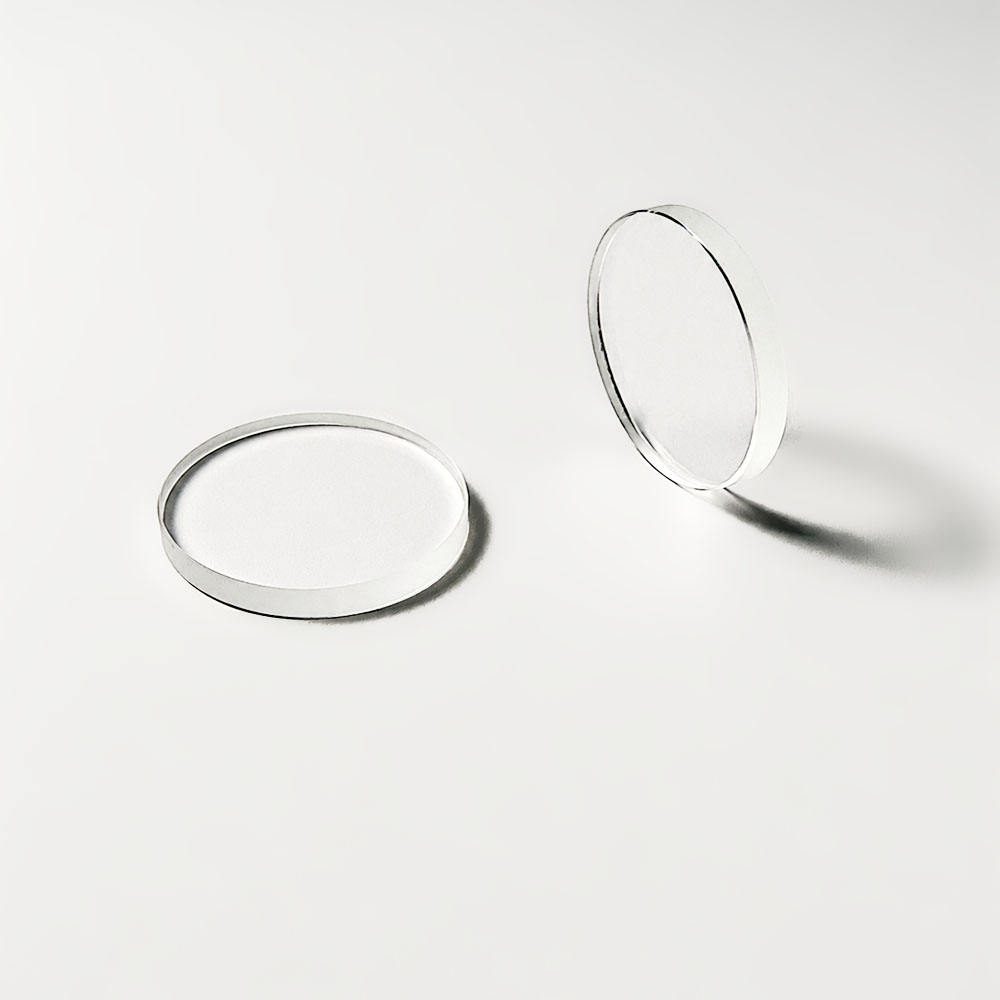

150x1 mm Fused Silica Optical Window, AR Coated

Product description

This optical window made from Fused Silica offers exceptional performance for various applications requiring high precision optics. With a diameter range of 150 to 700 mm and thickness options from 1 to 50 mm, it is suitable for diverse wavelengths and systems, including IR imaging and medical devices. The window features a surface quality of 60/40 and customizable flatness options, ensuring optimal light transmission and minimal distortion.

Key Features

Diameter range: 150-700 mm for flexibility in application.
Thickness options: 1-50 mm to meet specific design requirements.
Surface quality of 60/40 for reliable performance in demanding environments.
Customizable flatness: L/2, L/4, L/8, L/10 for precise optical control.
OEM and ODM support available for tailored solutions.

Available Sizes

Diameter x Thickness (mm)
425 x 25.5

Specification Summary

Item	Value
Material	Fused Silica
Diameter	150 mm
Thickness	1 mm
Surface Quality	60/40
Coating	anti-reflective (AR), uncoated
MOQ	—

Full Specifications

Parameter	Value
Type	optical window
Customized Support	OEM, ODM
Warranty	6 months
Weight	2kg(4.41lb)
Flatness	L/2, L/4, L/8, L/10
Parallelism	< 3 arcmin
Bevel	0.1-0.5mm*45°
Dimension Tolerance	±0.1mm

FAQ

Can I get custom sizes for this optical window?

Yes, custom sizes are available, including a variant size of 425 mm diameter and 25.5 mm thickness.

What are the tolerances for this optical window?

The dimension tolerance is ±0.1 mm, ensuring high precision in manufacturing.
