1 / 6Optical Windows

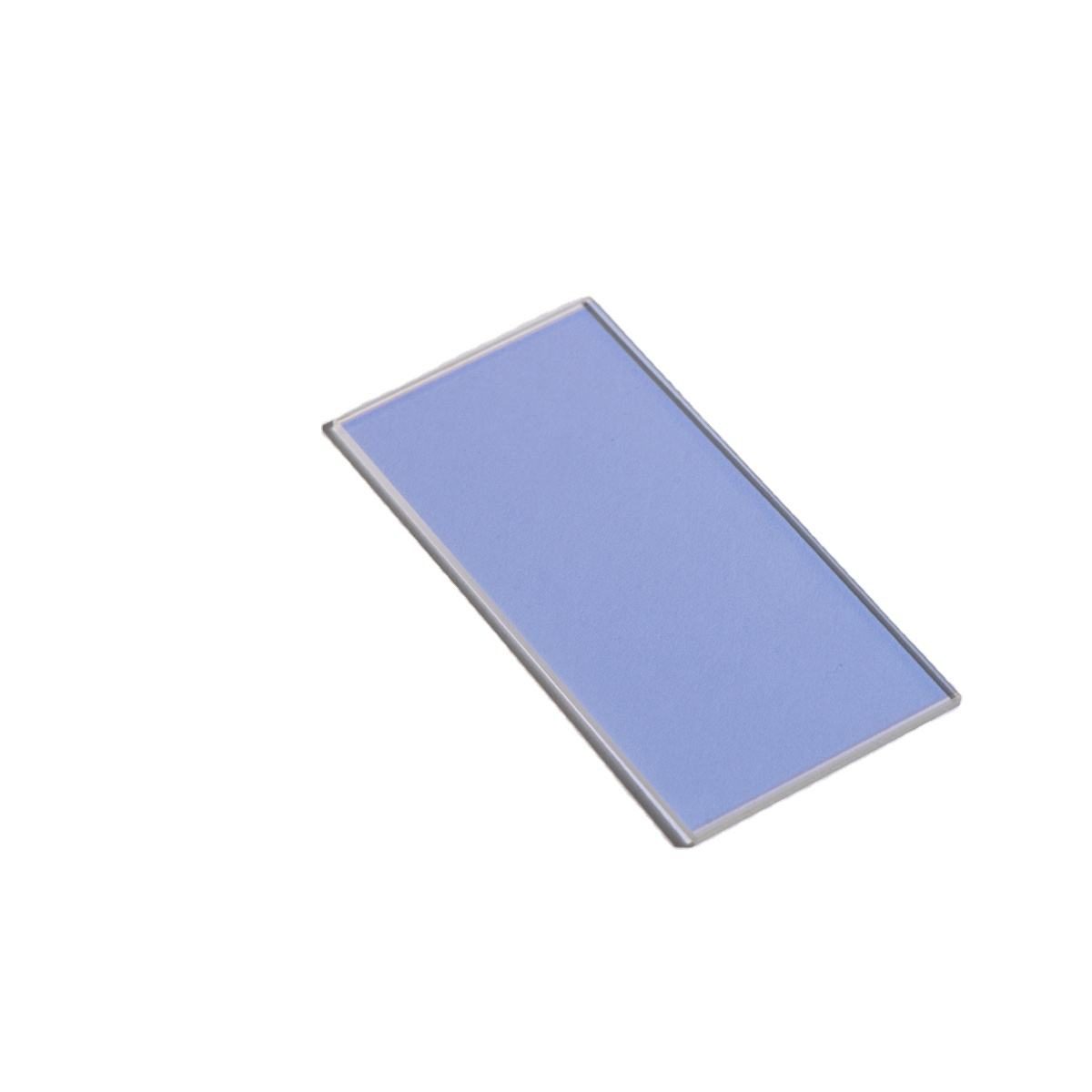

15 mm Fused Silica Optical Window, AR Coated
Achromatic lens in fused silica for semiconductor applications, customizable with OEM/ODM support.
Core attributes
- Material
- Fused Silica
- Diameter range
- 15 mm
- Coating
- ar
Product facts
Key attributes
- Material
- Fused Silica
- Diameter range
- 15 mm
- Coating
- ar
Product description
This achromatic lens made from fused silica is designed for applications in the semiconductor industry, particularly effective across the 8-14 μm, 0.7-1.7 μm, and 400-700 nm wavelength bands. Its double convex structure ensures minimal distortion and high transmittance, making it ideal for precision optical systems. With a diameter of 15 mm, it meets various integration needs while maintaining reliability in performance.
Key Features
- Achromatic design minimizes chromatic aberration, enhancing image clarity.
- Coated with anti-reflective (AR) layers to improve transmittance and reduce ghosting.
- Manufactured from high-quality fused silica for durability and thermal stability.
- Custom sizes available with OEM and ODM support to meet specific project requirements.
- Lightweight at 0.05 kg, facilitating easier integration into various systems.
Applications
Semiconductor
Specification Summary
| Item | Value |
|---|---|
| Material | Fused Silica |
| Diameter | 15 mm |
| Thickness | Custom |
| Coating | anti-reflective (AR) |
| Transmission bands | LWIR (8-14 μm), NIR (0.7-1.7 μm), VIS (400-700 nm) |
| MOQ | — |
Full Specifications
| Parameter | Value |
|---|---|
| Type | Achromatic Lens |
| Customized Support | OEM, ODM, OBM; OEM & ODM |
| Warranty | 3 Years |
| Weight | 0.05 |
| Keywords | quartz glass sheet optical window |
| Wavelength | 1064nm |
| Laser Type | Fiber Laser IPG Raycus Max |
| Structure | Double Convex |
FAQ
Can custom sizes be ordered?
Yes, custom sizes are available with OEM and ODM support.
What is the thickness tolerance?
The thickness tolerance is +/-0.20 mm.
