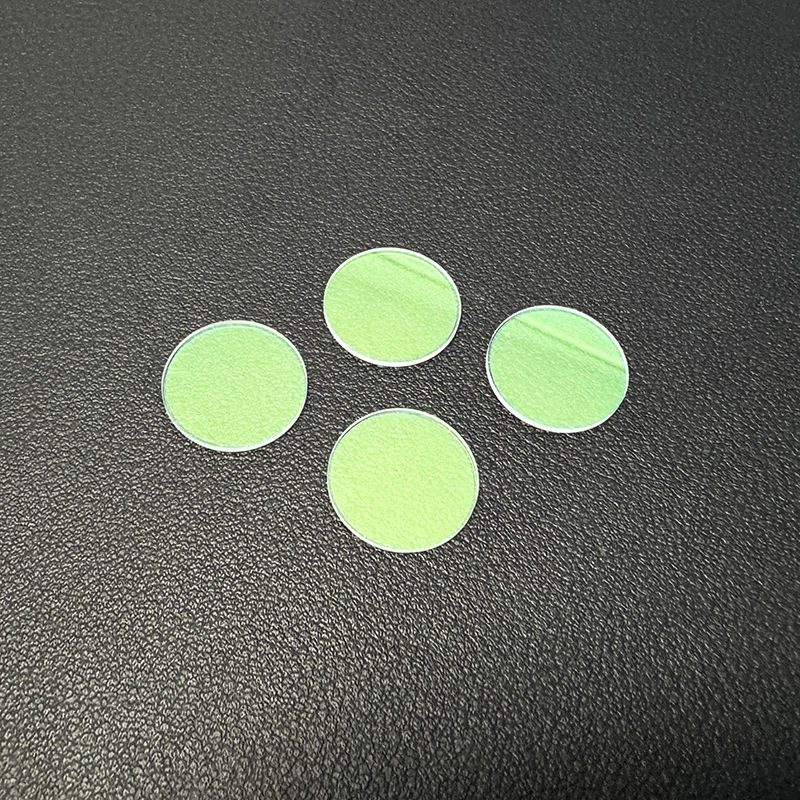

15.8x1.1 mm Fused Silica Optical Window, AR Coated

Product description

This Fused Silica protective window is designed for medical applications, specifically for IR lasers operating within the 0.7-1.7 μm wavelength range. With a diameter of 15.75 mm and a thickness of 1.1 mm, it ensures high transmittance of 99.5%, effectively safeguarding more expensive lenses from smoke and debris. The window’s surface quality of 60/40 ensures clarity and performance in critical applications.

Key Features

Transmittance of 99.5% enhances laser efficiency and performance.
Custom sizes available, including a variant of 15.8 mm diameter.
Surface quality rated at 60/40 for reliable optical performance.
Designed specifically for medical laser applications, ensuring compatibility.
Manufactured in Jiangsu with 19 years of experience, ensuring reliability.

Available Sizes

Diameter x Thickness (mm)
15.8 x 1.1

Applications

Medical

Specification Summary

Item	Value
Material	Fused Silica
Diameter	15.8 mm
Thickness	1.1 mm
Surface Quality	60/40
Transmittance	99.5%
Coating	anti-reflective (AR)
Transmission bands	NIR (0.7-1.7 μm)
MOQ	—

Full Specifications

Parameter	Value
Transmittance	99.5%
Customized Support	OEM
Warranty	None
Description	Yag Lens Protective Window Lens
Materials	Fused Silica or Sapphire
Flatness	5 Lambda/Inch
Keywords	Protective windows

FAQ

Can I get custom sizes?

Yes, custom sizes are available, including a variant size of 15.8 mm diameter.

What is the minimum order quantity (MOQ)?

The minimum order quantity is not specified, allowing for flexible purchasing options.
