1 / 6Optical Windows

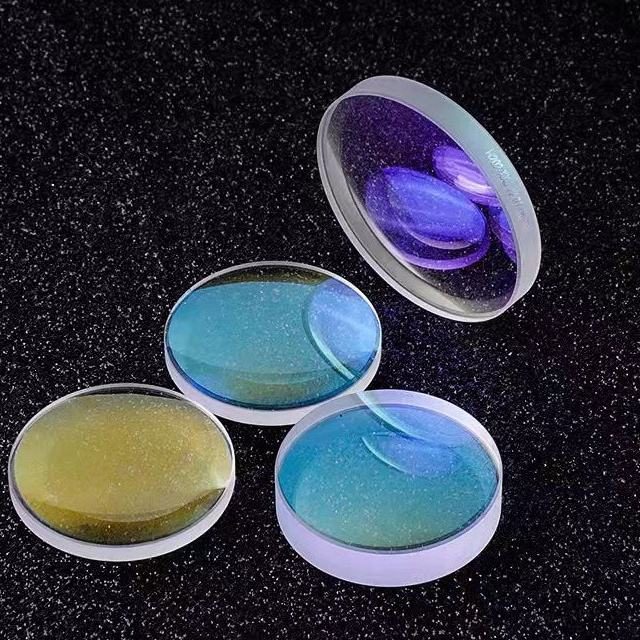

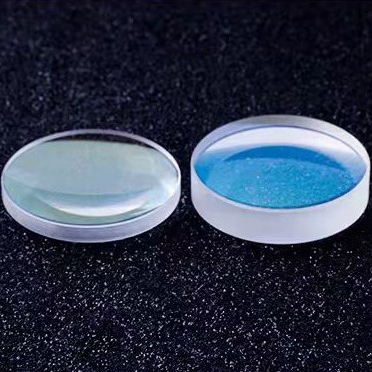

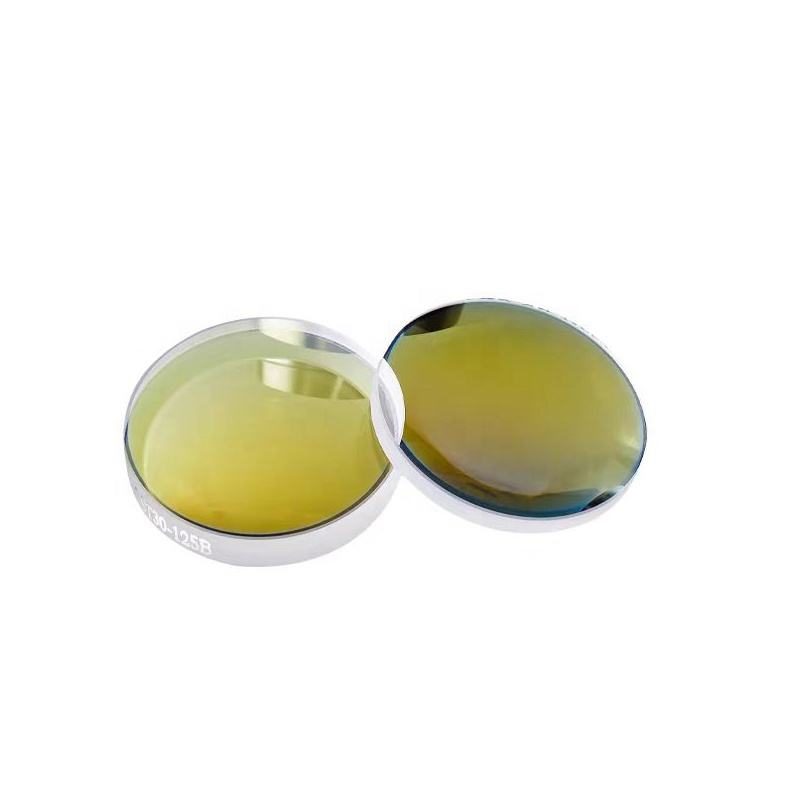

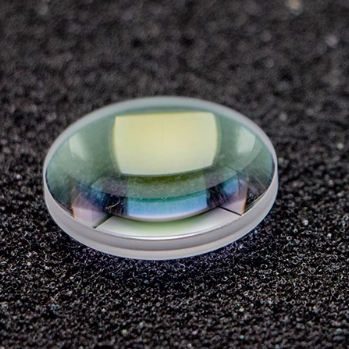

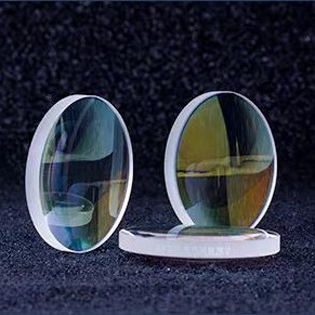

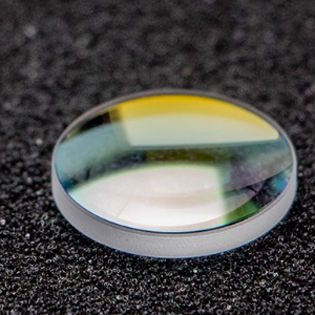

16x1 mm Fused Silica Optical Window, AR Coated
Fused Silica lens for laser cutting, 0.7-1.7 μm, customizable sizes, anti-reflective coatings, lightweight design.
Core attributes
- Material
- Fused Silica
- Diameter range
- 16–30 mm
- Thickness
- 1–9 mm
- Coating
- ar
Product facts
Key attributes
- Material
- Fused Silica
- Diameter range
- 16–30 mm
- Thickness
- 1–9 mm
- Coating
- ar
Product description
This Fused Silica lens is designed for laser cutting applications, particularly effective in the 0.7-1.7 μm wavelength range. With a diameter of 16.0 mm to 30.0 mm and thickness options from 1.0 mm to 9.0 mm, it provides versatility for various laser systems. The lens features anti-reflective coatings to enhance transmittance and reduce reflection losses, ensuring optimal performance in fiber laser welding and cutting operations.
Key Features
- Wavelength compatibility: 0.7-1.7 μm for effective laser cutting.
- Available diameters: 16.0 mm to 30.0 mm for flexible integration.
- Thickness options: 1.0 mm to 9.0 mm to suit different applications.
- Anti-reflective coatings enhance transmittance and reduce losses.
- Lightweight design: only 0.015 kg for easy handling.
Available Sizes
| Diameter x Thickness (mm) |
|---|
| 23 x 5 |
| 29.5 x 4.5 |
Applications
Laser Cutting
Specification Summary
| Item | Value |
|---|---|
| Material | Fused Silica |
| Diameter | 16 mm |
| Thickness | 1 mm |
| Coating | anti-reflective (AR) |
| Transmission bands | NIR (0.7-1.7 μm) |
| MOQ | — |
Full Specifications
| Parameter | Value |
|---|---|
| Spare Parts Type | Laser Component |
| Wavelength | 1064 nm; 1064nm |
| Laser Type | Fiber Laser |
| Accessory Type | Lens |
| Key Selling Points | Easy To Operate |
| Warranty | 1 Year |
| Condition | New |
| Weight (Kg) | 0.015 |
| Parallelism | <1 |
FAQ
Can I get custom sizes for this lens?
Yes, variant sizes include 23.0 mm x 5.0 mm and 29.5 mm x 4.5 mm.
What is the minimum order quantity (MOQ)?
The minimum order quantity is not specified.
