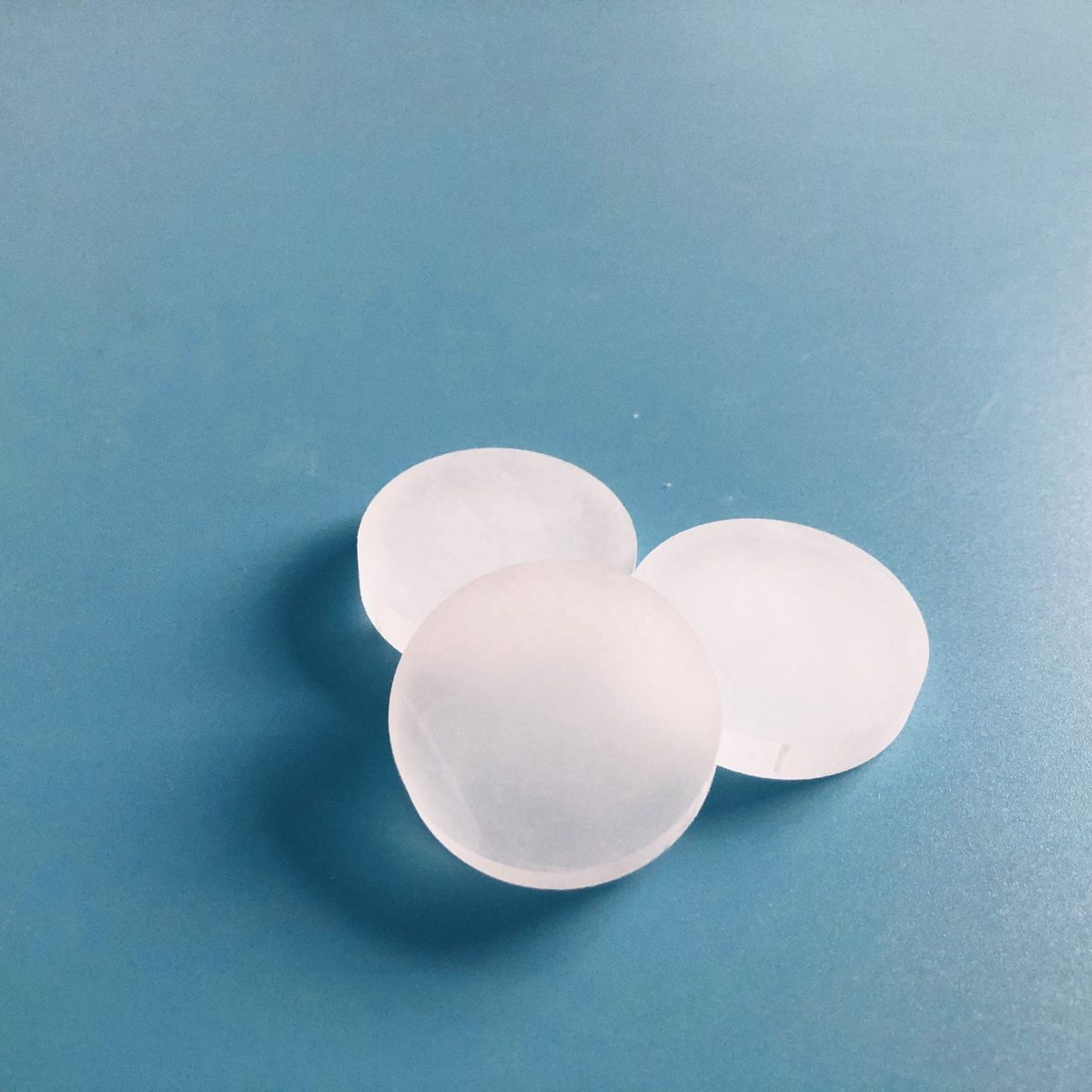

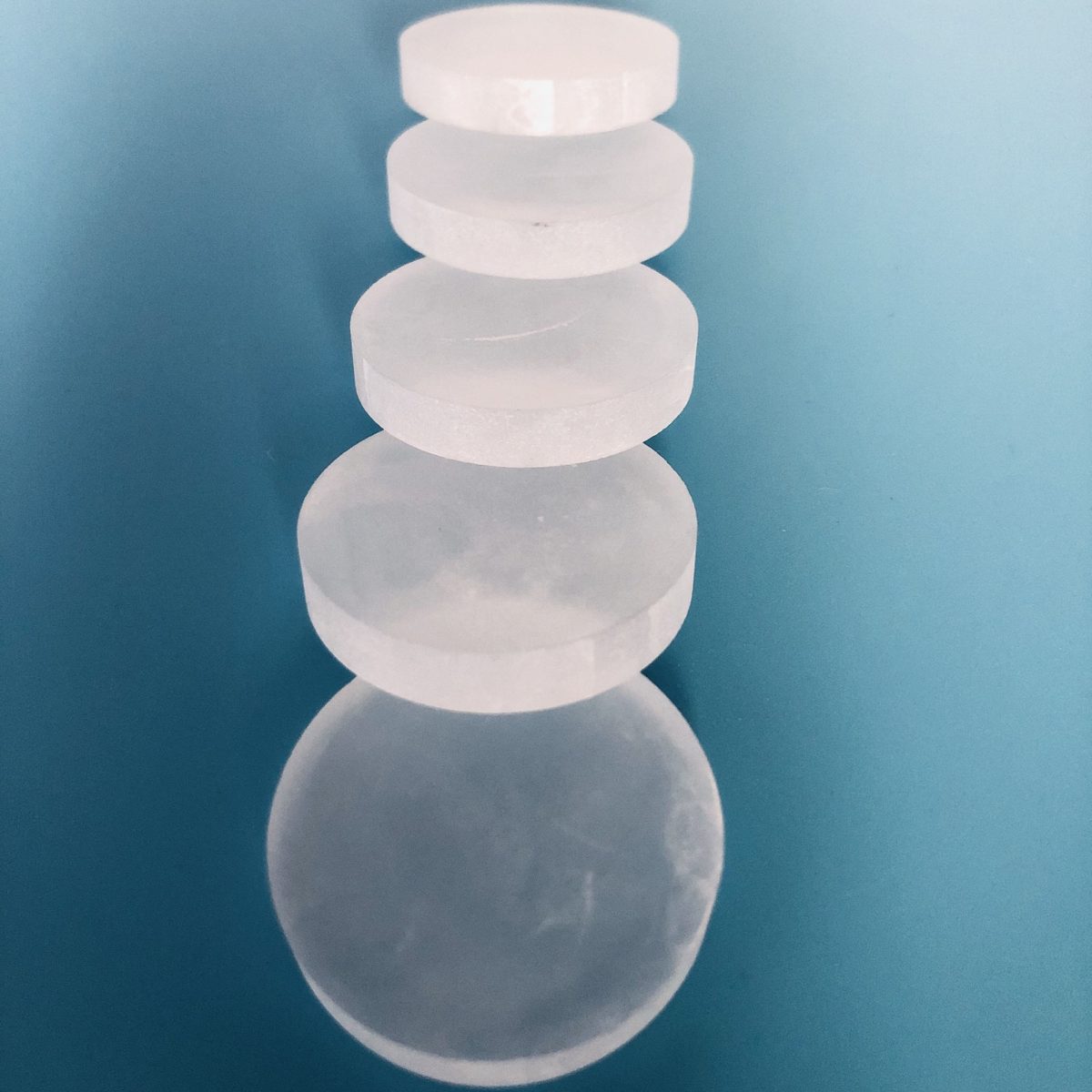

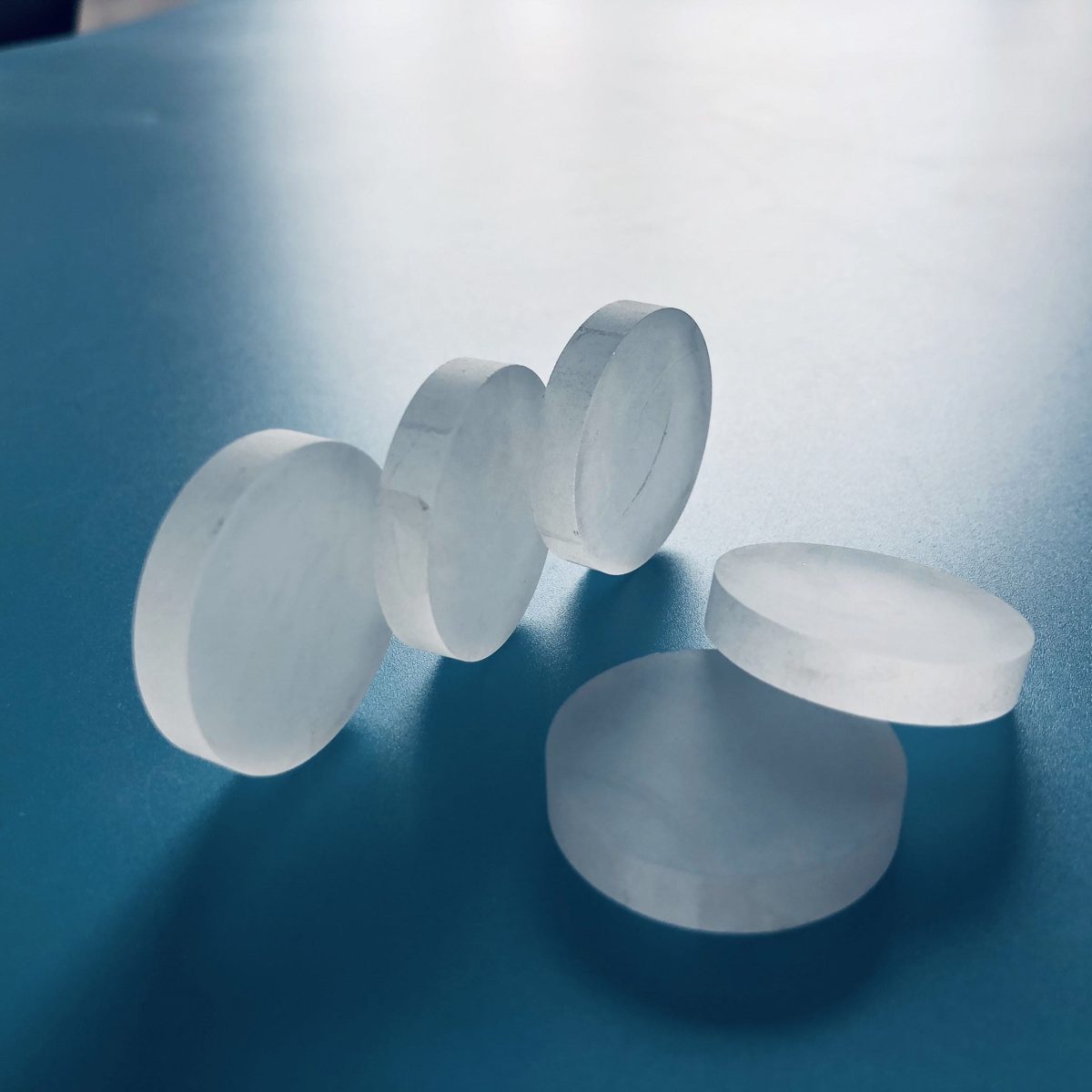

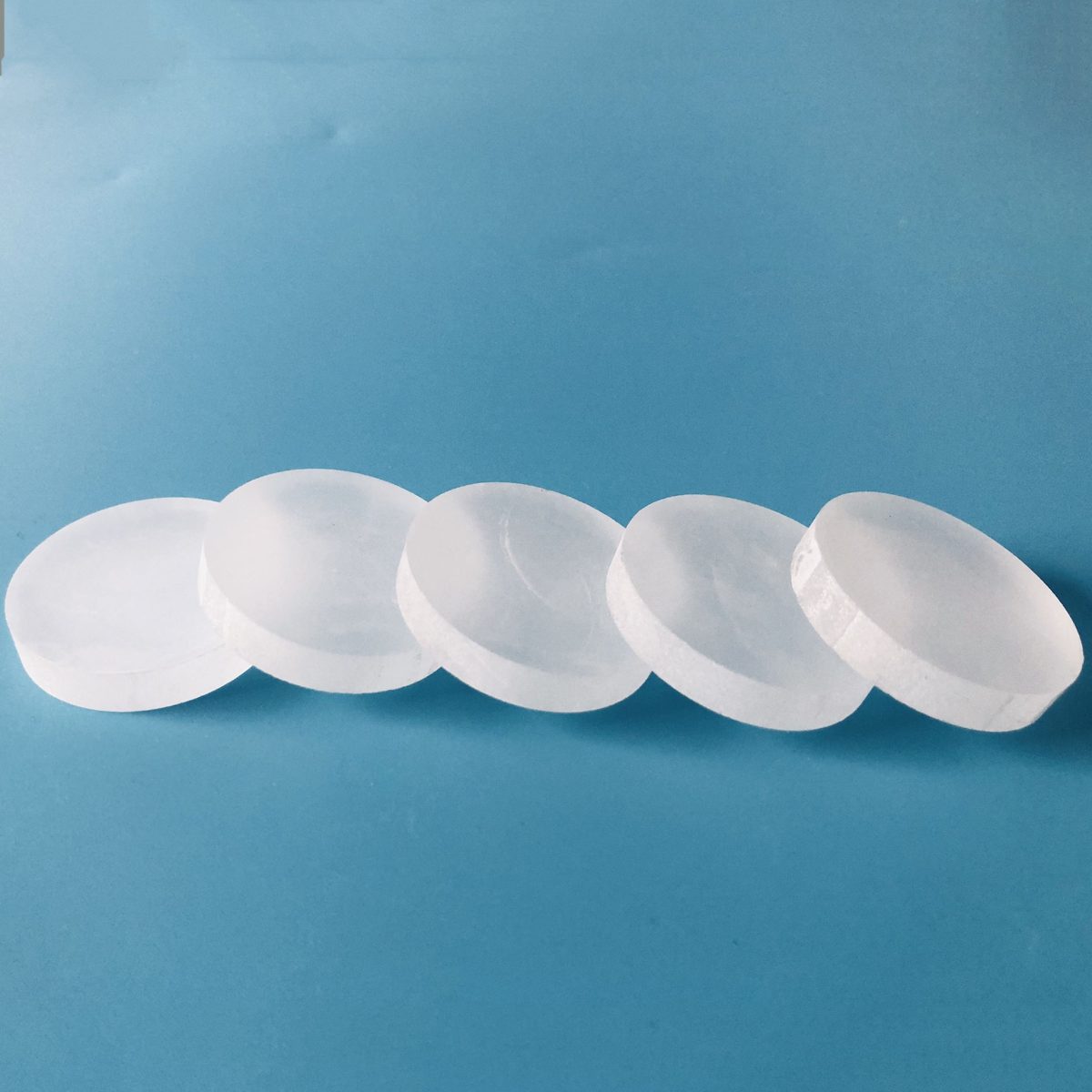

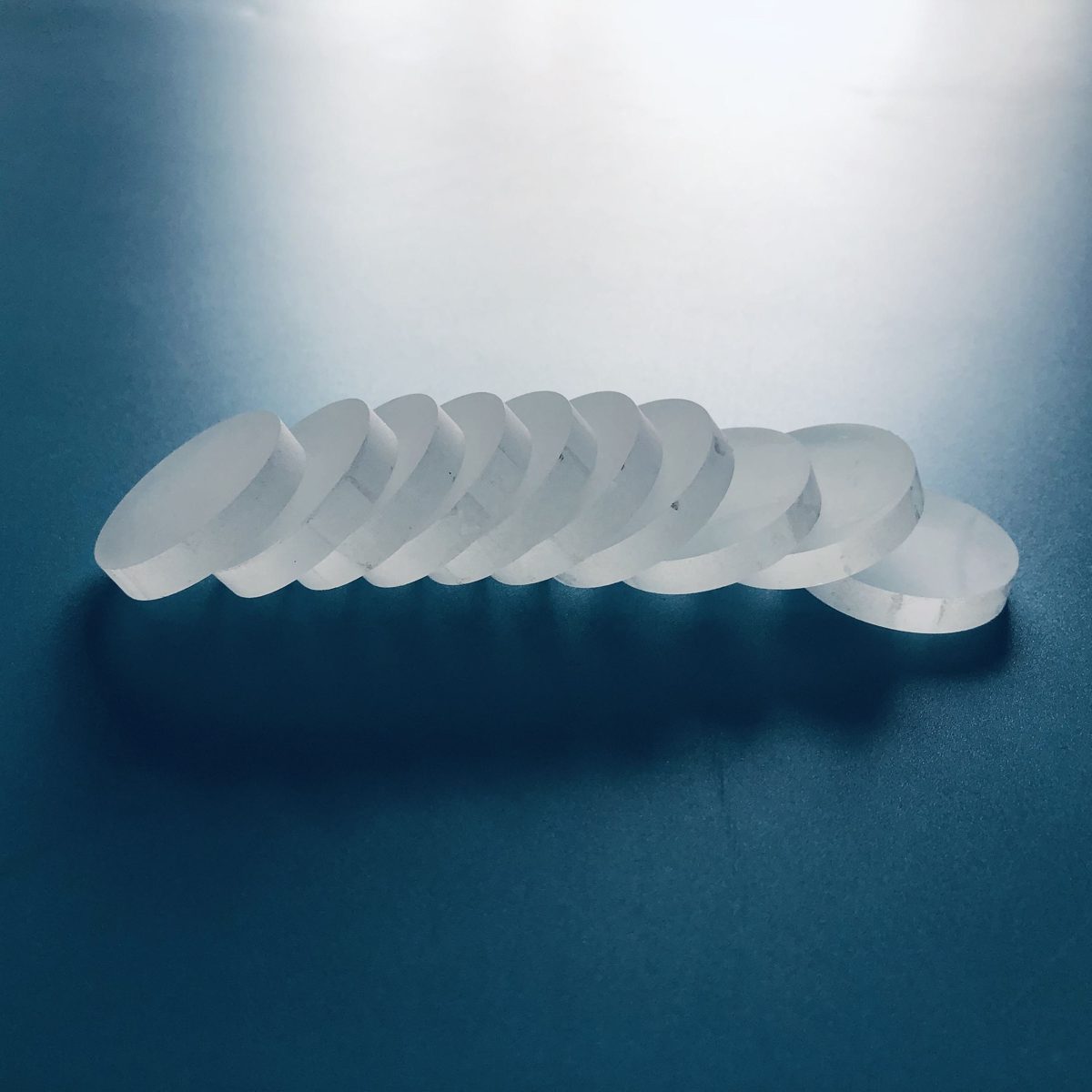

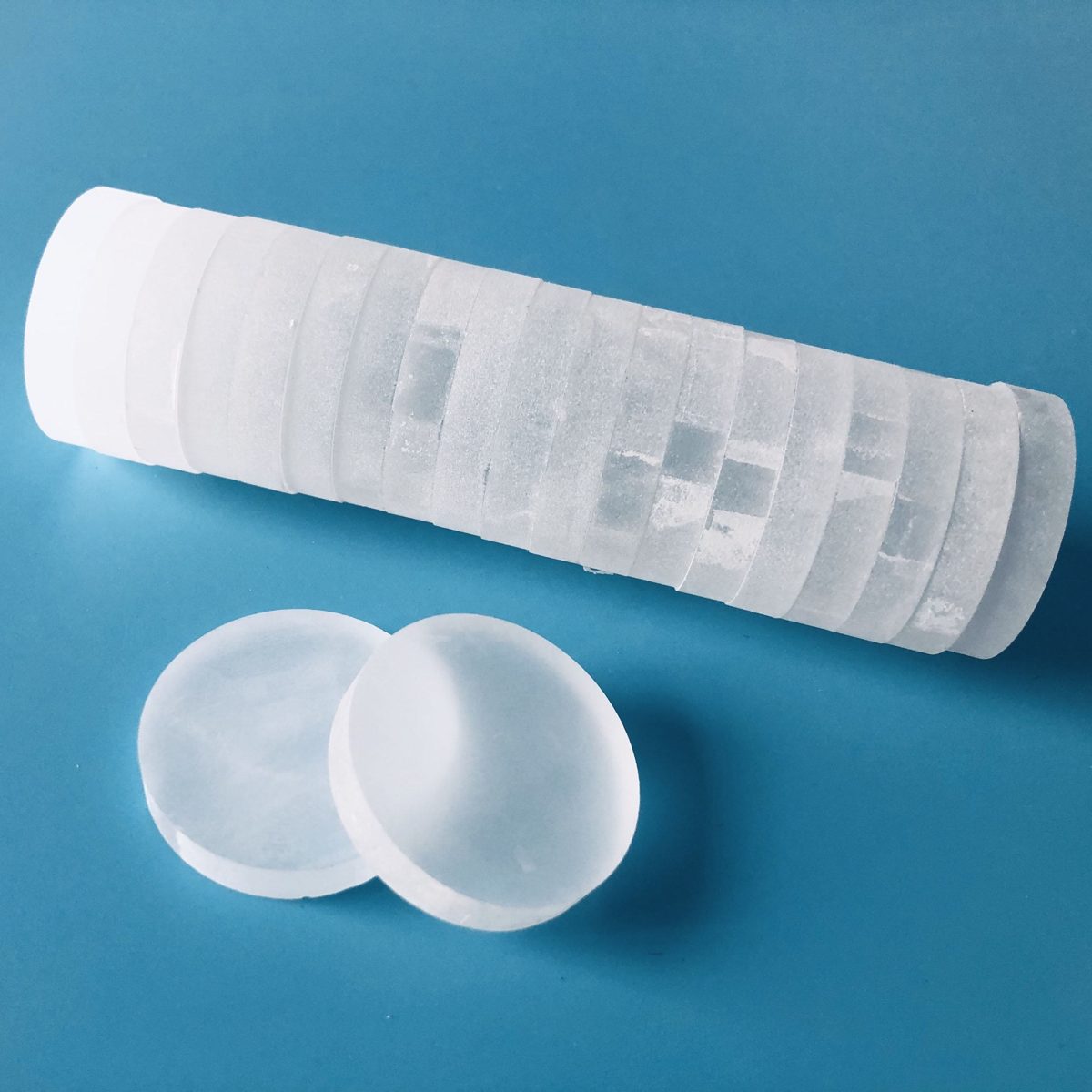

1x0.5 mm Fused Silica Optical Window

Product description

Fused Silica optical windows are essential for applications in the medical field and beyond, offering superior performance across a wide range of wavelengths (1.7-3 μm, 400-700 nm, <400 nm). With a diameter range of 1.0 to 200.0 mm and thickness options from 0.5 to 60.0 mm, these windows provide versatility for various optical systems. Their excellent transmittance and low thermal expansion make them ideal for precision applications, ensuring reliability and consistency in demanding environments.

Key Features

Wavelength compatibility: Suitable for 1.7-3 μm, 400-700 nm, and <400 nm applications, ensuring optimal performance across multiple fields.
Customizable dimensions: Available in diameters from 1.0 to 200.0 mm and thicknesses from 0.5 to 60.0 mm, allowing for tailored solutions.
High durability: Made from fused silica, offering scratch resistance and low thermal expansion for long-lasting performance.
Tight tolerances: Diameter tolerance of +0/-0.2 mm and thickness tolerance of +/-0.2 mm ensure precision in applications.
Minimum order quantity: Flexible MOQ of 100 pcs, facilitating easier procurement for projects of varying scales.

Available Sizes

Diameter x Thickness (mm)
100.5 x 30.2

Applications

Medical

Specification Summary

Item	Value
Material	Fused Silica
Diameter	1 mm
Thickness	0.5 mm
Transmission bands	SWIR (1.7-3 μm), VIS (400-700 nm), UV (<400 nm)
MOQ	100pcs

Full Specifications

Parameter	Value
Diameter Tolerance	+0/-0.2mm
Thickness Tolerance	+/-0.2mm
Color	Matte
Moq	100pcs

FAQ

What are the available sizes for custom orders?

Custom sizes range from 1.0 to 200.0 mm in diameter and 0.5 to 60.0 mm in thickness.

What is the minimum order quantity?

The minimum order quantity is 100 pcs.
