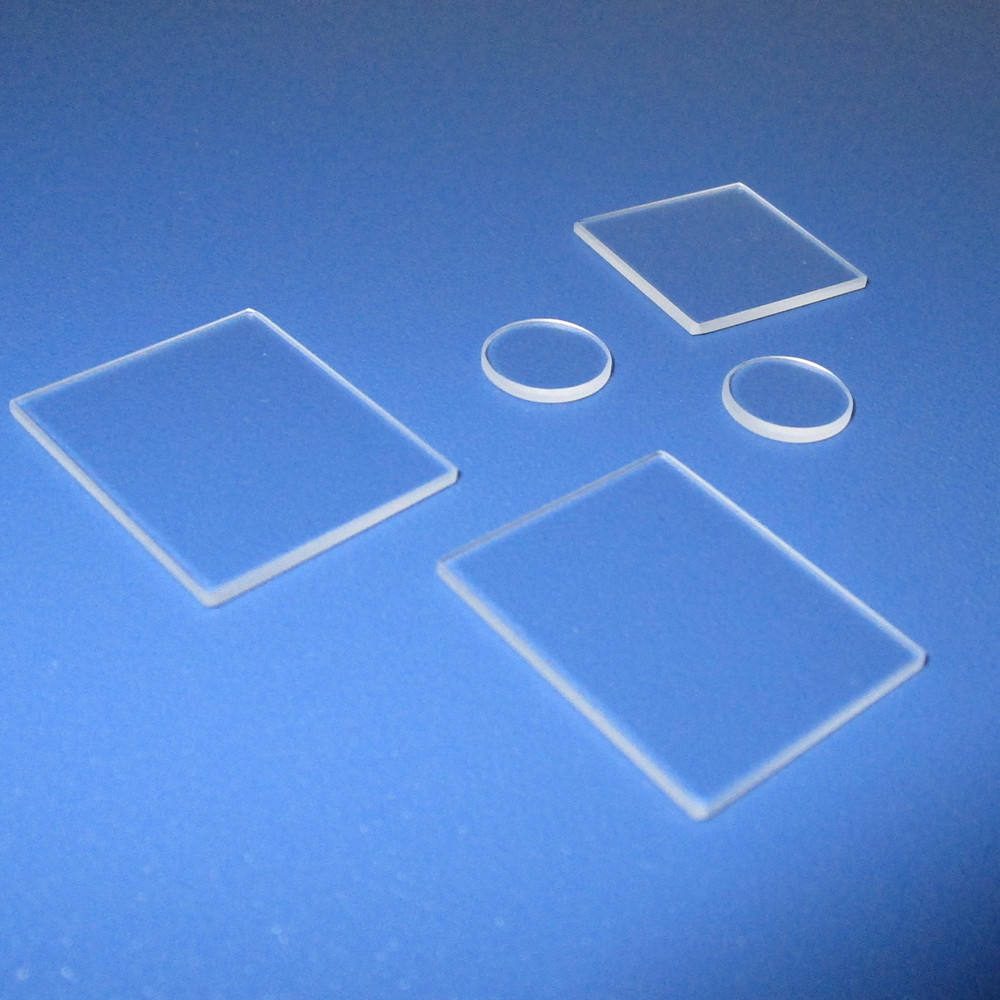

1 mm Fused Silica Optical Window, AR Coated
Fused Silica Optical Windows for IR imaging and laser applications, customizable from 1.0 mm to 300.0 mm.
Core attributes
- Material
- Fused Silica
- Diameter range
- 1–300 mm
- Coating
- ar
Product facts
Key attributes
- Material
- Fused Silica
- Diameter range
- 1–300 mm
- Coating
- ar
Product description
This Fused Silica Optical Window is designed for various applications, including IR imaging and laser systems, operating effectively across multiple wavelength bands from <400 nm to 14 μm. It serves as a protective barrier for sensors and detectors, ensuring optimal transmission without altering magnification. The window’s flat design and high-quality material make it suitable for demanding environments.
Key Features
- Material: Fused Silica for excellent optical clarity and durability.
- Wavelength compatibility: Effective across bands from <400 nm to 14 μm.
- Diameter range: Available from 1.0 mm to 300.0 mm for versatile applications.
- Customizable options: Supports OEM, ODM, and OBM for tailored solutions.
- Surface quality: Suitable for high-performance optical systems.
Specification Summary
| Item | Value |
|---|---|
| Material | Fused Silica |
| Diameter | 1 mm |
| Thickness | Custom |
| Coating | anti-reflective (AR) |
| Transmission bands | LWIR (8-14 μm), MWIR (3-5 μm), SWIR (1.7-3 μm), NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm) |
| MOQ | — |
Full Specifications
| Parameter | Value |
|---|---|
| Type | Flat |
| Customized Support | OEM, ODM, OBM |
| Warranty | 3 Years |
| Weight | 0.04 |
| Keywords | Fiber Laser Generator |
| Laser Type | Sealed CO2 Laser Tube |
| Brand | Juncheng |
| Wavelength | 10.6um |
FAQ
What are the available sizes for custom orders?
Optical Windows can be customized in diameter from 1.0 mm to 300.0 mm.
What is the tolerance for diameter?
The diameter tolerance is ±0.05 mm.
