1 / 6Optical Windows

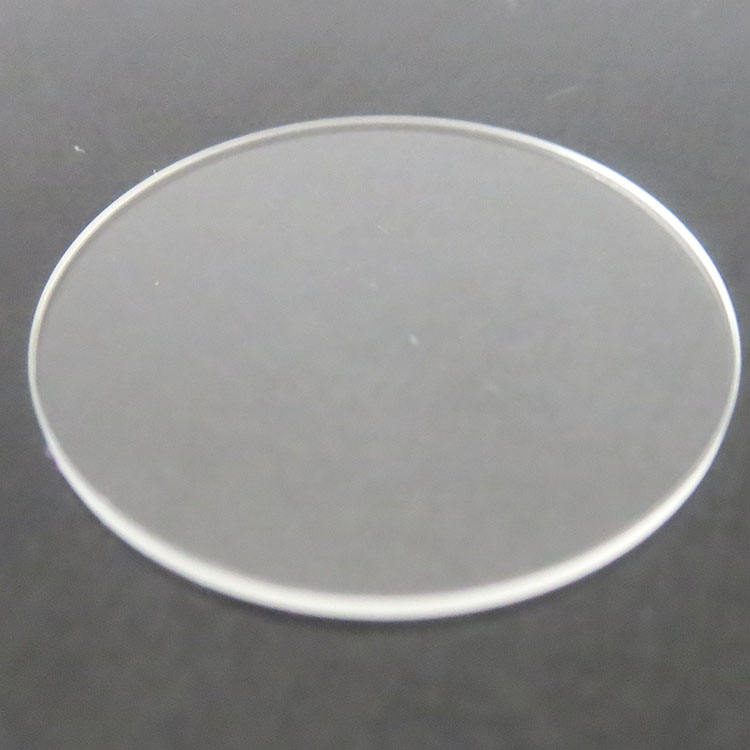

1 mm Fused Silica Optical Window, AR Coated
Fused silica plano window for 0.7-1.7 μm applications, customizable sizes, and high surface quality.
Core attributes
- Material
- Fused Silica
- Diameter range
- 1–400 mm
- Coating
- ar
Product facts
Key attributes
- Material
- Fused Silica
- Diameter range
- 1–400 mm
- Coating
- ar
Product description
This plano window made from fused silica is ideal for applications in the 0.7-1.7 μm wavelength range, providing high transmittance and surface quality. With a diameter range from 1.0 mm to 400.0 mm, it caters to diverse optical setups, ensuring compatibility with various IR imaging, LIDAR, and laser applications. The window’s robust construction and customizable options make it a reliable choice for R&D and procurement engineers.
Key Features
- Diameter range: 1.0 mm to 400.0 mm for versatile application fit.
- Surface quality of 60/40 ensures minimal distortion and high clarity.
- Flatness of L/4 enhances optical performance for critical applications.
- Clear aperture greater than 95% maximizes light transmission.
- Custom OEM support available for tailored solutions.
Specification Summary
| Item | Value |
|---|---|
| Material | Fused Silica |
| Diameter | 1 mm |
| Thickness | Custom |
| Surface Quality | 60/40 |
| Coating | anti-reflective (AR) |
| Transmission bands | NIR (0.7-1.7 μm) |
| MOQ | — |
Full Specifications
| Parameter | Value |
|---|---|
| Type | Plano |
| Customized Support | OEM |
| Warranty | 3months |
| Weight | 0.2 |
| Diameter Tolerance | +/-0.1mm |
| Thickness Tolerance | +0/-0.1mm |
| Clear Aperture | > 95% |
| Flatness | L/4 |
| Bevel | 0.25 mm*45° |
| Color | Clear |
FAQ
What is the minimum order quantity (MOQ)?
The MOQ is not specified, allowing for flexible ordering.
Can I get custom sizes?
Yes, custom sizing is supported through OEM options.
Product inquiry
Request a quote
Share your application and target specifications. Optional optical details help clarify the request.
