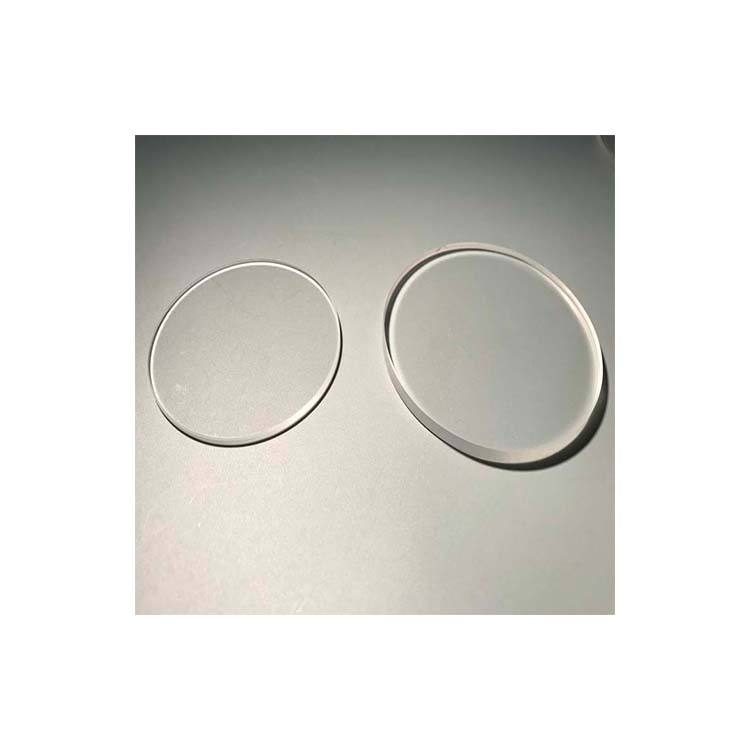

1 mm Fused Silica Optical Window, AR Coated
Fused silica optical windows for 400-700 nm applications, customizable sizes, high clarity, and precision tolerances.
Core attributes
- Material
- Fused Silica
- Diameter range
- 1–150 mm
- Coating
- ar, uncoated
Product facts
Key attributes
- Material
- Fused Silica
- Diameter range
- 1–150 mm
- Coating
- ar, uncoated
Product description
Fused silica optical windows are designed for applications in the 400-700 nm wavelength range, providing excellent performance for IR imaging, LIDAR, and laser systems. With a surface quality of 60/40 and a clear aperture of 95%, these windows ensure minimal distortion and high transmission efficiency. Available in diameters from 1.0 mm to 150.0 mm, they meet diverse application needs while maintaining high reliability.
Key Features
- Wavelength range: 400-700 nm for versatile application fit.
- Diameter options from 1.0 mm to 150.0 mm for custom sizing.
- Surface quality of 60/40 ensures clarity and minimal distortion.
- Clear aperture of 95% maximizes light transmission.
- Dimension tolerance of 0.01 mm - 0.1 mm for precise fit.
Specification Summary
| Item | Value |
|---|---|
| Material | Fused Silica |
| Diameter | 1 mm |
| Thickness | Custom |
| Surface Quality | 60/40 |
| Coating | anti-reflective (AR), uncoated |
| Transmission bands | VIS (400-700 nm) |
| MOQ | — |
Full Specifications
| Parameter | Value |
|---|---|
| Type | optical Windows |
| Customized Support | OEM |
| Warranty | 3 months |
| Weight | 0.5kg |
| Clear Aperture | 95% |
| Surface Flatness | 1/4@633nm |
| Parallel | 30 Arc Sec |
| Dimension Tolerance | 0.01mm-0.1mm |
FAQ
What are the available sizes for custom orders?
Diameters range from 1.0 mm to 150.0 mm, allowing for various custom sizes.
What is the tolerance for the dimensions?
The dimension tolerance is between 0.01 mm and 0.1 mm.
