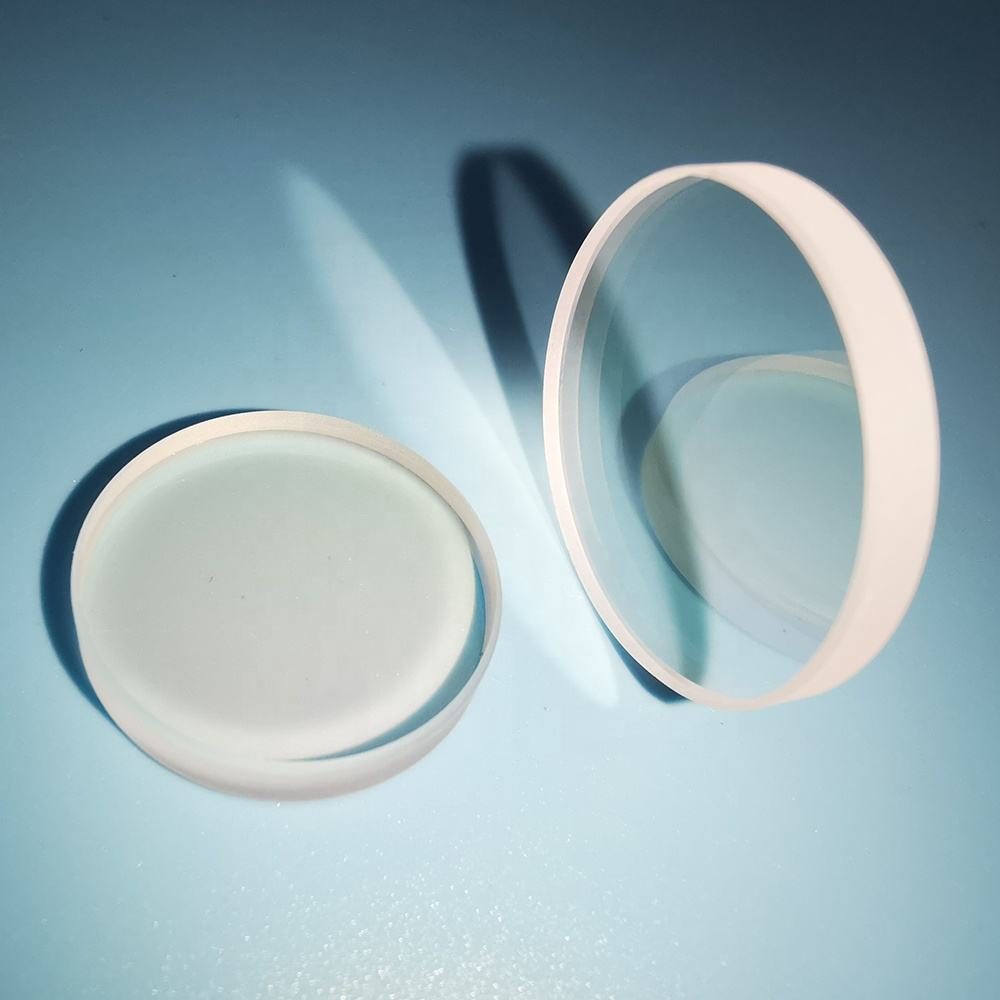

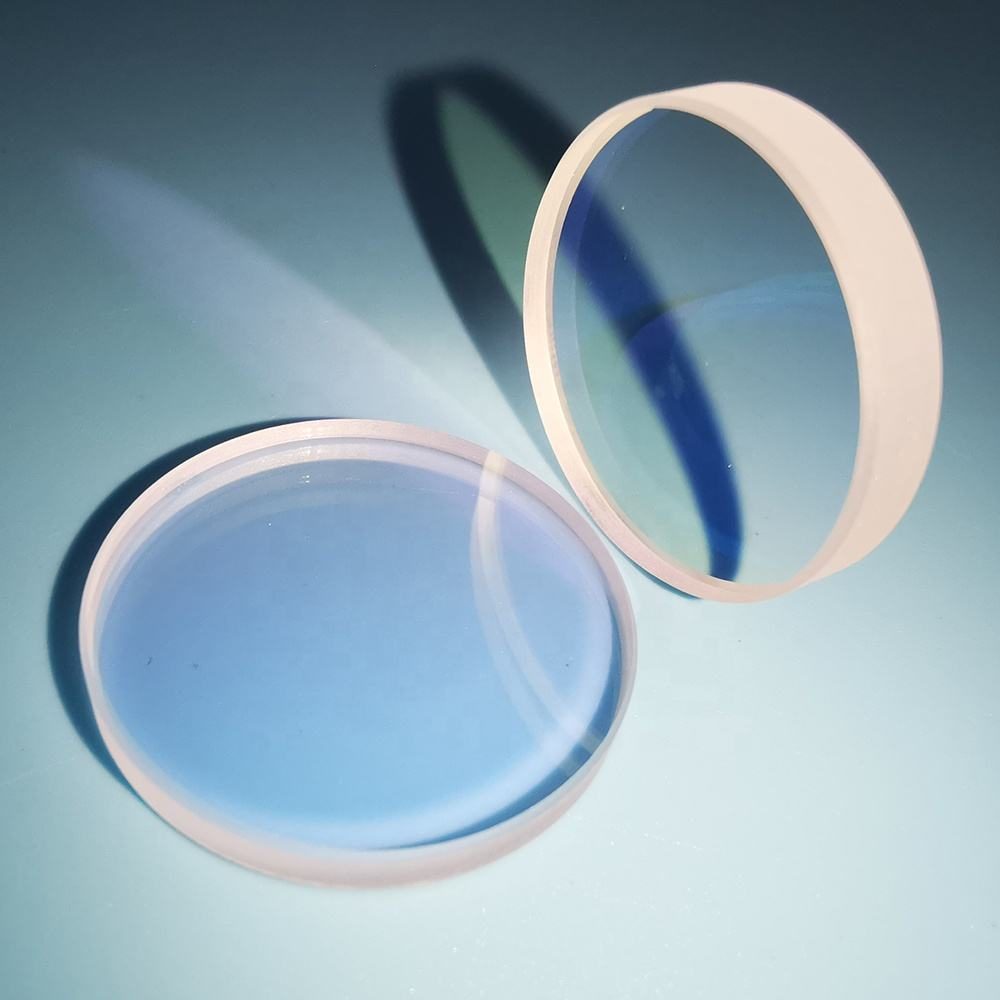

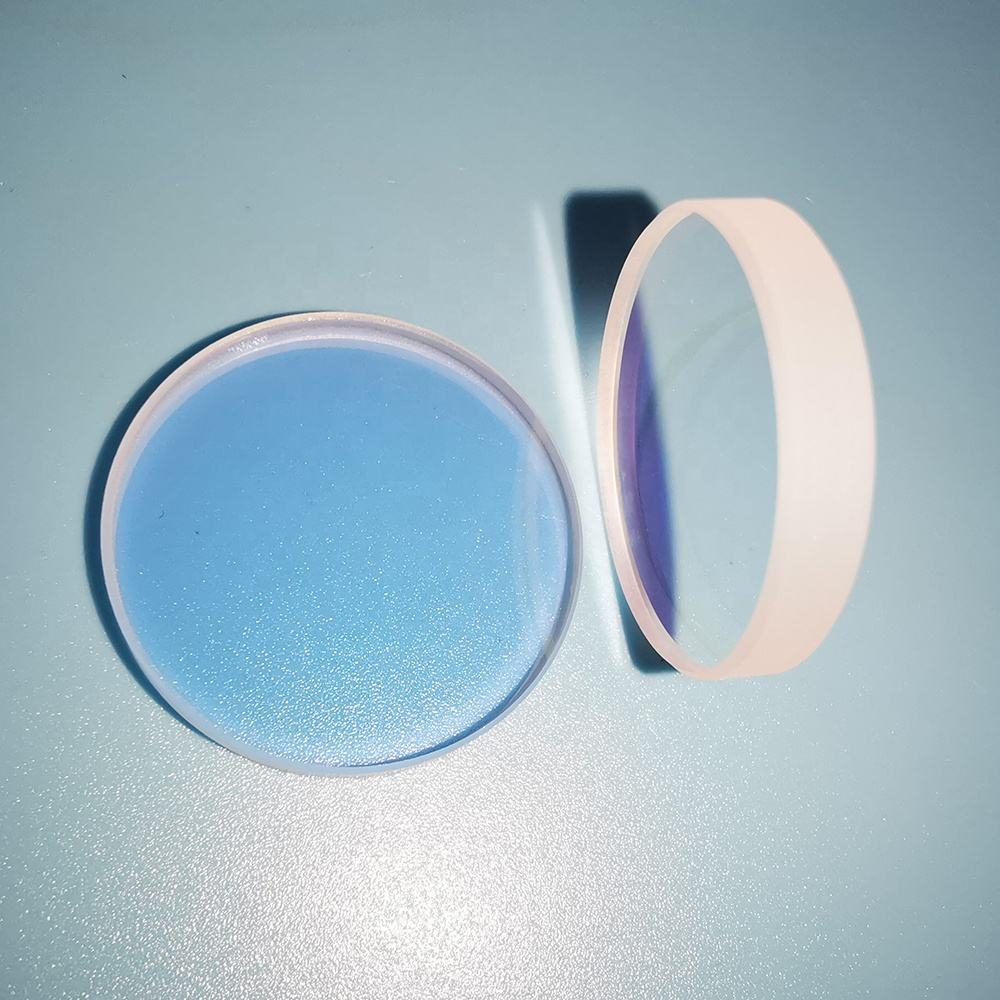

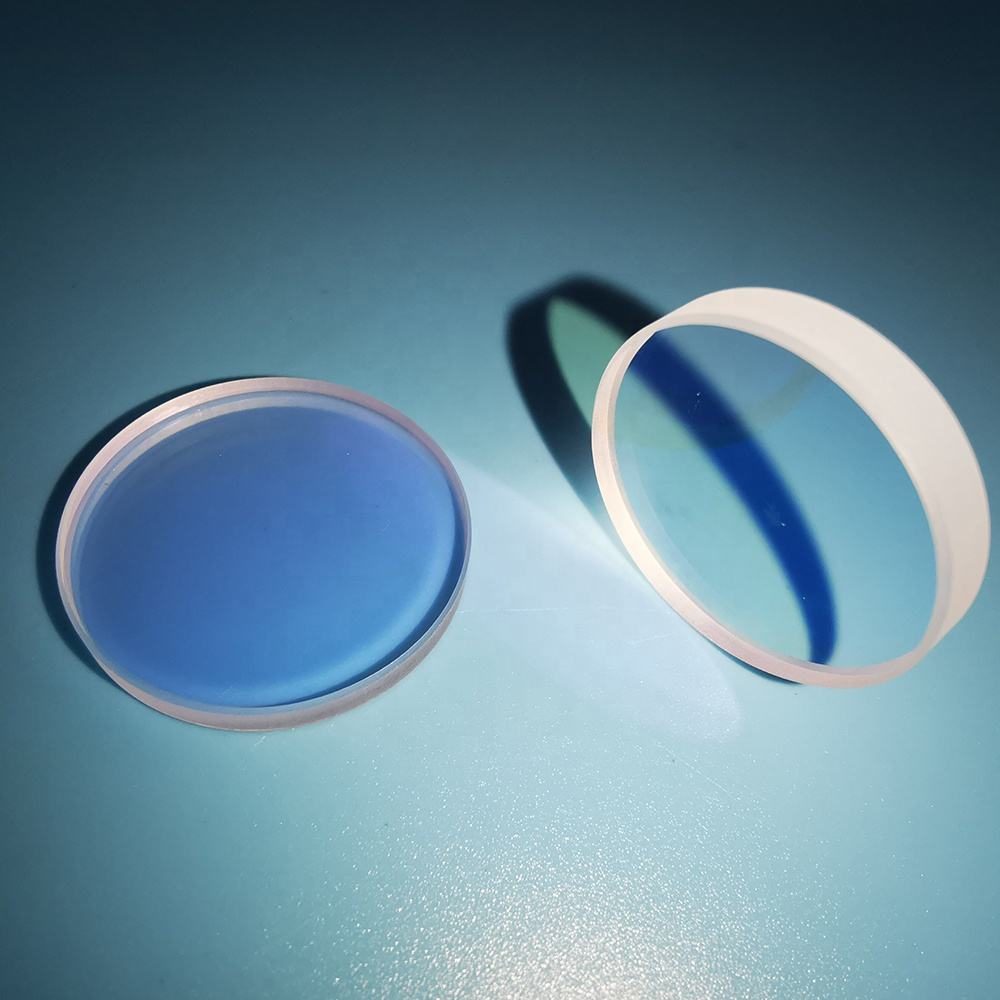

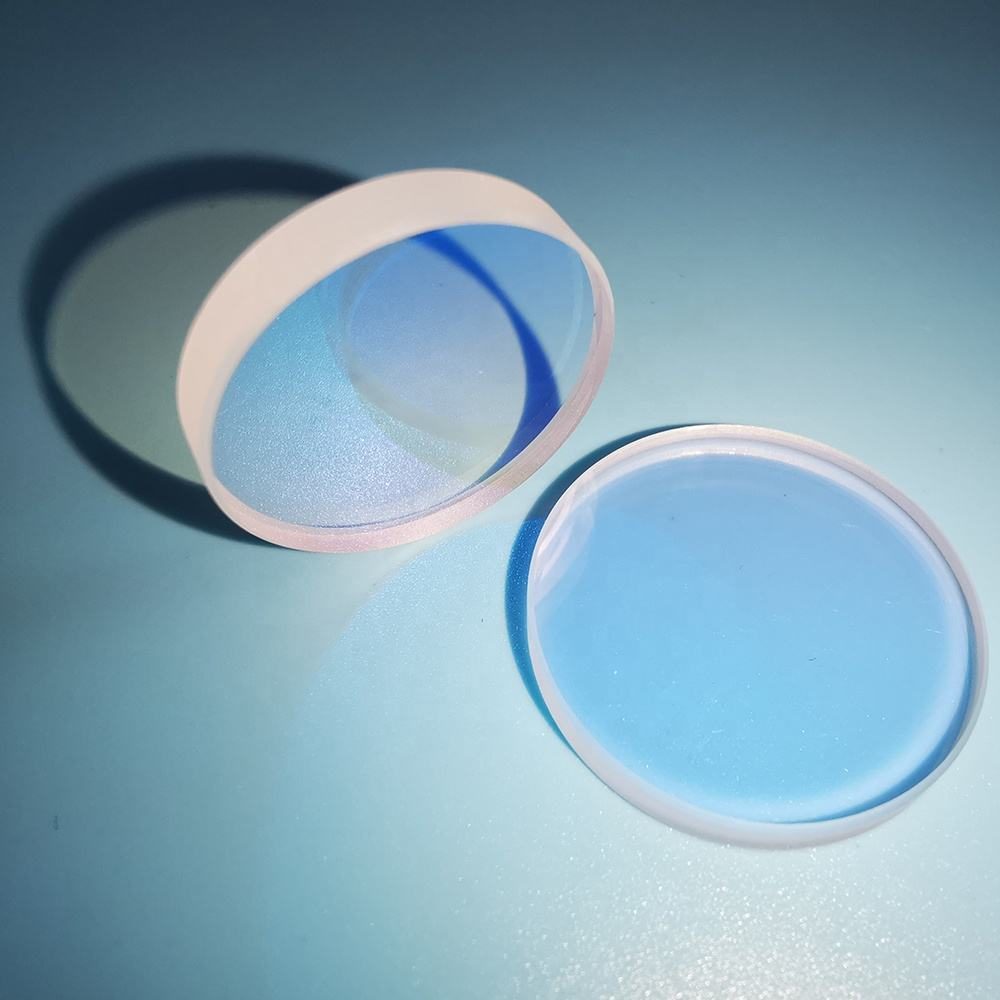

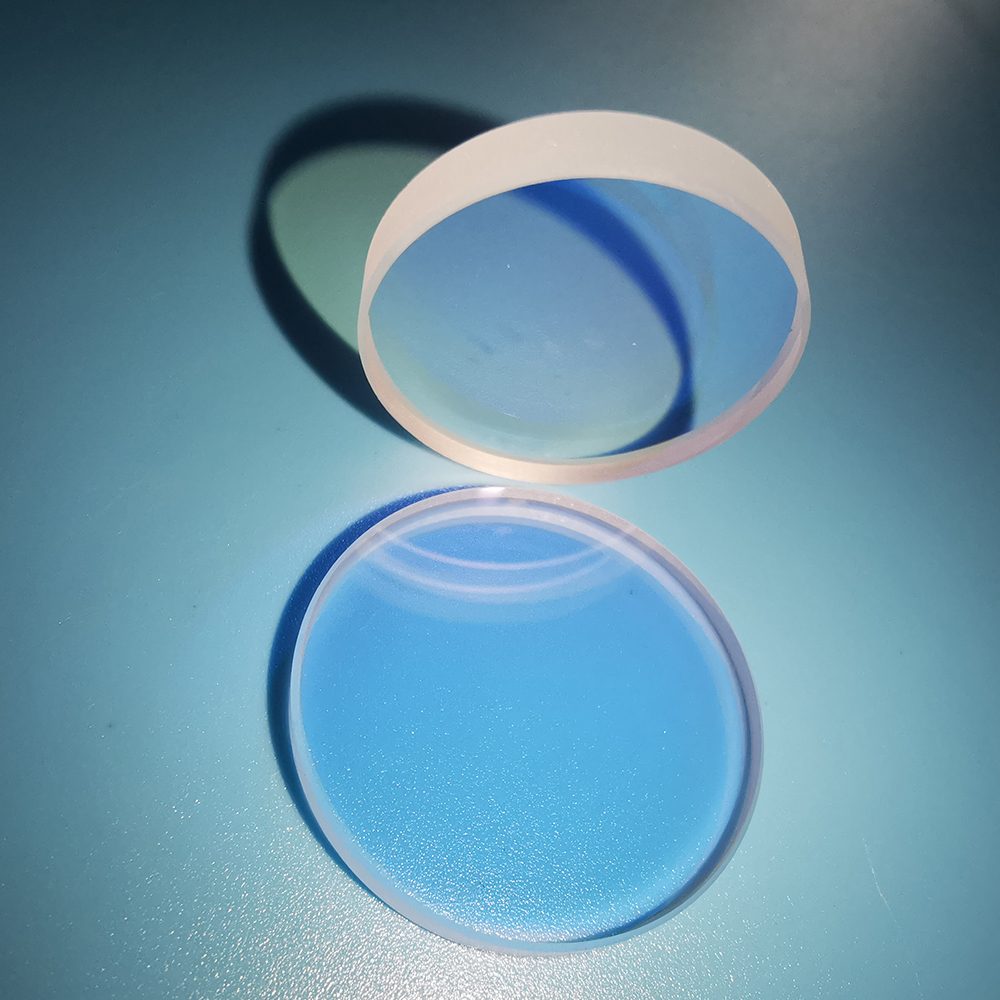

22.4x4 mm Fused Silica Optical Window, AR Coated

Product description

The Laser Protective Window made from Fused Silica is designed for high-performance applications in the 8-14 μm band, making it ideal for laser cutting and medical devices. With an impressive transmittance of 99.9%, this window ensures maximum efficiency in laser systems. Its robust construction and AR coatings enhance durability and optical clarity, catering to demanding environments. Custom sizes are available to meet specific application requirements, ensuring versatility and reliability.

Key Features

Transmittance of 99.9% for optimal laser performance.
Diameter of 22.35 mm and thickness of 4.0 mm for precise fit.
AR coating on both surfaces to minimize reflections.
Compatible with laser systems up to 6000W for high power applications.
Custom sizing options available to fit specific project needs.

Available Sizes

Diameter x Thickness (mm)
22.4 x 4

Applications

Laser Cutting, Medical

Specification Summary

Item	Value
Material	Fused Silica
Diameter	22.4 mm
Thickness	4 mm
Transmittance	99.9%
Coating	anti-reflective (AR)
Transmission bands	LWIR (8-14 μm)
MOQ	—

Full Specifications

Parameter	Value
Spare Parts Type	optical
Key Selling Points	Long Service Life
Warranty	3 Months
Condition	Used
Weight (Kg)	0.5 KG
Wavelength	10.6um
Transmittance	T>99.9%
Bevel	Normal
Keywords	Laser protective window

FAQ

Can I get custom sizes?

Yes, custom sizes are available upon request to meet specific application needs.

What is the minimum order quantity (MOQ)?

The minimum order quantity is not specified; please inquire for details.
