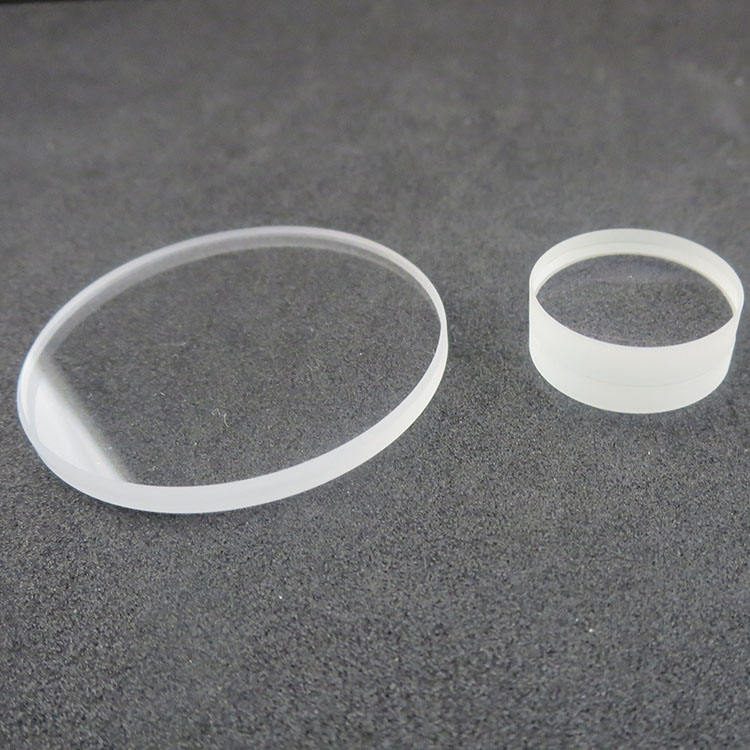

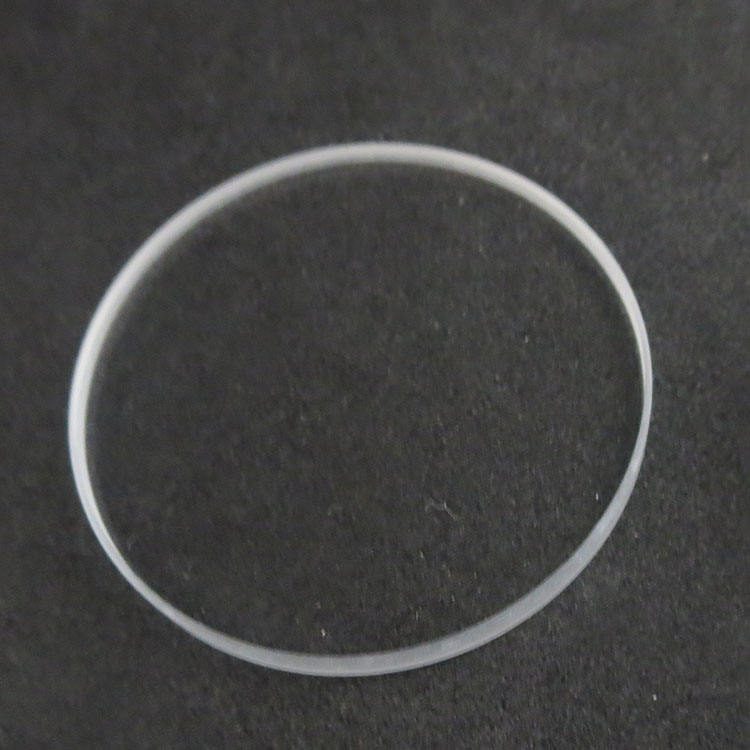

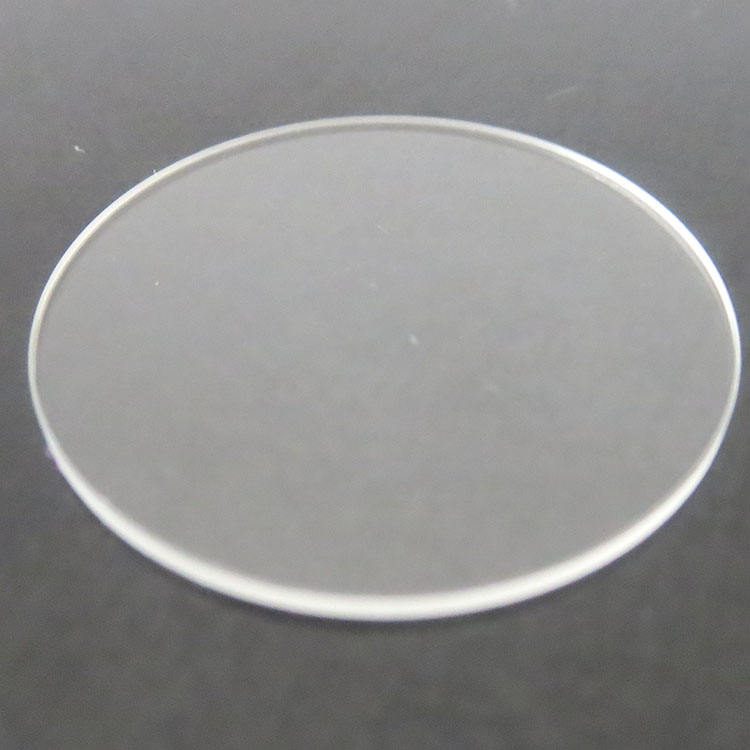

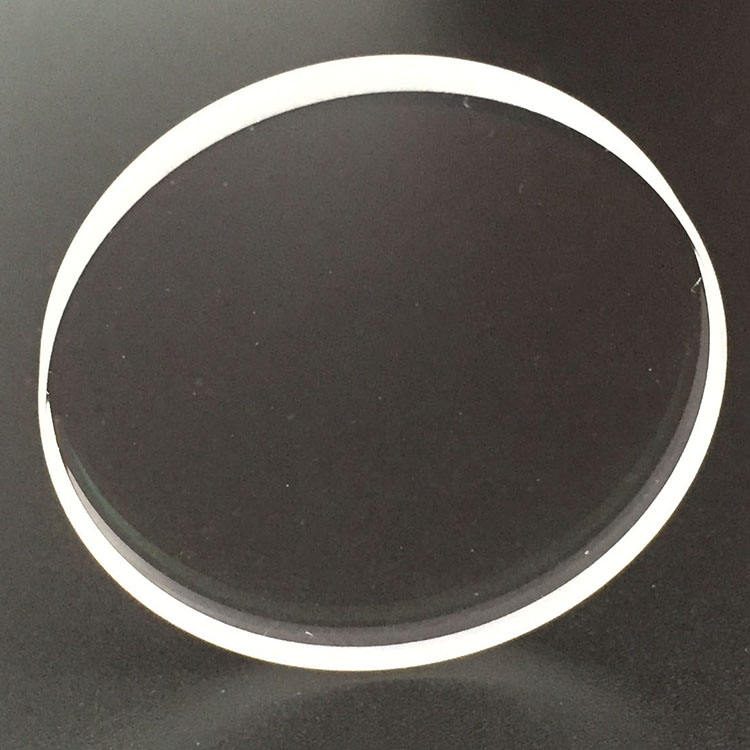

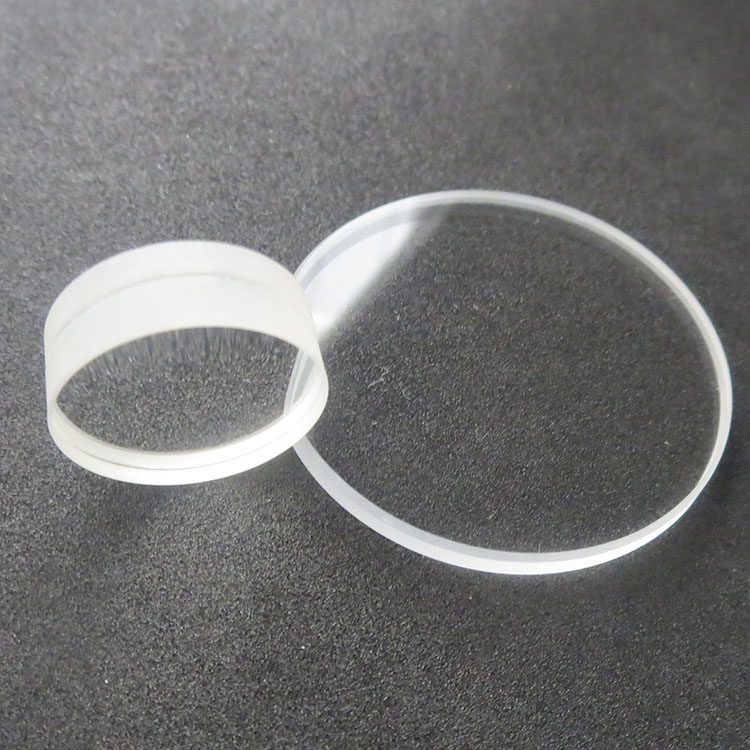

25.4x1.5 mm Fused Silica Optical Window, AR Coated

Product description

The Laser Protective Window made from Fused Silica is ideal for applications in laser cutting and medical devices, particularly effective in the 0.7-1.7 μm and 8-14 μm wavelength ranges. With a diameter of 25.4 mm and a thickness of 1.5 mm, this window features an anti-reflective (AR) coating that ensures a transmittance of over 99.9%. Designed for high-power applications, it supports up to 3000W, making it suitable for various laser systems. Custom sizes can be requested to meet specific project needs.

Key Features

High transmittance of 99.9% enhances laser performance.
AR coating on both surfaces minimizes reflective losses.
Standard diameter of 25.4 mm with a thickness of 1.5 mm for compatibility.
Supports high-power applications up to 3000W for reliable operation.
OEM support available for customized sizes and specifications.

Available Sizes

Diameter x Thickness (mm)
25.4 x 1.5

Applications

Laser Cutting, Medical

Specification Summary

Item	Value
Material	Fused Silica
Diameter	25.4 mm
Thickness	1.5 mm
Transmittance	99.9%
Coating	anti-reflective (AR)
Transmission bands	LWIR (8-14 μm), NIR (0.7-1.7 μm)
MOQ	—

Full Specifications

Parameter	Value
Type	Window
Customized Support	OEM
Warranty	1 month
Weight	0.1
Wavelength	1064nm
Transmittance	T>99.9%
Bevel	Normal
Keywords	Laser protective window

FAQ

Can I get custom sizes for this window?

Yes, custom sizes can be requested to meet specific project requirements.

What is the minimum order quantity (MOQ)?

The minimum order quantity is not specified; please contact for details.
