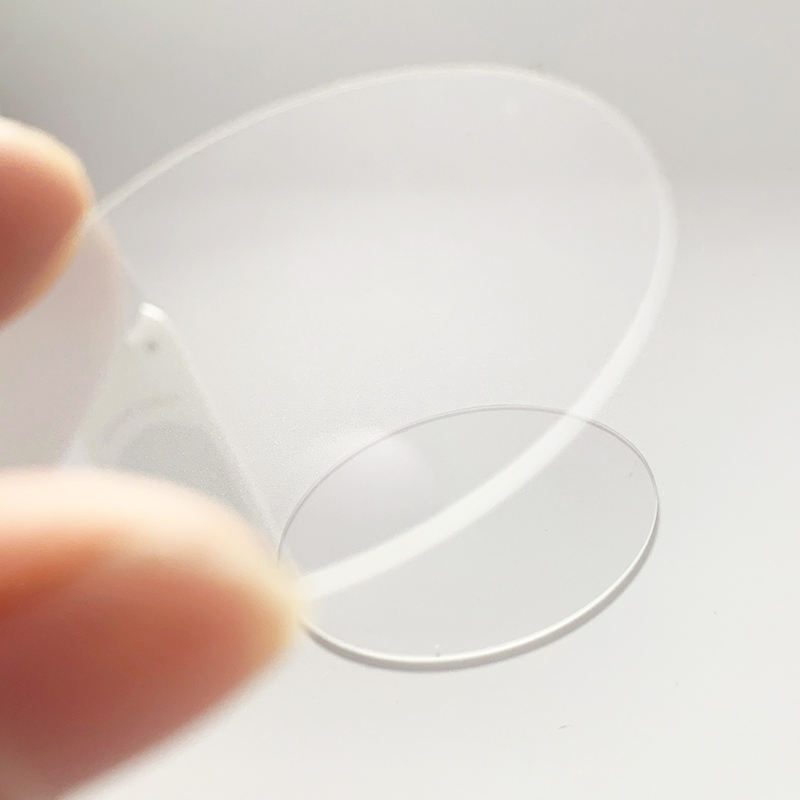

2 mm Fused Silica Optical Window

Product description

The Fused Silica Window is designed for applications requiring high optical clarity in the <400 nm wavelength range. With exceptional transmittance and low birefringence, this window is ideal for IR imaging, LIDAR, and medical devices. Its robust construction and customizable options ensure it meets the demanding needs of R&D and procurement engineers.

Key Features

Diameter range: 2.0 to 200.0 mm for versatile applications.
Surface quality of 60/40 ensures high clarity and minimal distortion.
Diameter tolerance of +/-0.1 mm for precise fitting in optical systems.
Parallelism of <3 arc minutes for accurate alignment in assemblies.
Custom OEM support available to meet specific project requirements.

Specification Summary

Item	Value
Material	Fused Silica
Diameter	2 mm
Thickness	Custom
Surface Quality	60/40
Transmission bands	UV (<400 nm)
MOQ	—

Full Specifications

Parameter	Value
Warranty	3 months
Customized Support	OEM
Power	N/A
Voltage	N/A
Diameter Tolerance	+/-0.1mm
Parallelism	<3 arc minutes
Flatness	L/4

FAQ

What is the minimum order quantity (MOQ)?

The MOQ is not specified, allowing for flexible ordering.

Can I get custom sizes?

Yes, custom sizes are available to fit specific application needs.
