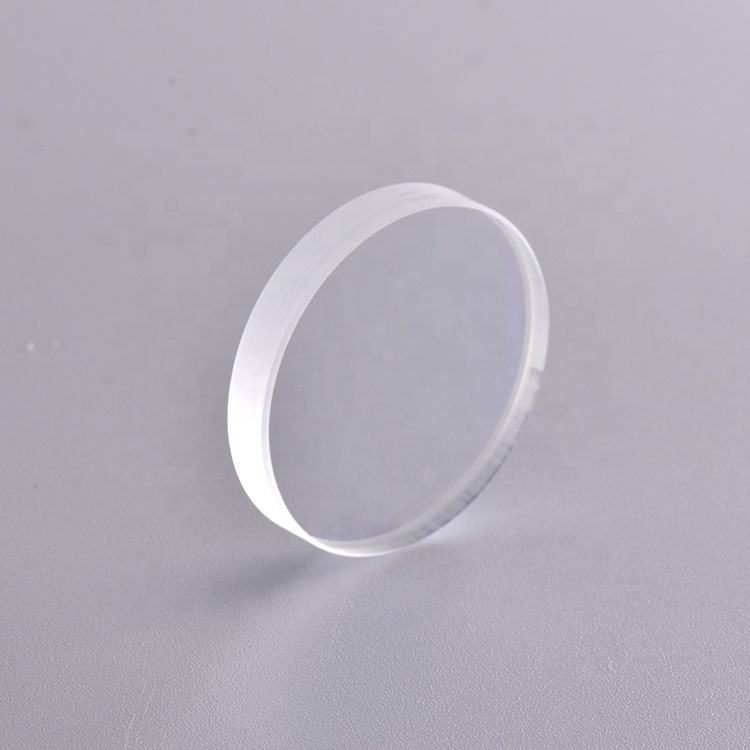

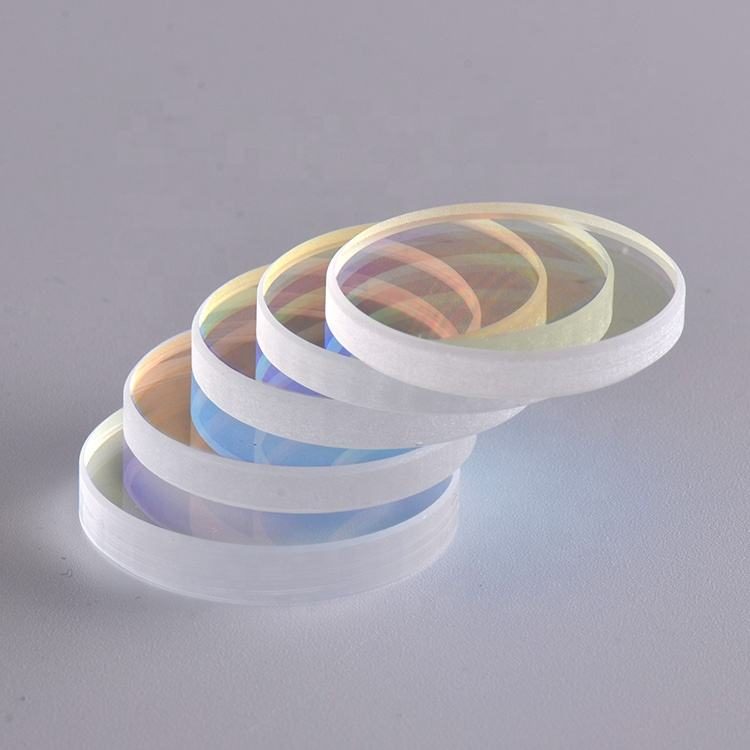

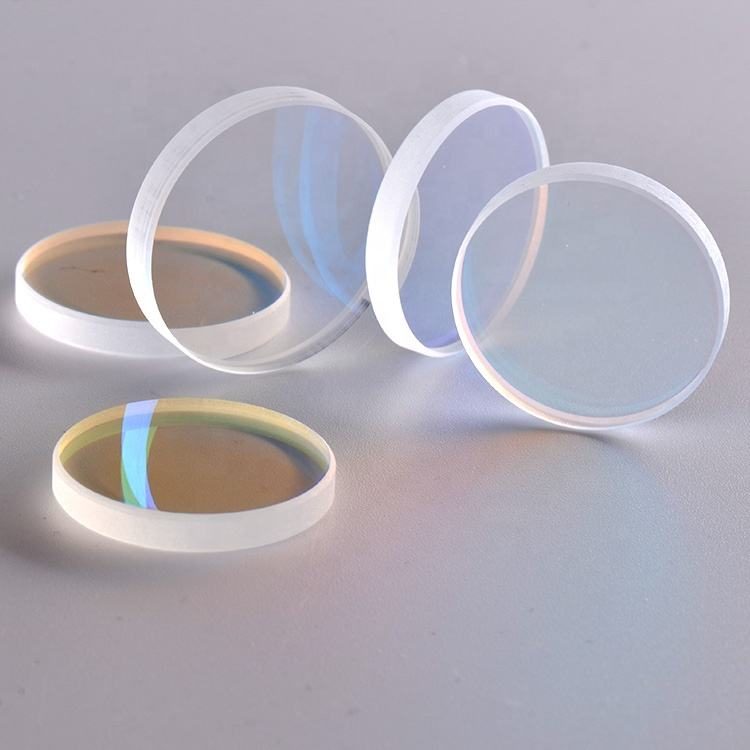

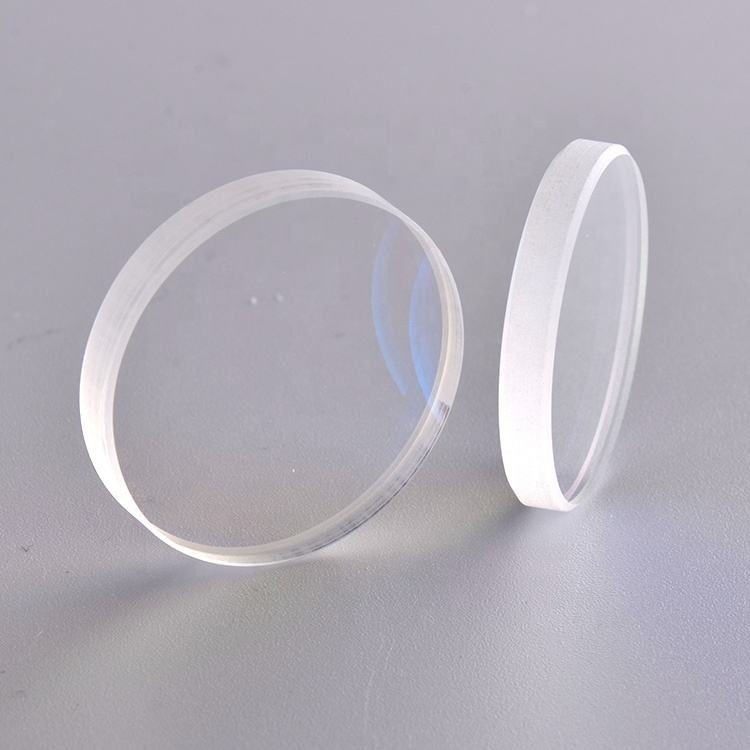

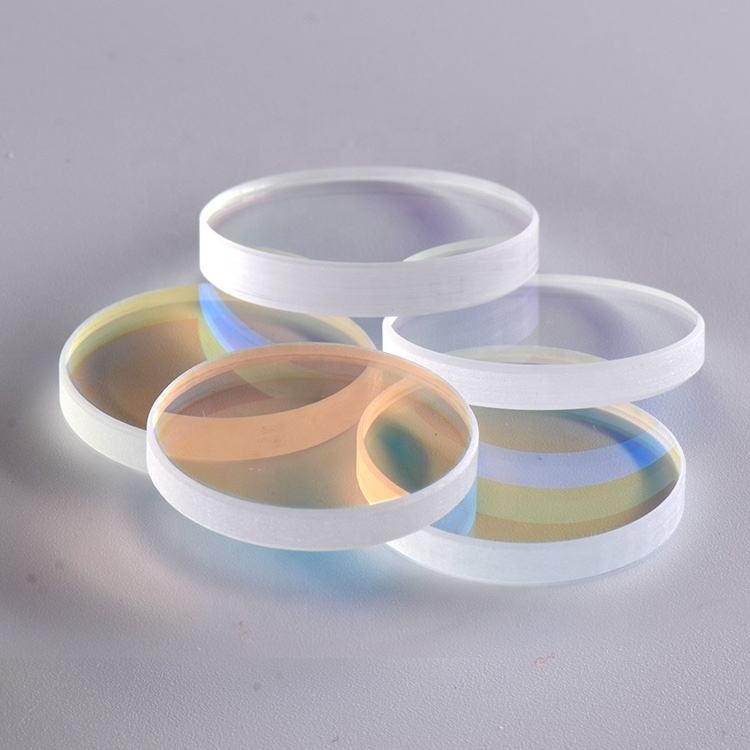

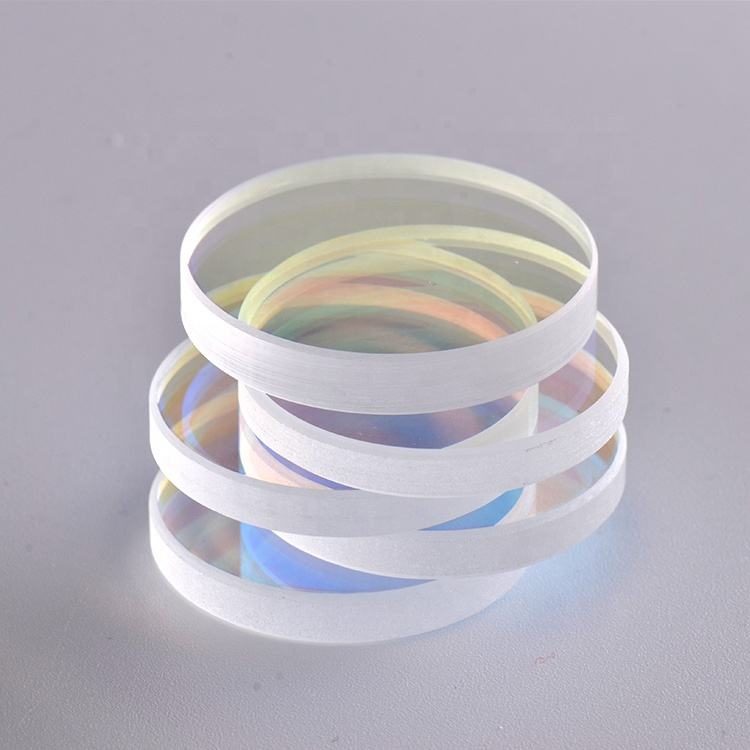

38x1.6 mm Fused Silica Optical Window, AR Coated

Product description

This fused silica window is designed for applications requiring high durability and stability in the <400 nm wavelength range, particularly between 340-360 nm. Its anti-reflective coatings minimize scattering, enhancing transmission efficiency, making it suitable for IR imaging, LIDAR, and laser applications. With various diameters and thicknesses available, it can meet diverse project needs.

Key Features

Made from high-quality fused silica for enhanced durability and stability.
Anti-reflective coatings reduce scattering, ensuring optimal laser performance.
Available in diameters of 38.0 mm and 55.0 mm, with thicknesses from 1.6 mm to 9.0 mm.
Custom sizes available, including a variant size of 46.5 mm diameter and 5.3 mm thickness.
Lightweight design at 0.04 kg for easy handling in various applications.

Available Sizes

Diameter x Thickness (mm)
46.5 x 5.3

Specification Summary

Item	Value
Material	Fused Silica
Diameter	38 mm
Thickness	1.6 mm
Coating	anti-reflective (AR)
Transmission bands	UV (<400 nm)
MOQ	—

Full Specifications

Parameter	Value
Spare Parts Type	Machine Consumables
Wavelength	340-360 nm
Accessory Type	Power Supply
Key Selling Points	Competitive Price
Warranty	Unavailable
Condition	New
Weight (Kg)	0.04
Color	Transparent

FAQ

Are custom sizes available?

Yes, custom sizes can be provided, including a variant size of 46.5 mm diameter and 5.3 mm thickness.

What is the minimum order quantity (MOQ)?

The minimum order quantity is not specified in the provided data.
