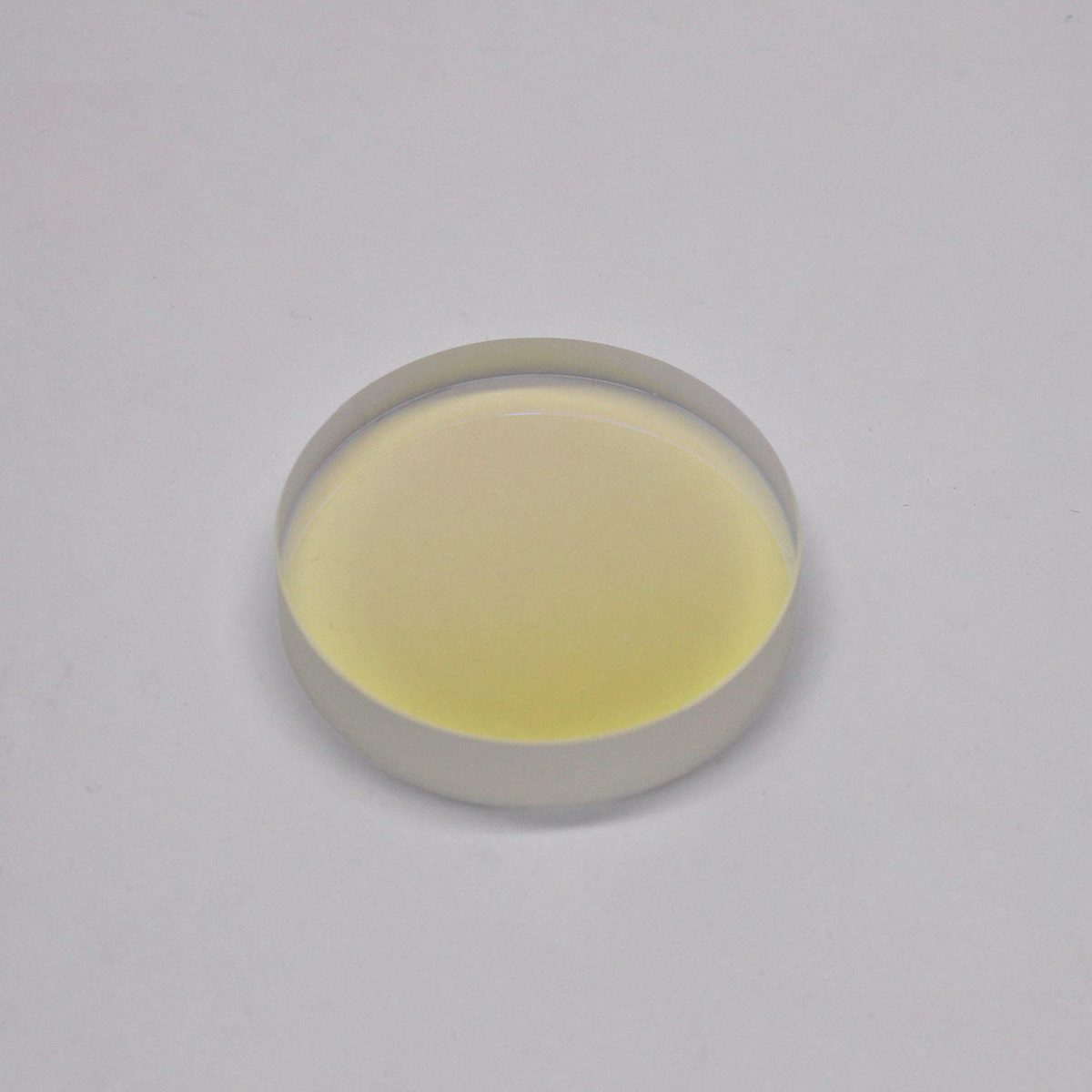

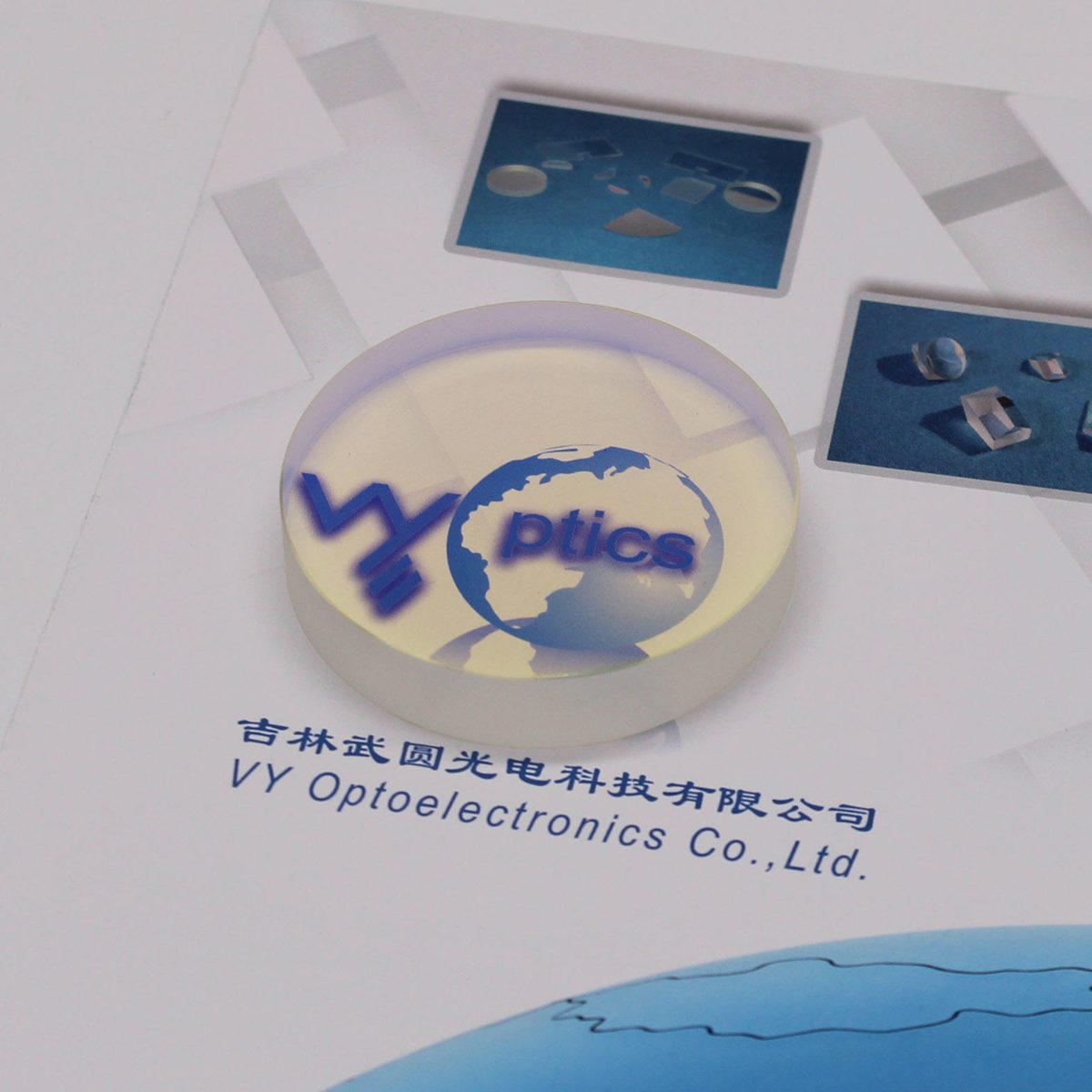

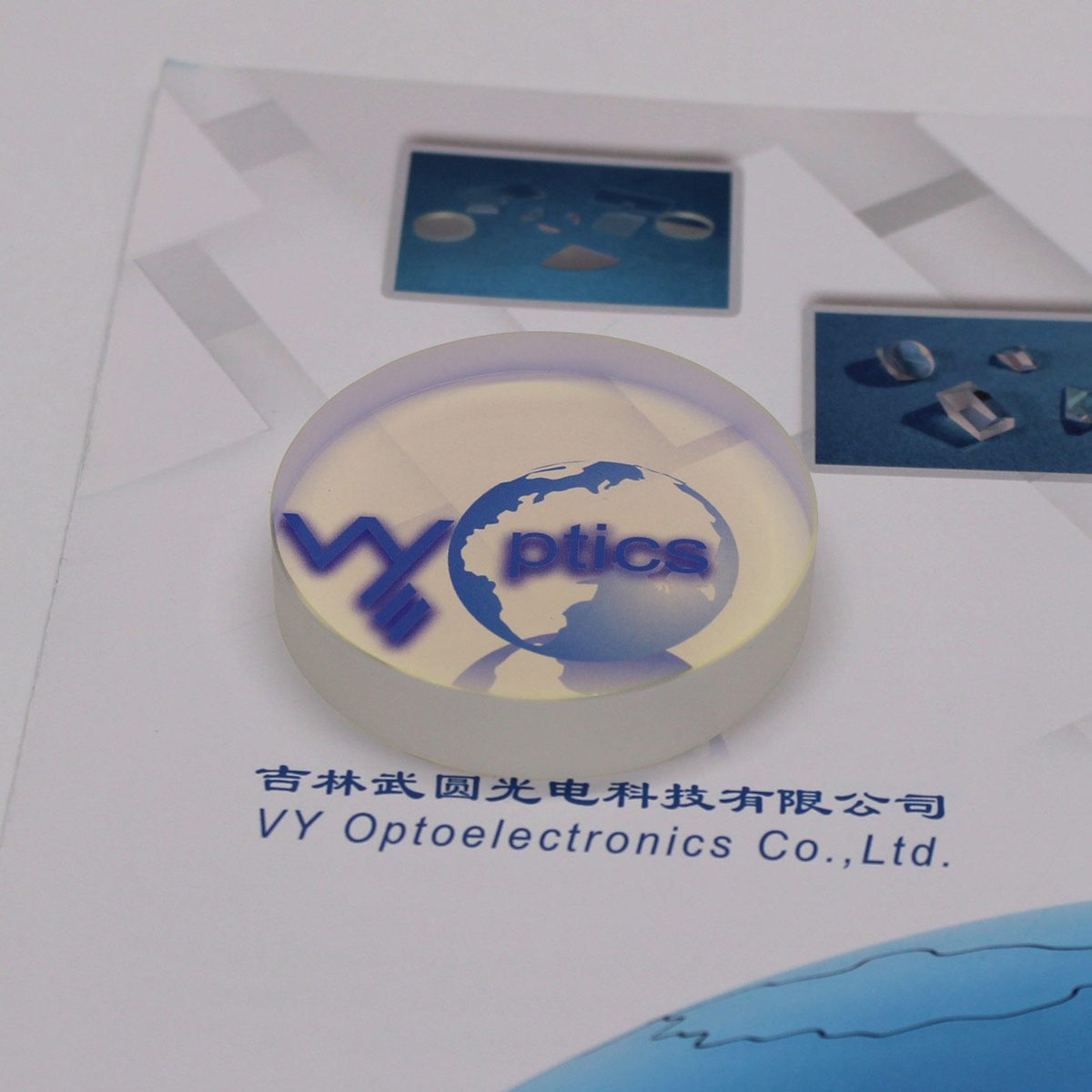

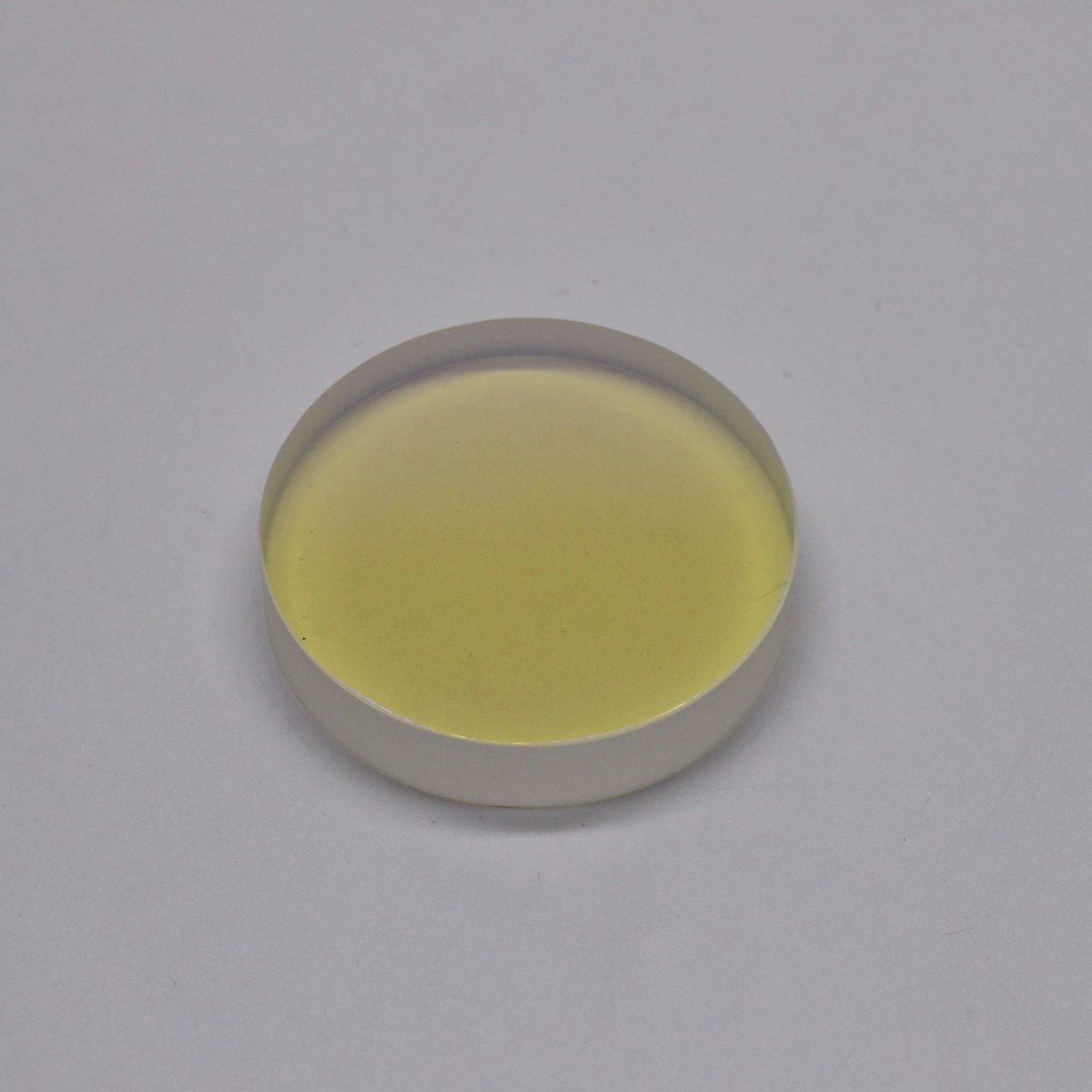

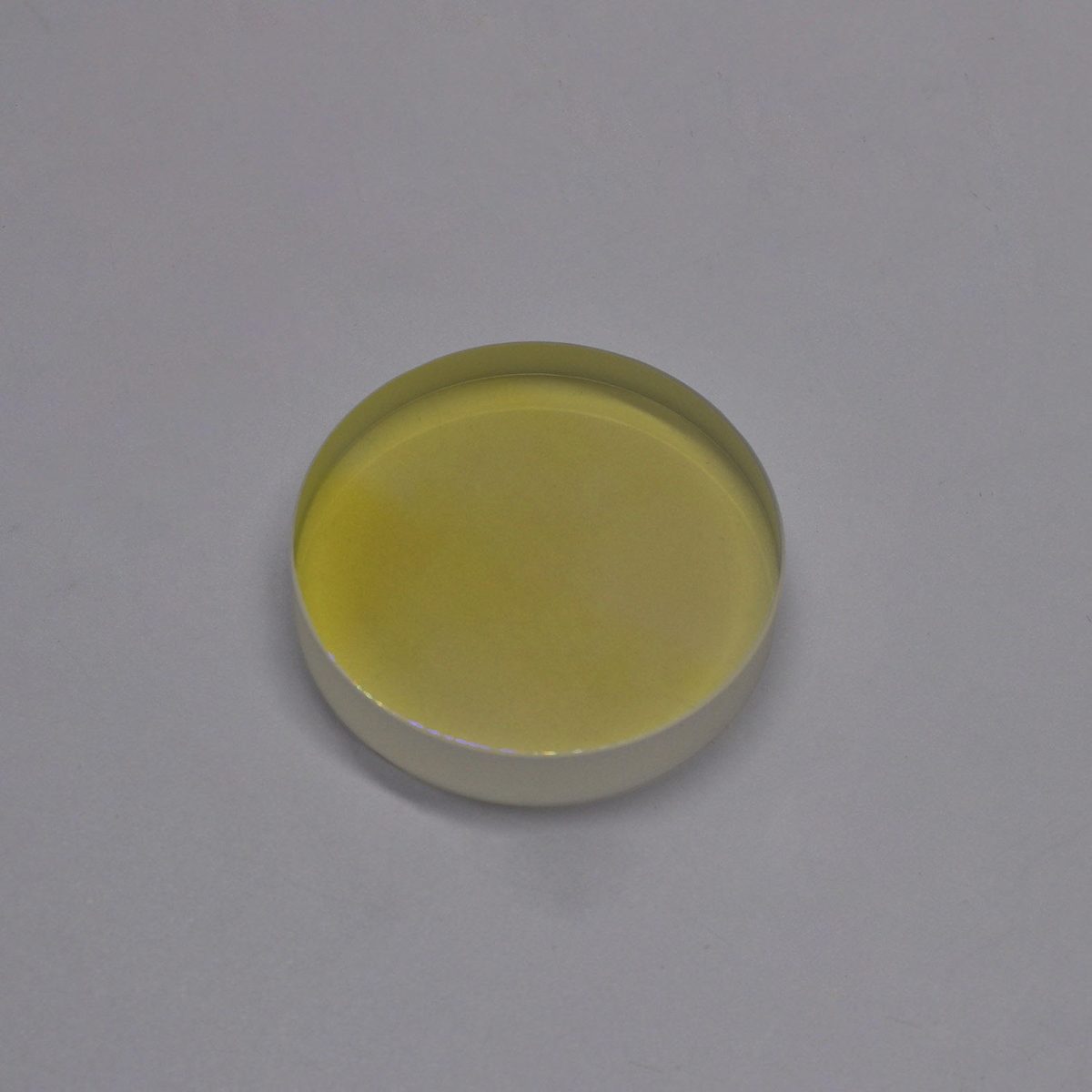

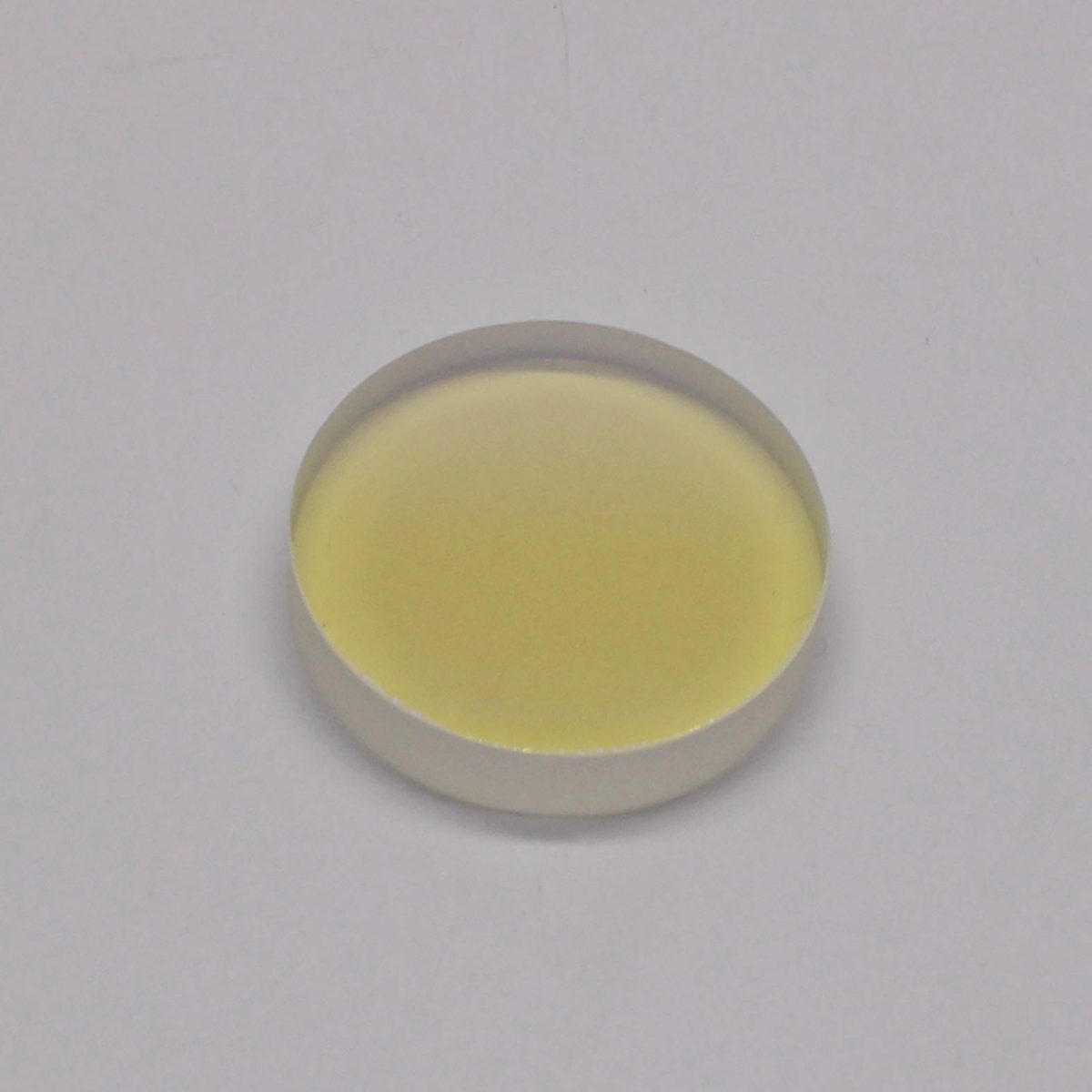

3x0.1 mm Fused Silica Optical Window, AR Coated

Product description

The Optical JGS1 Glass Window is engineered for high-performance applications in security and semiconductor fields, particularly within the 1.7-3 μm and <400 nm bands. Constructed from high-purity fused silica, it offers over 90% transmittance in the UV to near-infrared range, ensuring minimal light loss. Its robust design accommodates harsh environments, making it ideal for precision optics in laser systems and analytical instruments.

Key Features

High transmittance: Over 90% in UV to near-infrared range, enhancing optical performance.
Diameter tolerance of +/-0.01 mm ensures precision fit for various applications.
Thickness tolerance of +/-0.1 mm allows for consistent manufacturing quality.
Optional coatings available for enhanced performance in specific applications.
Customizable support for OEM, ODM, and OBM projects to meet unique specifications.

Available Sizes

Diameter x Thickness (mm)
3 x 0.1

Applications

Security, Semiconductor

Specification Summary

Item	Value
Material	Fused Silica
Diameter	3 mm
Thickness	0.1 mm
Surface Quality	10/5
Coating	anti-reflective (AR)
Transmission bands	SWIR (1.7-3 μm), UV (<400 nm)
MOQ	—

Full Specifications

Parameter	Value
Warranty	optional
Customized Support	OEM, ODM, OBM
Logo/Graphic Design	3D Printing
Power	optional
Voltage	optional
Name	Optical JGS1 Glass Window
Type	Plate
Diameter Tolerance	+/-0.01mm
Thickness Tolerance	+/-0.1mm
Surface Figure	lamda/10

FAQ

What are the available custom sizes?

Variant sizes include a diameter of 3.0 mm with a thickness of 0.15 mm, and custom options can be explored.

What are the tolerances for diameter and thickness?

Diameter tolerance is +/-0.01 mm, and thickness tolerance is +/-0.1 mm.
