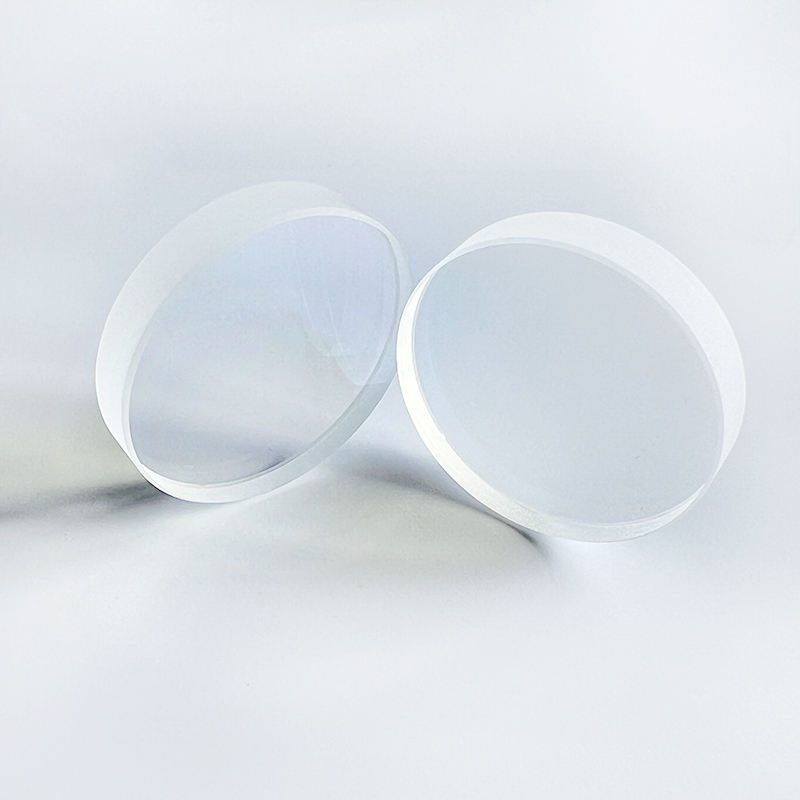

4x4 mm Fused Silica Optical Window, AR Coated
Fused Silica laser protective window for medical applications, customizable sizes, and high surface quality.
Core attributes
- Material
- Fused Silica
- Diameter range
- 4 mm
- Thickness
- 4 mm
- Coating
- ar
Product facts
Key attributes
- Material
- Fused Silica
- Diameter range
- 4 mm
- Thickness
- 4 mm
- Coating
- ar
Product description
This laser protective window made of Fused Silica is designed for applications in the medical field, particularly effective within the wavelength range of 0.7-1.7 μm. With a surface quality rating of 10/5, it ensures high optical performance and reliability. The window is available in multiple sizes, including custom options, making it suitable for various optical instruments and systems.
Key Features
- Material: Fused Silica for high durability and optical clarity.
- Coating: Anti-Reflective (AR) to enhance transmittance and reduce glare.
- Surface Quality: 10/5 ensures minimal distortion for precise imaging.
- Power Rating: Capable of handling 30W or 50W, suitable for diverse applications.
- Custom Sizing: Available in various diameters (2.0mm, 4.0mm, 4.1mm) to fit specific needs.
Available Sizes
| Diameter x Thickness (mm) |
|---|
| 2 x 2 |
| 4 x 4 |
| 4.1 x 4.1 |
Applications
Medical
Specification Summary
| Item | Value |
|---|---|
| Material | Fused Silica |
| Diameter | 4 mm |
| Thickness | 4 mm |
| Surface Quality | 10/5 |
| Coating | anti-reflective (AR) |
| Transmission bands | NIR (0.7-1.7 μm) |
| MOQ | — |
Full Specifications
| Parameter | Value |
|---|---|
| Type | laser protective window |
| Customized Support | OEM, ODM |
| Warranty | 3 Years |
| Weight | 0.1kg |
| Power | 30W or 50 W |
| Wavelength | 1064nm |
FAQ
Is custom sizing available?
Yes, the window is available in multiple sizes, including custom options.
What are the tolerances for thickness?
The center thickness tolerance is +/-0.01mm.
