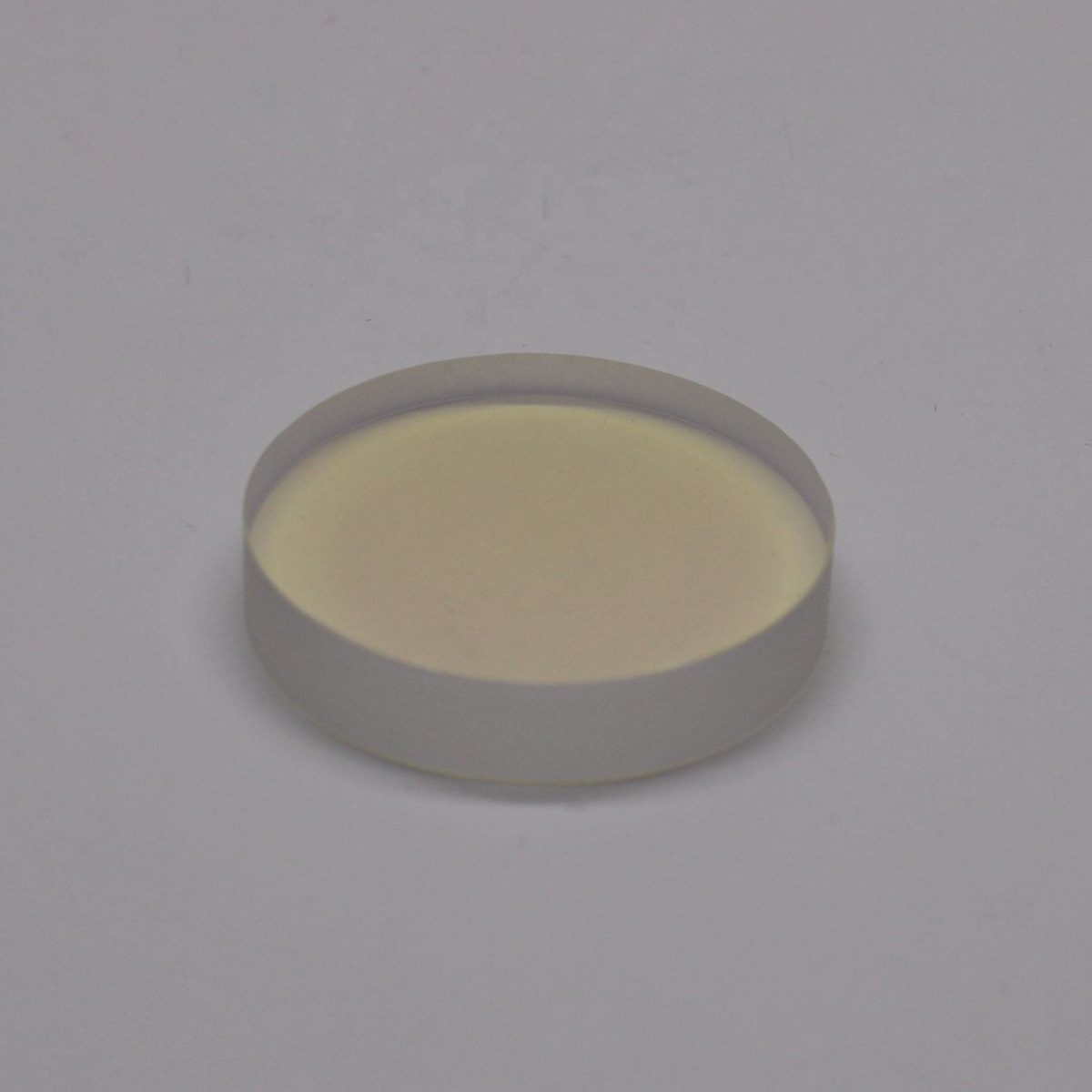

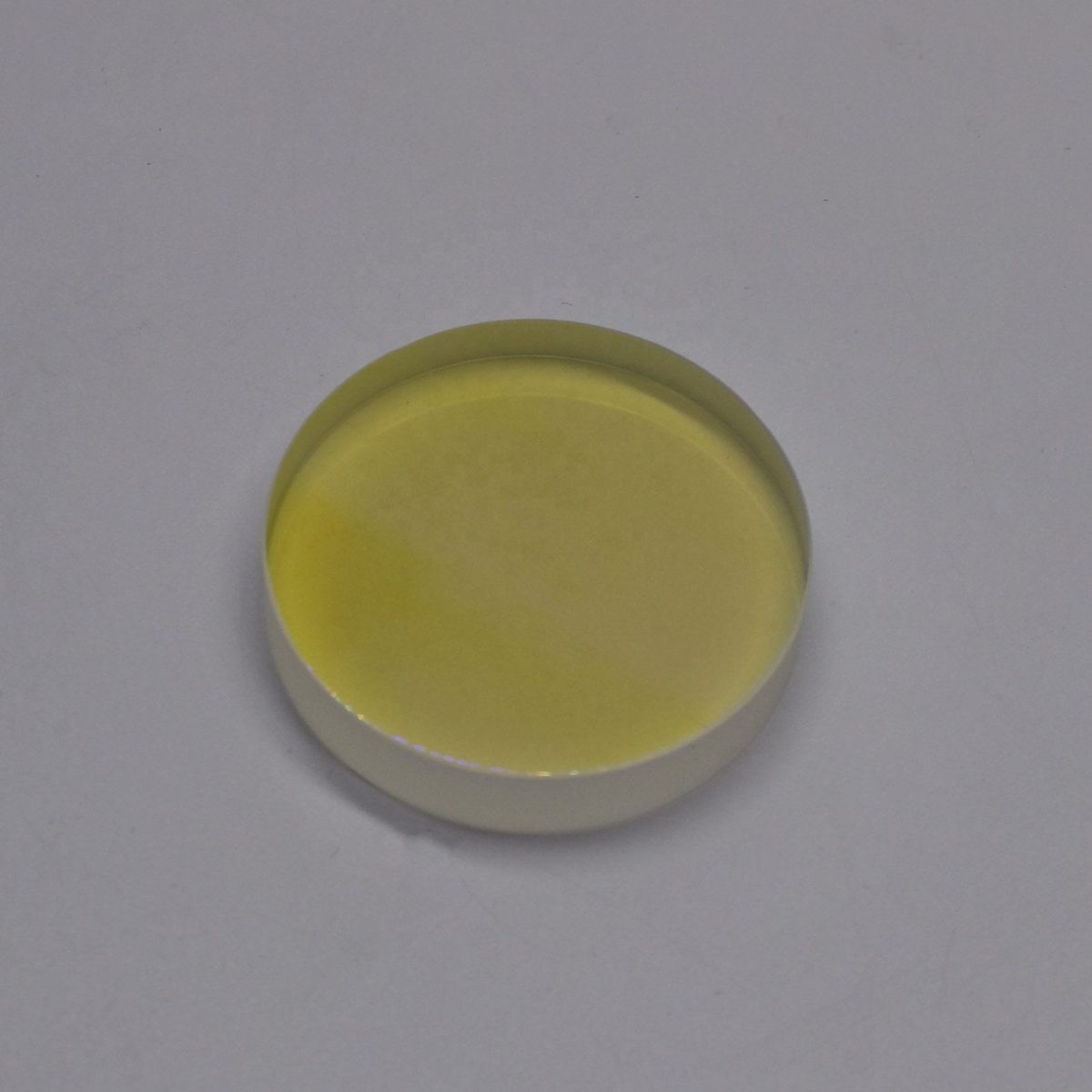

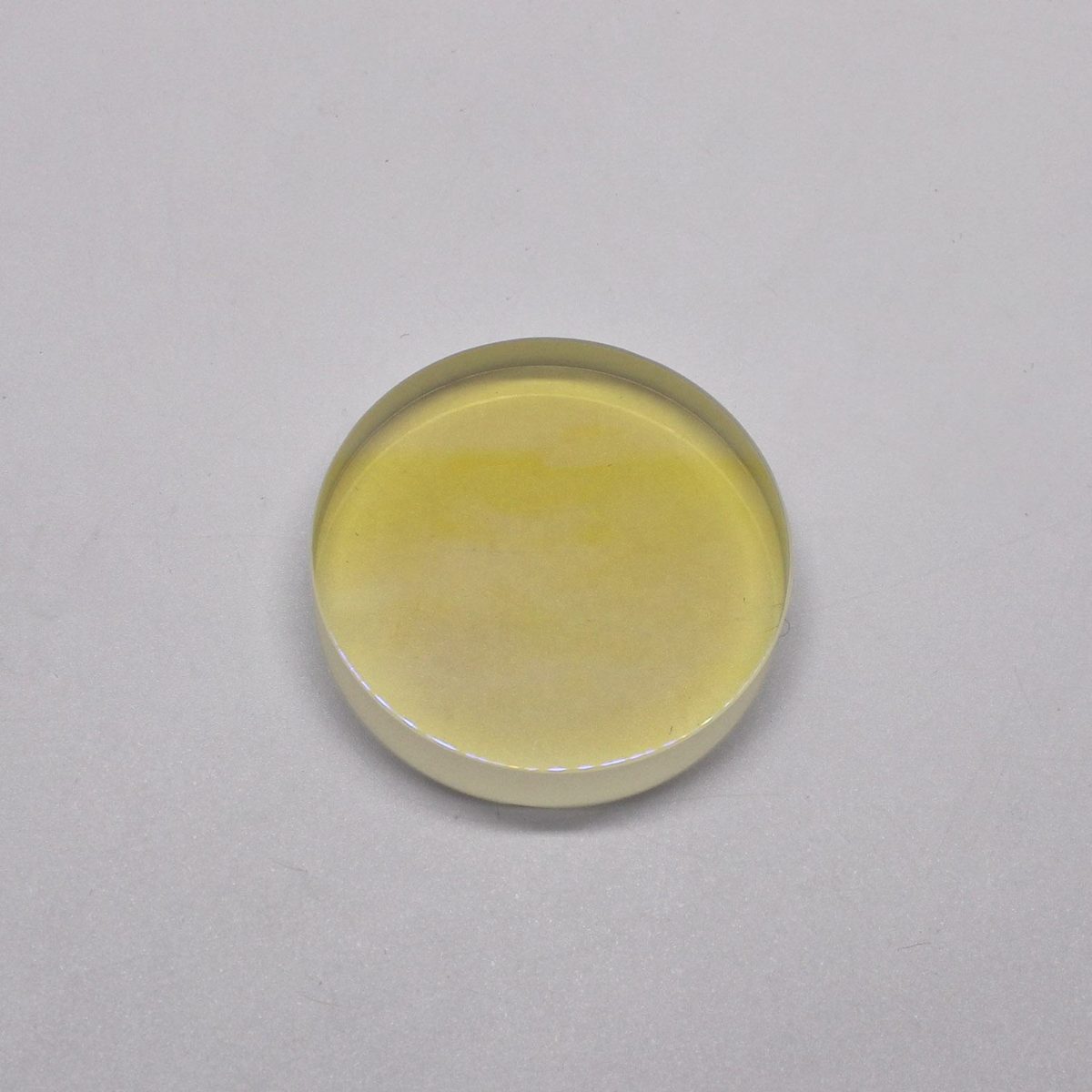

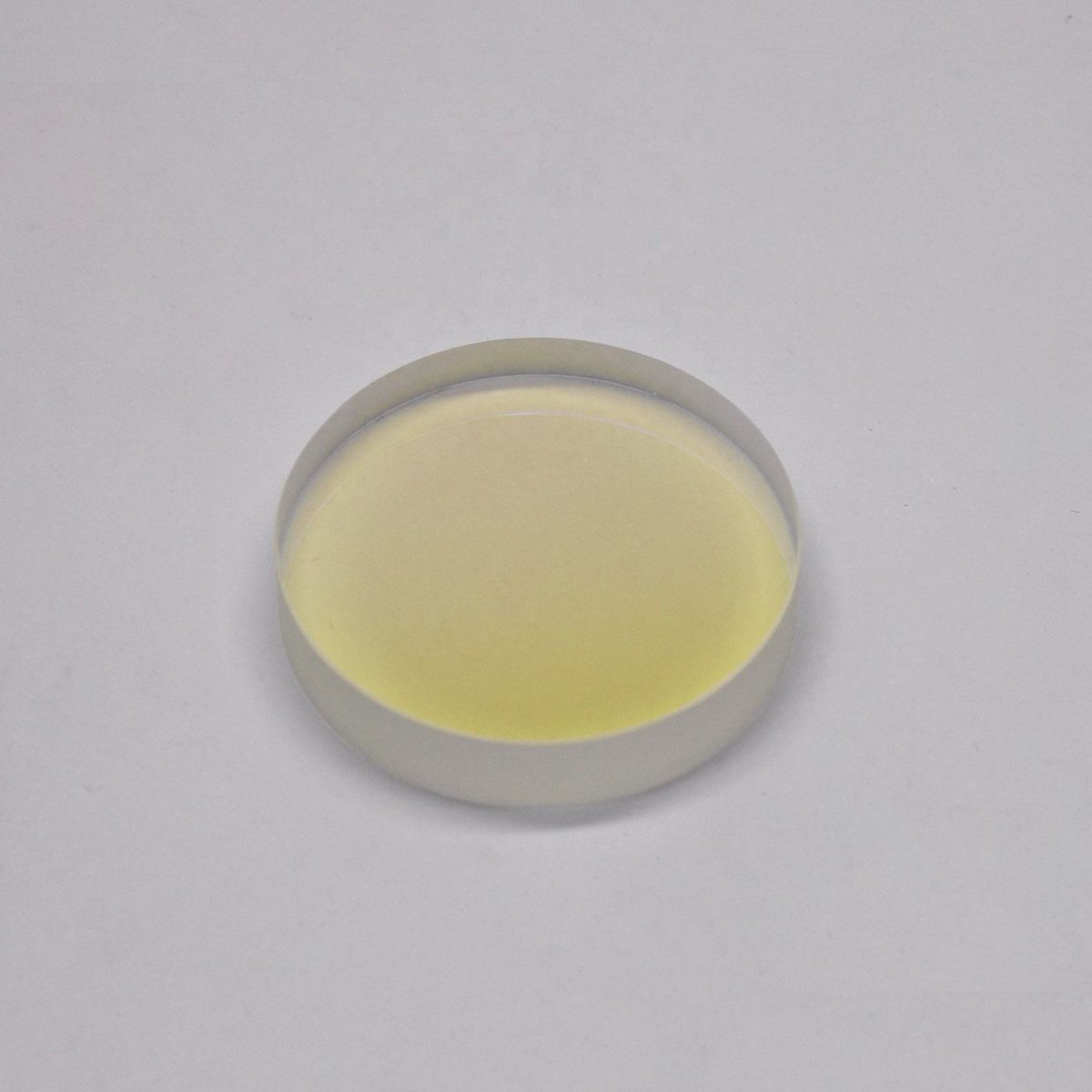

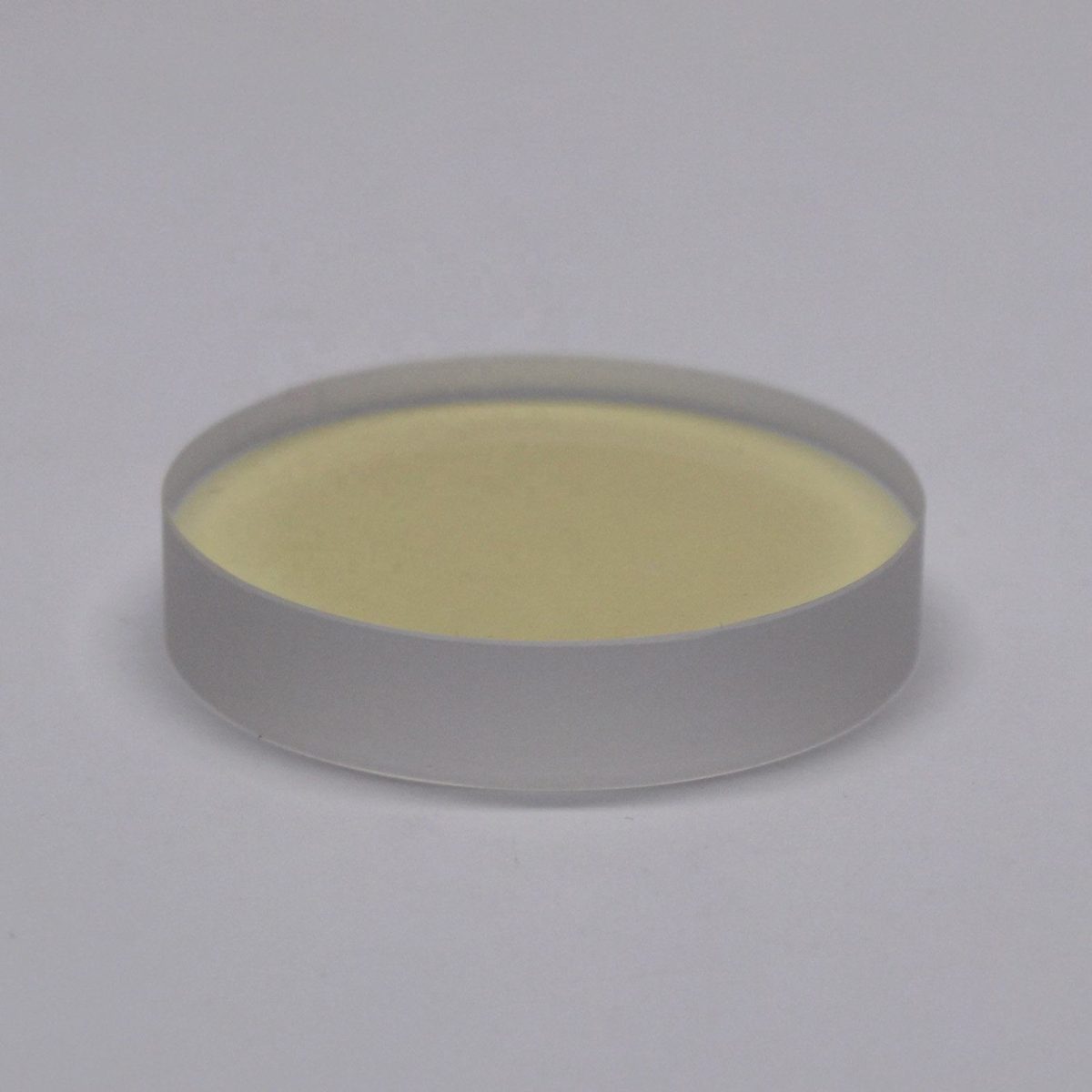

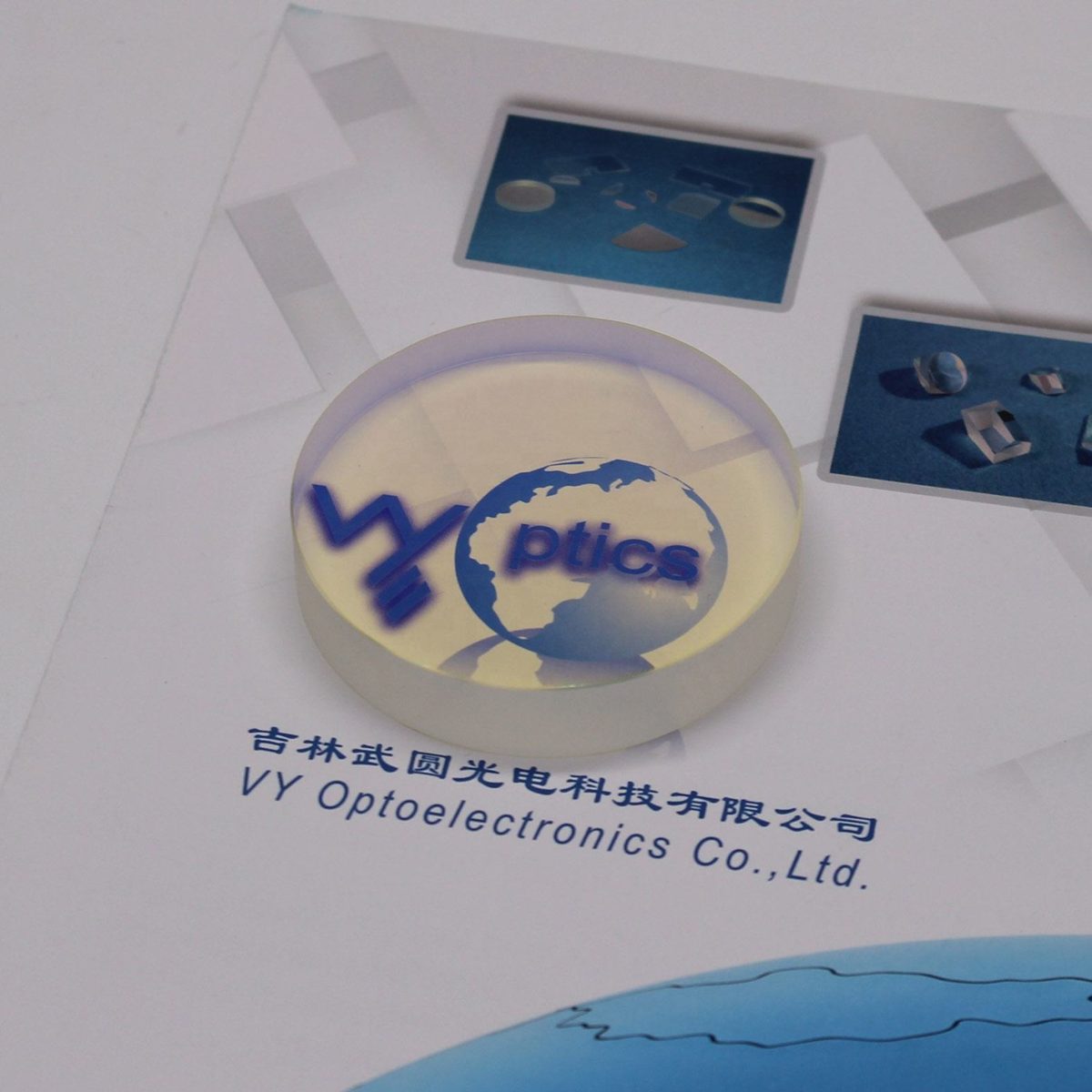

50x10 mm Fused Silica Optical Window, AR Coated
Optical JGS1 Glass Window offers high transmittance and durability for UV to near-infrared applications.
Core attributes
- Material
- Fused Silica
- Diameter range
- 50 mm
- Thickness
- 10 mm
- Coating
- ar
Product facts
Key attributes
- Material
- Fused Silica
- Diameter range
- 50 mm
- Thickness
- 10 mm
- Coating
- ar
Product description
The Optical JGS1 Glass Window is engineered for high-performance applications in the UV to near-infrared spectrum (200nm-2500nm), making it ideal for security and semiconductor industries. With a diameter of 50mm and thickness of 10mm, this fused silica window offers excellent transmittance and durability, ensuring minimal light loss and distortion under harsh conditions. Its precise optical polishing and AR coating enhance its functionality, catering to critical applications in laser systems and analytical instruments.
Key Features
- High transmittance over 90% from 200nm to 2500nm for optimal performance.
- Diameter of 50mm with a thickness of 10mm, suitable for various applications.
- Surface quality of 80/50 and surface figure of lambda/10 for minimal distortion.
- Customizable options available through OEM and ODM support.
- Diameter tolerance of +/-0.01mm and thickness tolerance of +/-0.1mm for precision.
Available Sizes
| Diameter x Thickness (mm) |
|---|
| 50 x 10 |
Applications
Security, Semiconductor
Specification Summary
| Item | Value |
|---|---|
| Material | Fused Silica |
| Diameter | 50 mm |
| Thickness | 10 mm |
| Surface Quality | 80/50 |
| Coating | anti-reflective (AR) |
| Transmission bands | SWIR (1.7-3 μm), UV (<400 nm) |
| MOQ | — |
Full Specifications
| Parameter | Value |
|---|---|
| Type | flat; Plate |
| Customized Support | OEM, ODM |
| Warranty | as requested |
| Weight | 0.15 |
| Name | Optical JGS1 Glass Window |
| Diameter Tolerance | +/-0.01mm |
| Thickness Tolerance | +/-0.1mm |
| Surface Figure | lamda/10 |
FAQ
Can I get custom sizes?
Custom sizes are available through OEM and ODM support.
What are the tolerances for this window?
The diameter tolerance is +/-0.01mm and thickness tolerance is +/-0.1mm.
