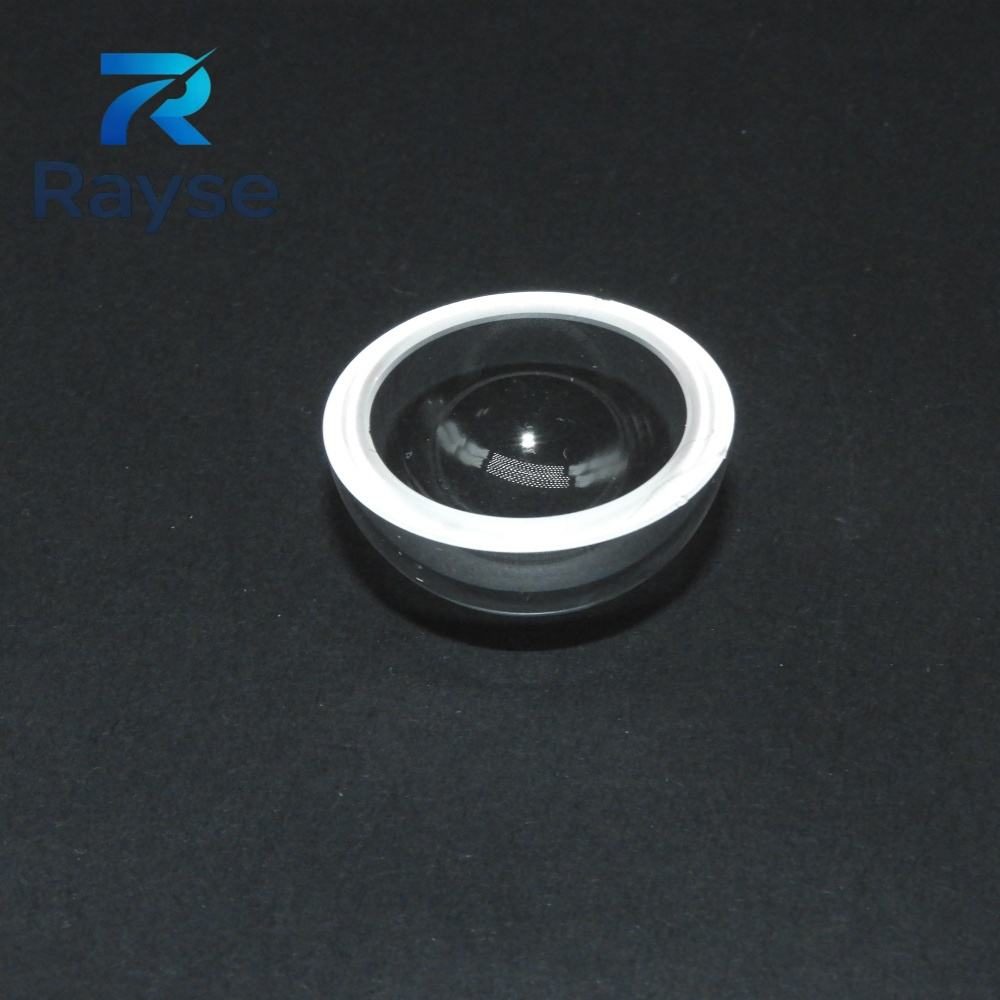

5x0.1 mm Fused Silica Optical Window, AR Coated

Product description

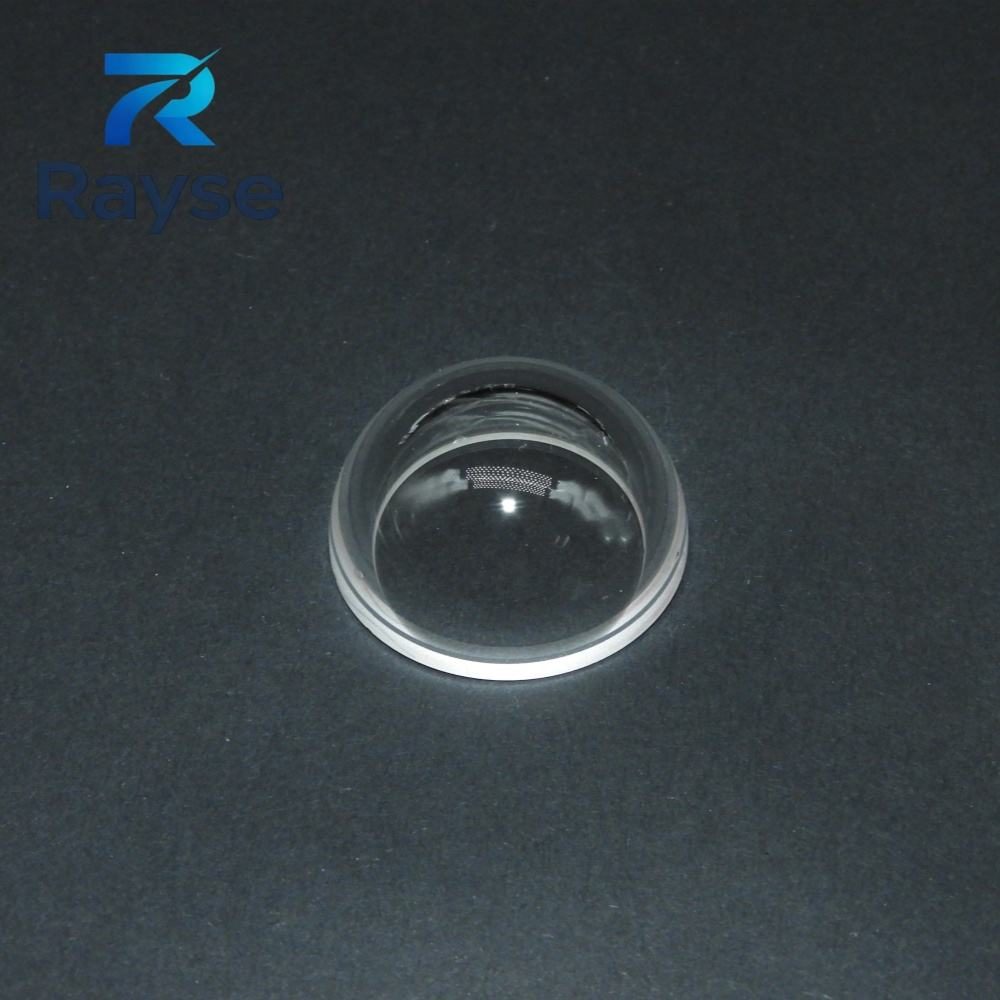

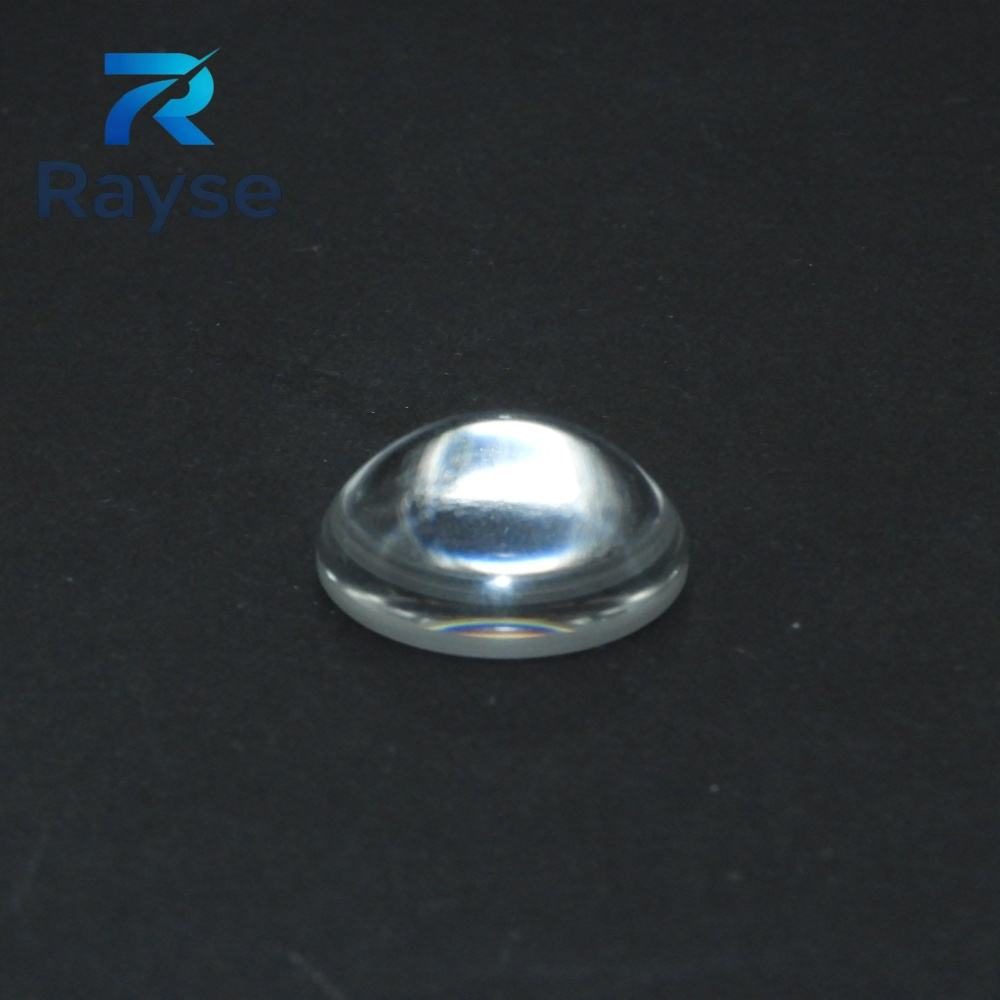

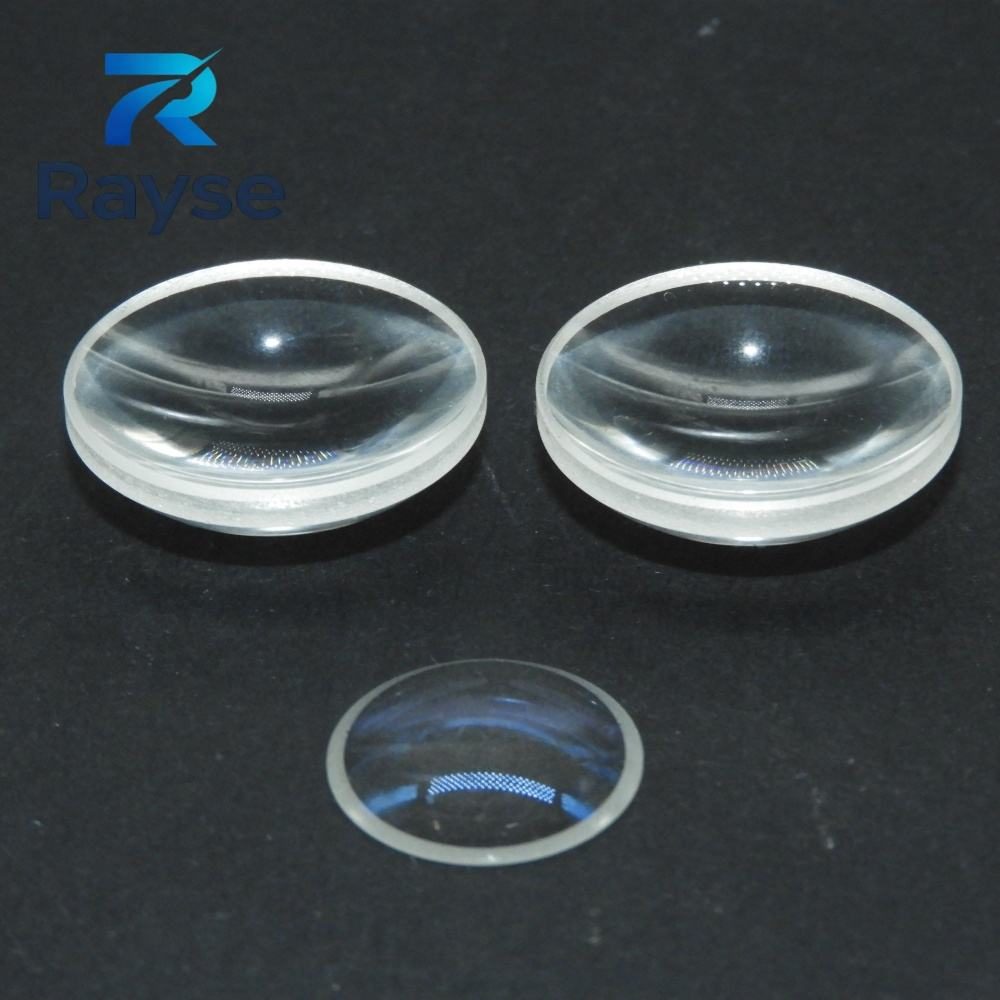

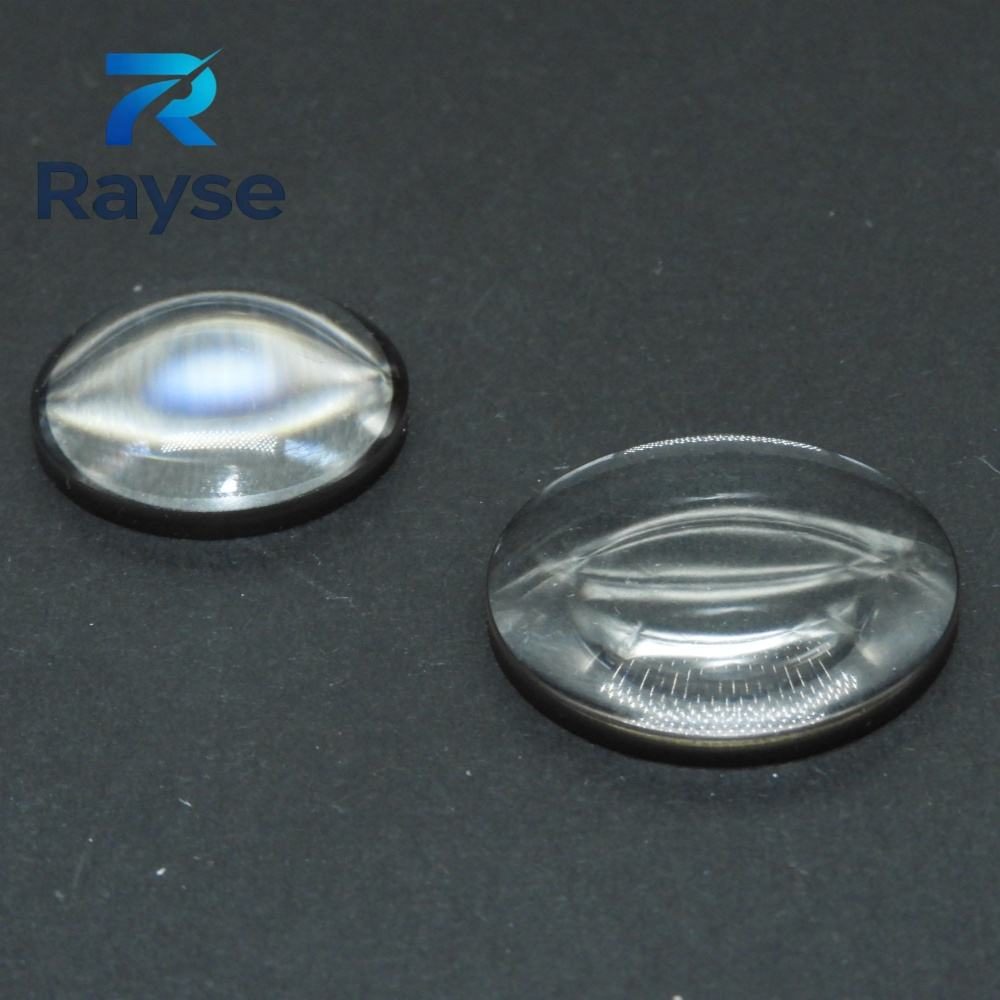

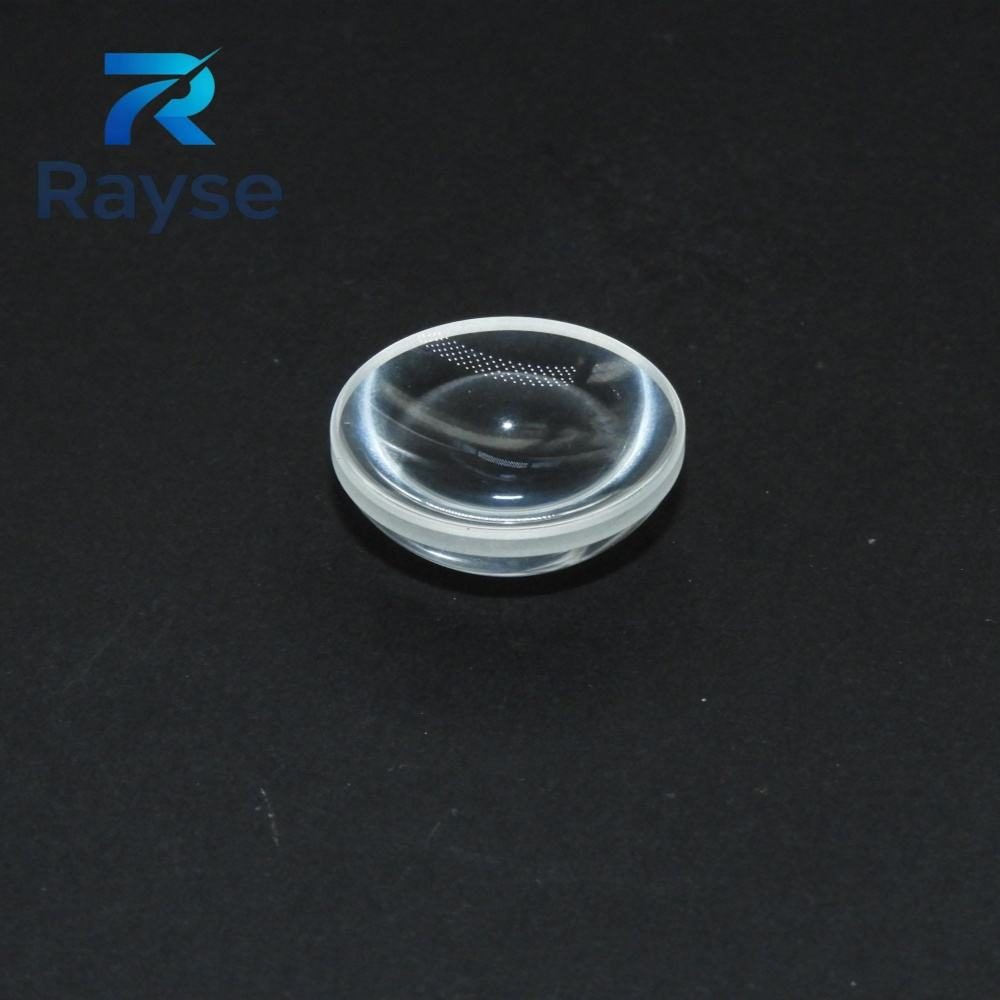

This convex lens made from fused silica is ideal for applications requiring high durability and excellent light transmission. With a diameter range of 5.0 mm to 200.0 mm and thickness from 0.1 mm to 100.0 mm, it is suitable for various optical systems including underwater photography and observation. The lens features anti-reflective coatings and a clear aperture of 90%, ensuring optimal image quality and clarity in challenging environments.

Key Features

Diameter range: 5.0 mm to 200.0 mm for versatile applications.
Thickness options from 0.1 mm to 100.0 mm to fit specific design needs.
Focal length adjustable from 5 mm to 1000 mm, allowing for precise optical performance.
Surface quality rated at 20/10 for exceptional clarity and minimal distortion.
Customizable support available for OEM, ODM, and OBM projects.

Available Sizes

Diameter x Thickness (mm)
102.5 x 50

Specification Summary

Item	Value
Material	Fused Silica
Diameter	5 mm
Thickness	0.1 mm
Surface Quality	20/10
Coating	anti-reflective (AR)
MOQ	—

Full Specifications

Parameter	Value
Type	Convex Lens
Customized Support	OEM, ODM, OBM
Warranty	1 Year
Weight	0.01
Clear Aperture	90%
Focal Length	5mm ~ 1000mm 2%
Flatness	1/2Lambda ~ 1/10 Lambda
Bevel	0.1-0.5*45

FAQ

Can I get custom sizes for this lens?

Yes, custom sizes are available, including a variant size of 102.5 mm diameter and 50.0 mm thickness.

What are the tolerances for this lens?

The lens features a flatness tolerance of 1/2 Lambda to 1/10 Lambda, ensuring high precision.
