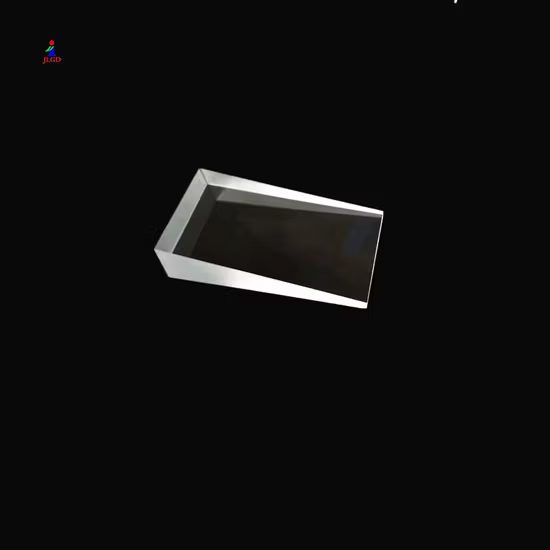

5x1 mm Fused Silica Optical Window, AR Coated

Product description

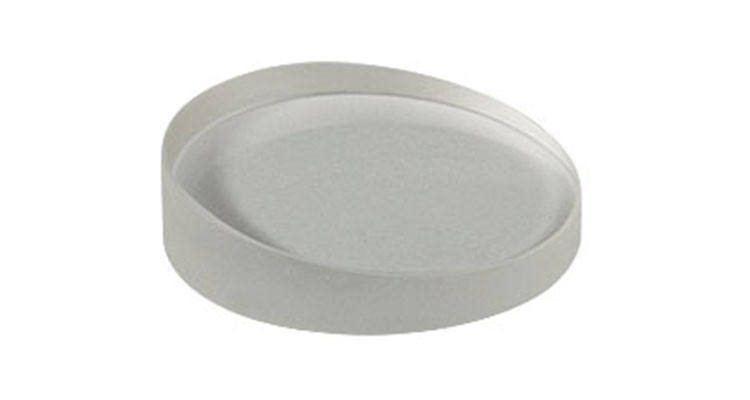

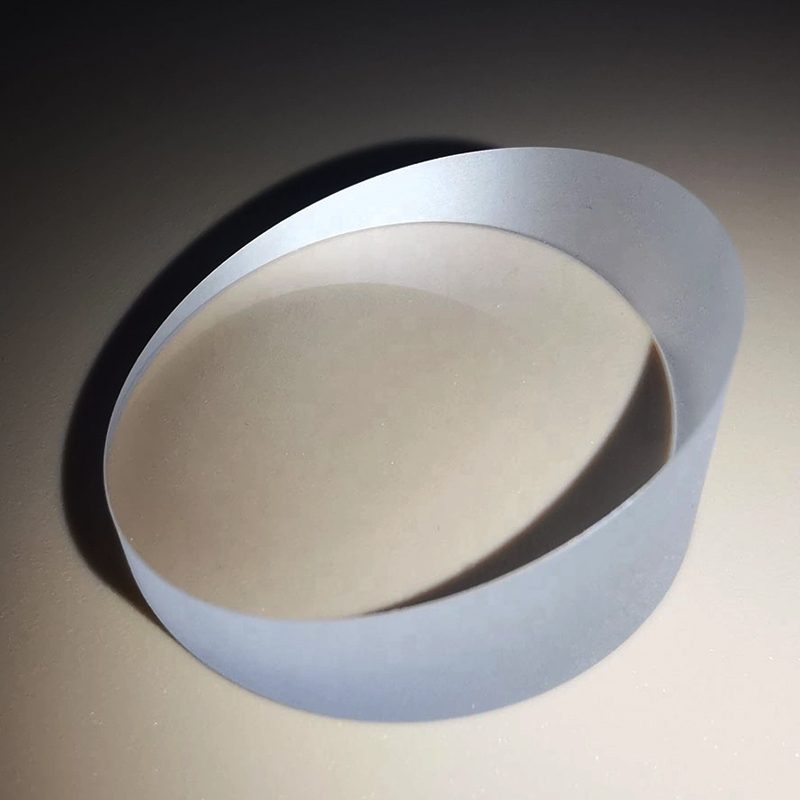

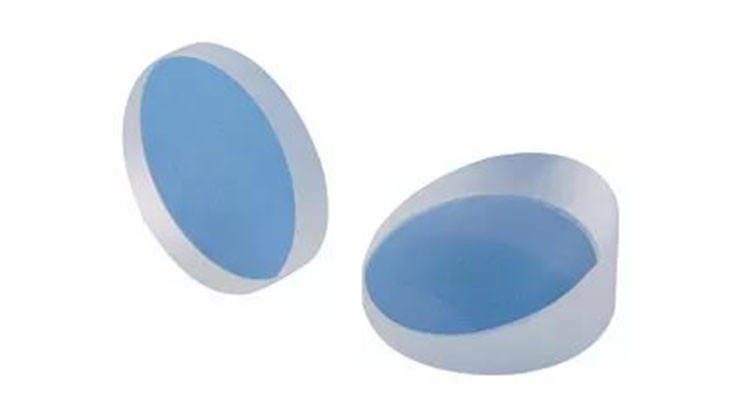

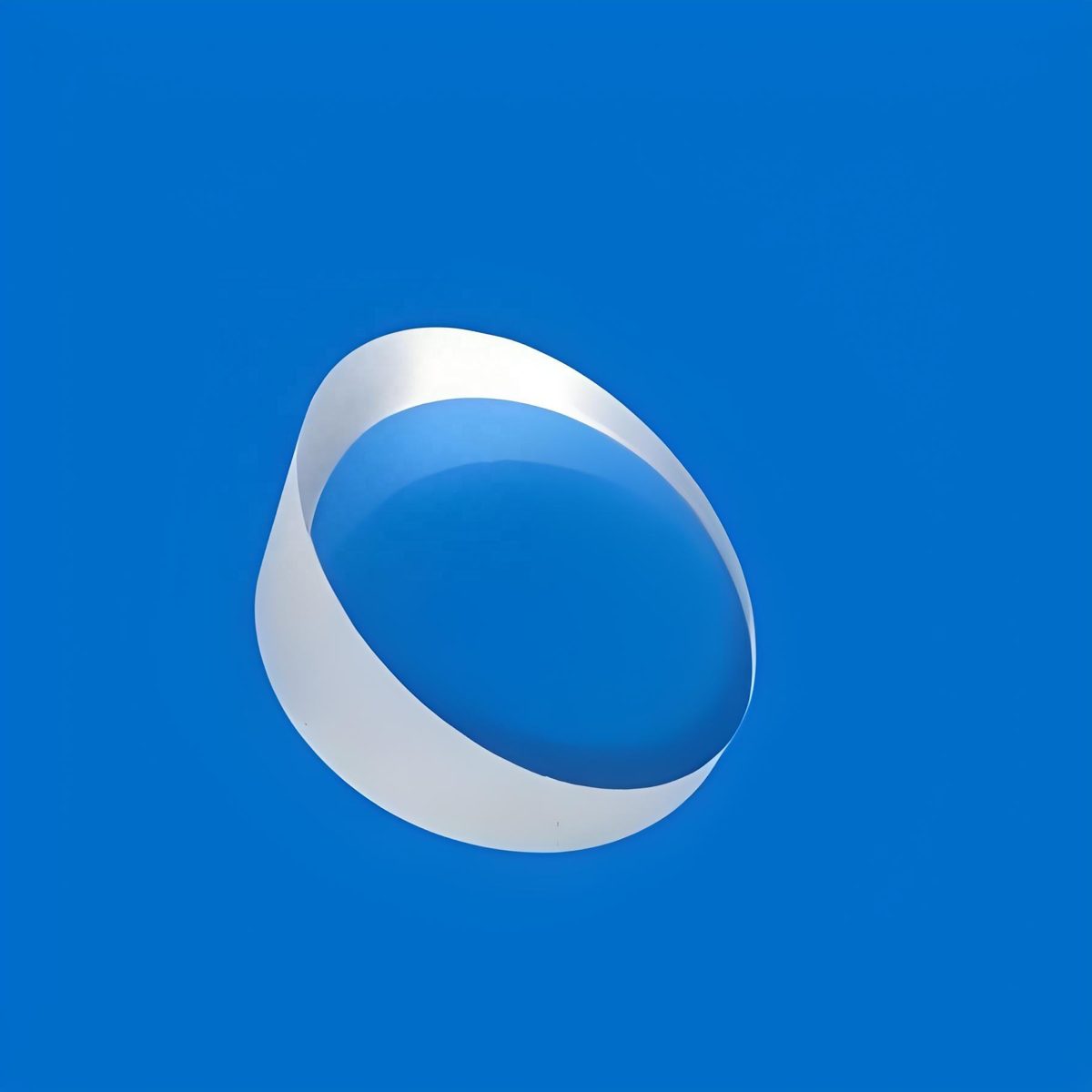

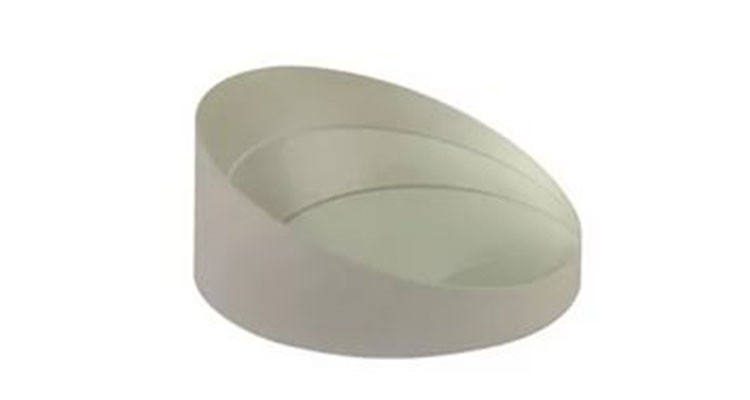

Fused Silica Wedge Prisms are designed for applications in thermal imaging and medical devices, effectively deflecting light with precision. These prisms operate within the 400-700 nm wavelength range and feature anti-reflective coatings to minimize unwanted reflections. With a diameter range of 5.0 to 100.0 mm and thickness options from 1.0 to 10.0 mm, they offer versatility for various optical setups. Custom sizes and OEM/ODM support ensure that they can meet specific project needs.

Key Features

Broad wavelength compatibility (400-700 nm) for diverse applications.
Available in diameters from 5.0 mm to 100.0 mm for flexible integration.
Thickness options from 1.0 mm to 10.0 mm to suit different optical requirements.
High clear aperture (≥90%) ensures efficient light transmission.
Custom angular tolerance as tight as 3 arcsec for precise light control.

Available Sizes

Diameter x Thickness (mm)
52.5 x 5.5

Applications

Thermal Imaging, Medical

Specification Summary

Item	Value
Material	Fused Silica
Diameter	5 mm
Thickness	1 mm
Coating	anti-reflective (AR)
Transmission bands	VIS (400-700 nm)
MOQ	—

Full Specifications

Parameter	Value
Prism Type	Right Angle Prism, Triangular Prism
Customized Support	OEM, ODM, OBM
Warranty	1 month
Dimension Tolerance	±0.1mm
Flatness	L/2- L/8 @633nm
Clear Aperture	≥90%
Bevel	0.2-0.5mmx45°

FAQ

Can I get custom sizes?

Yes, custom sizes are available, including specific dimensions like 52.5 mm diameter and 5.5 mm thickness.

What are the tolerances for dimensions?

Dimension tolerance is ±0.1 mm, ensuring high precision in manufacturing.
