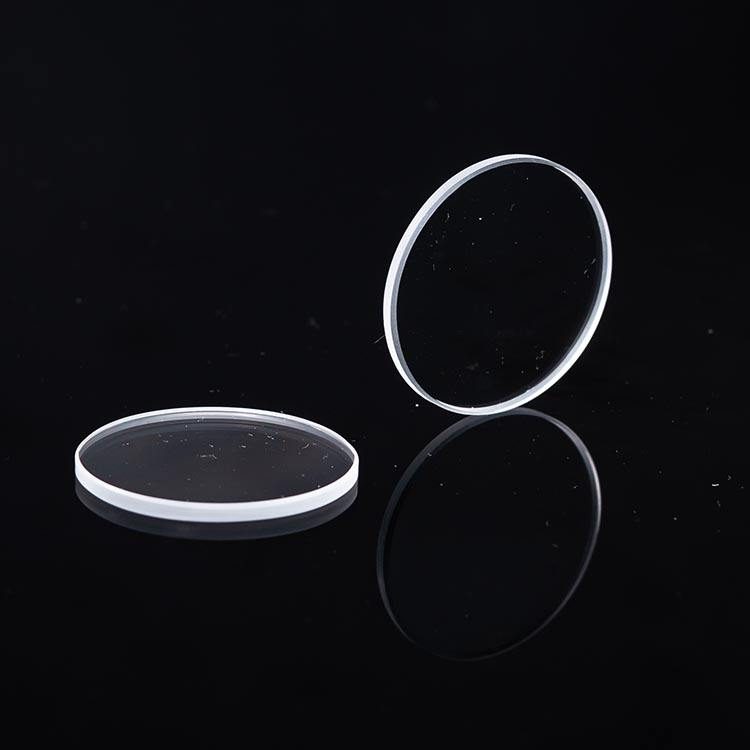

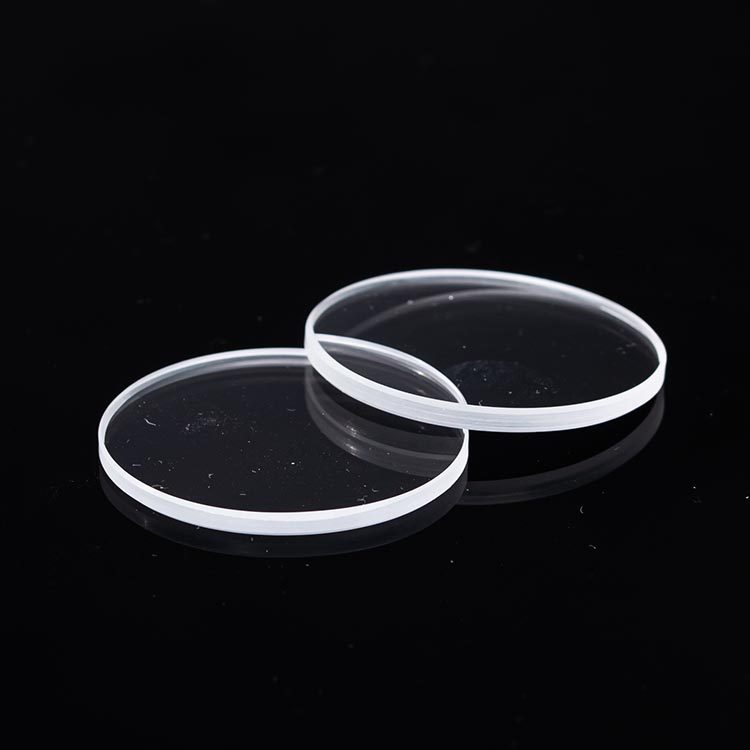

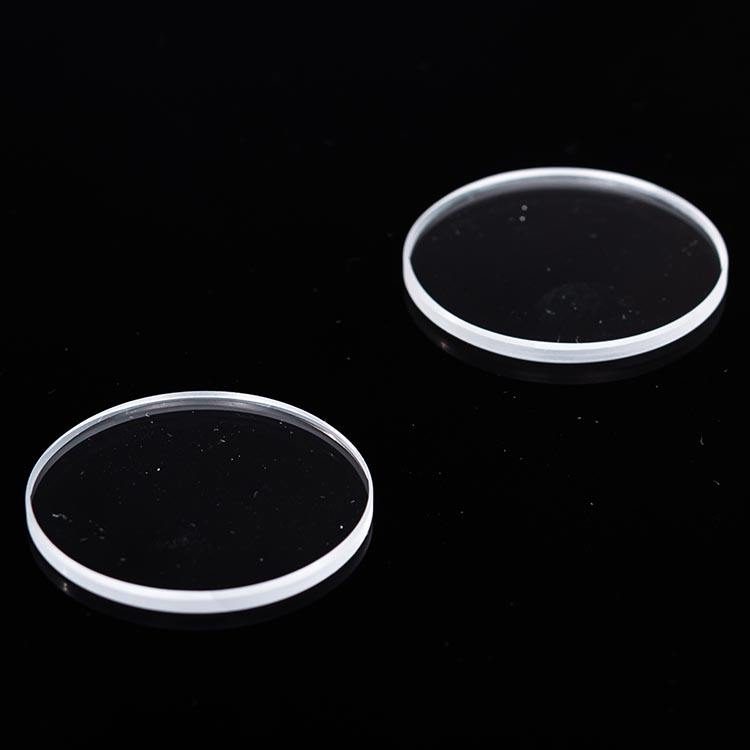

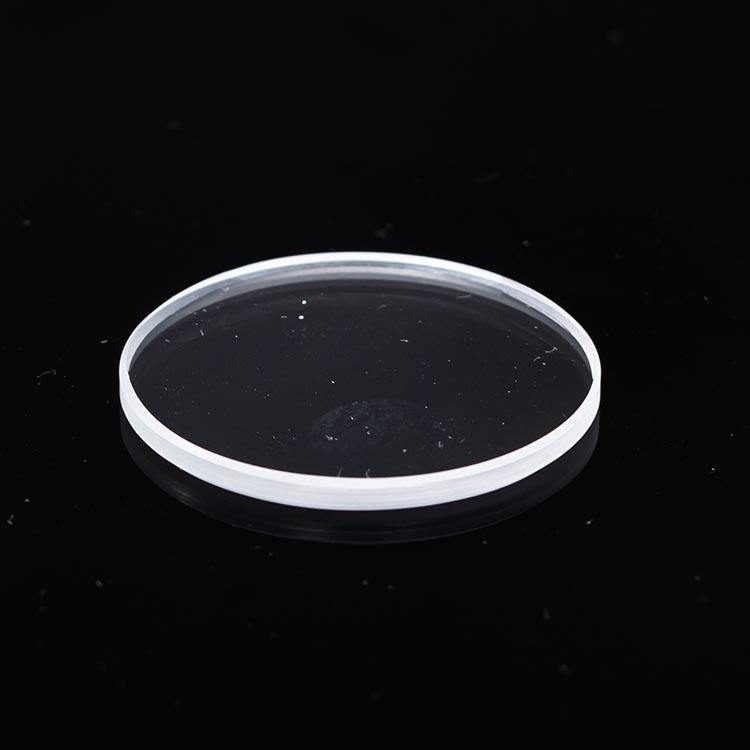

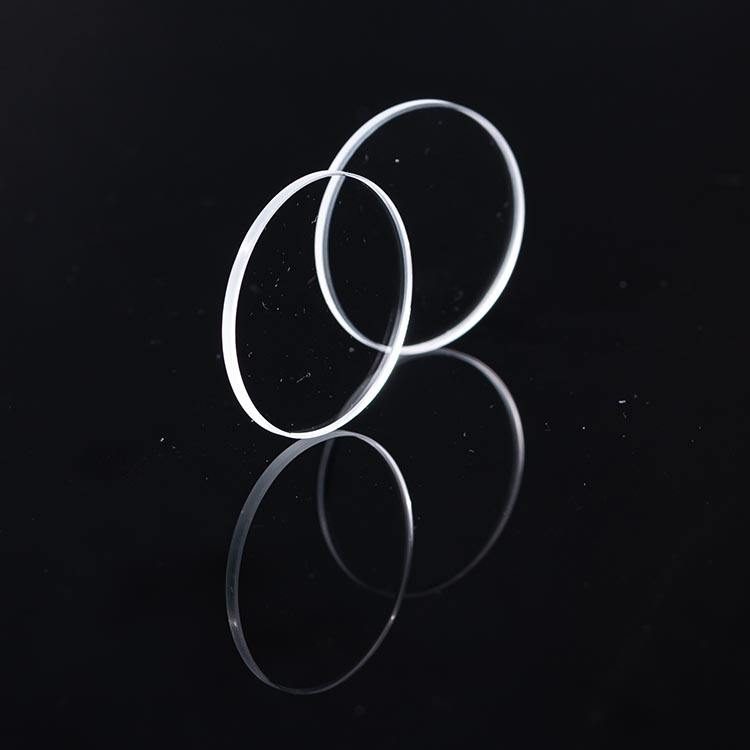

5x2 mm Fused Silica Optical Window
Fused Silica optical windows for 400-700 nm applications, featuring 40/20 surface quality and custom sizing options.
Core attributes
- Material
- Fused Silica
- Diameter range
- 5 mm
- Thickness
- 2 mm
- Coating
- uncoated
Product facts
Key attributes
- Material
- Fused Silica
- Diameter range
- 5 mm
- Thickness
- 2 mm
- Coating
- uncoated
Product description
These optical windows made from Fused Silica are ideal for applications requiring high transmittance in the 400-700 nm range. With a diameter of 5 mm and a thickness of 2 mm, they offer excellent surface quality and minimal optical distortion. The uncoated design ensures versatility across various optical applications, making them suitable for R&D in IR imaging, LIDAR, and medical devices.
Key Features
- Surface quality of 40/20 ensures minimal distortion for precise imaging.
- Thickness tolerance of +/-0.2 mm provides reliable batch consistency.
- Clear aperture of 90% maximizes light transmission for enhanced performance.
- Custom OEM and ODM support available for tailored solutions.
- Lightweight design at 0.5 kg (1.10 lb) facilitates easy integration.
Available Sizes
| Diameter x Thickness (mm) |
|---|
| 5 x 2 |
Specification Summary
| Item | Value |
|---|---|
| Material | Fused Silica |
| Diameter | 5 mm |
| Thickness | 2 mm |
| Surface Quality | 40/20 |
| Coating | uncoated |
| Transmission bands | VIS (400-700 nm) |
| MOQ | — |
Full Specifications
| Parameter | Value |
|---|---|
| Type | optical Windows |
| Customized Support | OEM, ODM |
| Warranty | 3 months |
| Logo/Graphic Design | SUPPORT |
| Weight | 0.5kg(1.10lb) |
| Surface Flatness | 1/4@633nm |
| Parallel | <30 arcsec |
| Bevel | 0.2~0.5mmx45 |
| Thickness Tolerance | +/-0.2mm |
| Clear Aperture | 90% |
FAQ
Is custom sizing available?
Yes, custom sizes can be accommodated through OEM and ODM support.
What is the thickness tolerance?
The thickness tolerance for these optical windows is +/-0.2 mm.
