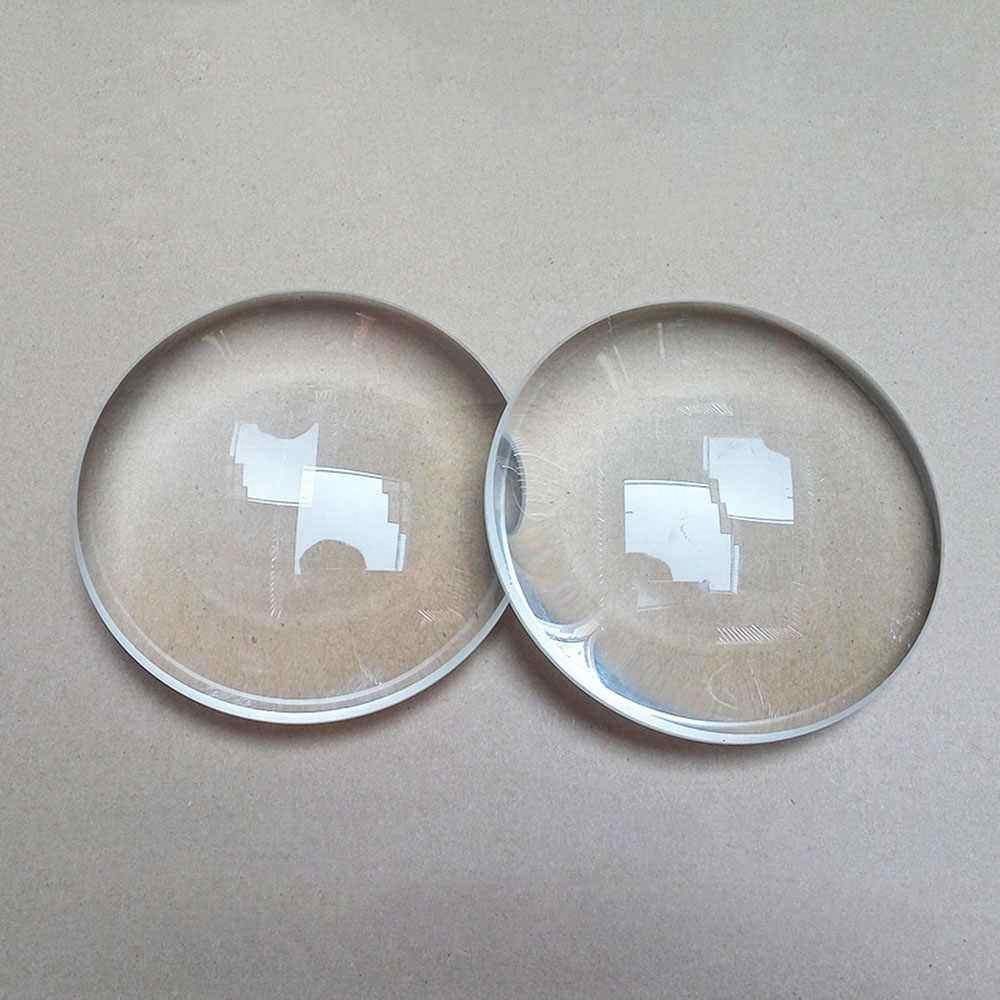

5 mm Fused Silica Optical Window, AR Coated

Product description

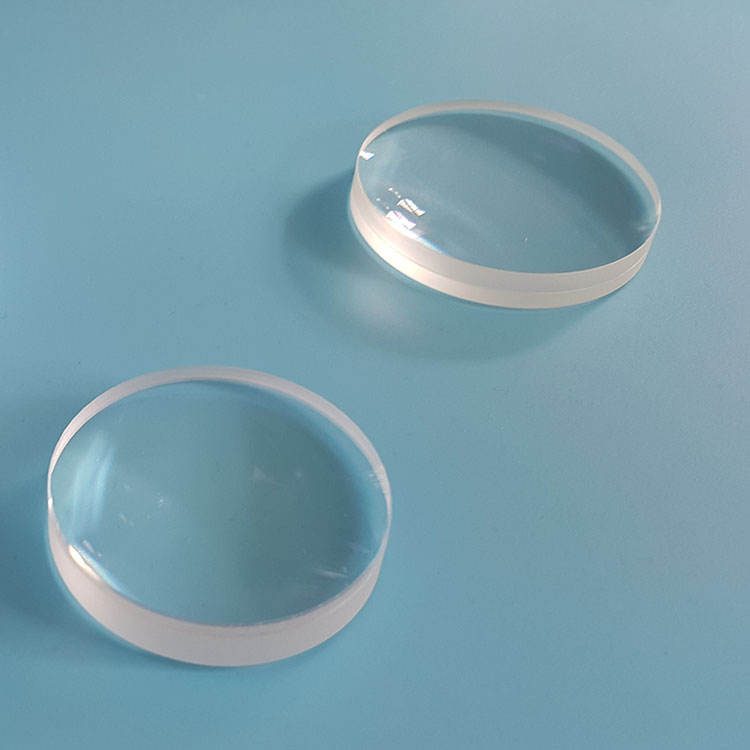

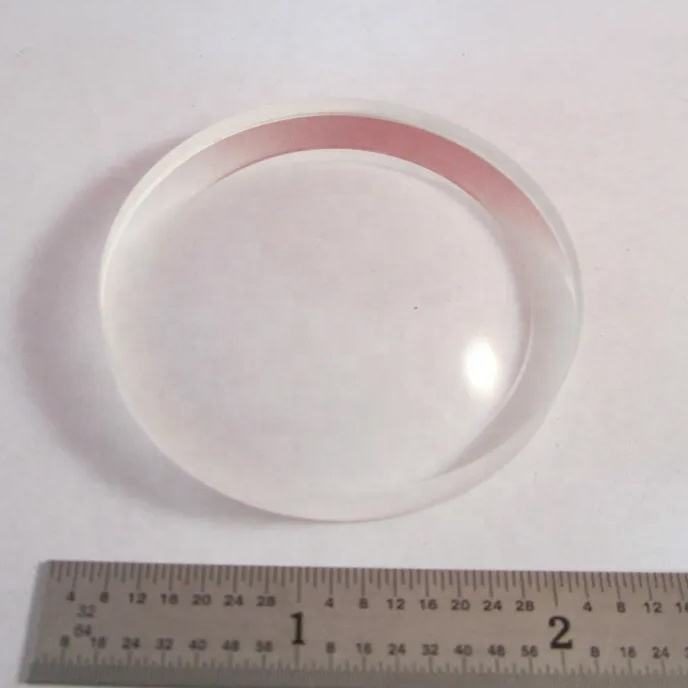

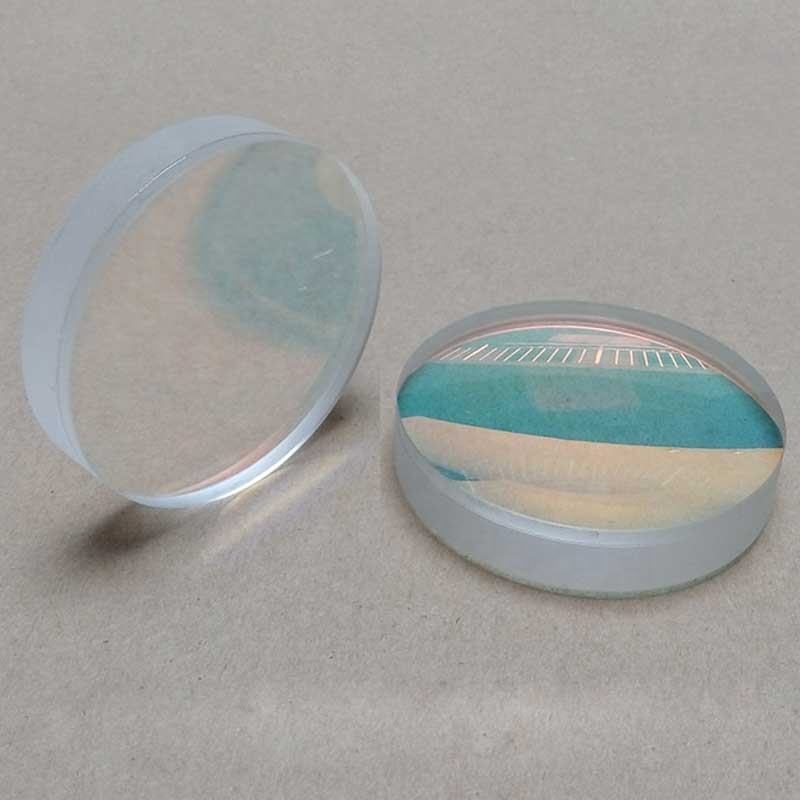

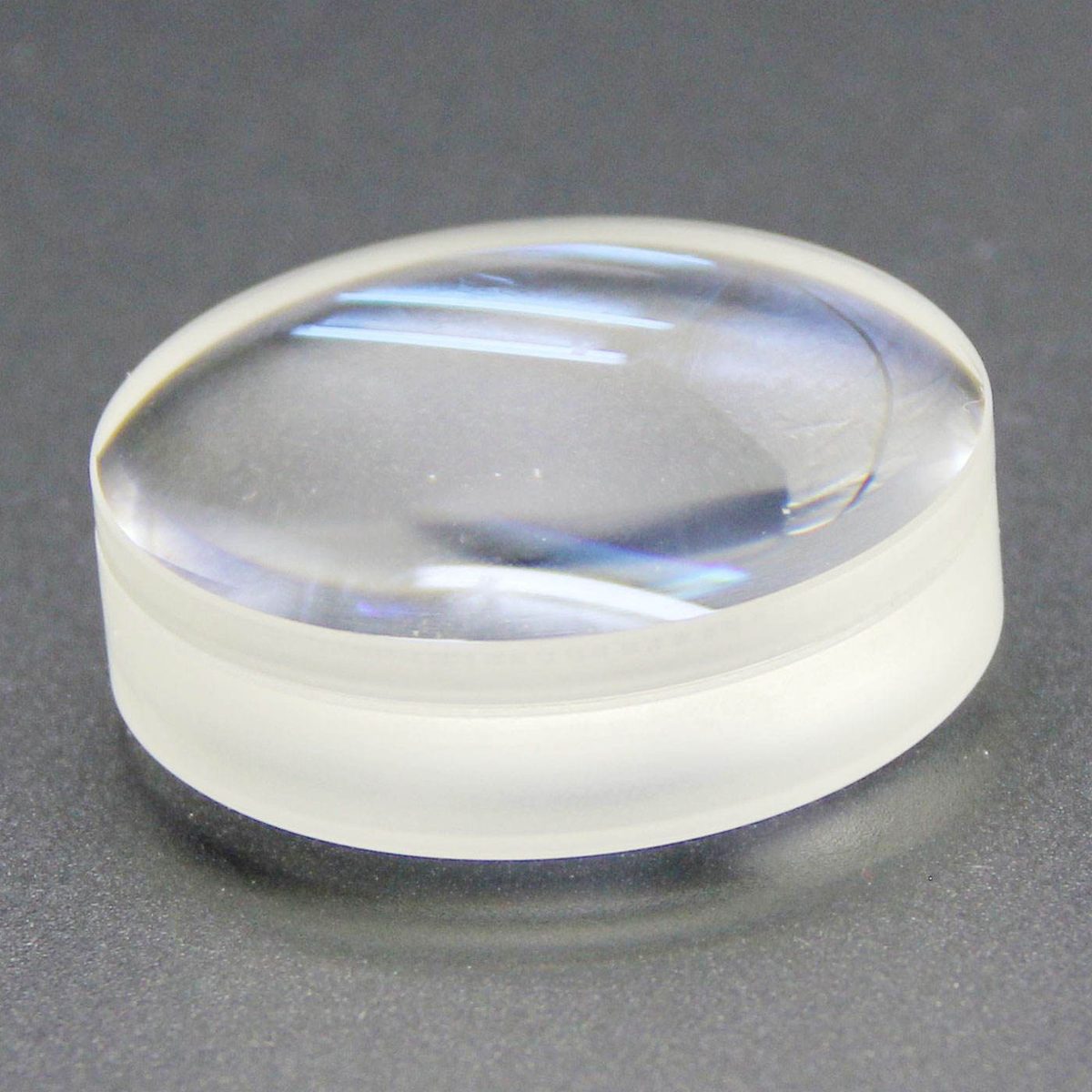

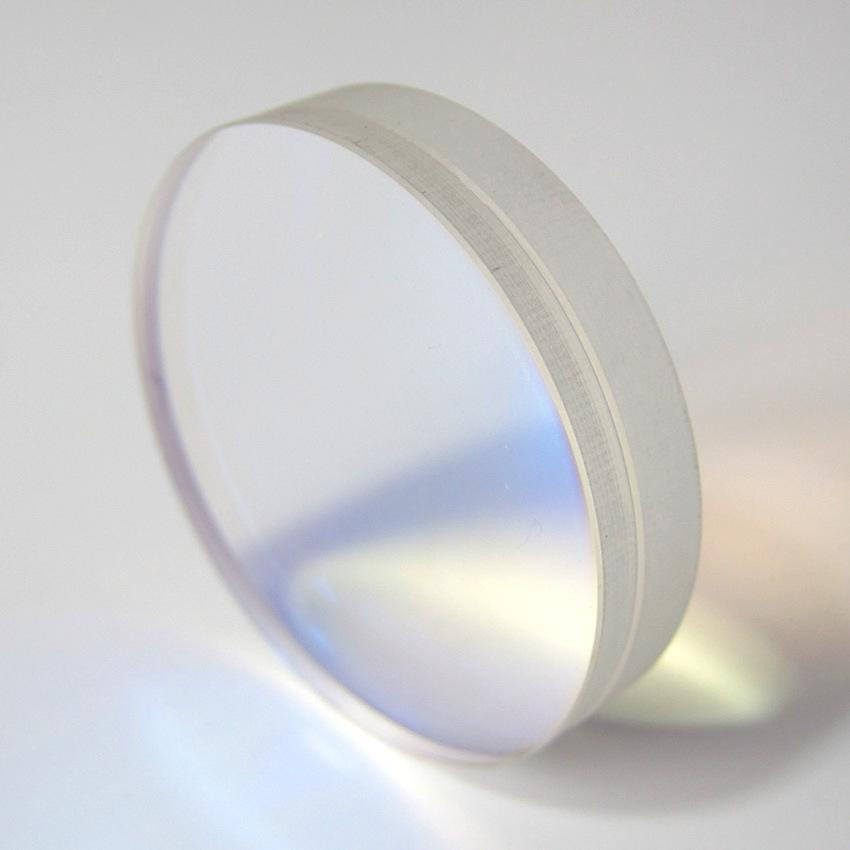

Fused silica plano-convex lenses are essential for applications within the 400-700 nm wavelength range, providing effective light convergence for imaging and beam control. These lenses are designed for non-critical optical systems, ensuring versatility in various setups. With custom diameters ranging from 5.0 mm to 1000.0 mm and options for anti-reflective (AR) and high-reflection (HR) coatings, they meet diverse engineering needs while maintaining high performance in light transmission.

Key Features

Custom diameters from 5.0 mm to 1000.0 mm for tailored applications.
Positive focal length enables effective light convergence for imaging tasks.
Dimension tolerance of +/-0.1 mm ensures precision in optical setups.
Parallelism specification of < 3 arcmin supports high-quality performance.
OEM and ODM support allows for customized solutions and prototypes.

Specification Summary

Item	Value
Material	Fused Silica
Diameter	5 mm
Thickness	Custom
Coating	anti-reflective (AR), high-reflective (HR)
Transmission bands	VIS (400-700 nm)
MOQ	—

Full Specifications

Parameter	Value
Type	Plano Convex Lens
Customized Support	OEM, ODM
Warranty	6 months
Weight	0.05g(0oz)
Dimension Tolerance	+/-0.1mm
Focal Length	as request
Focal Length Tolerance	±1%
Parallelism	< 3 arcmin

FAQ

Can I get custom sizes for these lenses?

Yes, custom diameters ranging from 5.0 mm to 1000.0 mm are available.

What is the tolerance for the focal length?

The focal length tolerance is ±1%, ensuring accuracy in optical performance.
