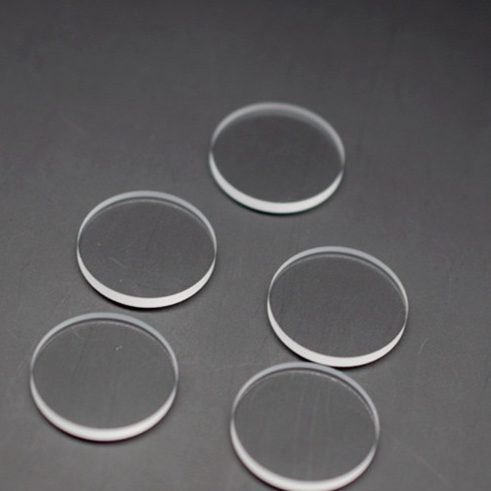

Custom Size Fused Silica Optical Window
Fused Silica window for security applications, customizable thickness, high clarity, and durable up to 1100°C.
Core attributes
- Material
- Fused Silica
- Thickness
- 0.1–30 mm
Product facts
Key attributes
- Material
- Fused Silica
- Thickness
- 0.1–30 mm
Product description
This Fused Silica window is ideal for applications in security systems, particularly for wavelengths below 400 nm. Its superior clarity and high transmittance make it suitable for sensitive optical setups. With a thickness range of 0.1 to 30 mm, this window can be customized to fit specific application requirements. The material’s high thermal resistance of up to 1100°C ensures durability in demanding environments.
Key Features
- Thickness range of 0.1 to 30 mm for versatile application fit.
- Surface quality of 60/40 ensures high clarity and minimal distortion.
- Protective chamfer edges (0.1 to 0.3 mm) enhance durability and safety.
- Can withstand work temperatures up to 1100°C, suitable for high-heat applications.
- Processing services available, including cutting and coating, for tailored solutions.
Applications
Security
Specification Summary
| Item | Value |
|---|---|
| Material | Fused Silica |
| Diameter | Custom |
| Thickness | 0.1 mm |
| Surface Quality | 60/40 |
| Transmission bands | UV (<400 nm) |
| MOQ | — |
Full Specifications
| Parameter | Value |
|---|---|
| Clarity Type | Clear Quartz Plate |
| Processing Service | Cutting, Coating |
| Edge | 0.1 to 0.3mm protective chamfer as require |
| Work Temperature | 1100 Degrees Celsius |
FAQ
Is custom sizing available?
Yes, the thickness can be customized from 0.1 to 30 mm to meet specific needs.
What is the surface quality of the window?
The surface quality is rated at 60/40, providing good clarity for optical applications.
