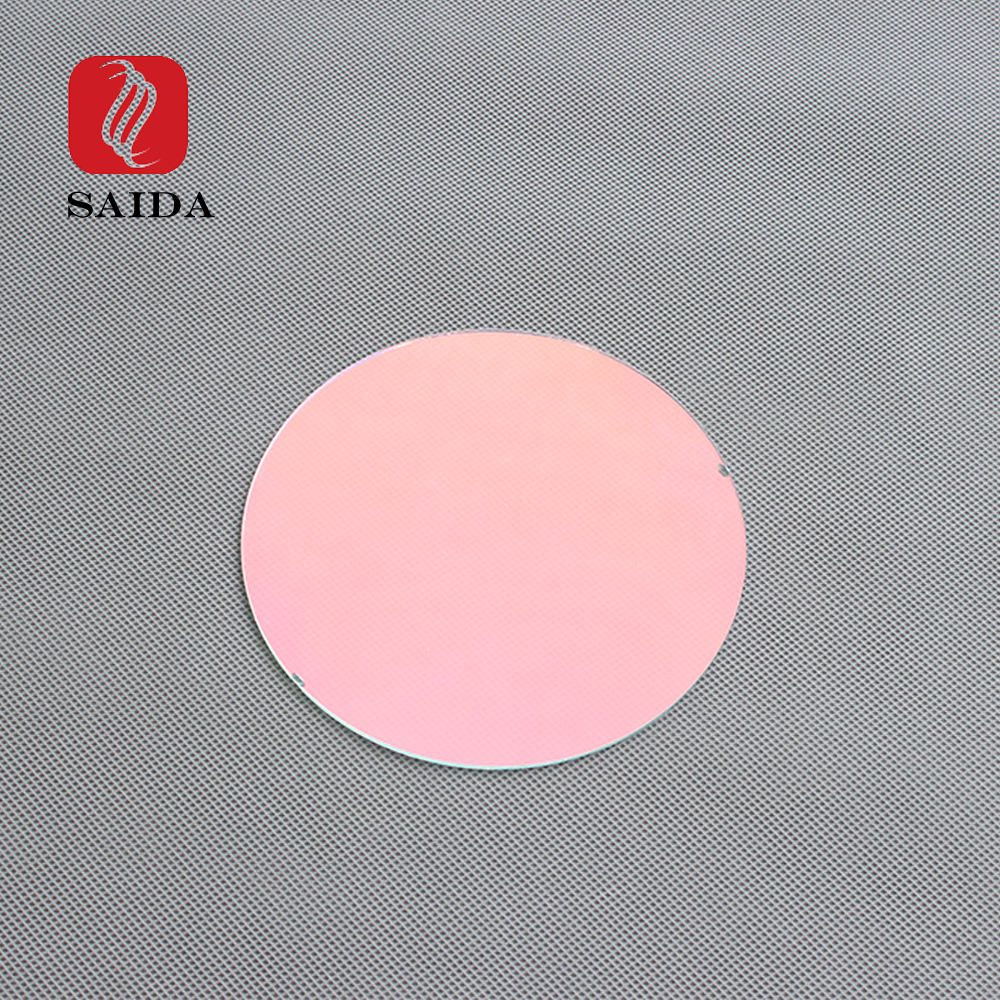

Custom Size Fused Silica Optical Window, AR Coated
Fused Silica window with AR coating for 0.7-1.7 μm applications, offering >94% transmittance and customizable thickness.
Core attributes
- Material
- Fused Silica
- Thickness
- 0.4–19 mm
- Coating
- ar
Product facts
Key attributes
- Material
- Fused Silica
- Thickness
- 0.4–19 mm
- Coating
- ar
Product description
This Fused Silica window with AR coating is designed for applications requiring high transmittance in the 0.7-1.7 μm wavelength range. With a transmittance of over 94%, it is ideal for IR imaging, LIDAR, and laser applications. The thickness ranges from 0.4 mm to 19.0 mm, allowing for flexibility in design and integration. This window offers reliable performance with customizable options to meet specific project requirements.
Key Features
- High transmittance of >94%Ensures optimal light transmission for sensitive applications.
- Thickness options from 0.4 mm to 19.0 mmProvides versatility for various application needs.
- Polished, ground, and flat edgesFacilitates easy integration into existing systems.
- Custom sizes availableAllows for tailored solutions to fit specific project requirements.
Specification Summary
| Item | Value |
|---|---|
| Material | Fused Silica |
| Diameter | Custom |
| Thickness | 0.4 mm |
| Transmittance | 94% |
| Coating | anti-reflective (AR) |
| Transmission bands | NIR (0.7-1.7 μm) |
| MOQ | — |
Full Specifications
| Parameter | Value |
|---|---|
| Warranty | 1 Year |
| After-Sale Service | Free Spare Parts |
| Project Solution Capability | graphic design |
| Type | Float glass, tempered glass |
| Edge | polished, ground, flat, round edge |
| Color | Clear black,white,customized |
| Transmittance | >94% |
| Certificate | ROHS, REACH |
FAQ
Can I get custom sizes?
Yes, sizes can be customized to meet specific project needs.
What is the minimum order quantity?
Minimum order quantity details are not specified.
