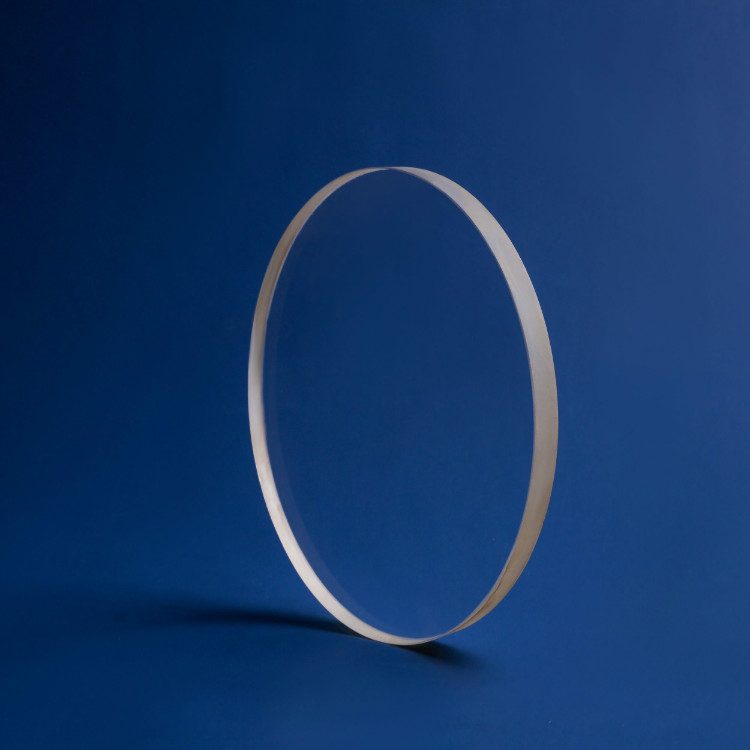

Custom Size Fused Silica Optical Window, AR Coated

Product description

The 445nm Hard AR Coating Glass Window is engineered for applications requiring high transmittance and minimal reflection at 445nm, ideal for laser systems and medical devices. With a transmittance of 99% and a surface quality of 40/20, this window ensures optimal performance in various optical applications. Its compatibility with wavelengths from 400-700 nm makes it versatile for multi-wavelength use in security and medical fields. Customization options are available to meet specific project needs.

Key Features

Transmittance of 99% enhances light efficiency, crucial for laser applications.
Surface quality rating of 40/20 ensures minimal imperfections, improving imaging quality.
Available in thicknesses from 0.3mm to 50mm, accommodating diverse project specifications.
Tolerance of 0.02mm guarantees precision fitting for critical applications.
Customizable with OEM, ODM, and OBM support for tailored solutions.

Applications

Security, Medical

Specification Summary

Item	Value
Material	Fused Silica
Diameter	Custom
Thickness	0.3 mm
Surface Quality	40/20
Transmittance	99%
Coating	anti-reflective (AR)
Transmission bands	NIR (0.7-1.7 μm), VIS (400-700 nm)
MOQ	—

Full Specifications

Parameter	Value
Transmittance	99%
Customized Support	OEM, ODM, OBM
Warranty	3 Years
Name	445nm Hard AR Coating Glass Window For Laser Protective Discs
Color	Transparent
Tolerance	0.02mm
Substrate	BK7 Glass/Borosilicate glass/Gorilla Glass/fused silica/Sapphire Glass
Edge	0.1 to 0.3mm protective chamfer

FAQ

What are the available thickness options?

Thickness options range from 0.3mm to 50mm, catering to various application requirements.

What is the tolerance for this glass window?

The tolerance is 0.02mm, ensuring precise fitting for demanding applications.
