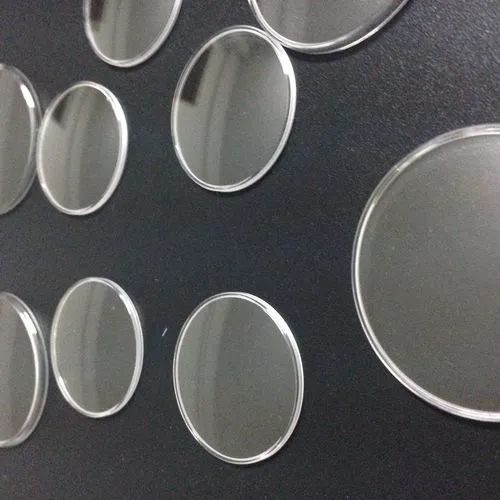

Custom Size Fused Silica Optical Window
Explore high transmittance AR coated Gorilla Glass windows for security applications, with customizable thickness and precision optics.
Core attributes
- Material
- Fused Silica
- Thickness
- 0.3–50 mm
Product facts
Key attributes
- Material
- Fused Silica
- Thickness
- 0.3–50 mm
Product description
The 400nm to 700nm High Transmittance AR Coated Gorilla Glass Windows are designed for security applications, offering exceptional optical performance across multiple bands, including 0.7-1.7 μm. With a thickness range of 0.3 to 50 mm, these tempered glass windows provide durability and reliability for various optical systems. Ideal for engineers seeking robust solutions in IR imaging and LIDAR technologies.
Key Features
- High transmittance across 400-700 nm for optimal light passage, enhancing image clarity.
- Thickness options from 0.3 mm to 50 mm allow for versatile application in different environments.
- Flatness of 1/4 wavefront ensures minimal distortion, critical for precision optics.
- Parallelism of 3-5 arc minutes supports alignment in complex optical setups.
- Custom coatings available to meet specific application requirements.
Applications
Security
Specification Summary
| Item | Value |
|---|---|
| Material | Fused Silica |
| Diameter | Custom |
| Thickness | 0.3 mm |
| Transmission bands | NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm) |
| MOQ | — |
Full Specifications
| Parameter | Value |
|---|---|
| Type | Tempered Glass |
| Composition | Optical Glass |
| Name | 400nm to 700nm Hight Transmistance AR Coated Gorilla Glass WIndows |
| Edge | 0.1 to 0.3mm protect chamfer |
| Flatness | 1/4 wavefront |
| Parallelism | 3-5 arc minutes |
| Color | Transparent |
| Use | optics window |
FAQ
Is custom sizing available?
Yes, custom thickness options are available from 0.3 mm to 50 mm.
What are the tolerances for flatness?
The flatness tolerance is specified at 1/4 wavefront.
