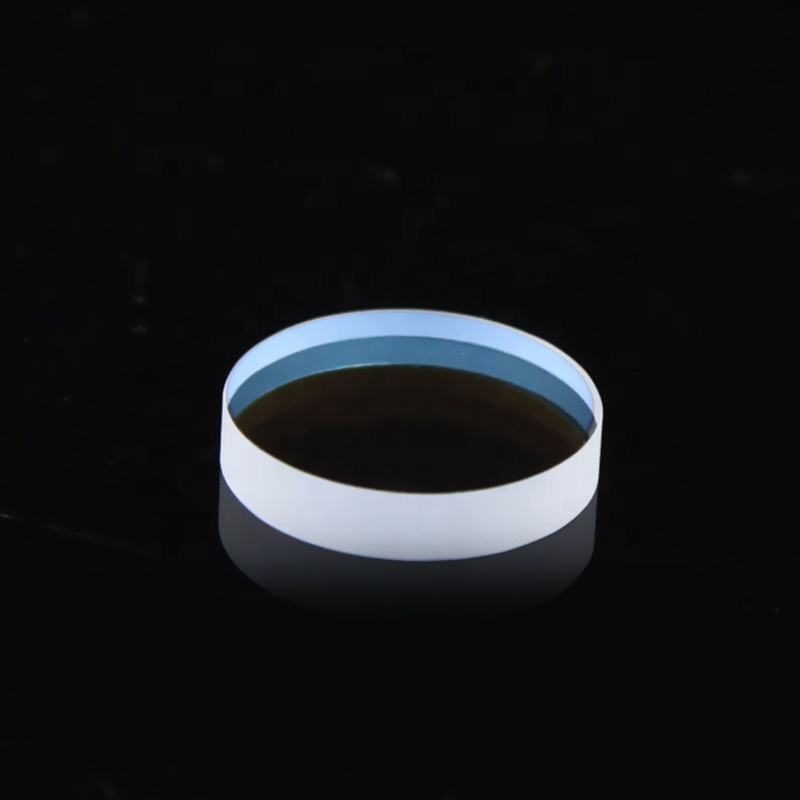

Custom Size Fused Silica Optical Window, AR Coated

Product description

This fused silica plano convex lens is designed for applications in the medical field, particularly for wavelengths ranging from 0.4 to 3 μm. With a thickness of 7 mm and a diameter of 37 mm, it offers high transmittance and excellent surface flatness of λ/10, making it suitable for precision optical systems. The lens is available with anti-reflective coatings or uncoated options, ensuring versatility in various applications.

Key Features

Material: Fused Silica for high durability and performance.
Surface Flatness: λ/10 ensures minimal wavefront distortion.
Clear Aperture: >95% for optimal light transmission.
Thickness: 7 mm provides stability in optical setups.
Custom Support: OEM, ODM, and OBM capabilities for tailored solutions.

Applications

Medical

Specification Summary

Item	Value
Material	Fused Silica
Diameter	Custom
Thickness	7 mm
Coating	anti-reflective (AR), uncoated
Transmission bands	SWIR (1.7-3 μm), NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm)
MOQ	—

Full Specifications

Parameter	Value
Type	Plano Convex Lens
Customized Support	OEM, ODM, OBM
Warranty	3 Years
Weight	0.03
Surface Flatness	Lambda/10
Dimension	Diameter 37mm
Wavelength	1064
Clear Aperture	>95%
Bevel	<0.2mmx45 degree

FAQ

Can I get custom sizes?

Yes, custom sizes can be accommodated based on customer specifications.

What are the tolerances for diameter and thickness?

Diameter tolerance is +0/-0.1 mm, and thickness tolerance is ±0.1 mm.
