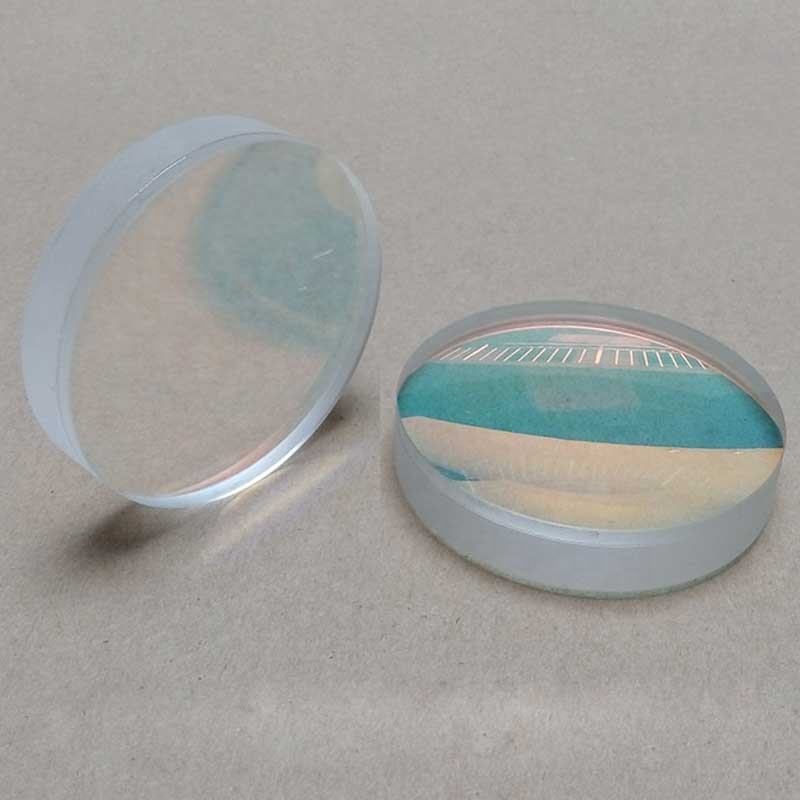

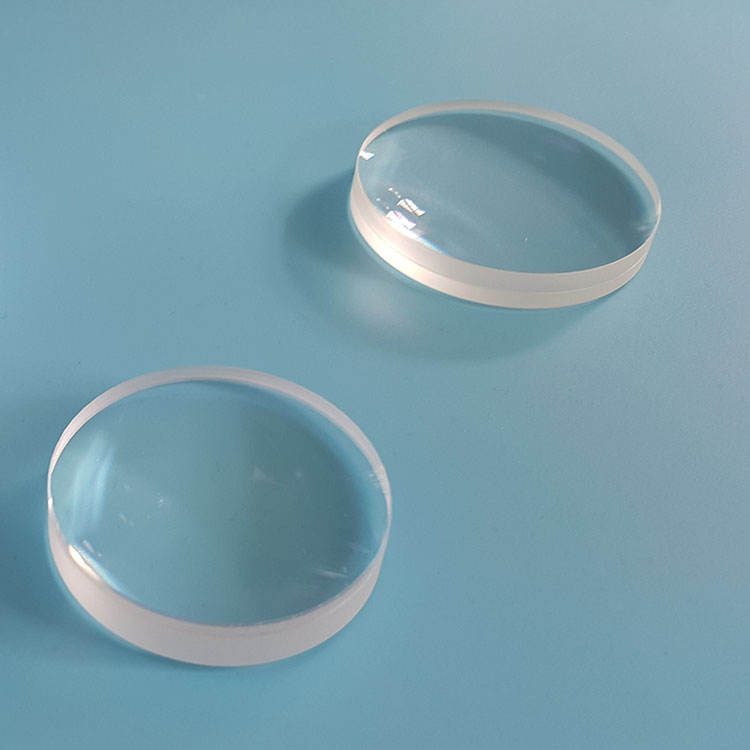

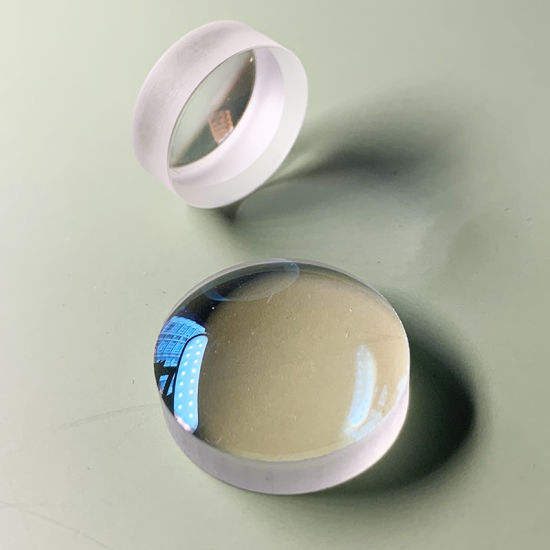

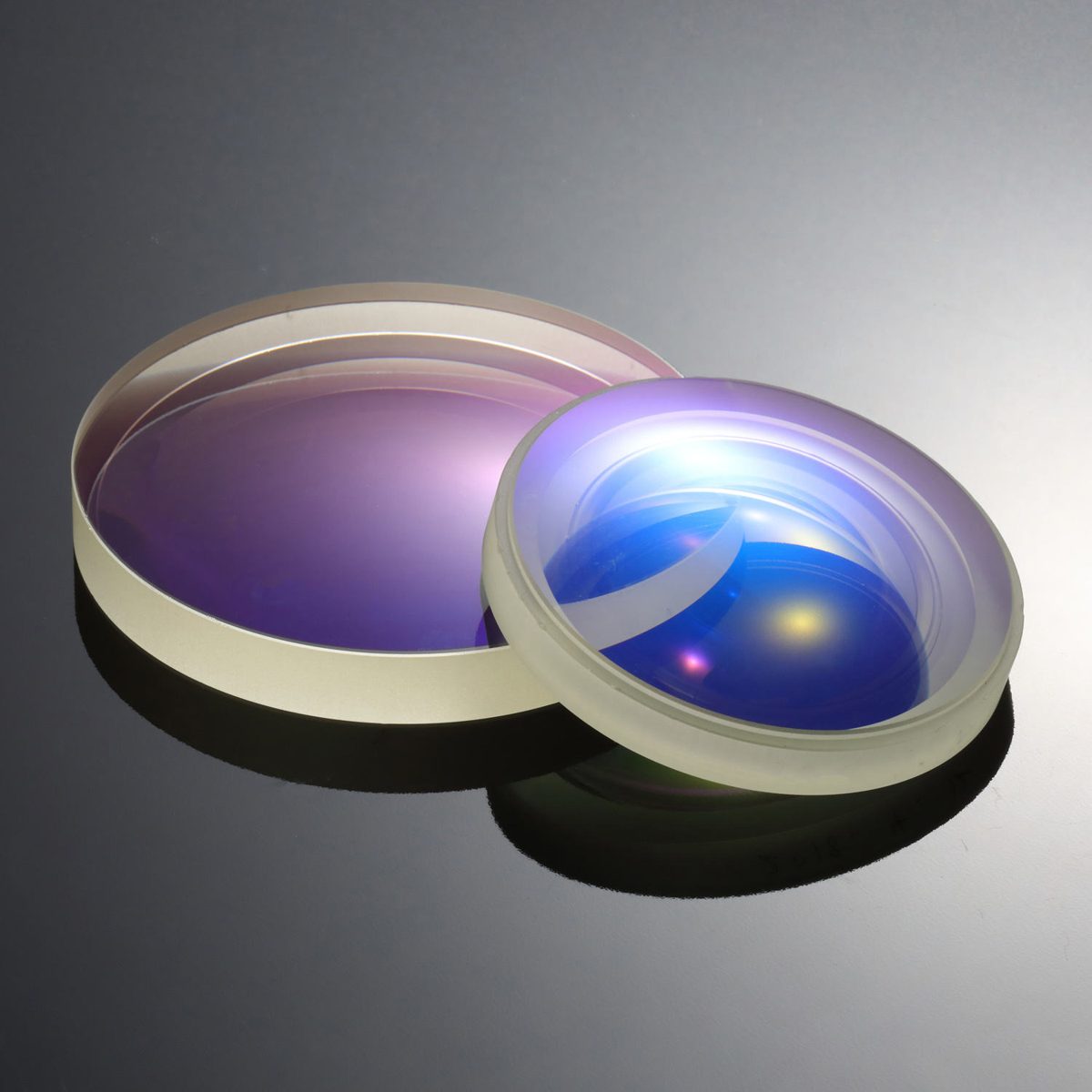

100 mm Fused Silica Plano-concave Lens, AR Coated
High-precision plano-concave lens in fused silica for UV applications, ideal for thermal imaging, LIDAR, and microscopy.
Core attributes
- Material
- Fused Silica
- Shape
- Plano-concave
- Diameter
- 100 mm
- Surface Quality
- 60/40
- Coating
- anti-reflective (AR), mgf2
- Transmission bands
- UV (<400 nm)
Product facts
Key attributes
- Material
- Fused Silica
- Shape
- Plano-concave
- Diameter
- 100 mm
- Surface Quality
- 60/40
- Coating
- anti-reflective (AR), mgf2
- Transmission bands
- UV (<400 nm)
Product description
The plano-concave lens made from fused silica is designed for applications in thermal imaging, LIDAR, medical devices, and microscopy, particularly in the UV spectrum (<400 nm). With a diameter of 100 mm and a surface quality of 60/40, this lens effectively diverges light, making it suitable for various optical setups. Its AR and MgF2 coatings enhance performance by improving transmittance, ensuring reliability in demanding environments.
Key Features
- Surface quality of 60/40 ensures minimal distortion, enhancing image clarity.
- AR and MgF2 coatings optimize performance for UV applications, increasing transmittance.
- ±0.2 mm dimension tolerance provides precision for critical applications.
- Clear aperture of ≥90% maximizes light throughput for improved imaging.
- OEM, ODM, and OBM support available for customized solutions.
Applications
Thermal Imaging, Lidar, Medical, Microscopy, Imaging
Specification Summary
| Item | Value |
|---|---|
| Material | Fused Silica |
| Shape | Plano-concave |
| Diameter | 100 mm |
| Surface Quality | 60/40 |
| Coating | anti-reflective (AR), mgf2 |
| Transmission bands | UV (<400 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Type | Concave Lens |
| Customized Support | OEM, ODM, OBM |
| Weight | 0.003 |
| Dimension Tolerance | ±0.2mm |
| Clear Aperture | ≥90% |
| Focal Length Tolerance | ±2% |
FAQ
Can I get custom sizes for this lens?
Custom sizes are supported through OEM, ODM, and OBM services.
What are the tolerances for this lens?
The dimension tolerance is ±0.2 mm, and the focal length tolerance is ±2%.
