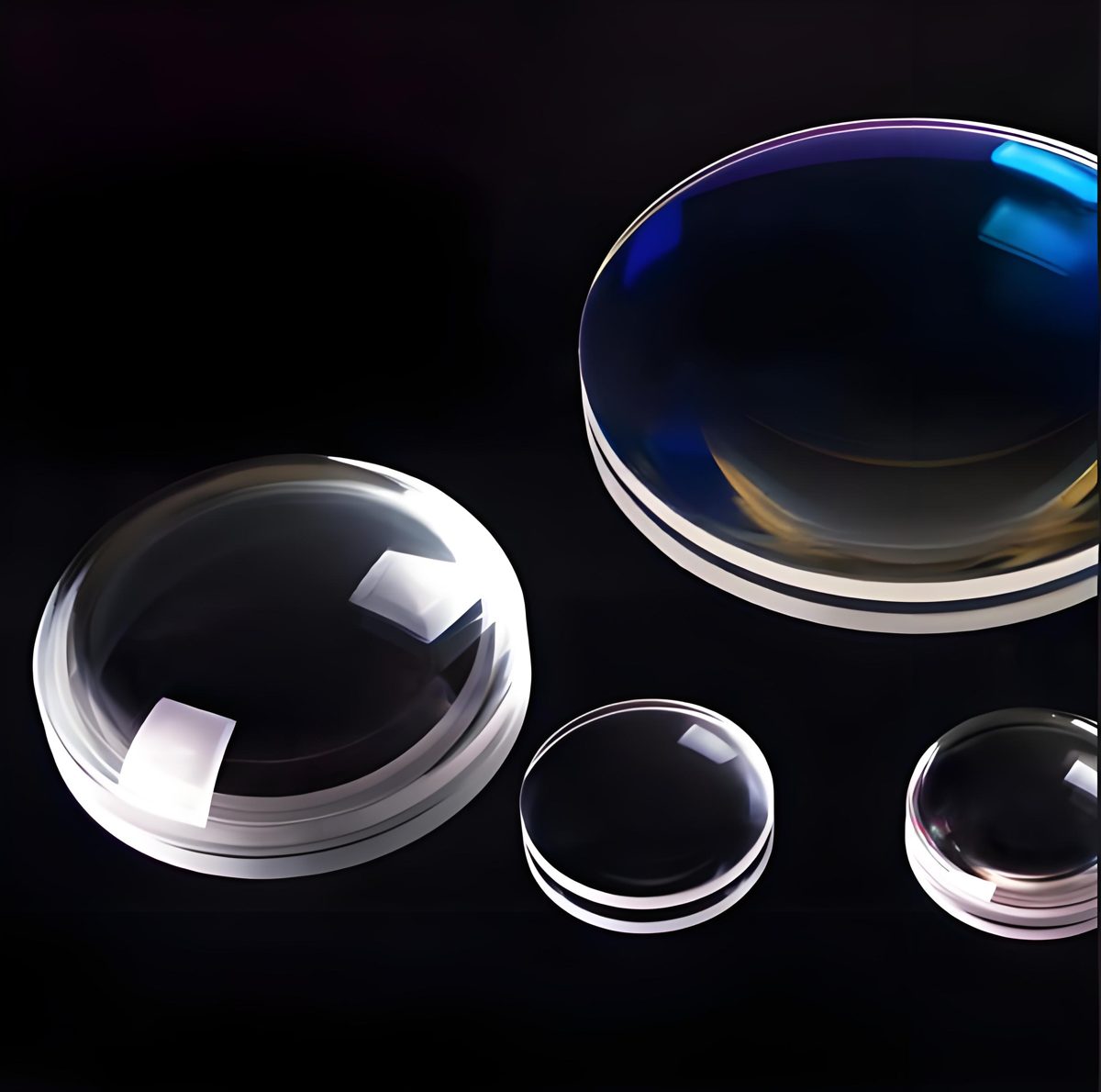

100 mm Fused Silica Plano-concave Lens, AR Coated

Product description

The plano-concave lens made of fused silica is ideal for applications requiring precise light manipulation, particularly in optical systems where negative focal lengths are essential. With a diameter of 100 mm and a surface quality of 40/20, this lens ensures high performance in imaging and beam shaping. Its clear transparent color and effective anti-reflective coatings enhance transmittance, making it suitable for various optical applications.

Key Features

Diameter: 100 mm for versatile integration in optical setups.
Surface quality of 40/20 ensures minimal distortion and high clarity.
Centration tolerance of ±3 arc minutes for precise alignment.
Clear aperture greater than 90% maximizes light throughput.
Custom coatings available to enhance optical performance for specific applications.

Specification Summary

Item	Value
Material	Fused Silica
Shape	Plano-concave
Diameter	100 mm
Surface Quality	40/20
Coating	anti-reflective (AR)

Full Specifications

Parameter	Value
Type	Convex Lens, Aspherical Lens, Concave Lens, Plano Convex Lens, Biconvex Lens
Customized Support	OEM, ODM, OBM
Warranty	1 Year
Weight	0.01
Focal Length Tolerance	±1%
Clear Aperture	>90%
Color	Clear transparent
Tolerance	±0.1mm
Surface Figure	lambda/2 @632.8nm
Centration	±3 arc minutes
Effective Focal Length	±5mm~±1000mm

FAQ

What are the tolerances for this lens?

The lens has a diameter tolerance of ±0.1 mm and a focal length tolerance of ±1%.

Can I get custom sizes for this lens?

Custom sizes are supported, including OEM and ODM options.
