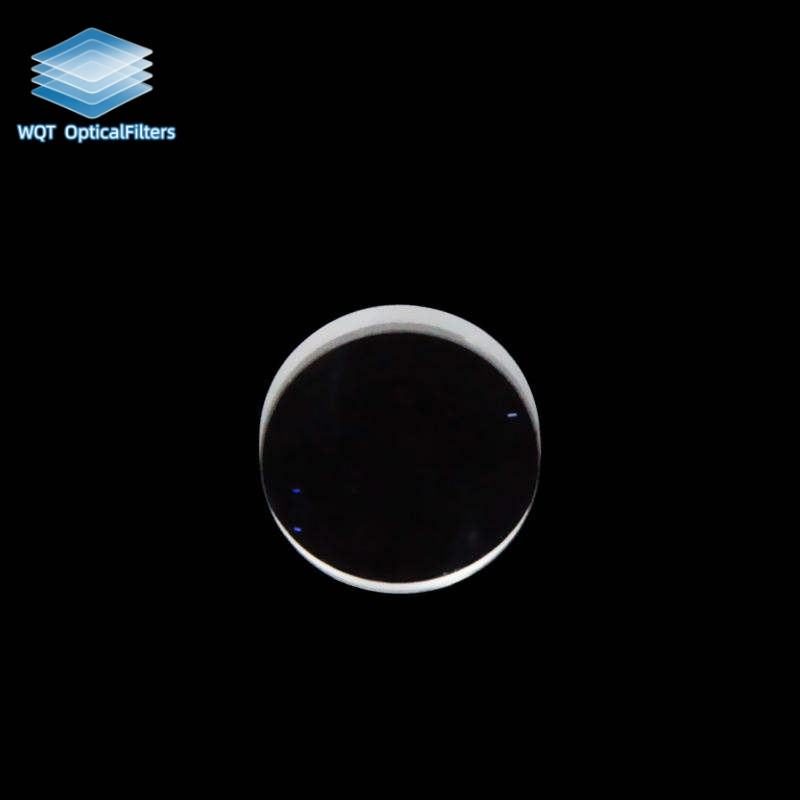

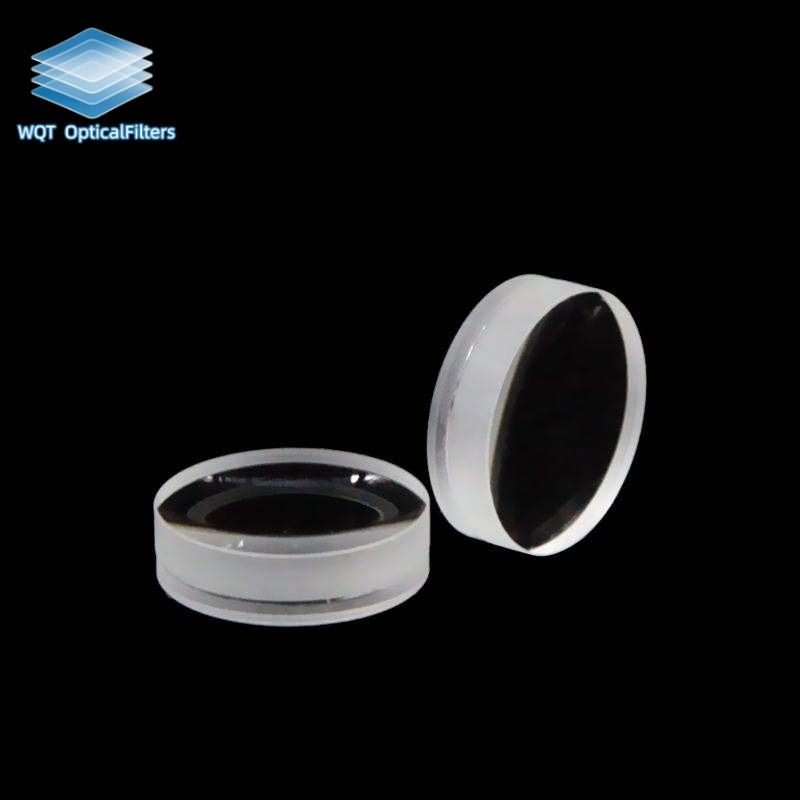

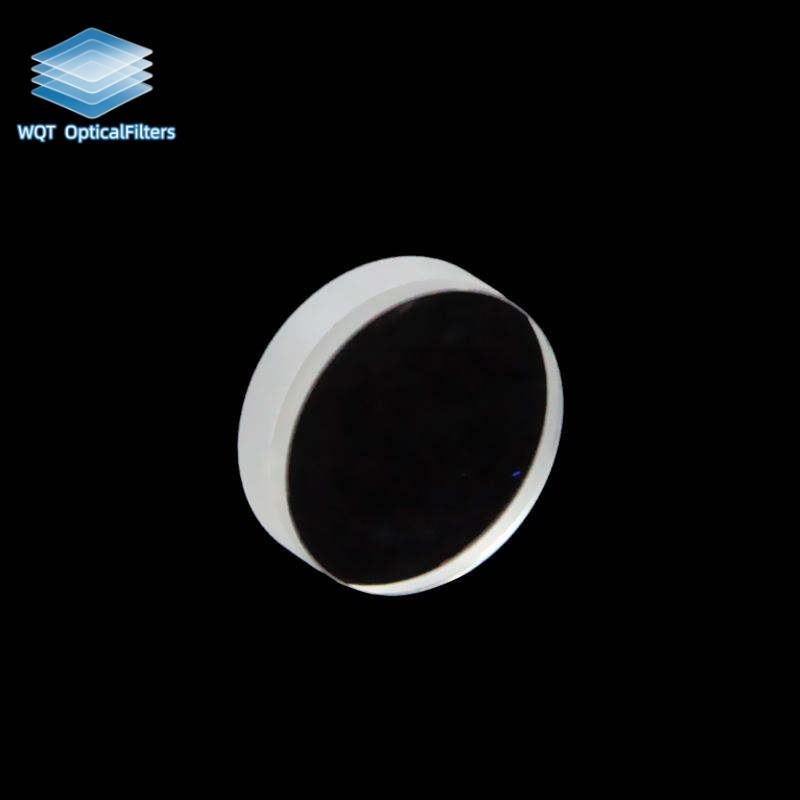

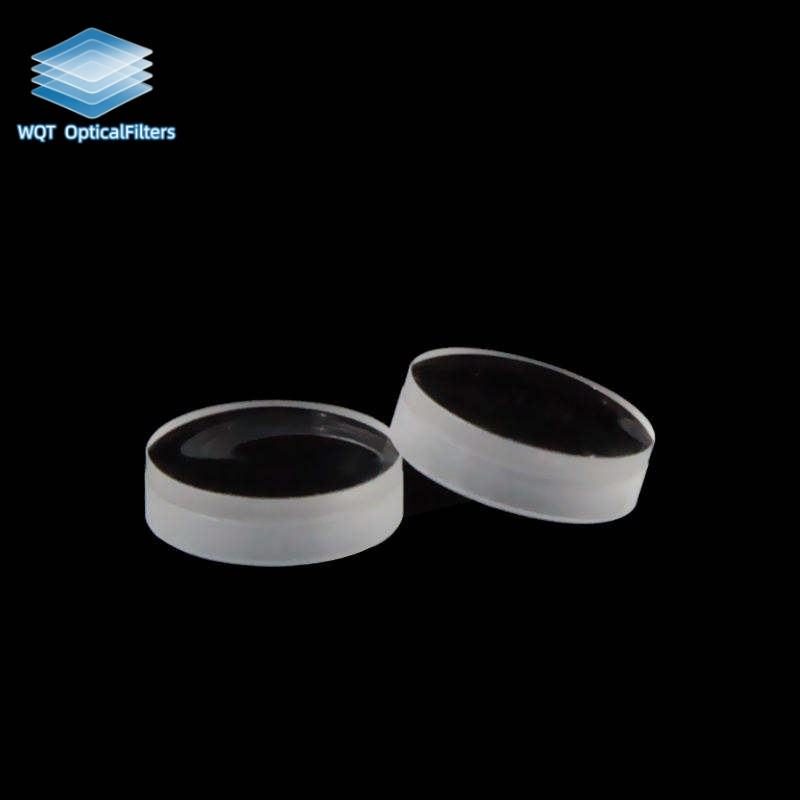

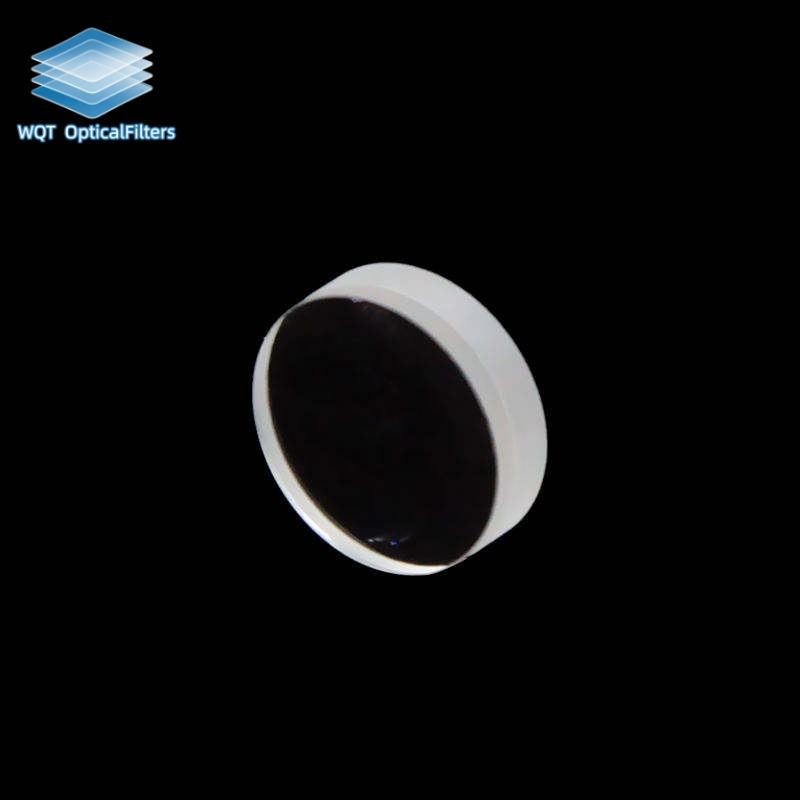

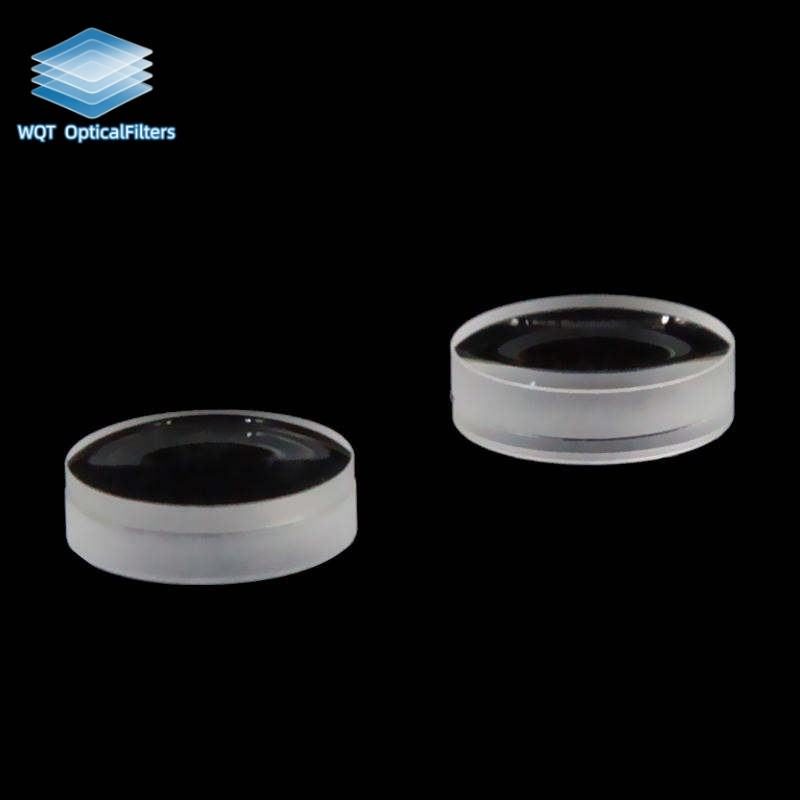

10x5 mm Fused Silica Plano-concave Lens, AR Coated
Explore our plano-concave fused silica lens for machine vision and medical applications, featuring custom sizing and high optical clarity.
Core attributes
- Material
- Fused Silica
- Shape
- Plano-concave
- Diameter
- 10 mm
- Focal Length
- 5 mm
- Coating
- anti-reflective (AR), ir-cut
- Transmission bands
- SWIR (1.7-3 μm), NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm)
Product facts
Key attributes
- Material
- Fused Silica
- Shape
- Plano-concave
- Diameter
- 10 mm
- Focal Length
- 5 mm
- Coating
- anti-reflective (AR), ir-cut
- Transmission bands
- SWIR (1.7-3 μm), NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm)
Product description
The plano-concave lens made from fused silica is ideal for applications in machine vision, security, medical imaging, and projection. With a focal length of 5.0 mm and a diameter of 10.0 mm, it effectively diverges light, making it suitable for various optical systems across multiple bands, including 1.7-3 μm and 0.7-1.7 μm. The lens features anti-reflective and IR-cut coatings, ensuring high optical transmission and clarity. Custom sizes are available, supporting diverse project requirements.
Key Features
- Focal length of 5.0 mm for precise light divergence, enhancing imaging quality.
- Diameter of 10.0 mm with a tolerance of 0.00/-0.05 mm for consistent fit.
- Coatings include anti-reflective and IR-cut for improved light transmission.
- Manufactured from fused silica for excellent thermal stability and durability.
- Customizable dimensions and coatings available to meet specific application needs.
Available Sizes
| Diameter x Focal Length (mm) |
|---|
| 10 x 5 |
Applications
Machine Vision, Security, Medical, Projection, Imaging
Specification Summary
| Item | Value |
|---|---|
| Material | Fused Silica |
| Shape | Plano-concave |
| Diameter | 10 mm |
| Focal Length | 5 mm |
| Coating | anti-reflective (AR), ir-cut |
| Transmission bands | SWIR (1.7-3 μm), NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Type | Achromatic Lens, Aspherical Lens, Biconvex Lens, Concave Lens, Convex Lens, Plan… |
| Customized Support | OEM, ODM |
| Warranty | 2 Years |
| Weight | 10g(0.35oz) |
| Key Word | Plano Concave Lens |
| Service | OEM ODM Private Label Service |
| Main Material | Glass |
| Clear Aperture | 95% |
| Diameter Tolerance | 0.00/-0.05mm |
FAQ
Can I get custom sizes for this lens?
Yes, custom diameters and thicknesses can be accommodated based on customer specifications.
What is the minimum order quantity (MOQ)?
The MOQ is not specified, allowing for flexible ordering options.
