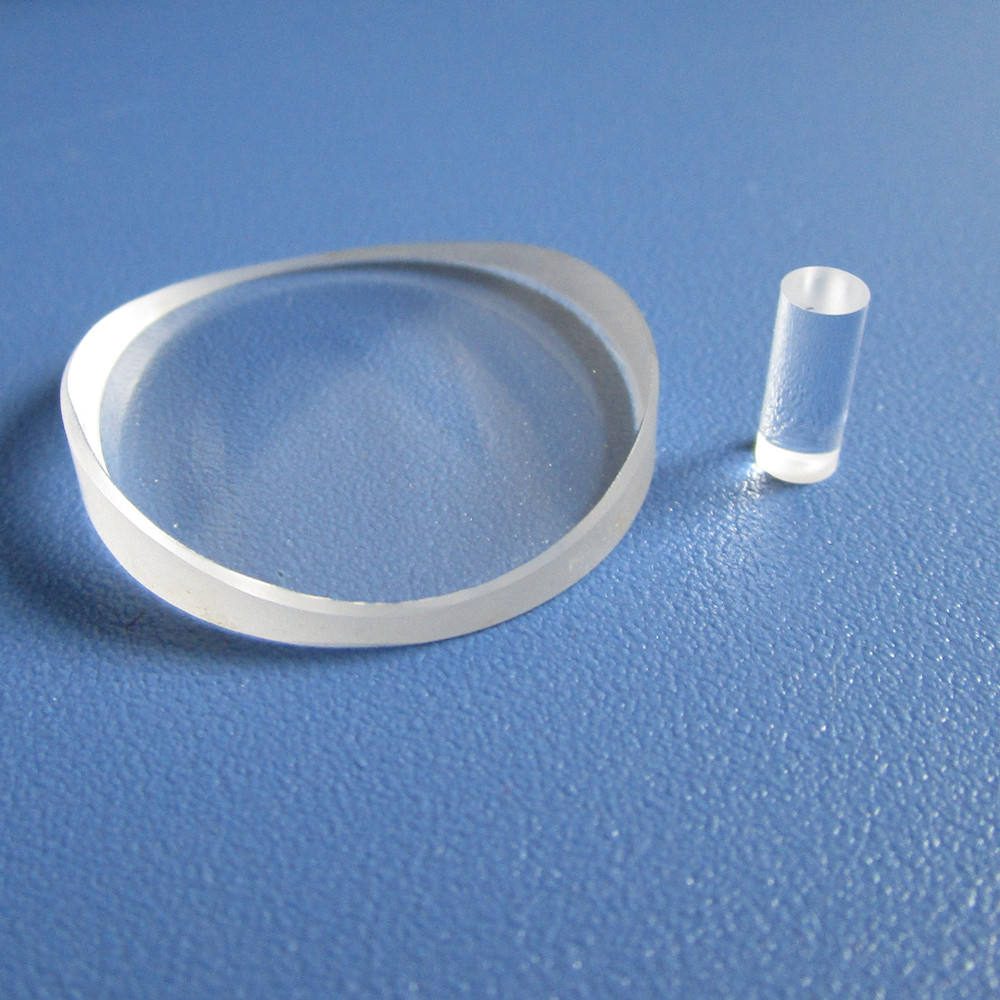

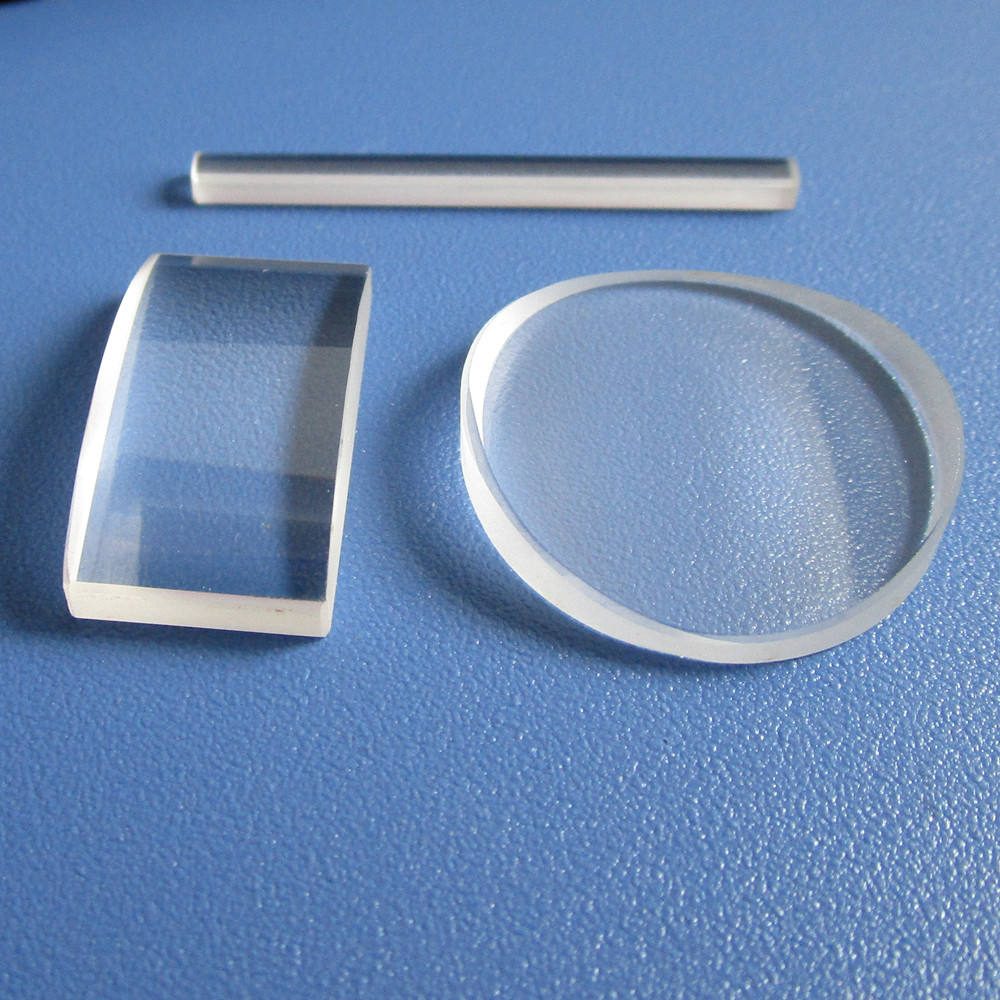

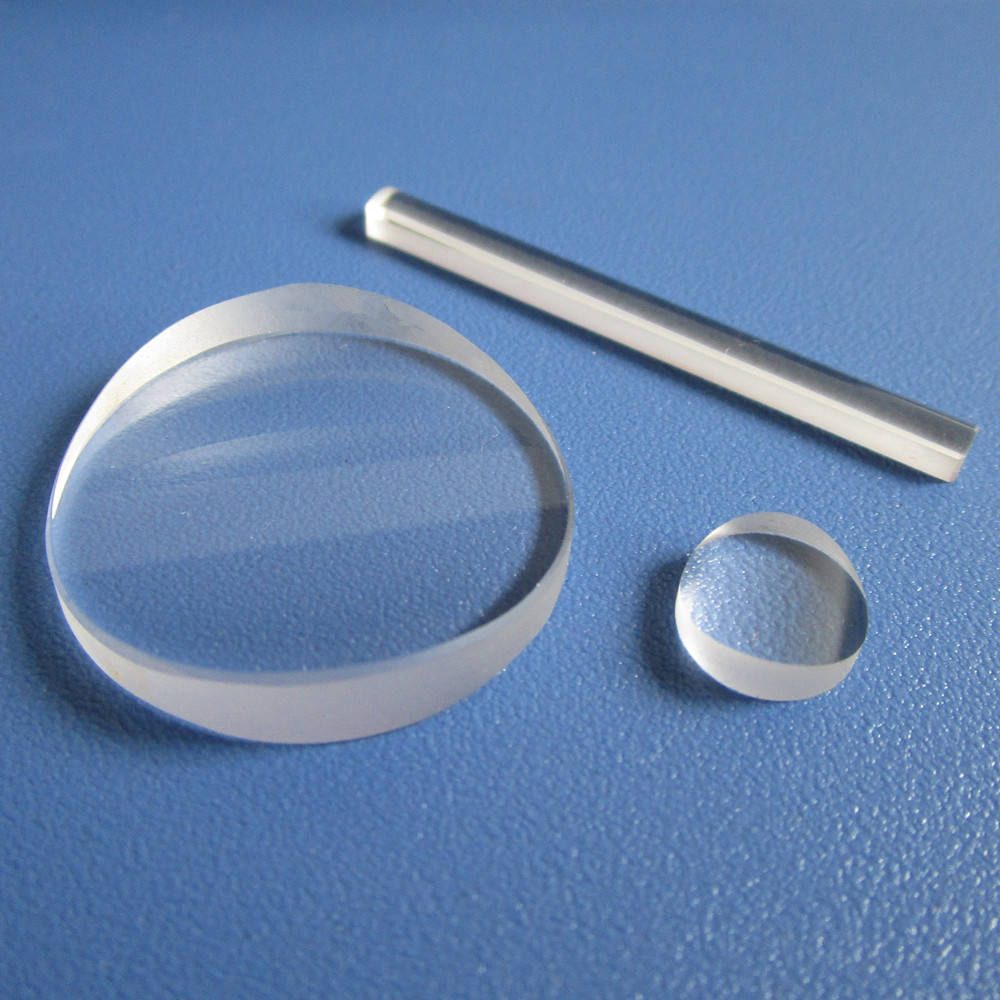

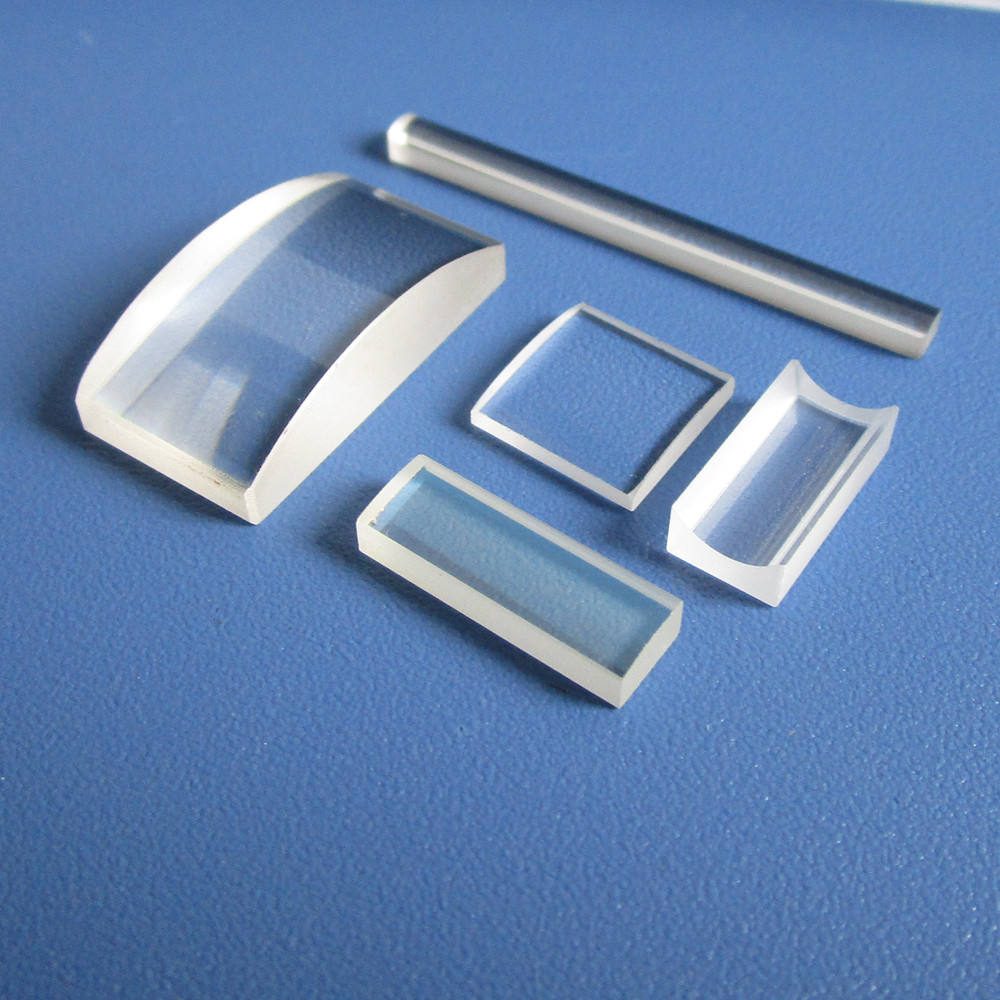

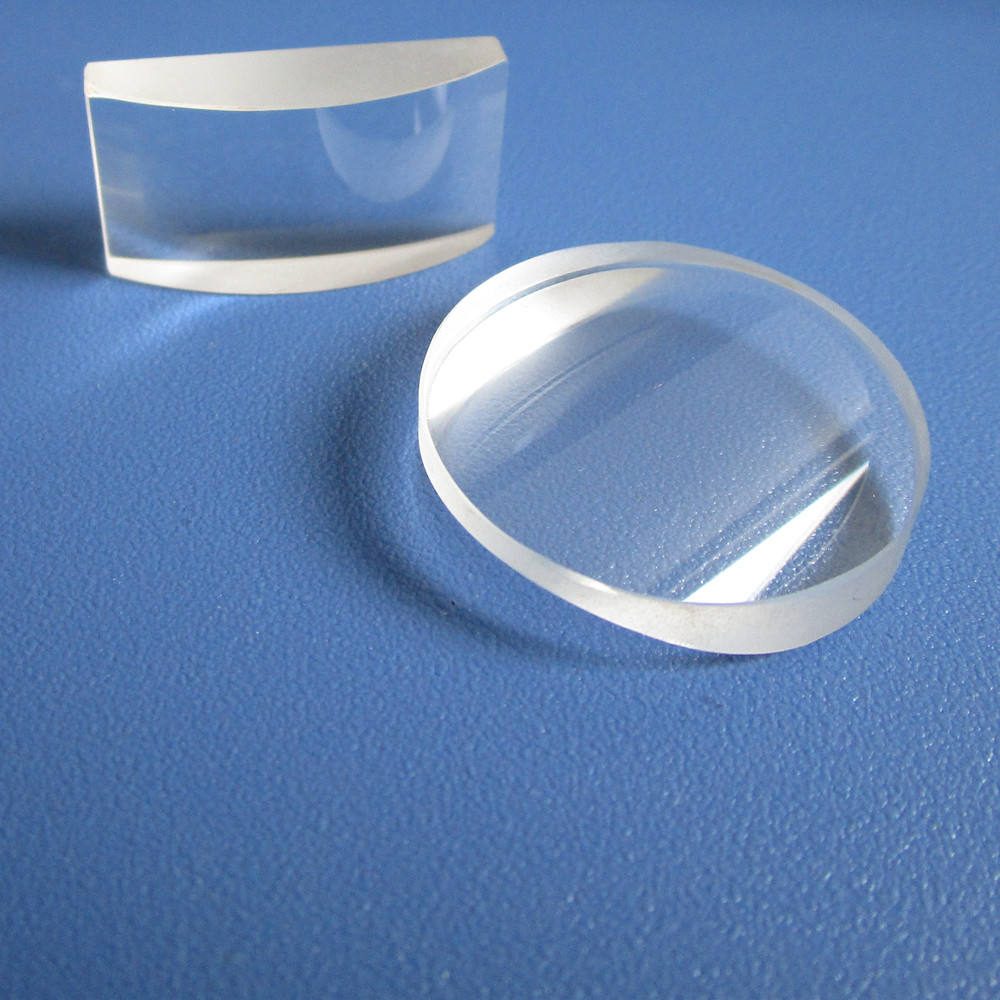

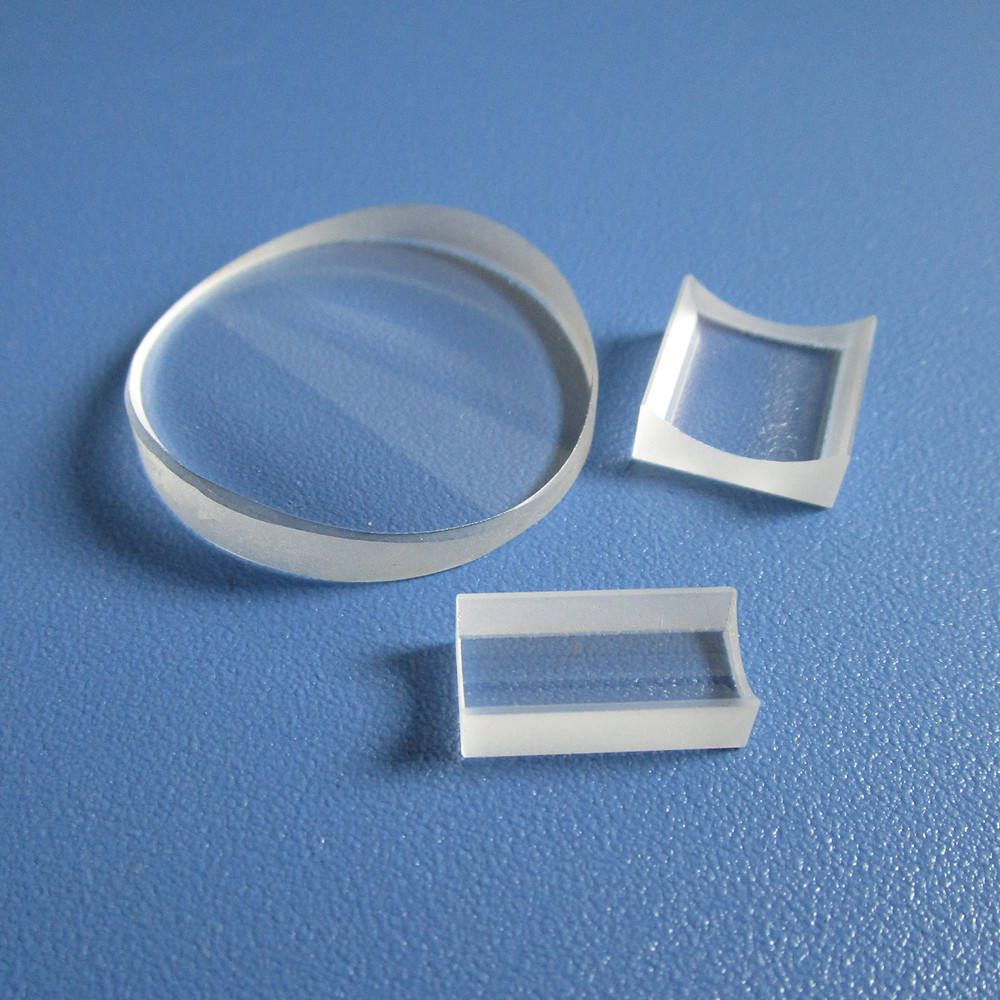

3 mm Fused Silica Plano-concave Lens, AR Coated
Explore our Plano-Concave Cylindrical Lens for collimation applications, featuring customizable sizes and high surface quality.
Core attributes
- Material
- Fused Silica
- Shape
- Plano-concave
- Diameter
- 3 mm
- Surface Quality
- 1/4
- Coating
- anti-reflective (AR)
Product facts
Key attributes
- Material
- Fused Silica
- Shape
- Plano-concave
- Diameter
- 3 mm
- Surface Quality
- 1/4
- Coating
- anti-reflective (AR)
Product description
The Plano-Concave Cylindrical Lens is essential for collimating laser sources into line generators, making it ideal for applications in laser systems and imaging. With a diameter range from 3.0 mm to 300.0 mm and high surface quality of 1/4, this lens ensures effective performance in various optical setups. Its fused silica material provides durability and stability across a range of environments.
Key Features
- Diameter range: 3.0 mm to 300.0 mm for versatile application fit.
- Surface quality of 1/4 ensures minimal distortion and high clarity.
- Centration tolerance of <3’ for precise optical alignment.
- Customizable options available, including OEM and ODM services.
- Lightweight design at 0.04 kg for easy integration into existing systems.
Applications
Collimation
Specification Summary
| Item | Value |
|---|---|
| Material | Fused Silica |
| Shape | Plano-concave |
| Diameter | 3 mm |
| Surface Quality | 1/4 |
| Coating | anti-reflective (AR) |
Full Specifications
| Parameter | Value |
|---|---|
| Type | Convex Lens, Aspherical Lens, Concave Lens, Achromatic Lens, Plano Convex Lens… |
| Customized Support | OEM, ODM |
| Logo/Graphic Design | Laser Engraving |
| Weight | 0.04 |
| Centration | <3' |
| Bevelling | <0.2x45° |
FAQ
What is the minimum order quantity (MOQ) for this lens?
The minimum order quantity (MOQ) is not specified.
Can I get this lens in custom sizes?
Custom sizes are supported through OEM and ODM options.
