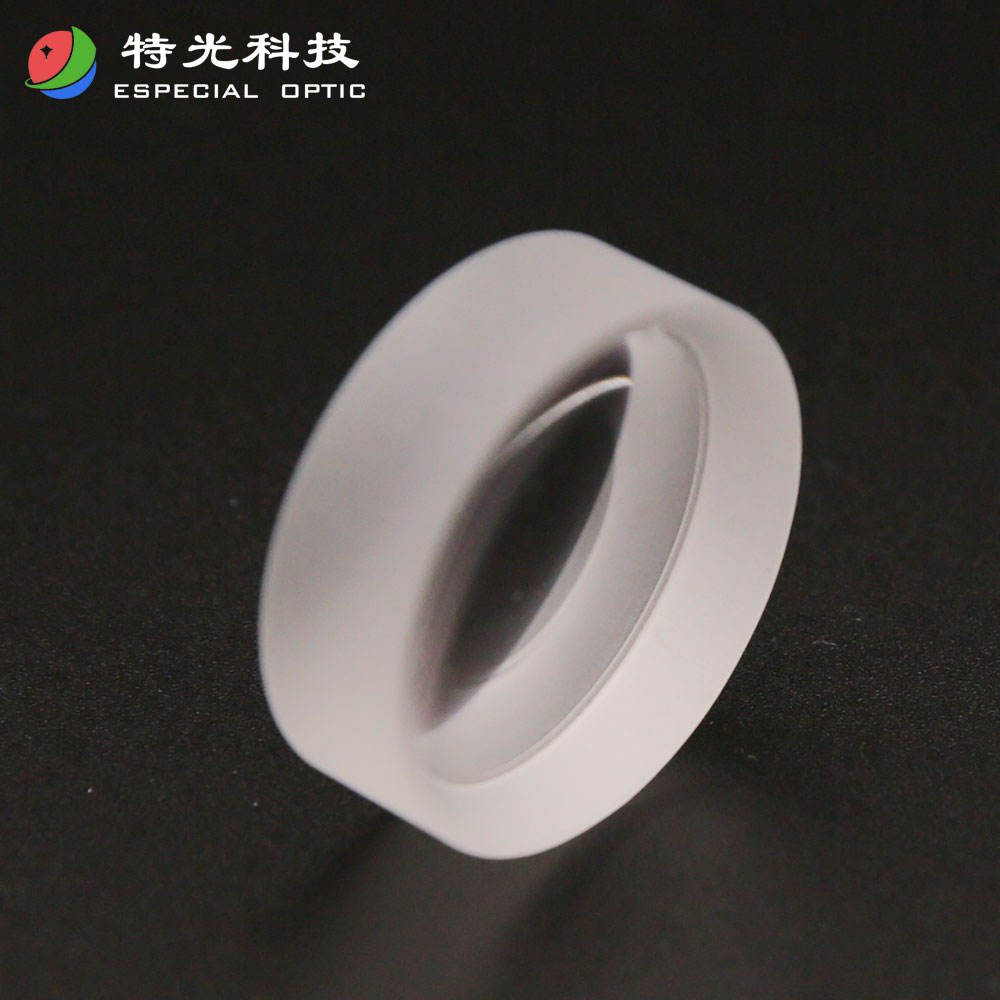

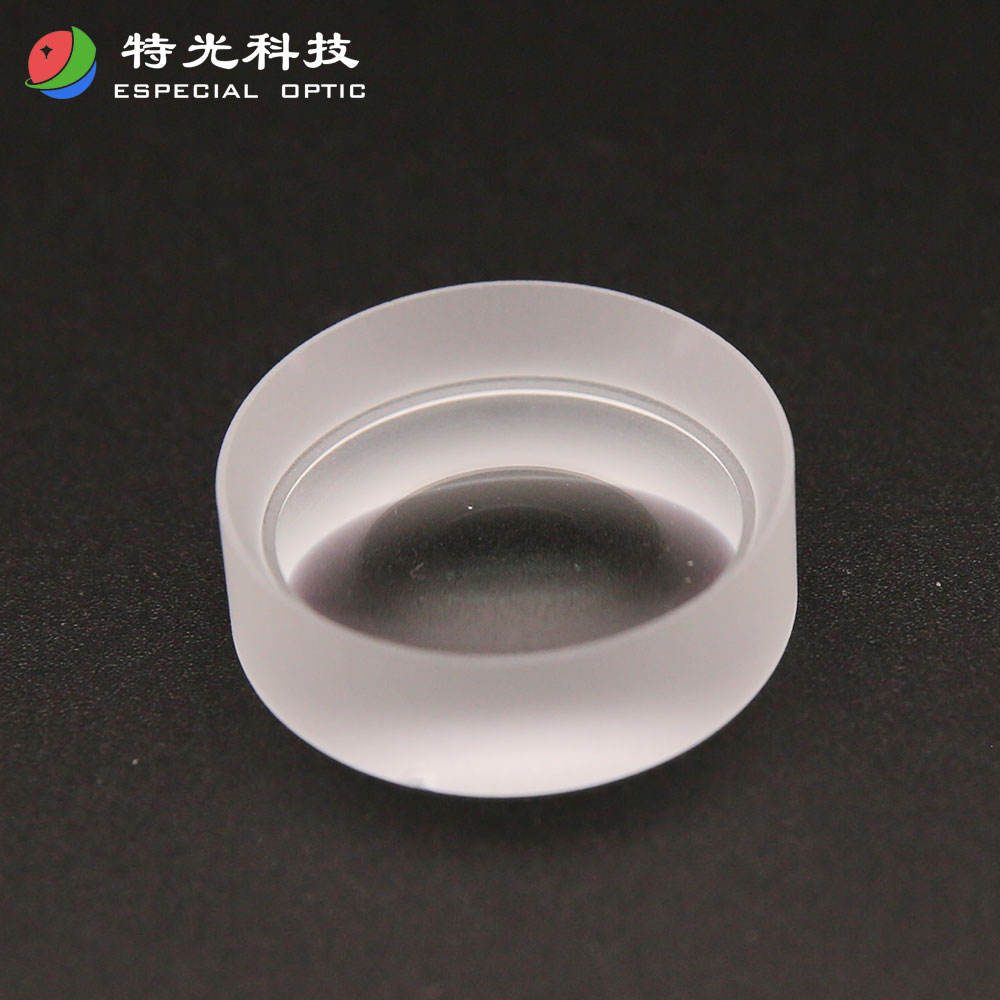

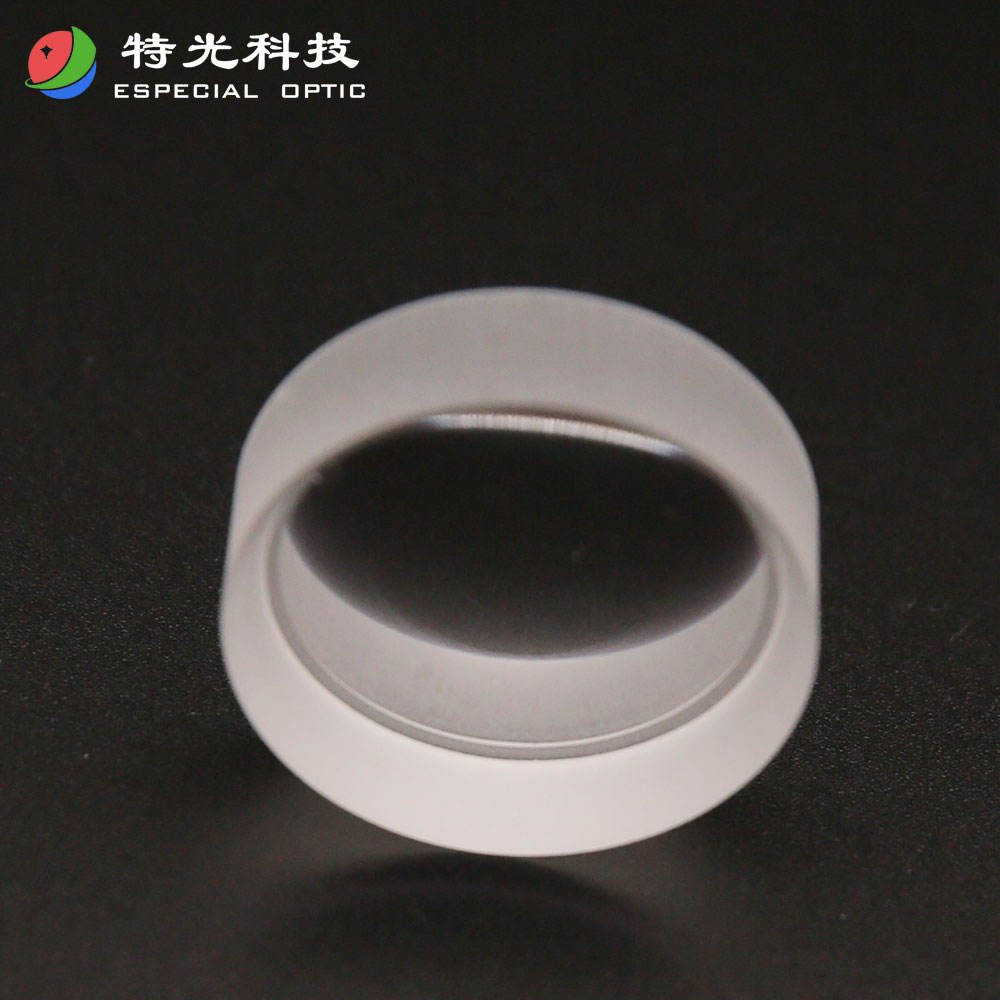

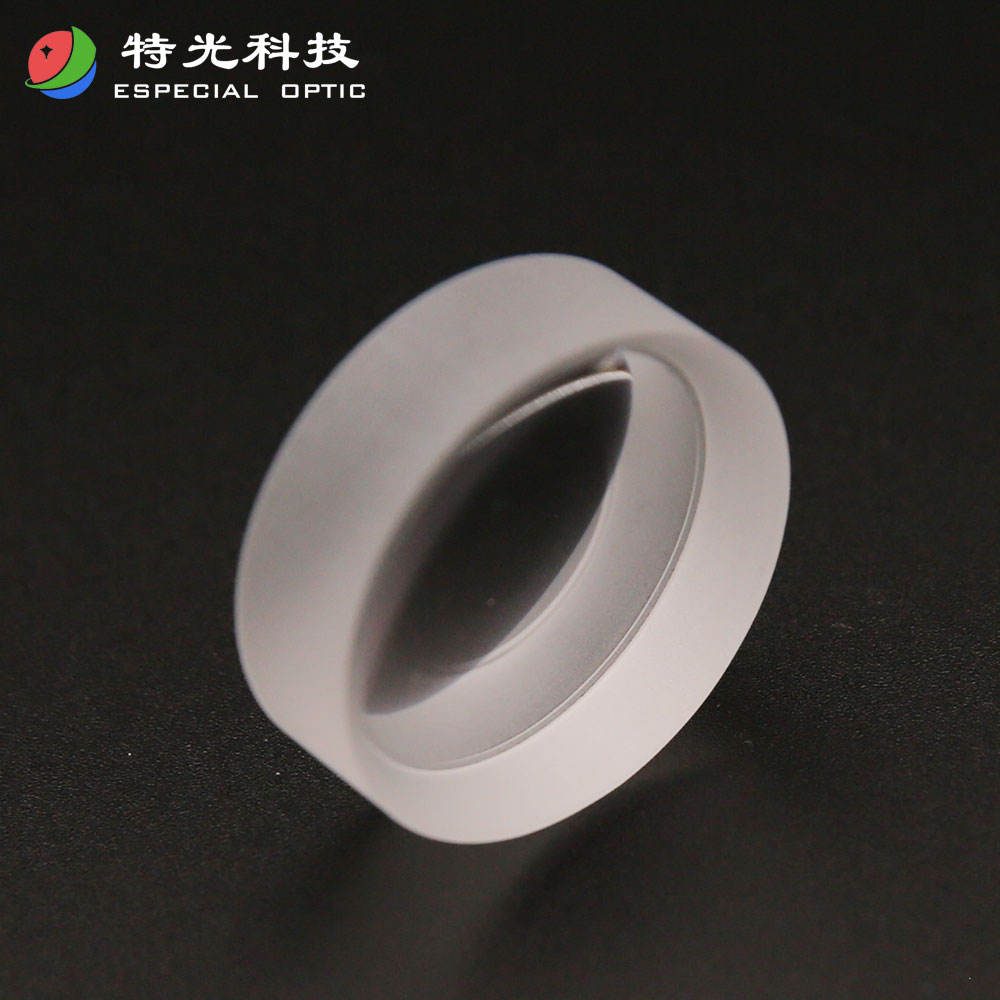

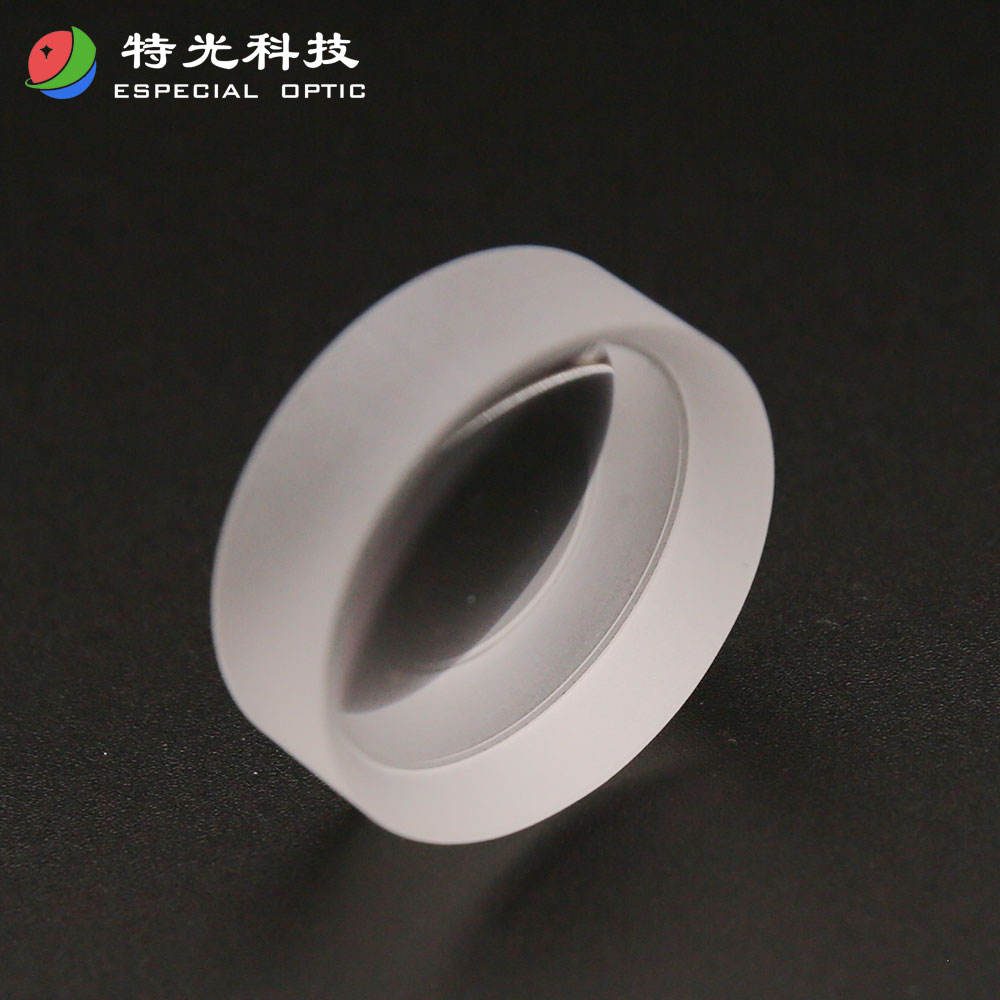

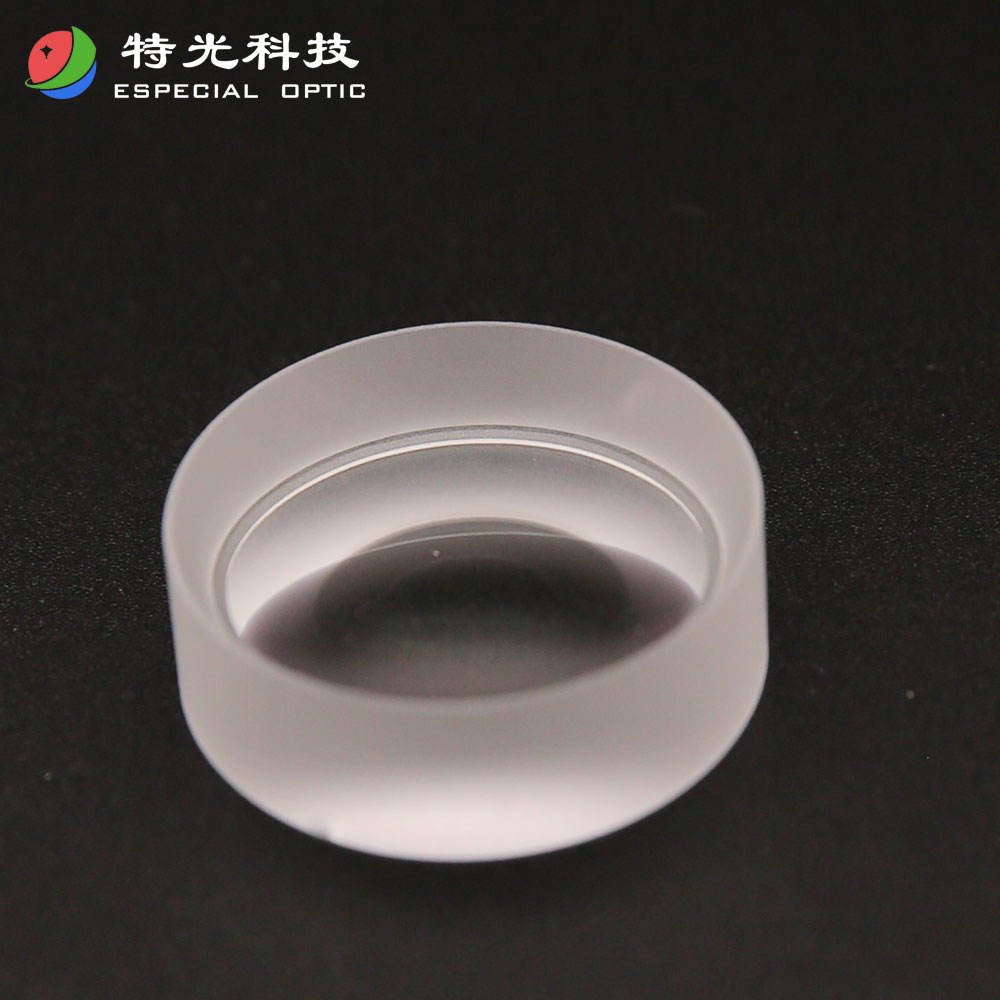

5 mm Fused Silica Plano-concave Lens, AR Coated

Fused Silica plano-concave lenses for microscopy and imaging, customizable sizes, and reliable performance across 400-700 nm wavelengths.

Core attributes

Material: Fused Silica
Shape: Plano-concave
Diameter: 5 mm
Surface Quality: 60/40
Coating: anti-reflective (AR), high-reflective (HR)
Transmission bands: VIS (400-700 nm), UV (<400 nm)

Product description

Plano-concave lenses made from Fused Silica are ideal for applications in microscopy, collimation, and imaging, particularly within the 400-700 nm and <400 nm wavelength bands. These lenses diverge light effectively, making them essential for various optical systems. With a diameter range from 5.0 mm to 500.0 mm and a surface quality of 60/40, they ensure reliable performance across multiple applications. Their customizable features cater to specific project needs, ensuring optimal fit and functionality.

Key Features

Diameter range: 5.0 mm to 500.0 mm for versatile application fit.
Surface quality of 60/40 ensures reliable optical performance.
Clear aperture ≥90% for enhanced light transmission.
Centration error ≤3 arcmin for precise alignment.
Focal length tolerance of <±1% for consistent results.

Applications

Microscopy, Collimation, Imaging

Specification Summary

Item	Value
Material	Fused Silica
Shape	Plano-concave
Diameter	5 mm
Surface Quality	60/40
Coating	anti-reflective (AR), high-reflective (HR)
Transmission bands	VIS (400-700 nm), UV (<400 nm)

Full Specifications

Parameter	Value
Type	plano concave lenes, biconcave lenses
Customized Support	OEM, ODM, OBM
Warranty	1 month
Weight	customization
Focal Length Tolerance	<±1%
Clear Aperture	≥90%
Chamfer	0.2mm x 45degree
Centration	< 3 arcmin
Bevel	Protective Bevel

FAQ

Can I get custom sizes for these lenses?

Yes, the lenses can be customized to meet specific project requirements.

What is the minimum order quantity (MOQ)?

The minimum order quantity is not specified, allowing flexibility in procurement.
