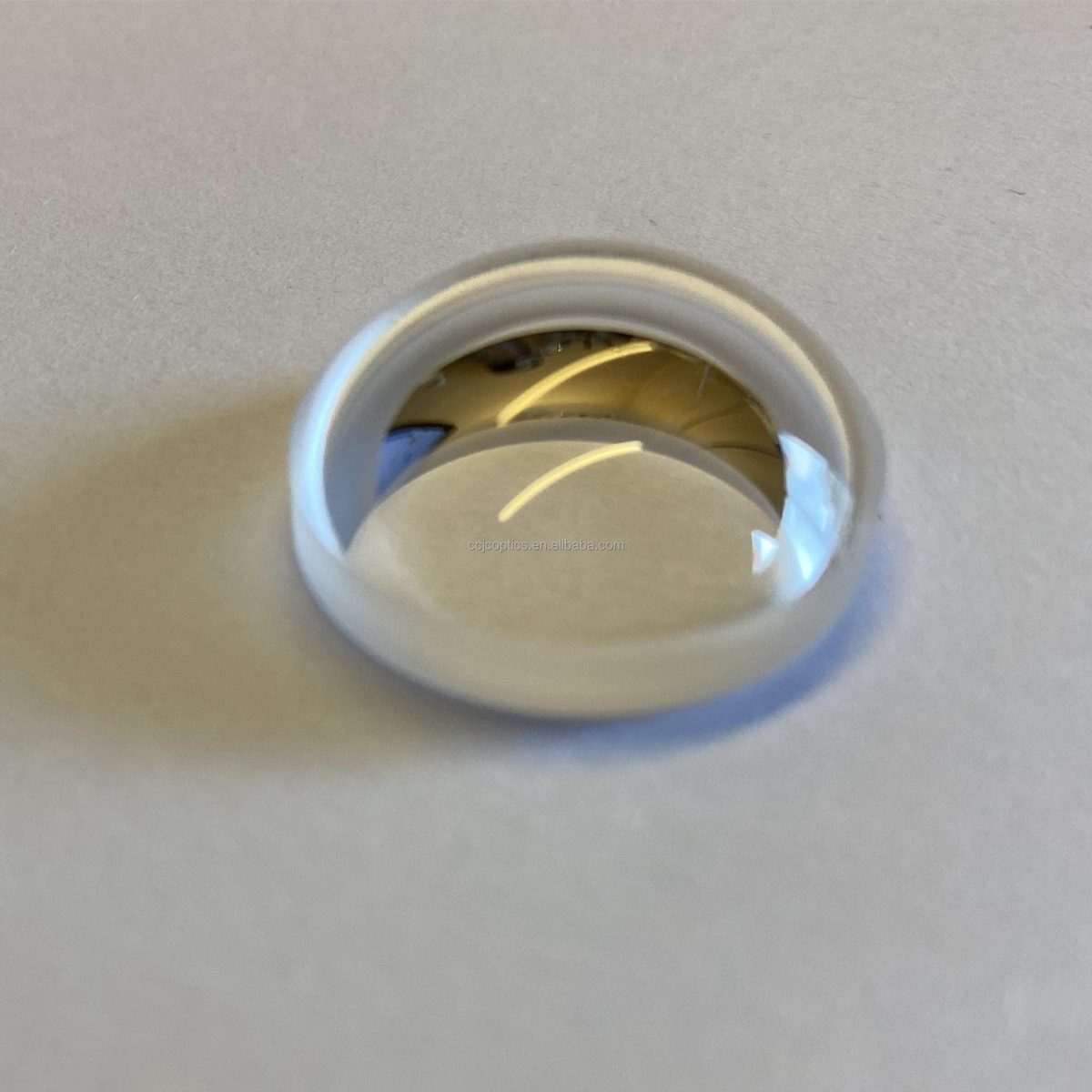

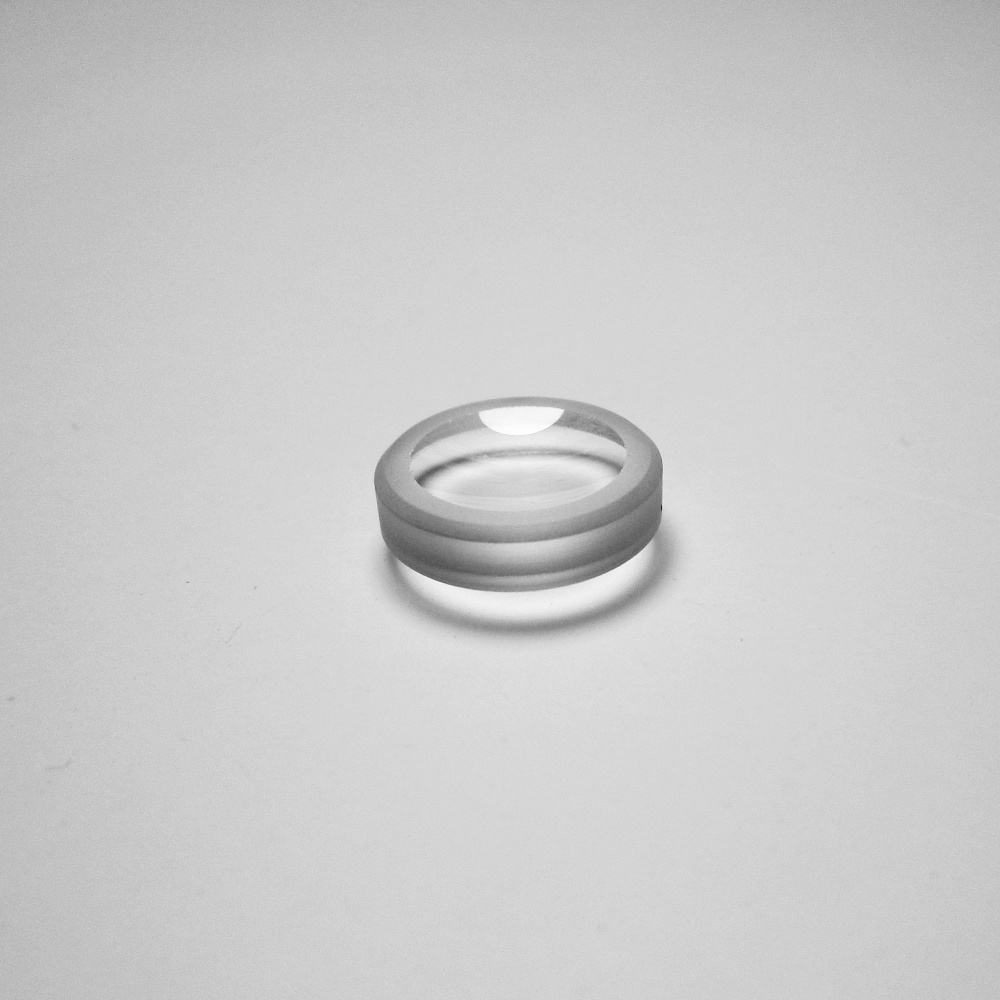

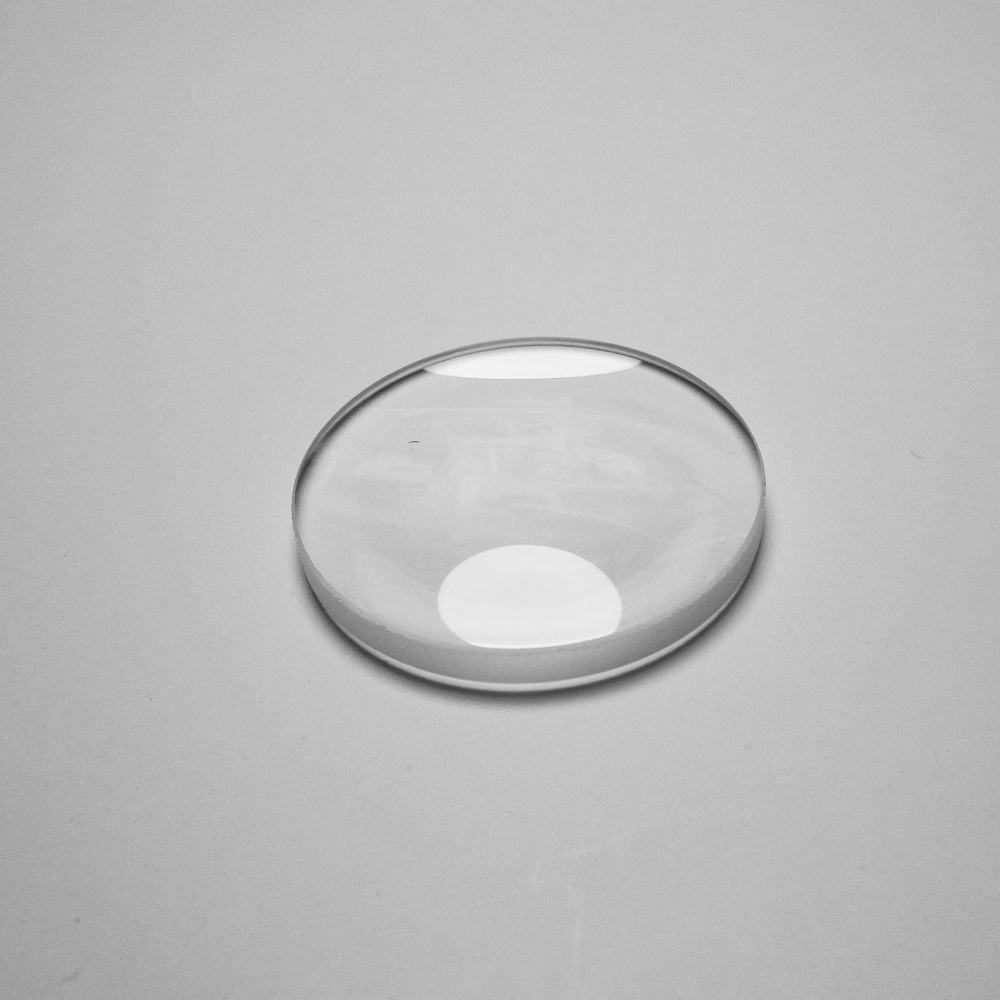

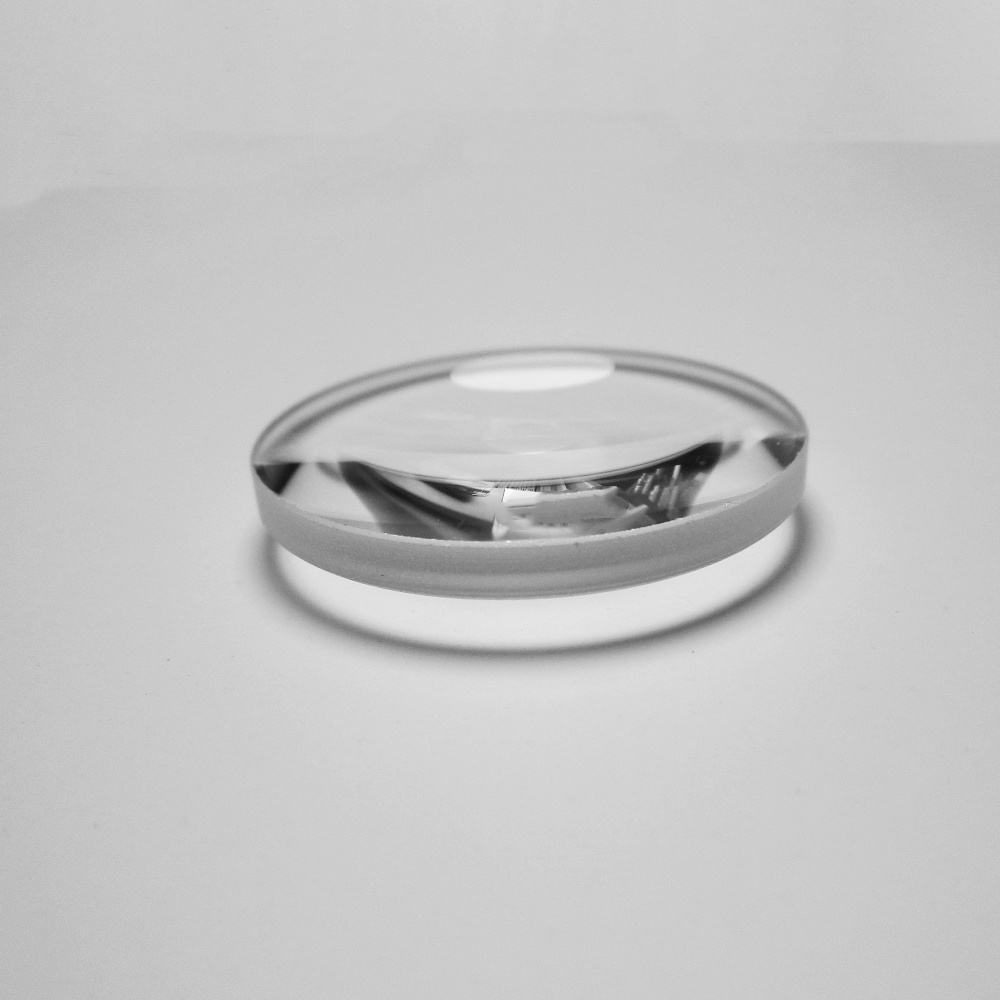

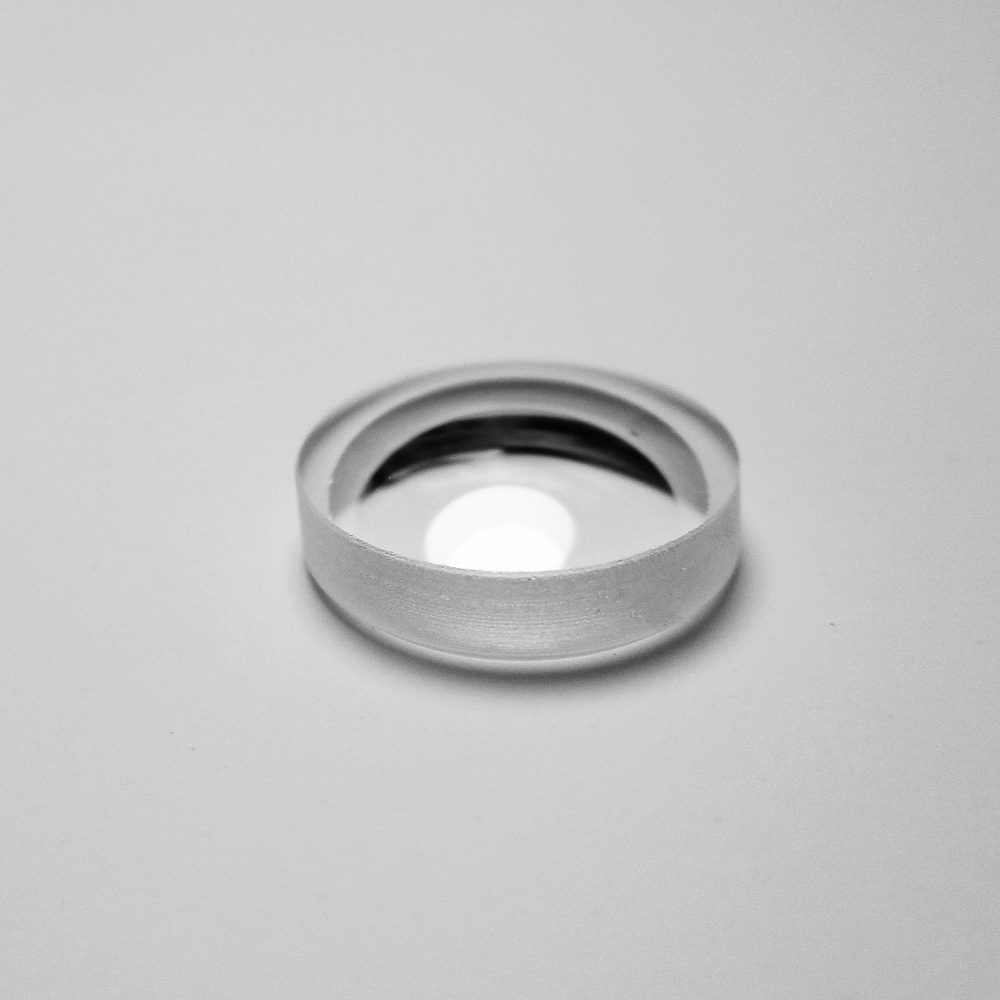

0.6x5 mm Fused Silica Plano-convex Lens, AR Coated
Explore our plano-convex lens for microscopy and imaging, featuring a 5.0 mm focal length and customizable sizes.
Core attributes
- Material
- Fused Silica
- Shape
- Plano-convex
- Diameter
- 0.6 mm
- Focal Length
- 5 mm
- Coating
- anti-reflective (AR)
- Transmission bands
- SWIR (1.7-3 μm), NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm)
Product facts
Key attributes
- Material
- Fused Silica
- Shape
- Plano-convex
- Diameter
- 0.6 mm
- Focal Length
- 5 mm
- Coating
- anti-reflective (AR)
- Transmission bands
- SWIR (1.7-3 μm), NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm)
Product description
This plano-convex lens is engineered for precision in applications like microscopy and imaging across a broad spectral range of 0.4 to 3 μm. Its fused silica construction ensures high durability and excellent optical performance. With a focal length of 5.0 mm and a diameter of 0.6 mm, it is ideal for compact systems requiring reliable light manipulation. The lens features anti-reflective coatings to enhance transmittance, making it suitable for demanding optical setups.
Key Features
- Broad spectral range: 0.4-3 μm, suitable for diverse applications.
- Focal length of 5.0 mm, enabling precise light focusing.
- High clarity with a clear aperture of 90%, ensuring effective light transmission.
- Constructed from durable fused silica, providing excellent thermal stability.
- Customizable sizes available from 0.6 mm to 5.0 mm, accommodating specific project needs.
Available Sizes
| Diameter x Focal Length (mm) |
|---|
| 0.6 x 5 |
Applications
Microscopy, Imaging
Specification Summary
| Item | Value |
|---|---|
| Material | Fused Silica |
| Shape | Plano-convex |
| Diameter | 0.6 mm |
| Focal Length | 5 mm |
| Coating | anti-reflective (AR) |
| Transmission bands | SWIR (1.7-3 μm), NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm) |
Full Specifications
| Parameter | Value |
|---|---|

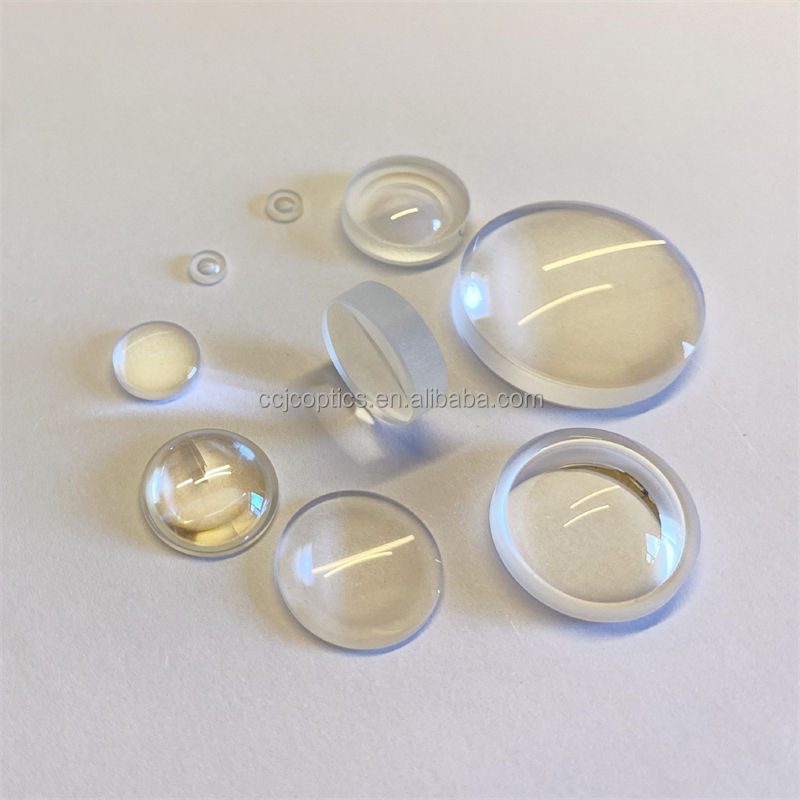

| Type | Convex Lens, Aspherical Lens, Concave Lens, Achromatic Lens, Plano Convex Lens… |
| Customized Support | OEM, ODM, OBM |
| Warranty | 3 Years |
| Weight | 0.02KG(0.04lb) |
| Clear Aperture | 90% |
FAQ
Can I get custom sizes for this lens?
Yes, customizable sizes are available ranging from 0.6 mm to 5.0 mm.
What is the minimum order quantity (MOQ)?
The minimum order quantity is not specified, allowing for flexible procurement.
