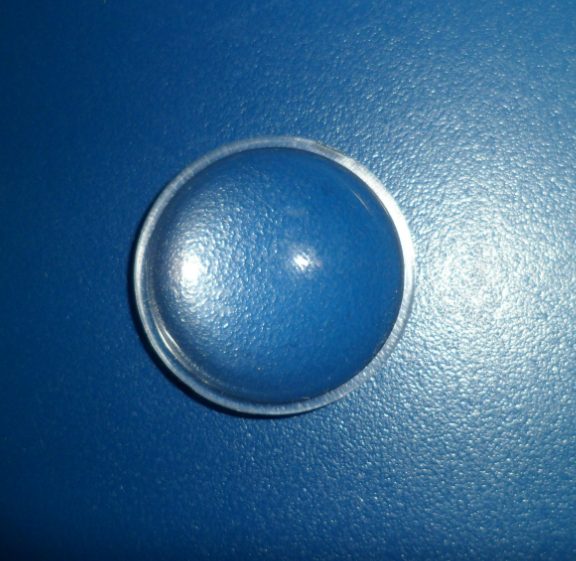

100 mm Fused Silica Plano-convex Lens, AR Coated
High-quality plano-convex fused silica lens with 40/20 surface quality and >90% clear aperture for precision optical applications.
Core attributes
- Material
- Fused Silica
- Shape
- Plano-convex
- Diameter
- 100 mm
- Surface Quality
- 40/20
- Coating
- anti-reflective (AR)
Product facts
Key attributes
- Material
- Fused Silica
- Shape
- Plano-convex
- Diameter
- 100 mm
- Surface Quality
- 40/20
- Coating
- anti-reflective (AR)
Product description
The plano-convex lens made from fused silica is ideal for applications requiring high transmittance and minimal distortion. With a surface quality of 40/20 and a clear aperture greater than 90%, this lens is suitable for precision optical systems in IR imaging, LIDAR, and medical devices. Its anti-reflective coatings enhance performance across various wavelengths, making it a versatile choice for engineers seeking reliable optical components.
Key Features
- Surface quality of 40/20 ensures minimal distortion for precise imaging.
- Clear aperture greater than 90% maximizes light transmission.
- Tolerance of ±0.1mm allows for high precision in assembly.
- Centration tolerance of ±3 arc minutes supports accurate alignment.
- Custom OEM/ODM support available for tailored solutions.
Specification Summary
| Item | Value |
|---|---|
| Material | Fused Silica |
| Shape | Plano-convex |
| Diameter | 100 mm |
| Surface Quality | 40/20 |
| Coating | anti-reflective (AR) |
Full Specifications
| Parameter | Value |
|---|---|
| Type | Convex Lens, Aspherical Lens, Plano Convex Lens, Biconvex Lens |
| Customized Support | OEM, ODM, OBM |
| Warranty | 1 Year |
| Weight | 0.01 |
| Focal Length Tolerance | ±1% |
| Clear Aperture | >90% |
| Color | Clear transparent |
| Tolerance | ±0.1mm |
| Surface Figure | lambda/2 @632.8nm |
| Centration | ±3 arc minutes |
| Effective Focal Length | ±5mm~±1000mm |
FAQ
Can I get custom sizes for this lens?
Yes, OEM and ODM support is available for custom sizes.
What is the tolerance for thickness?
The thickness tolerance is ±0.1mm.
